Product description: 3D scanner - Revopoint Miraco Plus
Miraco Plus by Revopoint is an advanced 3D scanner combining metrological photogrammetry and infrared light structure , providing precision down to 0.04 mm . It supports scanning both small and large objects (up to 4 x 4 x 4 m), offering two operating modes - Near Mode for details and Far Mode for fast capture of large surfaces. Equipped with a 48 MPx RGB camera , it generates full-color scans , and the 2x optical zoom improves detail reproduction. Miraco Plus works independently , thanks to a 6-inch AMOLED screen , an 8-core ARM A76 processor with 32 GB of RAM and 256 GB of internal memory. Additionally, WiFi 6, Bluetooth 4.1 connectivity and built-in USB Type-C mean that scans can be quickly exported in PLY, OBJ, STL, ASC, 3MF, GLTF and FBX formats. The built-in 5000 mAh battery provides 2 hours of operation , and 65W fast charging allows you to charge the scanner up to 80% in 35 minutes.

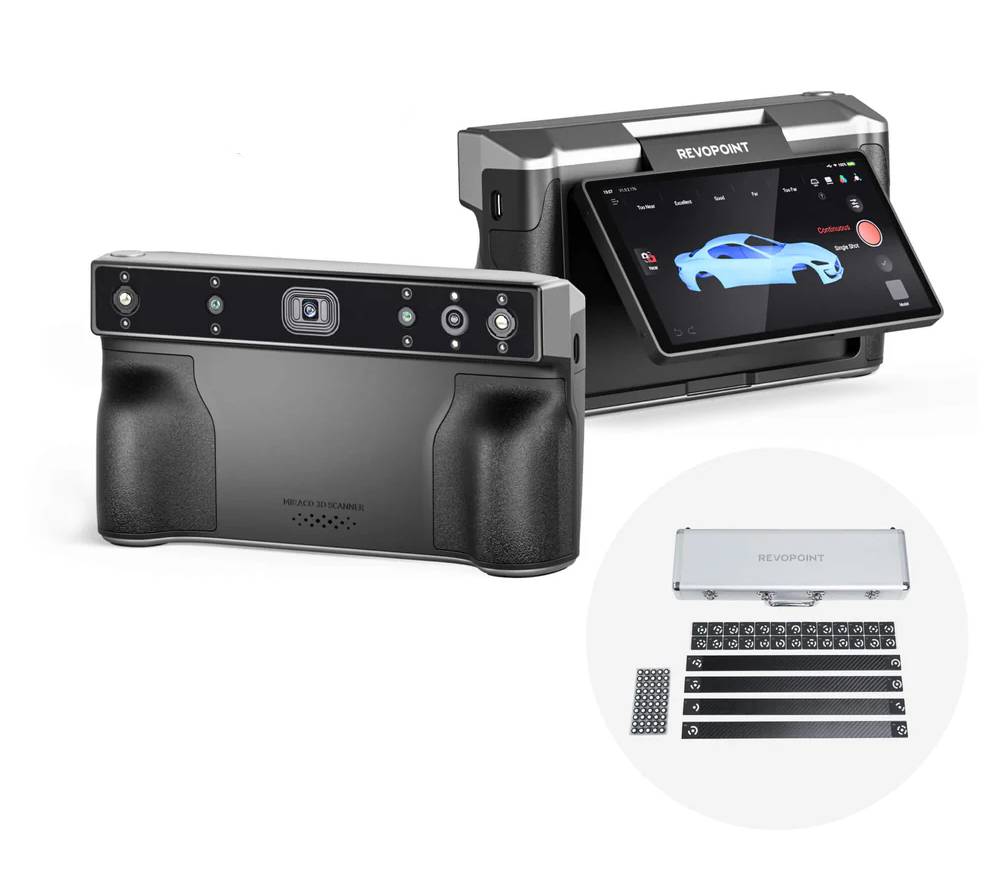

3D scanner - Revopoint Miraco Plus.
The scanner allows you to capture objects at up to 20 fps.
Advanced Metrology Photogrammetry
Miraco Plus uses metrological photogrammetry to create models with high measurement accuracy. Thanks to the measurement scale, coded markers and intelligent algorithms, the scanner achieves accuracy of up to 0.02 mm + 0.05 mm x L (m) , making it ideal for industrial and reverse engineering applications. The ability to integrate metrological data with a point cloud ensures high measurement repeatability and precision in shape reproduction.
Large format and precise scanning
The Miraco Plus scanner supports both small and large objects thanks to its adjustable scanning field. The minimum volume of the scanned object is 10 x 10 x 10 mm , while the maximum area is as much as 4 x 4 x 4 m . Thanks to two operating modes - Near Mode for details and Far Mode for larger objects - you can adjust the scanning method to your needs.
Efficiency and autonomy of work
Miraco Plus works without the need to connect to a computer , thanks to the built-in 8-core ARM A76 2.4 GHz processor and 32 GB of RAM . The scanner has 256 GB of internal memory , which allows you to save thousands of scans. The built-in 5000 mAh battery provides up to 2 hours of uninterrupted scanning , and the 65 W fast charging function allows you to charge the device up to 80% in just 35 minutes.
Advanced optics and precise detail reproduction
With its infrared light structure and 2x optical zoom , the scanner provides incredibly detailed surface mapping. Single-frame resolution is up to 0.04 mm , and point cloud interpolation enables smooth edges and precise details. Additional light sources, including LEDs and IR light , improve scan quality in difficult lighting conditions.
The 48 MPx RGB camera allows you to create colorful 3D models.

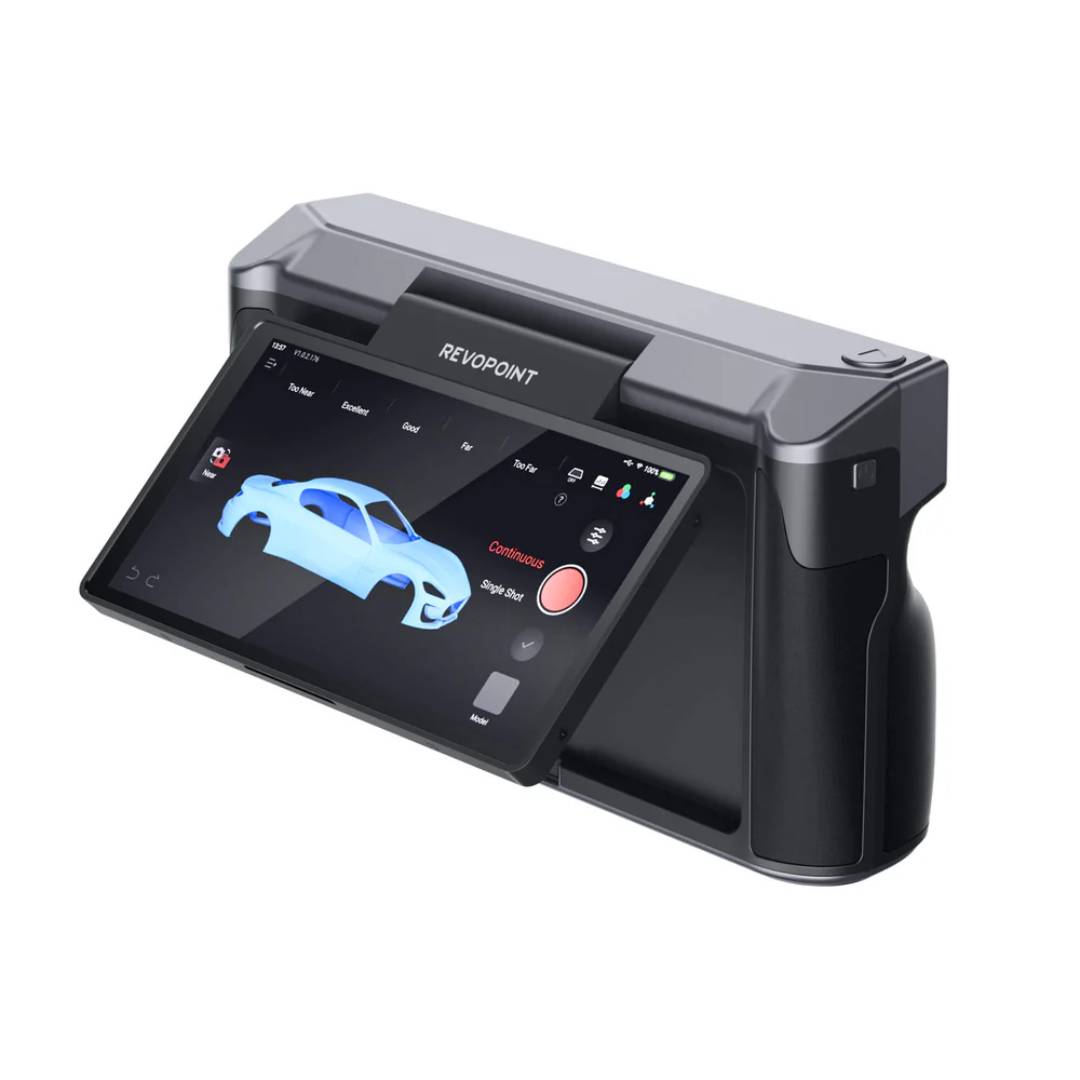

The 180° swivel screen lets you view objects from any angle and can be rotated to scan selfies.Modern interface and fast scan processing
The scanner is equipped with a 6-inch 2K AMOLED screen with the ability to rotate 180° , which makes it easy to work in both handheld and stationary mode. Integrated software allows you to easily remove noise, edit the point cloud, combine scans and fill gaps in 3D models. Built-in algorithms improve the quality of scans, reduce noise and ensure smooth transitions between surfaces. The scanner supports a wide range of file formats , including PLY, OBJ, STL, ASC, 3MF, GLTF and FBX, making it compatible with popular 3D modeling, printing and reverse engineering programs. Additionally, thanks to fast data transfer via WiFi 6 and USB Type-C , exporting models to a computer or to the cloud is lightning fast.
Contents of the set
- Miraco Plus 3D Scanner
- Measuring scales (4 pcs.)
- Coded tags (208 magnetic, 208 self-adhesive)
- Miniature turntable + sample bust
- Dot markers (6 mm, 700 pcs)
- Tripod
- Calibration plates for different scanning modes
- Magic Mat calibration mat (2 pcs.)
- 65W USB Type-C Power Adapter + 1.8m Cable
- USB Type-C to HDMI Adapter
- Wrist strap
- Carrying bag

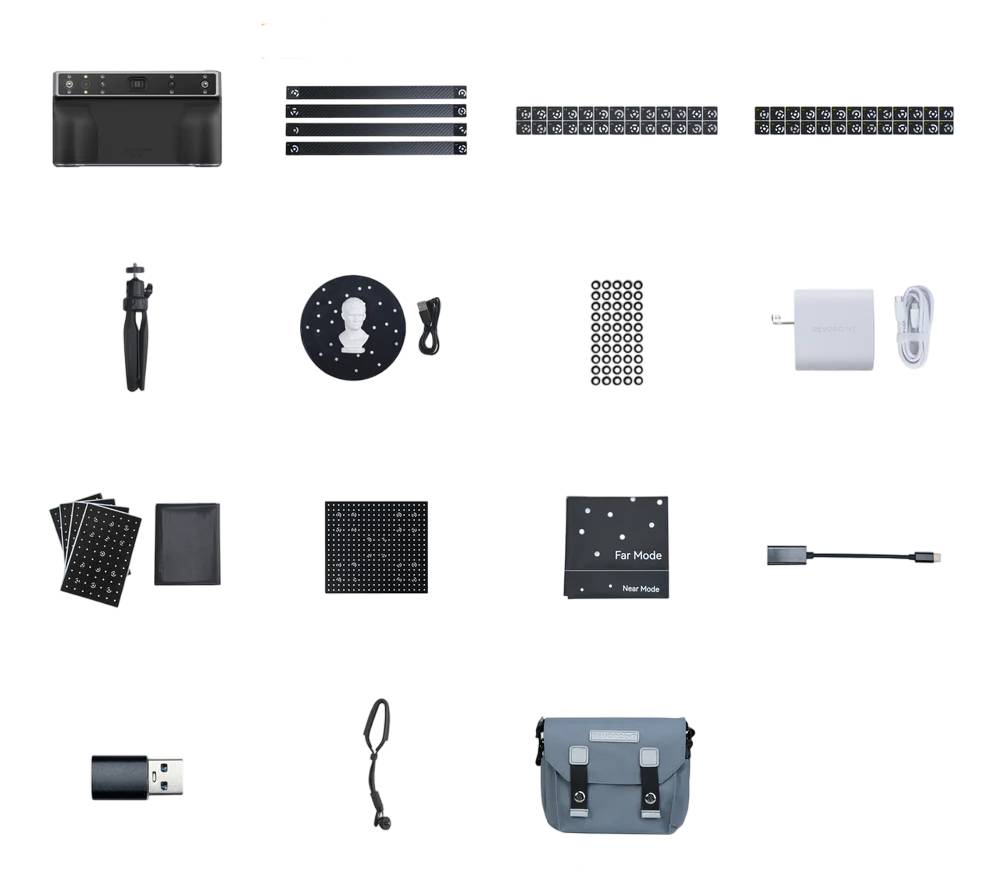

Items included in the set.
| Technical specifications of the Revopoint Miraco Plus 3D scanner | |
|---|---|
| Single Frame Precision | up to 0.02 mm |
| Single Frame Accuracy | up to 0.04 mm |
| Photogrammetric length accuracy | 0.02 mm + 0.05 mm x L (m), where L is the maximum measuring distance in meters |
| Distance between cloud points | up to 0.05 mm |
| Working range | from 100mm to 1000mm |
| Single scan area (closest distance) | 28 x 53mm at 100mm |
| Single scan area (farthest distance) | 975 x 775mm at 1000mm |
| Field of View Angle (H x W) | Near: 40 x 30°, Far: 56 x 42° |
| Minimum scan volume | 10x10x10mm |
| Maximum scan volume | 4x4x4m |
| Scanning speed | up to 20 fps |
| Depth camera resolution | up to 2MPx |
| RGB camera resolution | 48MPx |
| Color scanning support | Yes |
| Tracking Methods | Feature, Marker, Global Marker |
| Outdoor scanning capability | Yes |
| 3D light source | Class 1 - Infrared Light |
| Infrared diodes | 8 IR diodes |
| White LEDs | 2 LEDs |
| Position sensors | 9-axis IMU |
| Processor | 8-core ARM A76, 2.4GHz, Mali G52 GPU |
| Built-in processing | Depth map calculations, 3D scanning, photogrammetry calculations, point cloud processing and editing |
| Internal memory | 256GB |
| RAM memory | 32GB |
| Touchscreen display | 6 inches |
| Buttons | 2 |
| Minimum PC requirements for post-processing | macOS: CPU M1 Pro or better; RAM ≥ 8 GB Windows: CPU Intel i7 12th generation or better; RAM ≥ 16 GB |
| Recommended PC requirements for post-processing | macOS: CPU M3 or better; RAM ≥ 8 GB Windows: CPU Intel i9 11th generation or better; RAM ≥ 32 GB |
| Mobile requirements | Lack |
| Compatible operating systems | Windows 10/11 (64-bit), macOS 11.0 or later |
| Operating system | Android |
| Supported file formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Print-ready 3D models | Yes |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | 4.1 |
| Type of connector | USB Type-C |
| Power requirements | 7V to 11V DC, 5A, supports 65W fast charging |
| Battery | Built-in 5000 mAh capacity |
| Scanning special objects | Requires scanning spray for transparent, dark or highly reflective objects |
| User calibration possible | Yes |
| Supported accessories | Large rotary table, two-axis rotary table, large calibration table for Miraco, PowerBank power supply kit, metrology photogrammetry kit |
| Dimensions | 200x50x110mm |
| Mass | 750g |
