Product description: 3D scanner - Revopoint MetroY
The Revopoint MetroY is an industrial 3D scanner based on multi-line blue laser technology , designed for precise mapping of small and medium-sized objects . The device enables the rapid creation of dense point clouds and accurate 3D models that can be used in reverse engineering, quality control, and industrial design processes. The scanner utilizes three laser modes, enabling scanning of both flat surfaces and complex, highly detailed elements. Thanks to its high data acquisition speed and accuracy of up to 0.02 mm, the MetroY allows the creation of high-quality digital models ready for further processing in CAD software or 3D printing . Its compact design, wireless data transmission, and integration with dedicated Revopoint software make it a versatile tool for engineers, designers, and digitization specialists.

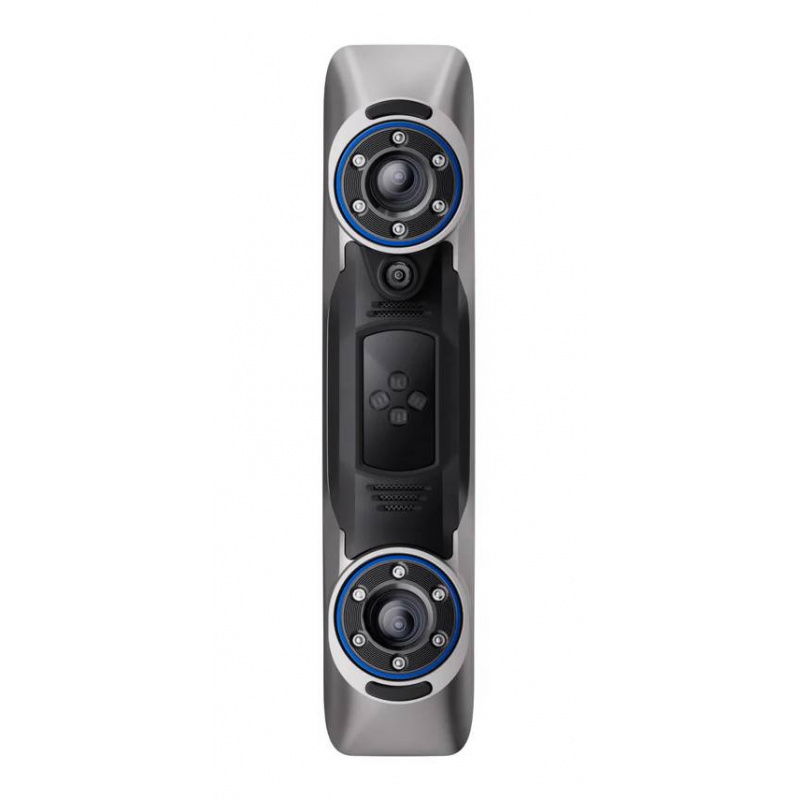

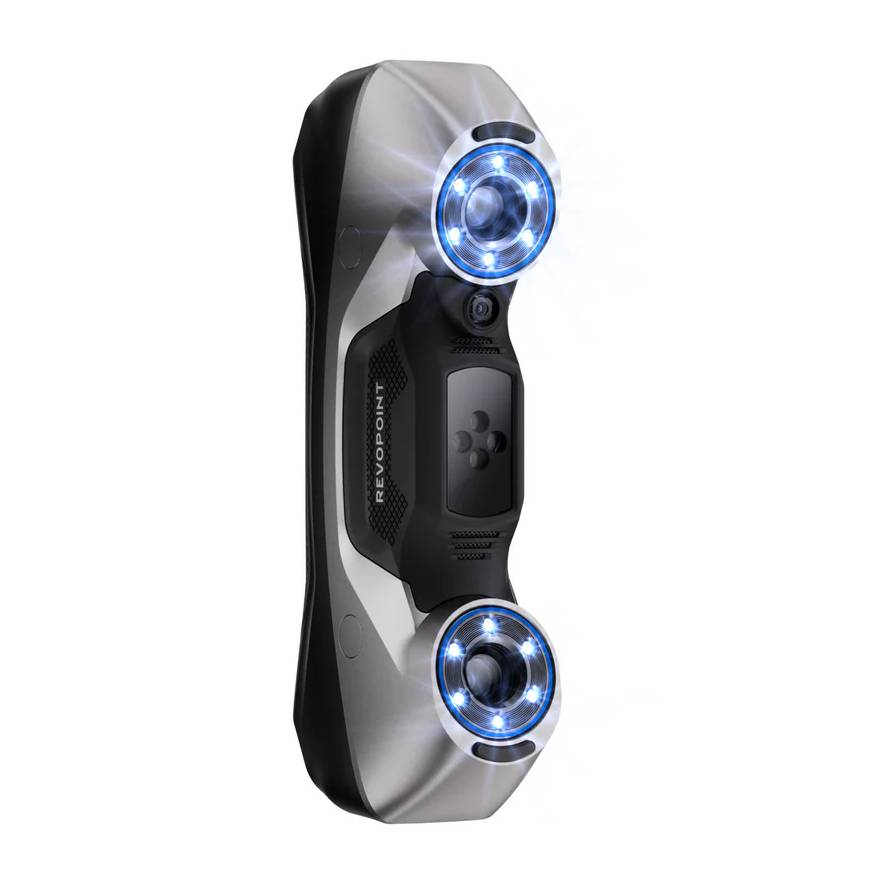

3D Scanner - Revopoint MetroY.

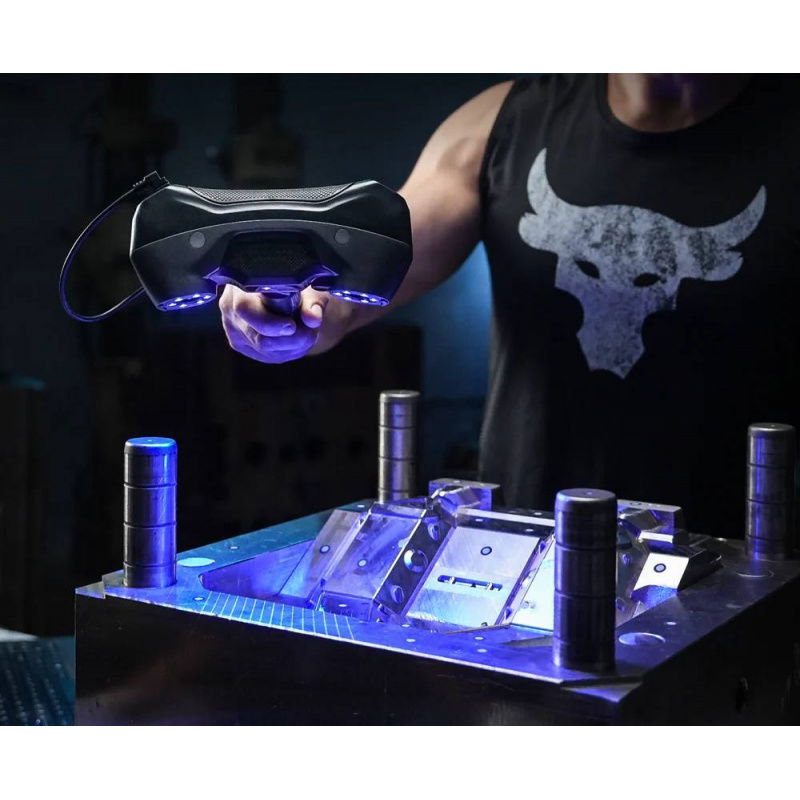

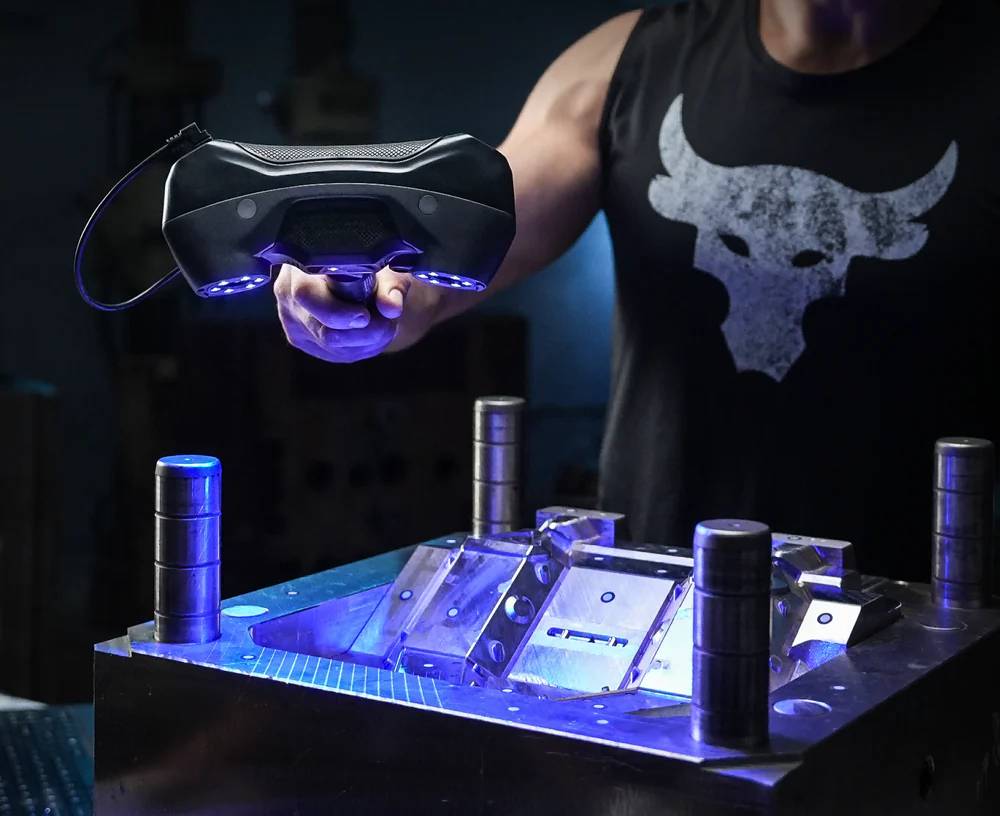

MetroY allows you to easily scan flat, glossy or black surfaces without the need for scanning spray.
Precise 3D scanning technology
MetroY utilizes advanced multi-line blue laser technology , enabling fast and accurate capture of geometric data. Cross-line mode allows for high-throughput scanning of large surfaces, while parallel-line mode allows for accurate mapping of details and edges. A third, single-line laser mode is designed for scanning deep holes, slots, and components with complex geometries. This combination of modes allows the scanner to handle both simple elements and complex technical components. The resulting point cloud can be quickly transformed into a precise 3D model.
Fast scanning and high data density
The high performance of the MetroY scanner allows for the capture of up to 1.5 million points per second , significantly accelerating the digitization process. The dense point cloud enables the representation of even the smallest structural elements. The minimum distance between points in the model is up to 0.05 mm , resulting in extremely detailed models. The scanner can capture objects ranging from 10 x 10 x 10 mm to 1 x 1 x 1 m . This makes it suitable for both small mechanical elements and larger industrial components.
The scanner generates point clouds at a speed of up to 1.5 million points per second, ensuring fast and precise 3D data acquisition.

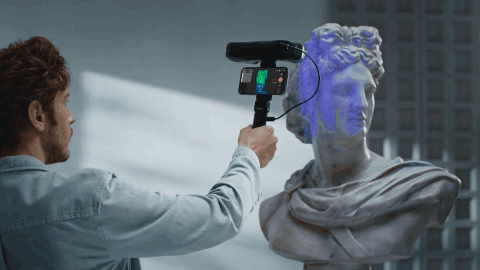

You can monitor the scanning progress in real time using the Revo Mirror feature on your device or monitor.

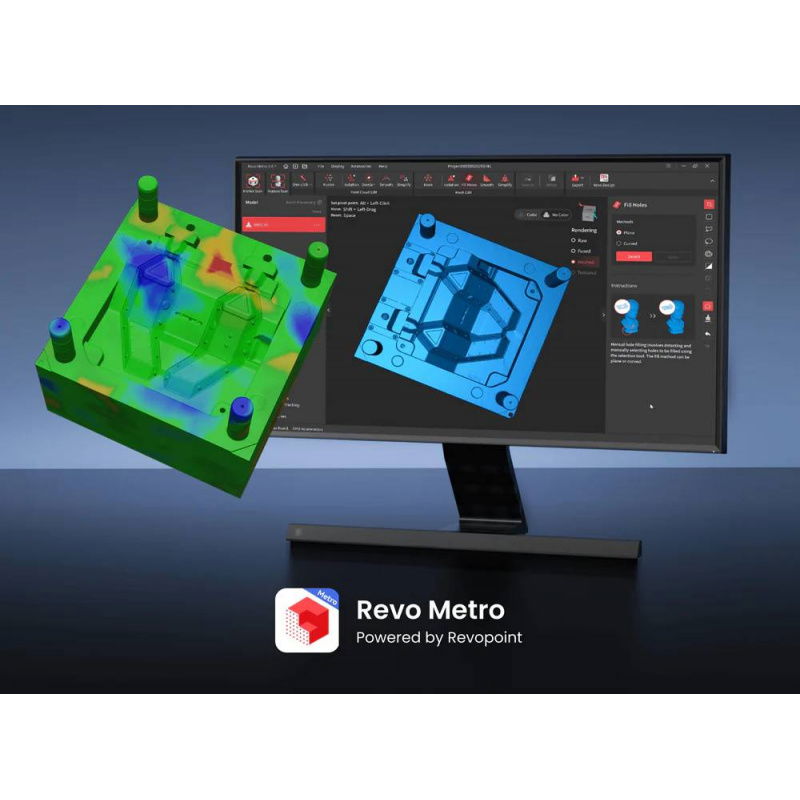

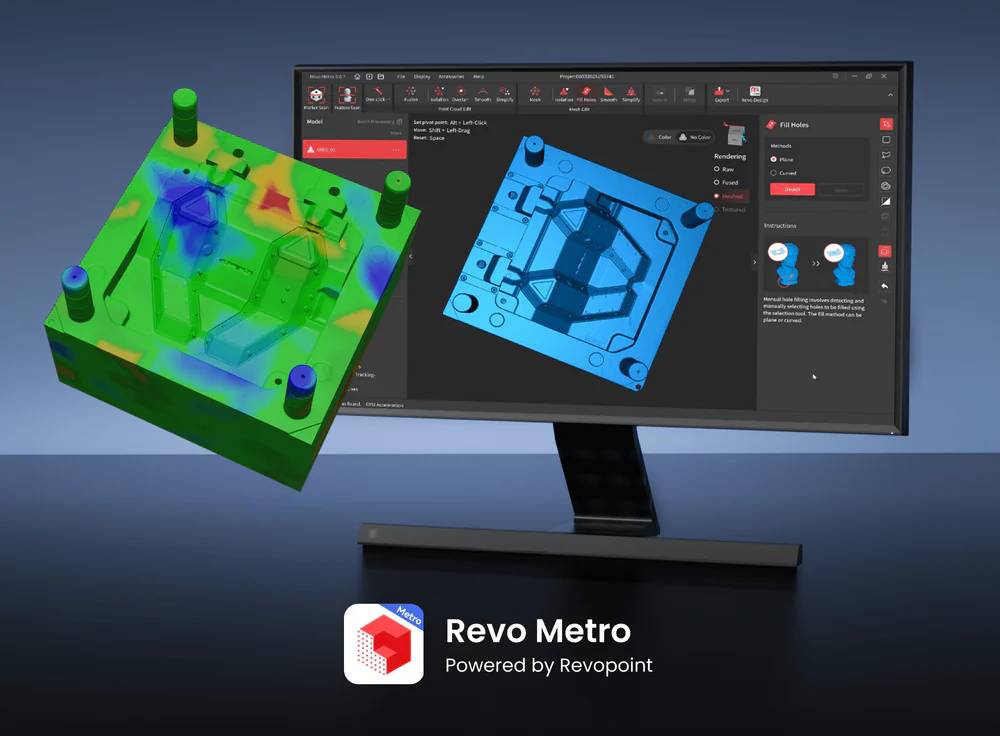

Revo Metro Software and CAD Integration
MetroY works with the free Revo Metro software , which allows you to complete the entire scanning process in four steps— from data acquisition to model export . The program offers extensive scanning parameter settings and real-time point cloud preview. This allows you to control scan quality and quickly identify missing data fragments. Models can be exported to popular formats such as STL, OBJ, PLY, and FBX . Integration with Revo Design and Revo Measure also enables the conversion of scans to CAD models and the performance of metrological measurements.
Applications in engineering and manufacturing
The MetroY scanner was designed for professional industrial and engineering applications. It is ideal for reverse engineering processes , enabling the rapid transformation of physical components into digital models. It can also be used in quality control to compare real-world components with CAD models . In prototyping, it allows for the rapid digitization of components and the implementation of design changes. Thanks to its ability to create accurate digital twins of objects, the MetroY is also suitable for 3D printing and part reconstruction .
MetroY transmits scan data in real time over WiFi 6, using your computer's processing power to process the data.

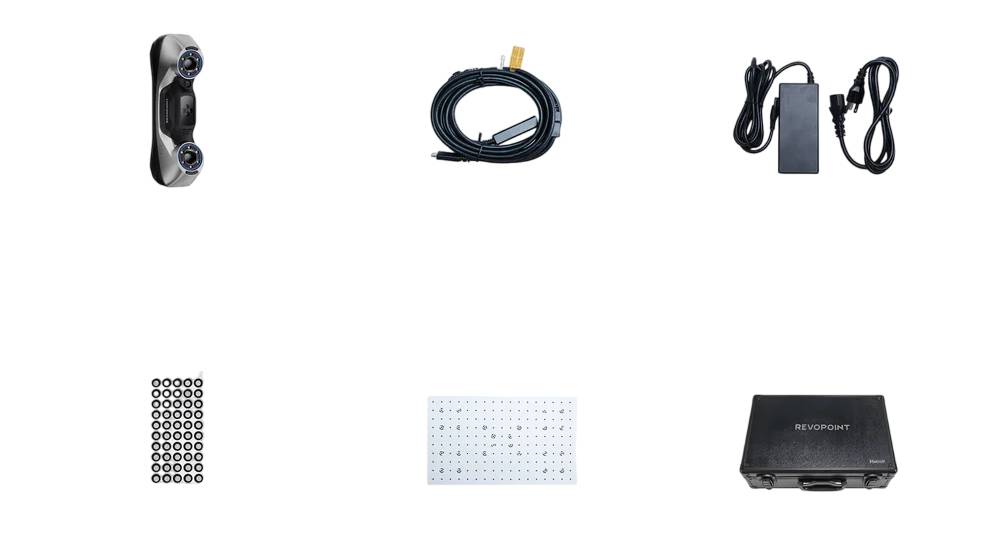

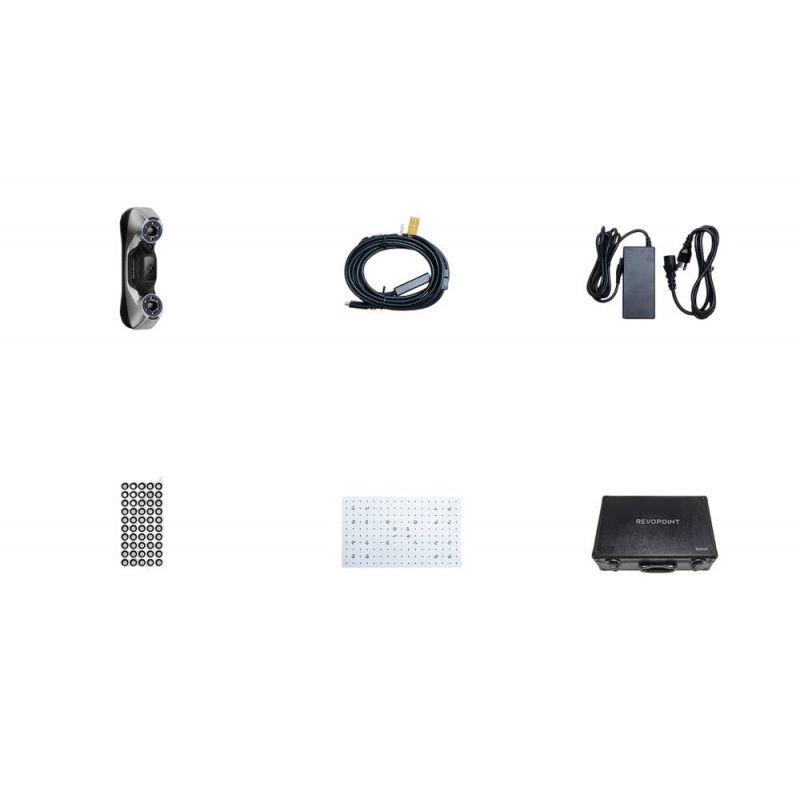

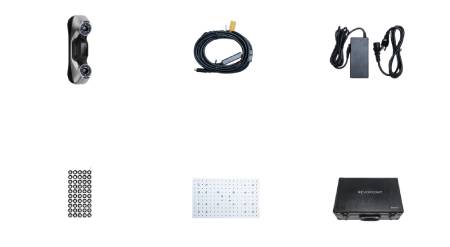

Elements included in the set.
Contents of the set
- Revopoint MetroY 3D Scanner
- USB Type-C to USB Type-C cable
- Charger
- Scanning markers
- Calibration plate
- Transport case
| Technical specifications and comparison of the Revopoint MetroY and MetroY Pro 3D scanners | ||
|---|---|---|
| Characteristic | MetroY | MetroY Pro |
| Scanner type | manual | handheld and stationary |
| Scanning technology | multi-line laser | multi-line laser + structured light |
| Single frame precision | up to 0.01 mm | up to 0.01 mm |
| Single frame accuracy | up to 0.02 mm | up to 0.02 mm |
| Volumetric accuracy | 0.02 mm + 0.04 mm x L (m) | 0.02 mm + 0.04 mm x L (m) |
| Minimum distance between points | up to 0.05 mm | up to 0.05 mm |
| Working distance range | from 200 mm to 400 mm | from 200 mm to 400 mm |
| Scanning area (close range) | 123 x 130 mm | 152 x 138 mm |
| Scanning area (far distance) | 290 x 260 mm | 332 x 276 mm |
| Object size range | from 10 x 10 x 10 mm to 1 x 1 x 1 m | from 10 x 10 x 10 mm to 1 x 1 x 1 m |
| Scanning speed | up to 1,500,000 points/s | up to 2,000,000 points/s (laser) / 7,000,000 points/s (structured light) |
| Angular field of view (H x V) | 43° x 33° | 49° x 38° |
| RGB camera | 2 MPx | 2 MPx |
| Color scanning | NO | yes (Auto Turntable mode) |
| Tracking methods | marker, global marker | marker, global marker, feature |
| Light source | 30 cross lines, 15 parallel lines, 1 single line | 34 cross lines, 15 parallel lines, 1 single line + 62 structured light lines |
| Auxiliary lighting | 12 blue LEDs | 12 blue LEDs |
| Operating system | Windows 10/11, macOS 11 or later | Windows 10/11, macOS 11 or later |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Communication | USB Type-C, WiFi 6 | USB Type-C, WiFi 6 |
| Processor | 4-core ARM, 2 GHz | 4-core ARM, 2 GHz |
| Built-in processing | Depth Computing | Depth Computing |
| Number of buttons | 4 | 4 |
| Minimum computer requirements | macOS: CPU M3 Pro/M4, RAM ≥ 18 GB Windows: Intel i7 13th gen. or AMD Ryzen 7 5800 RAM ≥ 32 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) | macOS: CPU M3 Pro/M4, RAM ≥ 18 GB Windows: Intel i7 13th gen. or AMD Ryzen 7 5800 RAM ≥ 32 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) |
| Recommended computer requirements | macOS: CPU M4 Pro or better, RAM ≥ 24 GB Windows: Intel i9 12th gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8GB) or better | macOS: CPU M4 Pro or better, RAM ≥ 24 GB Windows: Intel i9 12th gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8GB) or better |
| Power supply | DC 12V, 3A | DC 12V, 3A |
| Dimensions | 211 x 94 x 47 mm | 211 x 94 x 47 mm |

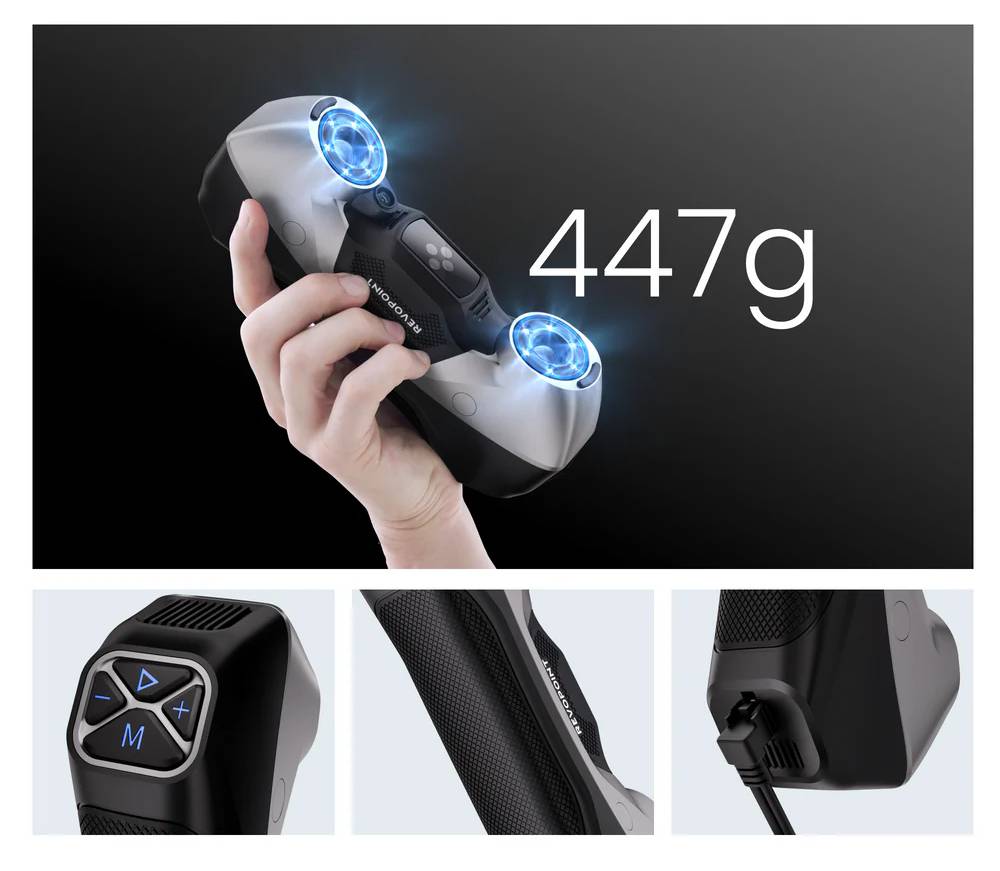

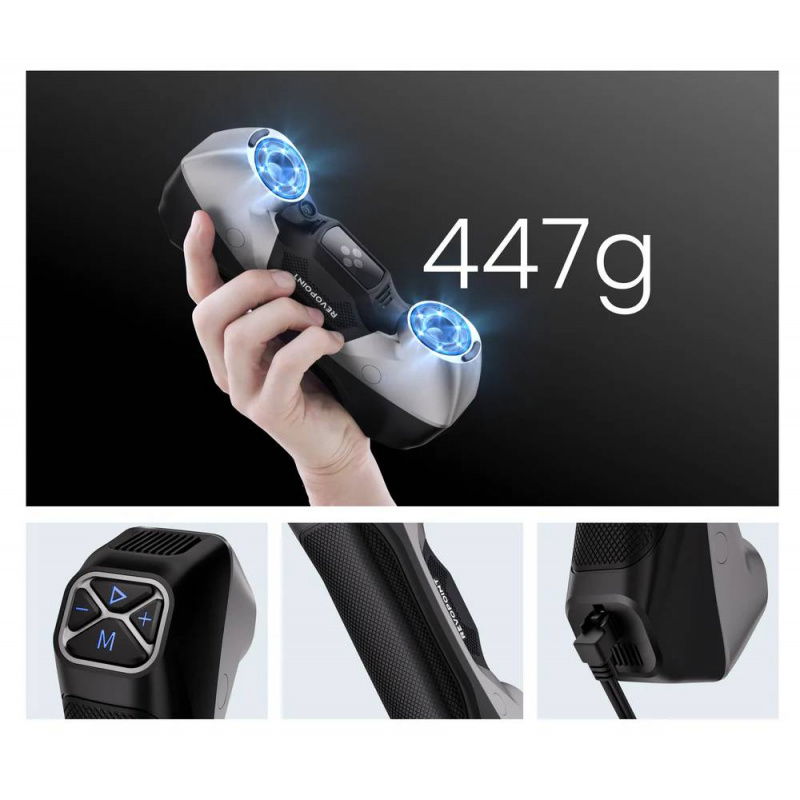

| Mass | 447 g | 450 g |
