Product description: 3D scanner - Revopoint MetroY Pro
The Revopoint MetroY Pro is an advanced 3D scanner designed for the precise digitization of small and medium-sized parts, technical parts, industrial components, and objects with complex geometry. Utilizing multi-line blue laser technology and full-field blue structured light , it can operate in five scanning modes tailored to different surfaces and tasks. The model offers precision down to 0.01 mm , accuracy up to 0.02 mm , and volumetric accuracy of 0.02 mm + 0.04 mm x L (m) , making it suitable for reverse engineering, quality control, and preparing models for further CAD processing. The supported object size ranges from 10 x 10 x 10 mm to 1 x 1 x 1 m , and USB Type-C and WiFi 6 connectivity enable both stable work at a computer and convenient scanning with a wireless preview. The MetroY Pro handles challenging surfaces—metallic, glossy, or black—without the need for matting sprays. A scanning speed of up to 7,000,000 points per second combined with a point cloud resolution of up to 0.05 mm ensures that no detail is missed. Integrated temperature sensors monitor operating status in real time , eliminating accuracy drift caused by component heating.

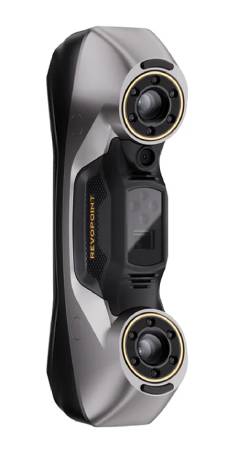

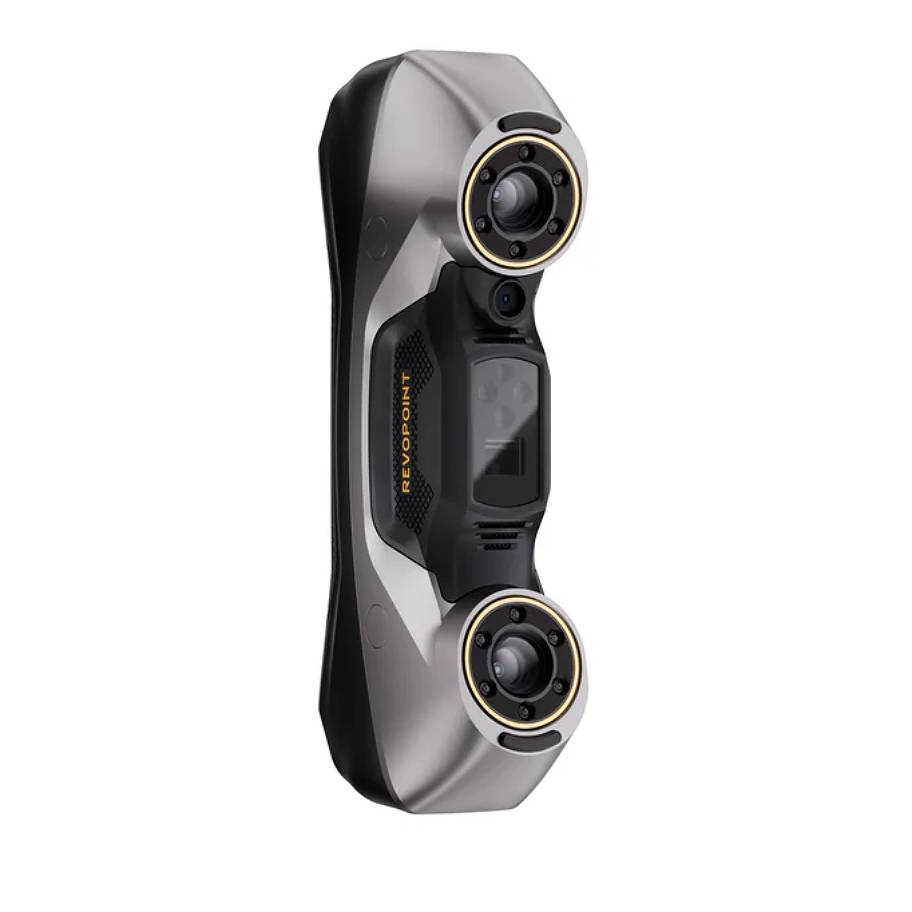

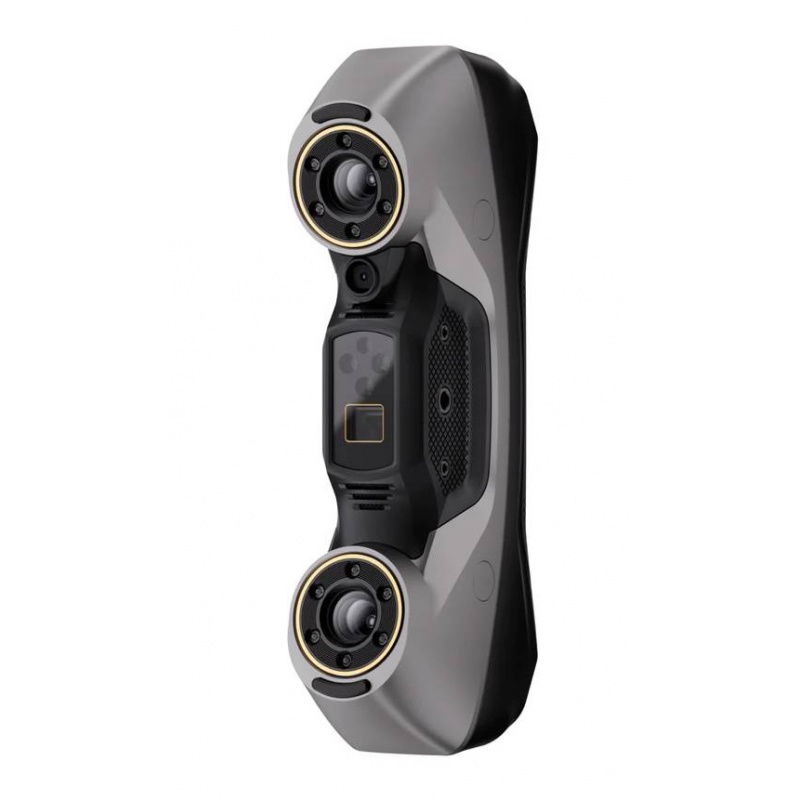

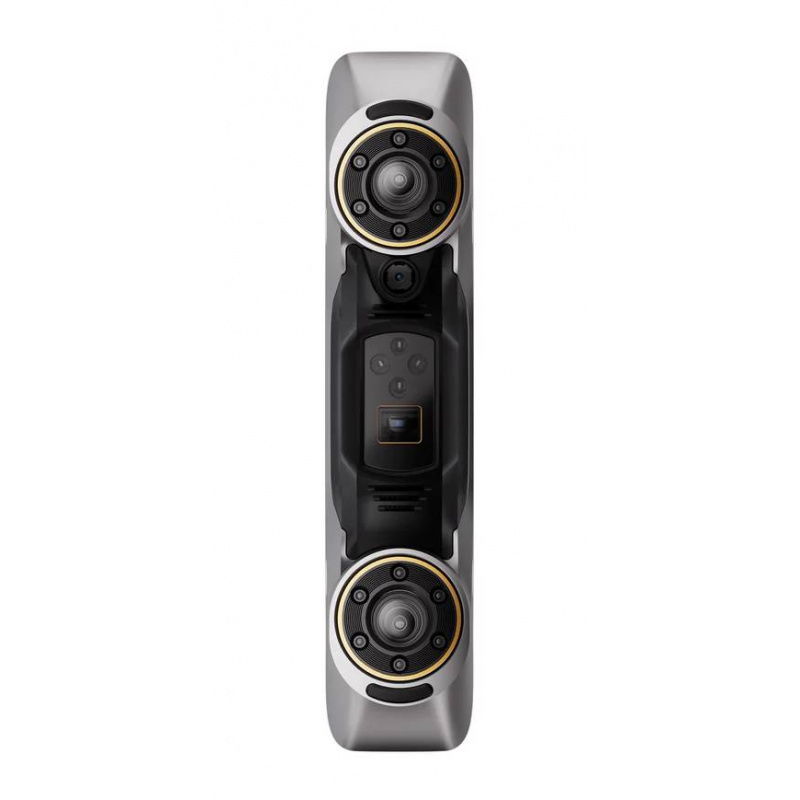

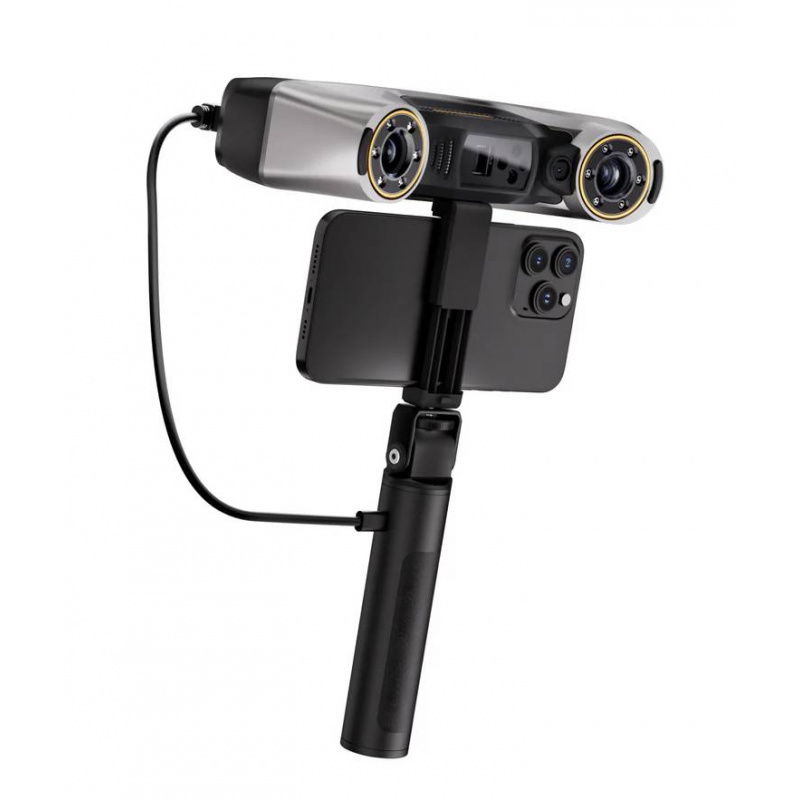

3D scanner - Revopoint MetroY Pro.

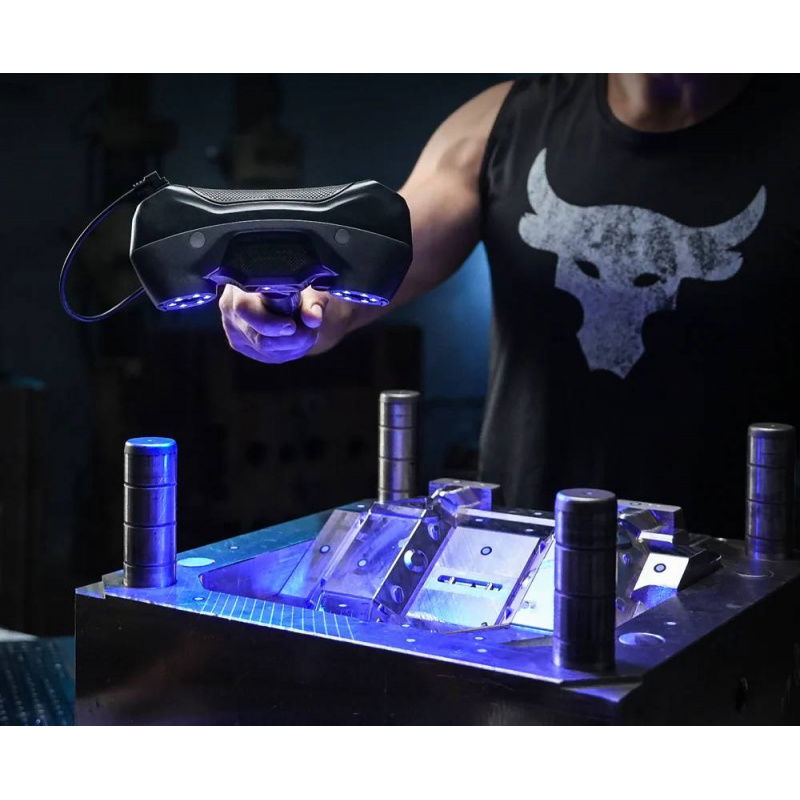

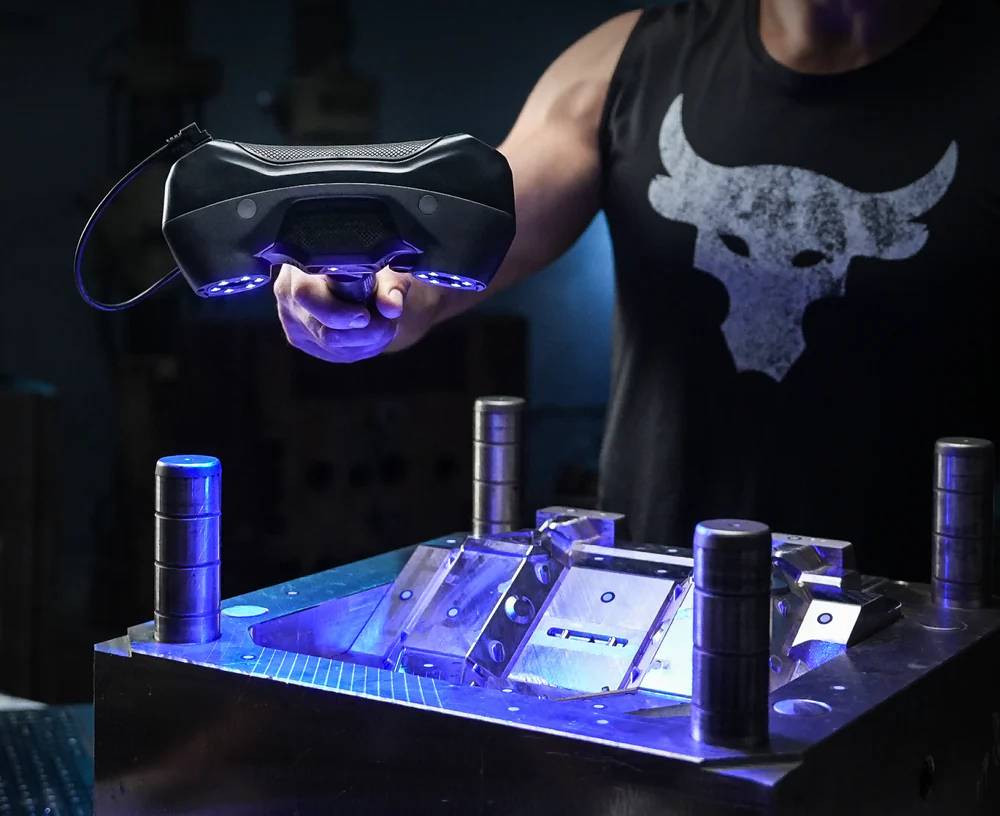

MetroY Pro allows you to scan flat surfaces and glossy or black areas without using spray.
Five 3D scanning modes for different surfaces and geometries
The Revopoint MetroY Pro offers five 3D scanning modes , allowing you to tailor your workflow to the type of object and the level of detail you need. The 34-line cross mode is designed for rapid data capture, the 15-line parallel mode facilitates the capture of fine details and edges, and the single line mode is ideal for capturing deep holes, crevices, and grids. Additionally, the MetroY Pro utilizes a 62-line full-field structured light , allowing you to scan feature-rich objects without markers. This is complemented by an automatic rotary stage mode , which streamlines the digitization of smaller elements and helps achieve consistent results. The system generates as many as 7,000,000 points per second , reducing the time needed to prepare digital documentation.
3D scanning accuracy and parameters for technical applications
MetroY Pro is designed for tasks requiring high model-to-object accuracy. The scanner achieves precision down to 0.01 mm , single-frame accuracy up to 0.02 mm , and volumetric accuracy of 0.02 mm + 0.04 mm x L (m) , making it suitable for reverse engineering, quality control, and rapid prototyping. The working distance ranges from 200 mm to 400 mm , and the single-capture field ranges from 152 x 138 mm to 332 x 276 mm . Supported model sizes range from 10 x 10 x 10 mm to 1 x 1 x 1 m, making it suitable for The device is suitable for both small details and medium-sized industrial components. An additional advantage is the minimum distance between points after merging down to 0.05 mm , which translates into high data density.
62-line, full-field structured blue light allows you to scan details without using markers.

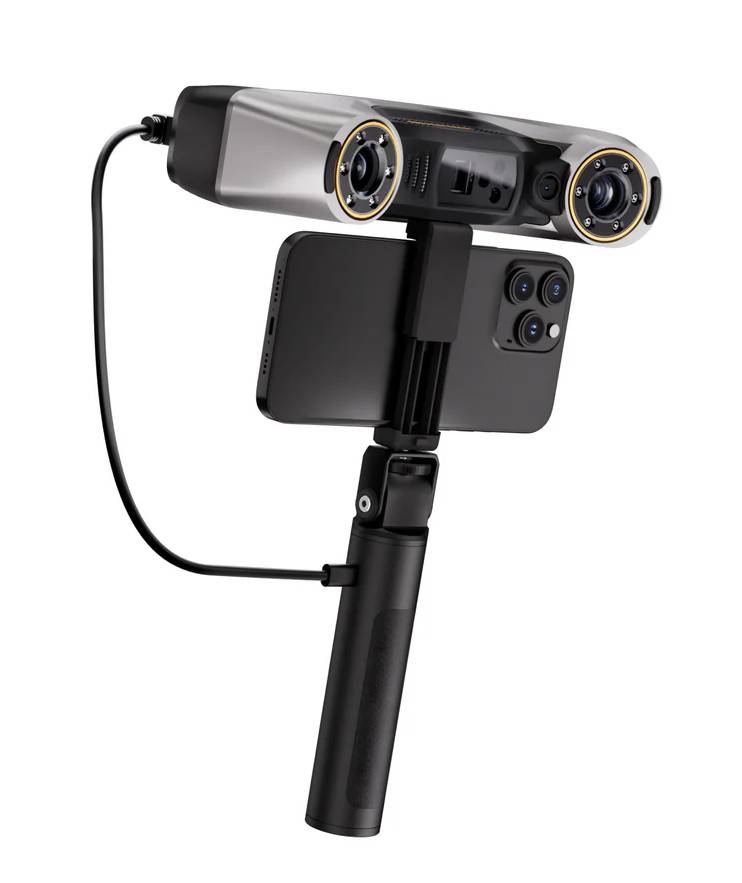

The 3D scanner can operate wirelessly, thanks to WiFi and Revo Mirror, which allow you to stream scans.
WiFi 6 connectivity, mobile operation and scanning stability
The MetroY Pro scanner can operate wired via USB Type-C or wirelessly using WiFi 6 , increasing operational flexibility when scanning larger or more difficult-to-reach items. The manufacturer also includes support for the Revo Mirror function, which allows the scan image to be transmitted in real time to another device or monitor . This allows for faster detection of missing data fragments and more convenient control of the digitization process. Temperature sensors that monitor the device in real time help maintain stable results, reducing the impact of heat on accuracy. The 211 x 94 x 47 mm and 450 g design remains mobile, yet prepared for more demanding workshop and industrial tasks. The implemented quad-core 2 GHz ARM processor performs depth pre-processing directly within the scanner, reducing computer load and ensuring smooth point cloud viewing.
Revo Metro, Revo Design and Revo Measure software in one workflow
Revopoint MetroY Pro works with the free Revo Metro software, which allows scanning, point cloud processing, editing, and exporting models in popular formats such as STL, OBJ, and STEP . The program runs on Windows and macOS and allows for real-time control of the scanning process, including monitoring point cloud quality and data completion. For more advanced applications, models can be transferred to Revo Design for scan-to-CAD conversion and to Revo Measure for metrology and comparison tasks against CAD models or drawings. This makes MetroY Pro useful not only as a digitizing scanner but also as part of a complete design, inspection, and manufacturing process. Extensive file format support facilitates integration with 3D modeling , cutting, analysis, and technical documentation programs.

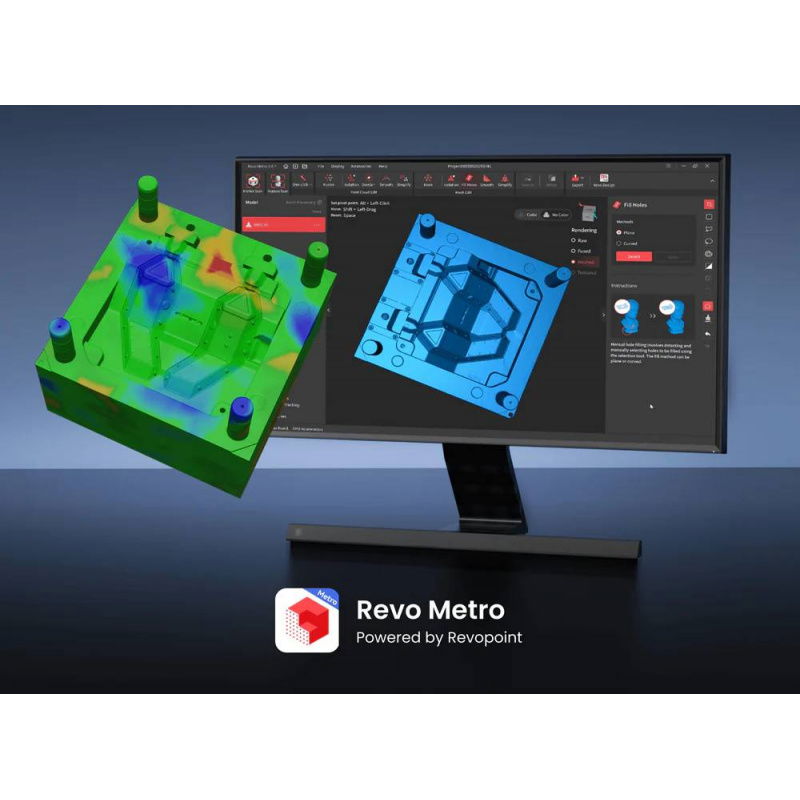

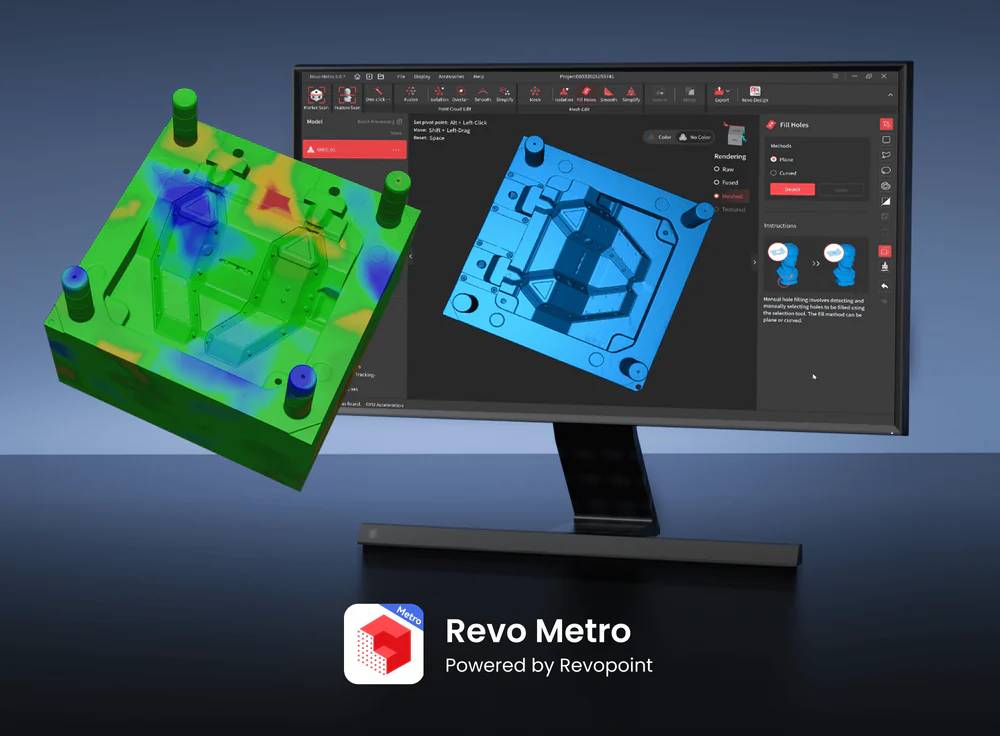

The software is ideal for reverse engineering, product development and industrial design.

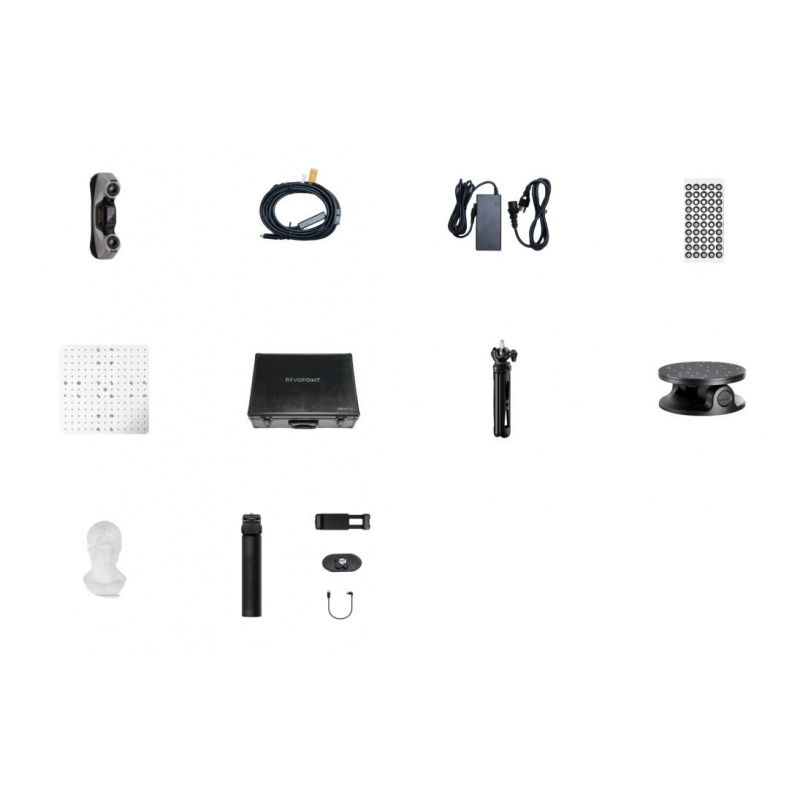

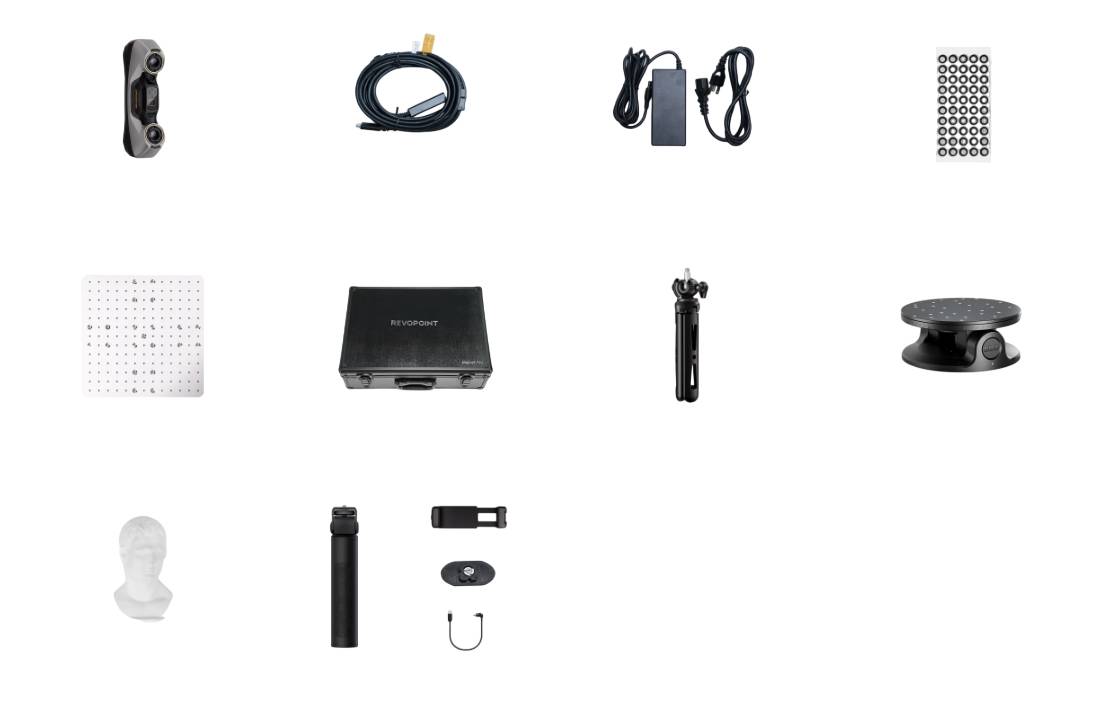

Elements included in the set.
Kit contents
- Revopoint MetroY Pro 3D scanner
- USB Type-C - USB Type-C cable
- Charger
- Markers
- Calibration table
- Transport case
- Tripod
- Two-axis rotating platform
- Example bust
- Mobile kit (3rd generation)
| Technical specifications and comparison of the Revopoint MetroY and MetroY Pro 3D scanners | ||
|---|---|---|
| Characteristic | MetroY | MetroY Pro |
| Scanner type | manual | handheld and stationary |
| Scanning technology | multi-line laser | multi-line laser + structured light |
| Single frame precision | up to 0.01 mm | up to 0.01 mm |
| Single frame accuracy | up to 0.02 mm | up to 0.02 mm |
| Volumetric accuracy | 0.02 mm + 0.04 mm x L (m) | 0.02 mm + 0.04 mm x L (m) |
| Minimum distance between points | up to 0.05 mm | up to 0.05 mm |
| Working distance range | from 200 mm to 400 mm | from 200 mm to 400 mm |
| Scanning area (close range) | 123 x 130 mm | 152 x 138 mm |
| Scanning area (far distance) | 290 x 260 mm | 332 x 276 mm |
| Object size range | from 10 x 10 x 10 mm to 1 x 1 x 1 m | from 10 x 10 x 10 mm to 1 x 1 x 1 m |
| Scanning speed | up to 1,500,000 points/s | up to 2,000,000 points/s (laser) / 7,000,000 points/s (structured light) |
| Angular field of view (H x V) | 43° x 33° | 49° x 38° |
| RGB camera | 2 MPx | 2 MPx |
| Color scanning | NO | yes (Auto Turntable mode) |
| Tracking methods | marker, global marker | marker, global marker, feature |
| Light source | 30 cross lines, 15 parallel lines, 1 single line | 34 cross lines, 15 parallel lines, 1 single line + 62 structured light lines |
| Auxiliary lighting | 12 blue LEDs | 12 blue LEDs |
| Operating system | Windows 10/11, macOS 11 or later | Windows 10/11, macOS 11 or later |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Communication | USB Type-C, WiFi 6 | USB Type-C, WiFi 6 |
| Processor | 4-core ARM, 2 GHz | 4-core ARM, 2 GHz |
| Built-in processing | Depth Computing | Depth Computing |
| Number of buttons | 4 | 4 |
| Minimum computer requirements | macOS: CPU M3 Pro/M4, RAM ≥ 18 GB Windows: Intel i7 13th gen. or AMD Ryzen 7 5800 RAM ≥ 32 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) | macOS: CPU M3 Pro/M4, RAM ≥ 18 GB Windows: Intel i7 13th gen. or AMD Ryzen 7 5800 RAM ≥ 32 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) |
| Recommended computer requirements | macOS: CPU M4 Pro or better, RAM ≥ 24 GB Windows: Intel i9 12th gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8GB) or better | macOS: CPU M4 Pro or better, RAM ≥ 24 GB Windows: Intel i9 12th gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8GB) or better |
| Power supply | DC 12V, 3A | DC 12V, 3A |
| Dimensions | 211 x 94 x 47 mm | 211 x 94 x 47 mm |
| Mass | 447 g | 450 g |
