Product description: 3D scanner - Creality Sermoon X1
The Creality Sermoon X1 is a professional 3D scanner designed for industrial, engineering, design, and measurement applications. It utilizes a hybrid scanning system that includes one blue laser line, seven parallel laser lines, 34 cross lines, and NIR structured light , allowing it to accurately capture both fine details and large objects. The scanner offers accuracy down to 0.02 mm , volumetric accuracy up to 0.02 mm + 0.03 mm/m with scaling bars, and speeds up to 90 fps . With WiFi 6 connectivity, a 5000 mAh battery, and support for color textures, the Sermoon X1 is ideal for workshops, laboratories, manufacturing, and mobile work.

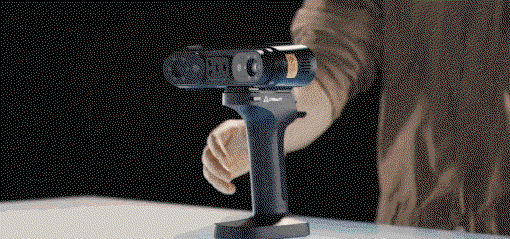

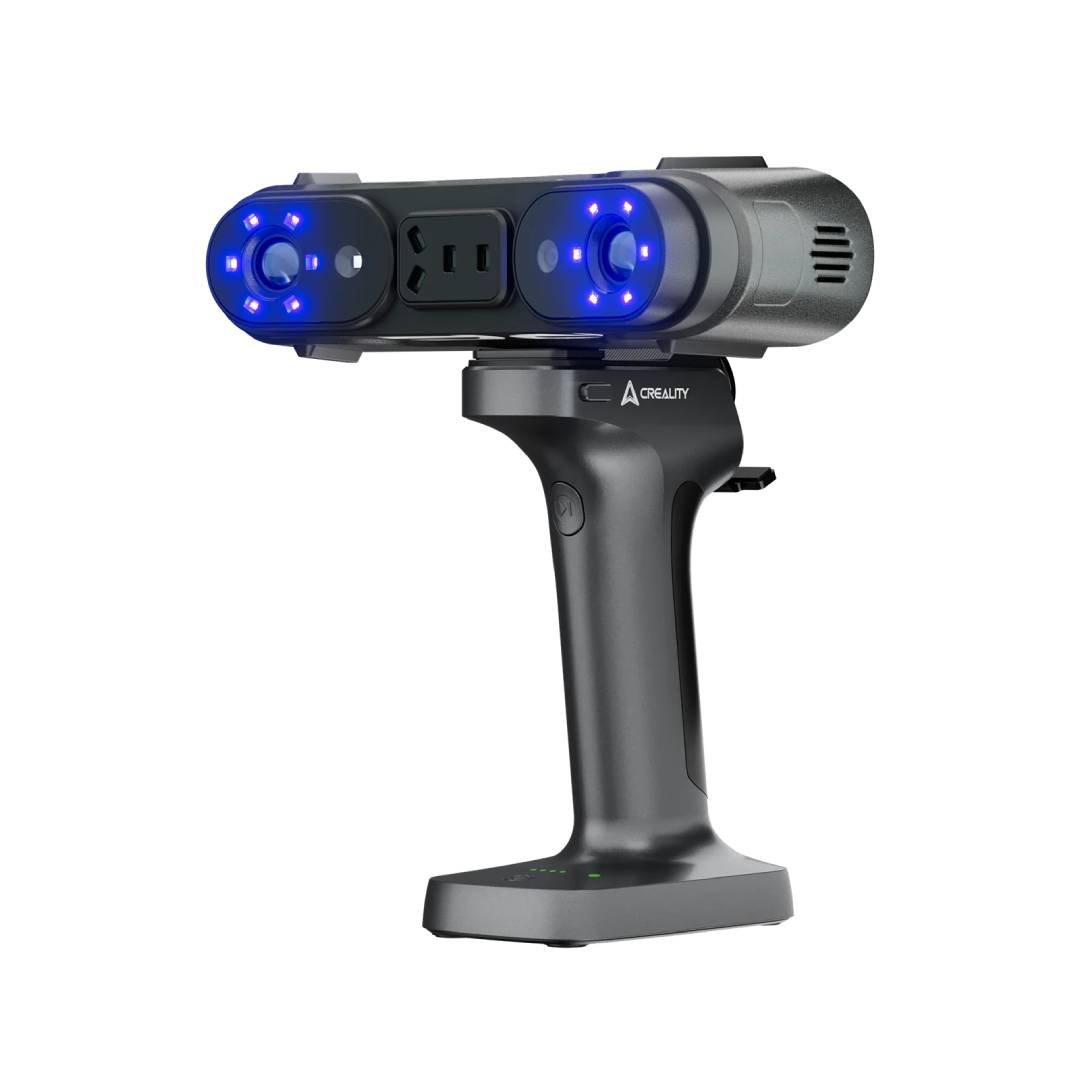

3D scanner - Creality Sermoon X1.

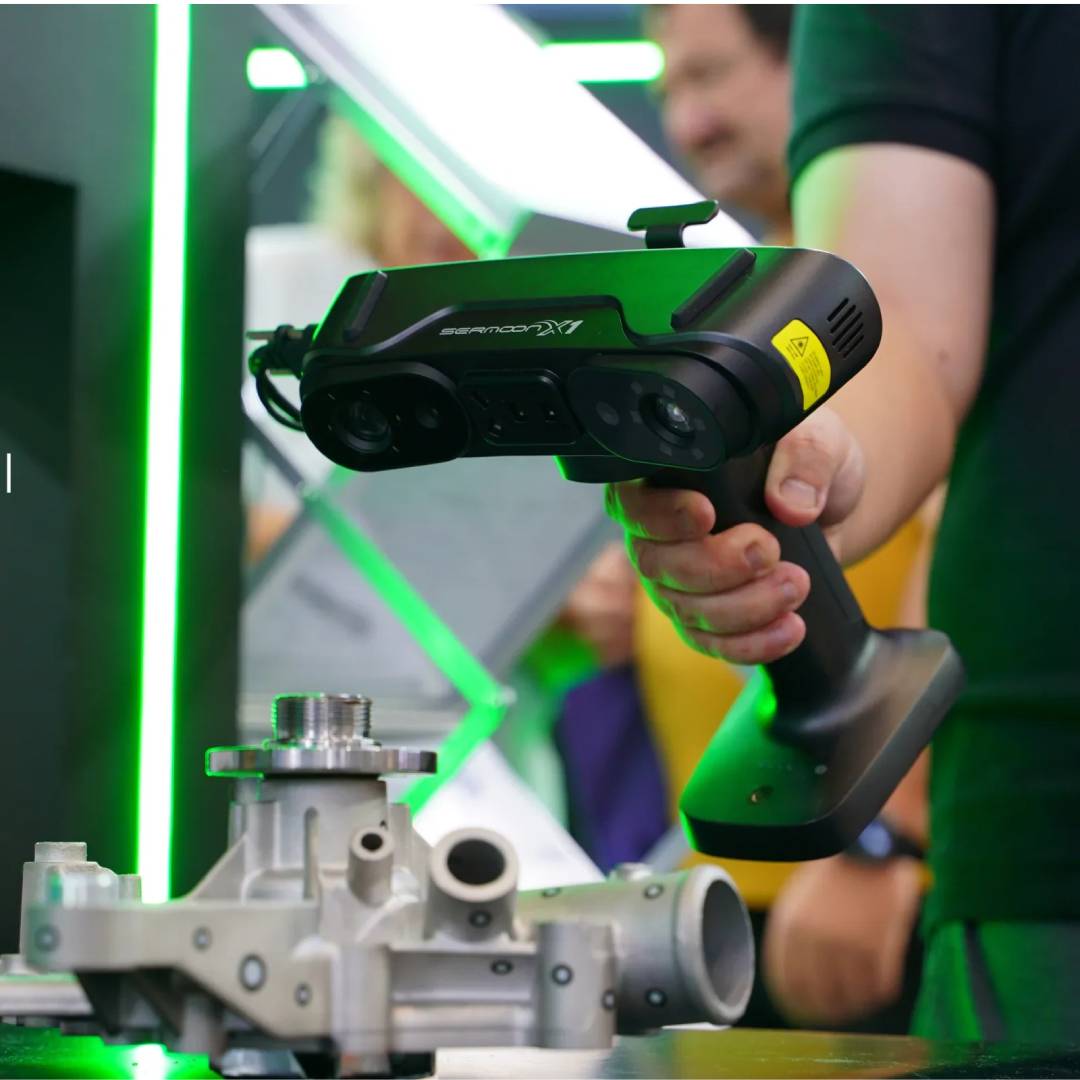

The scanner does not require the use of spray for black and metal surfaces.
Laser and NIR scanning technology

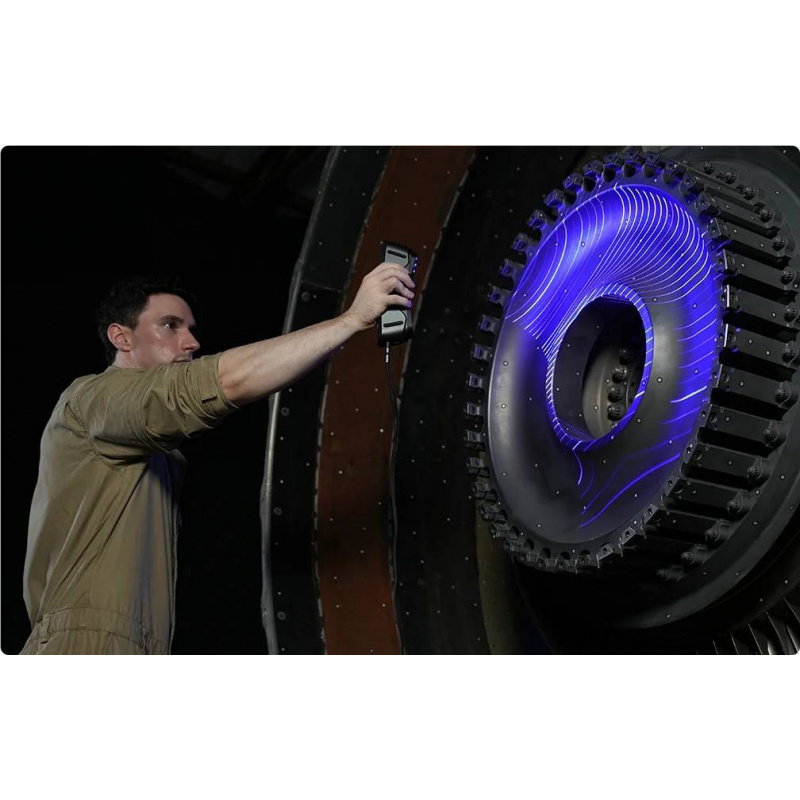

The Creality Sermoon X1 utilizes multiple operating modes to tailor the scanning method to the object type. A single blue laser line scans deep holes, crevices, and hard-to-reach areas, supporting a depth-to-diameter ratio of up to 6:1. Seven parallel laser lines are suitable for detailed and complex shapes, while 34 cross lines allow for rapid capture of larger object geometry. NIR mode enables marker-free scanning, significantly speeding up the digitization process for medium- to large-sized objects with rich geometry.
Industrial performance and measurement precision

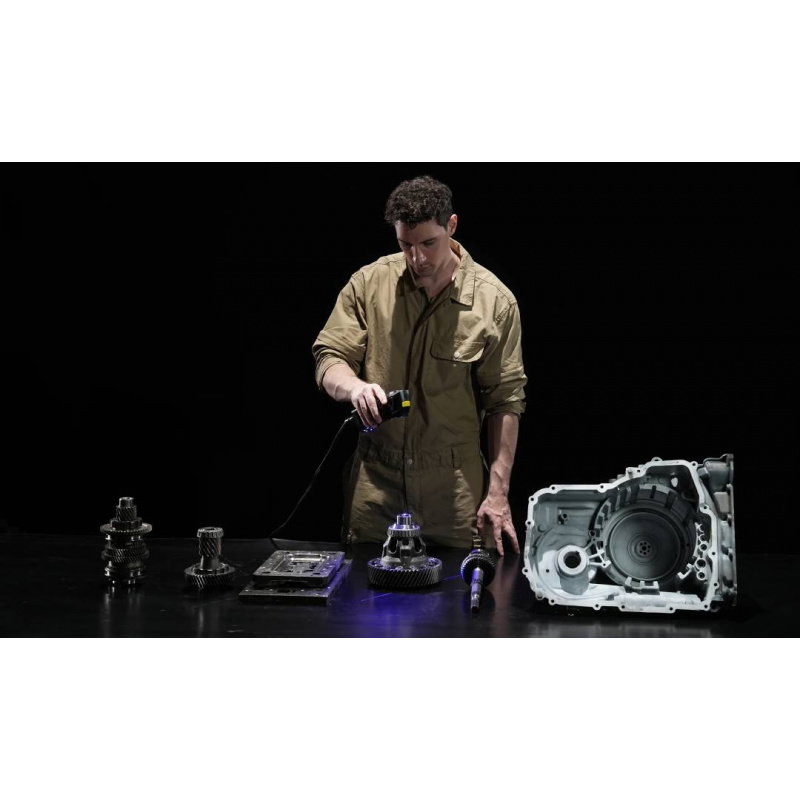

The scanner offers an accuracy of up to 0.02 mm , making it suitable for quality control, reverse engineering, and high-precision measurements. The scanning range covers objects from 5 x 5 x 5 mm to 4000 x 4000 x 4000 mm , allowing a single device to handle both small mechanical components and large industrial parts. In fast scanning mode, the Sermoon X1 reaches up to 90 fps , and in 34-line mode, up to 1,734,000 measurements/s . These parameters shorten digitization time and streamline work with large numbers of models.

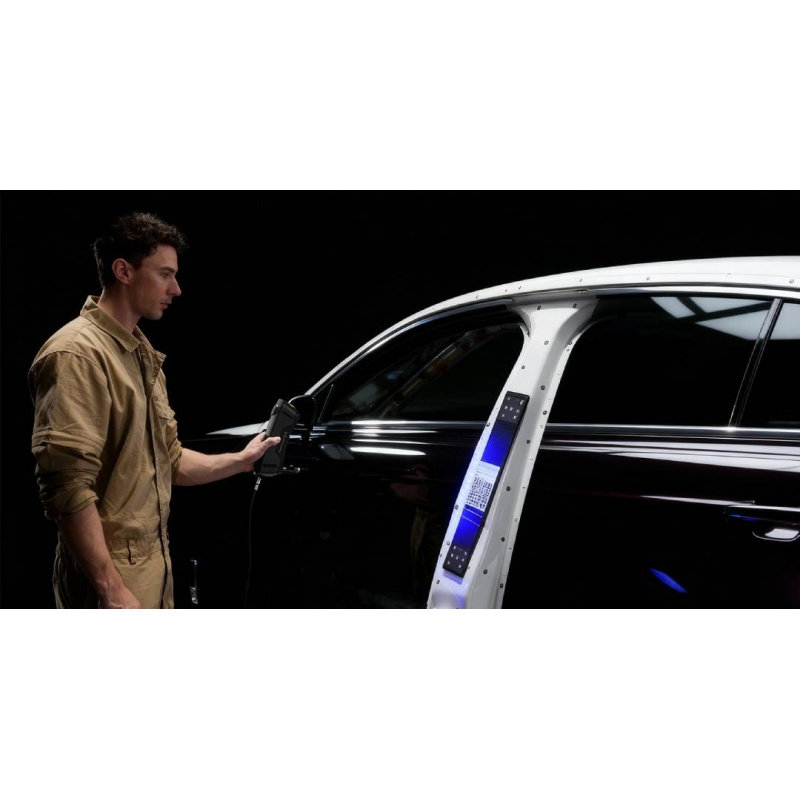

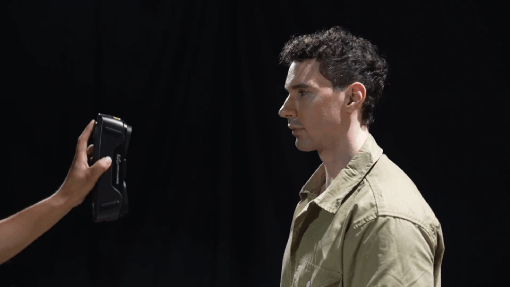

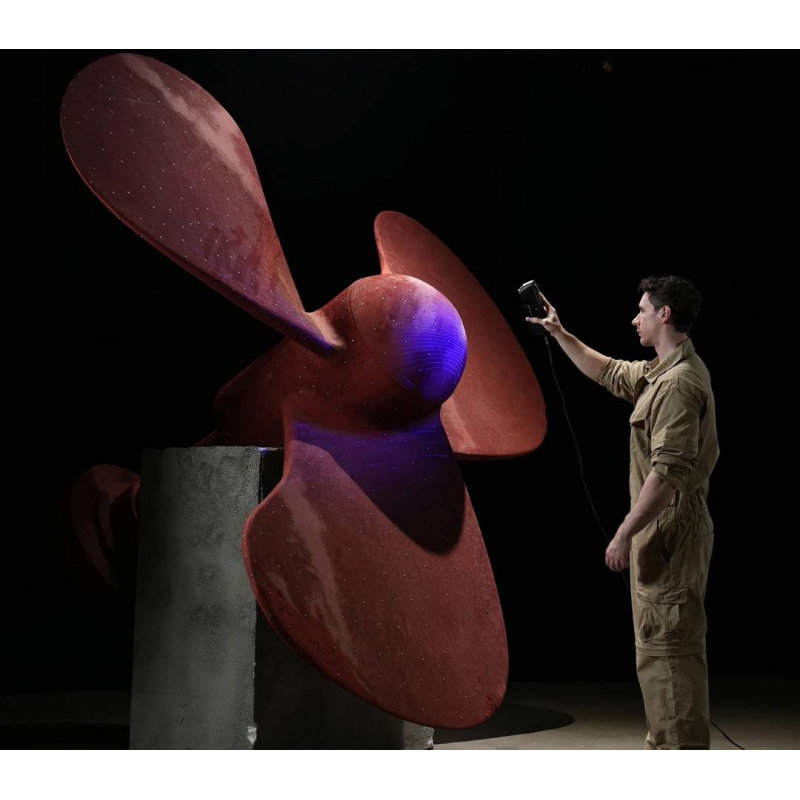

NIR structured light enables scanning of large areas without the use of markers.
WiFi 6 wireless scanning and 5000 mAh battery
Creality Sermoon X1 supports Wireless scanning via WiFi 6 increases workflow flexibility and simplifies scanning objects in the workshop, production hall, or field. Data transmission reaches up to 4.7 Gbps , with a latency of approximately 10 ms , promoting smooth viewing and stable operation. A built-in 5000 mAh battery provides over 4 hours of operation , and the USB Type-C interface facilitates charging. This allows the 3D scanner to be used on the go without constantly connecting cables.
Ergonomics, textures and intelligent software

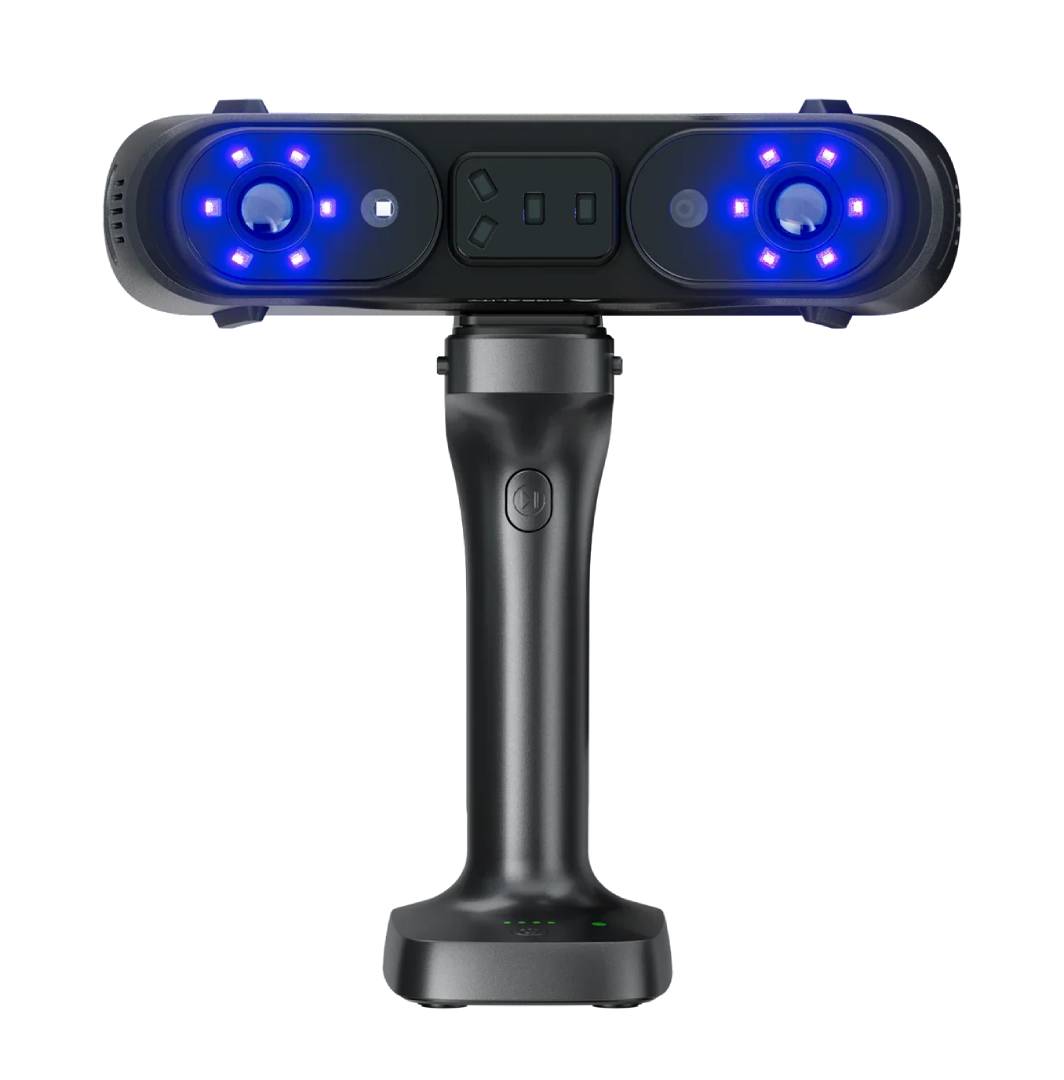

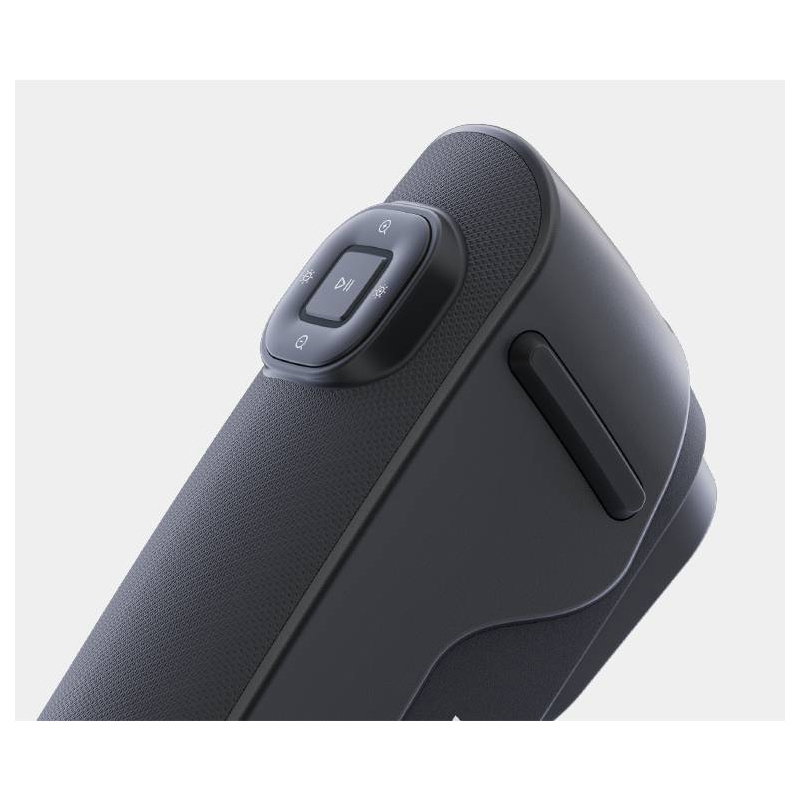

The Sermoon X1 enables full-color texture scanning thanks to a 2MP RGB camera, Qualcomm ISP chip, and 12 LEDs for surface illumination . An ergonomic grip, safety strap, and 530g weight enhance comfort during long measurement sessions. Performance is stabilized by an AI-based temperature compensation algorithm and a thermal management system , which reduce errors resulting from vibration and prolonged use. CrealityScan 4.0 software offers point cloud processing, AI features, model editing, and integration with design, inspection, and 3D printing software.

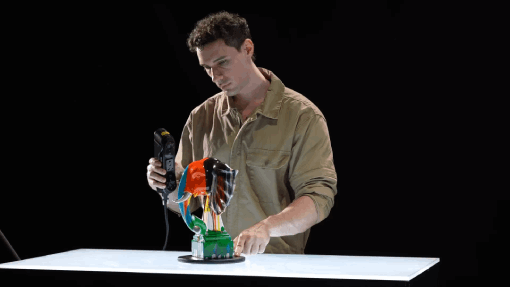

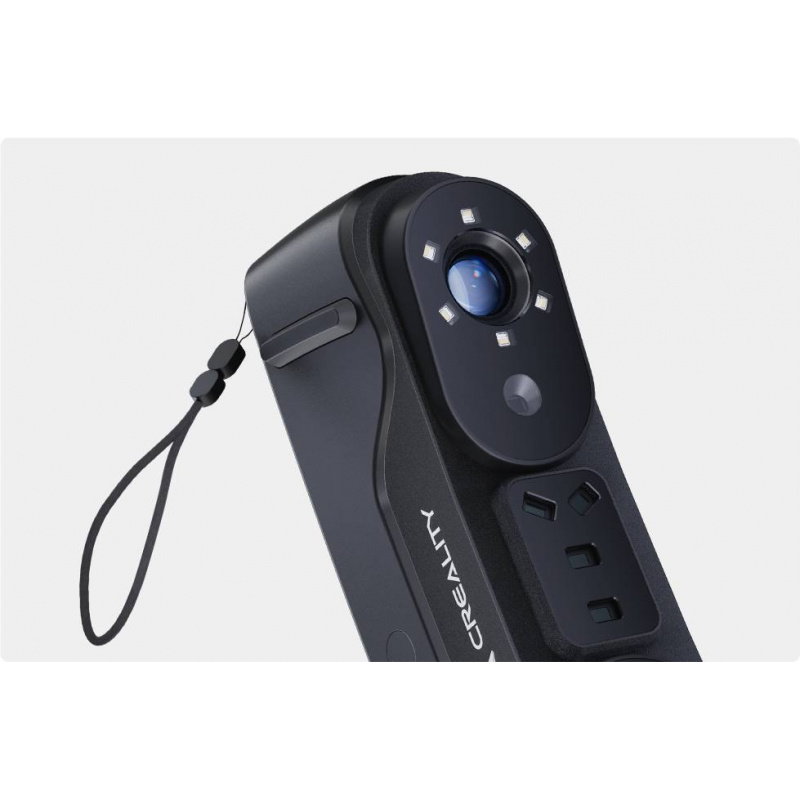

Sermoon X1 is equipped with a powerful Qualcomm ISP chip, a full-color 2 MPx RGB camera and additional lighting, thanks to which it reproduces textures in a more realistic and detailed way.

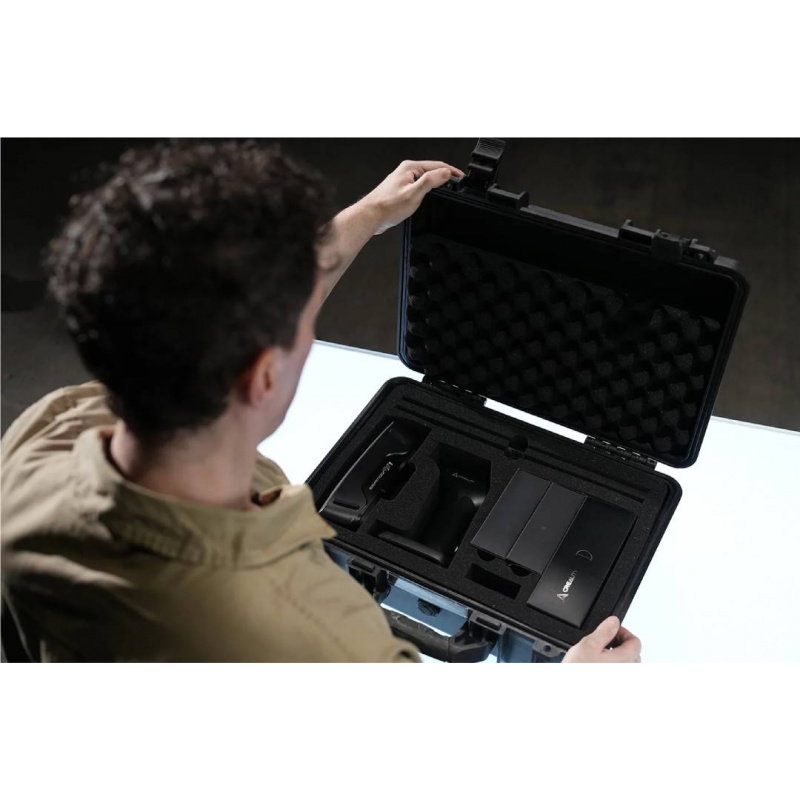

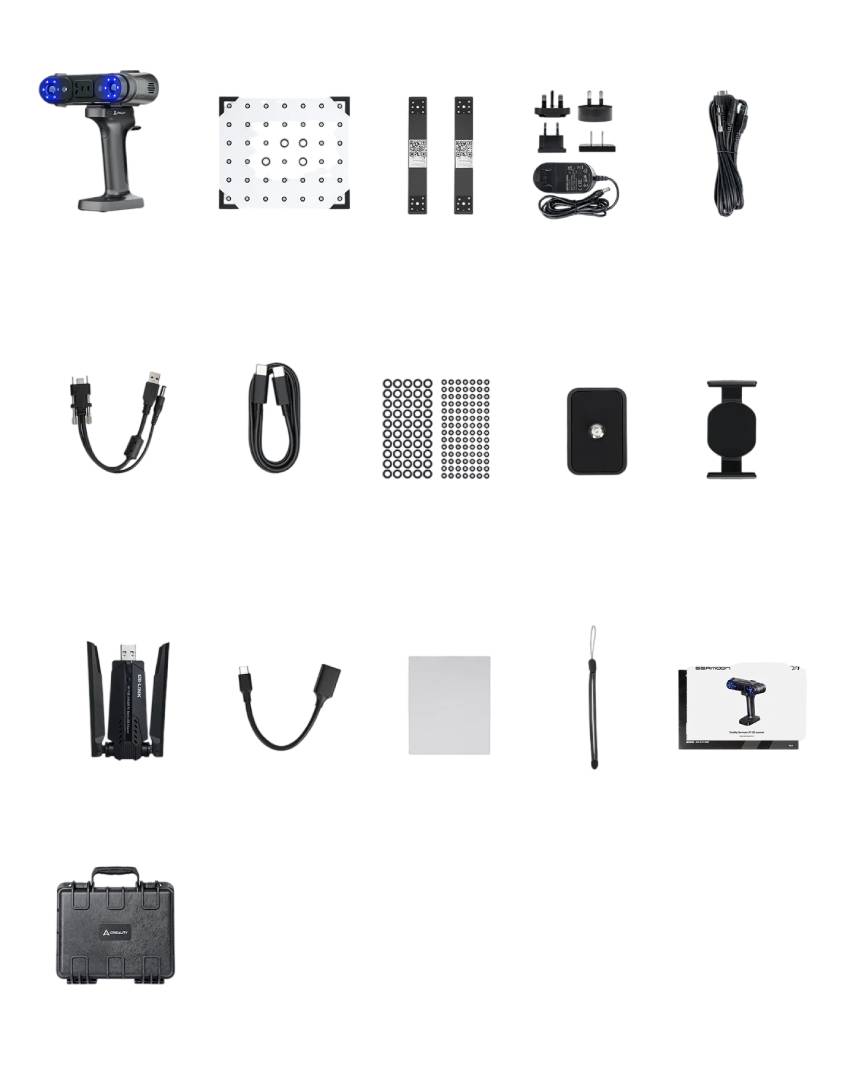

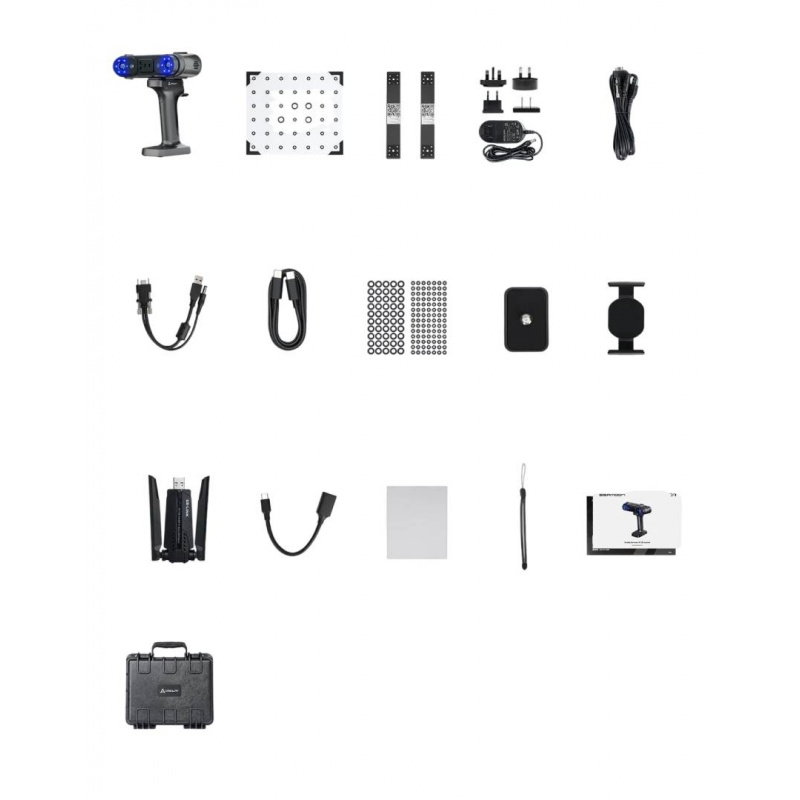

Elements included in the set.
Contents of the set
- Creality Sermoon X1 3D Scanner
- High-precision glass calibration plate
- Scaling strip x2
- Charger
- USB 3.0 Type-C - USB Type-A Cable
- Scan Bridge Cable
- Scan Bridge Fast Charging Cable
- Reference points D6 mm - 40 sheets, D3 mm - 40 sheets
- Hand-tightened quick disconnect card
- Magnetic phone holder
- WiFi 6 wireless adapter
- USB Type-C adapter
- Cleaning cloth
- Wrist strap
- Instruction
- Transport case
| Creality Sermoon X1 3D Scanner Technical Specifications | ||||
|---|---|---|---|---|
| Scan mode | Deep hole scanning 1 blue laser line | Detailed scanning 7 parallel blue laser lines | Quick scan 34 cross blue laser lines | Markerless scanning NIR structured light |
| Accuracy | up to 0.02 mm | up to 0.05 mm | ||
| Volumetric accuracy | 0.02 mm + 0.04 mm/m or 0.02 mm + 0.03 mm/m with scaling strips | 0.05 mm + 0.1 mm/m | ||
| Number of measurements | 84,000 measurements/s | 756,000 measurements/s | 1,734,000 measurements/s | 5,000,000 measurements/s |
| Scanning speed | up to 90 fps | up to 85 fps | up to 30 fps | |
| 3D resolution | from 0.05 mm to 2 mm | from 0.1 mm to 2 mm | ||
| Photogrammetry | photogrammetry mode with 2 magnetic carbon fiber scaling bars | |||
| Minimum scan size | 5 x 5 x 5 mm | 150 x 150 x 150 mm | ||
| Maximum scan size | 4000 x 4000 x 4000 mm | 2000 x 2000 x 2000 mm | ||
| Single capture range | 215 x 167 mm at 200 mm 325 x 323 mm at 300 mm 434 x 394 mm at 400 mm 542 x 463 mm at 500 mm 650 x 531 mm at 600 mm | 650 x 531 mm at 600 mm 1300 x 935 mm at 1200 mm | ||
| Working distance | from 200 mm to 600 mm | from 150 mm to 400 mm | from 200 mm to 600 mm | from 170 mm to 1200 mm |
| Color mapping | supported | |||
| Alignment mode | markers / global markers | markers / global markers / geometry / texture | ||
| Color auxiliary lighting | 12 white LEDs | |||
| Scanning outside | below 100,000 lux | below 50,000 lux | below 100,000 lux | below 30,000 lux |
| Marker recognition enhancement | 12 blue LEDs | |||
| Laser safety | class II, eye safe | |||
| RGB camera | 2 MPx | |||
| Color processing system | Qualcomm ISP | |||
| Mechanical construction | optoelectronic holder and lens base made using CNC technology, integrated molding and full mechanical locking | |||
| Calibration plate | high-precision glass calibration plate | |||
| Wireless scanning | supported | |||
| Wireless connectivity | WiFi 6, transmission up to 4.7 Gbps, latency 10 ms | |||
| Software | CrealityScan 4.0 | |||
| Supported systems | Windows, macOS | |||
| PC configuration | Windows: Intel i7 10th generation, Nvidia 8 GB VRAM, 32 GB RAM, Windows 10/11 64-bit recommended; minimum Intel i7 7th generation, Nvidia 6 GB VRAM, 16 GB RAM, Windows 10/11 64-bit macOS: Apple M1 / M2 / M3 / M4 processors and 16 GB RAM recommended | |||
| Communication interface | USB 3.0 x 1 | |||
| Battery | 5000 mAh, working time over 4 hours, USB Type-C interface | |||
| Input power | 12V, 3A | |||
| Operating temperature | from -10°C to 40°C | |||
| Working humidity | from 10% RH to 90% RH | |||
| Dimensions | 216 x 74 x 51 mm | |||
| Mass | 530 g | |||
