Product description: Shelly Shutter + BLU Button Tough 1 - roller blinds controller + action and scene activation button - WiFi / Bluetooth

The Shelly Shutter + BLU Button Tough 1 kit combines an intelligent roller shutter controller with energy consumption measurement and a durable BLE button for activating programmed actions . Shelly Shutter enables remote control of roller shutters, Venetian blinds, curtains, and awnings equipped with single-phase AC motors with limit switches. In addition to up/down movement, it also allows you to adjust the slat angle , providing precise light and privacy control. The BLU Button Tough 1 expands the kit's functionality with quick action triggering – with a single, double, triple, or long press, you can trigger a scene, set a selected roller shutter position, or trigger automation. Thanks to the WiFi and Bluetooth connectivity, the system offers full automation without the need for a gateway.

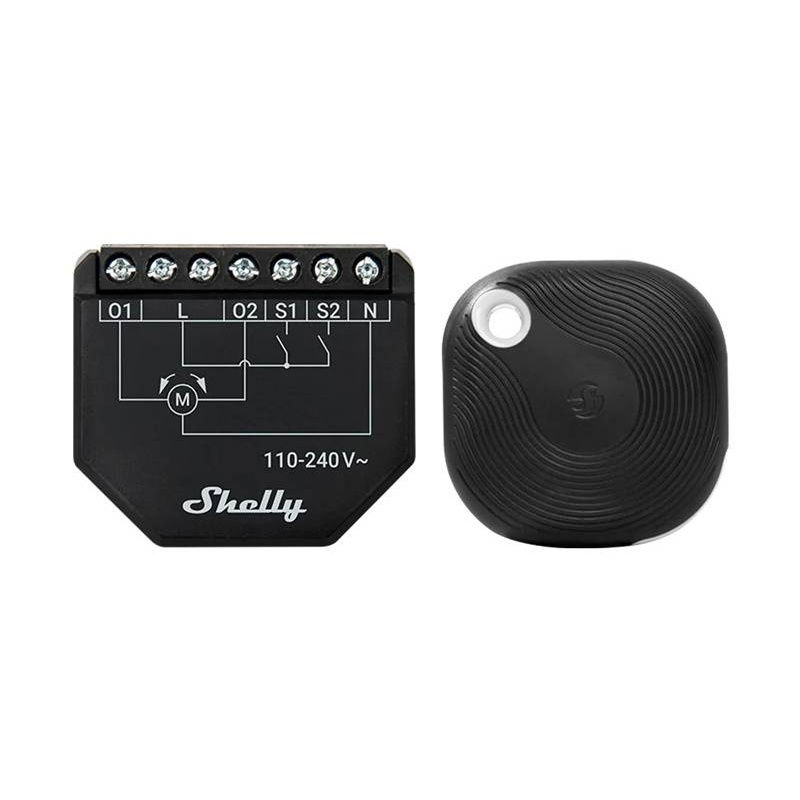

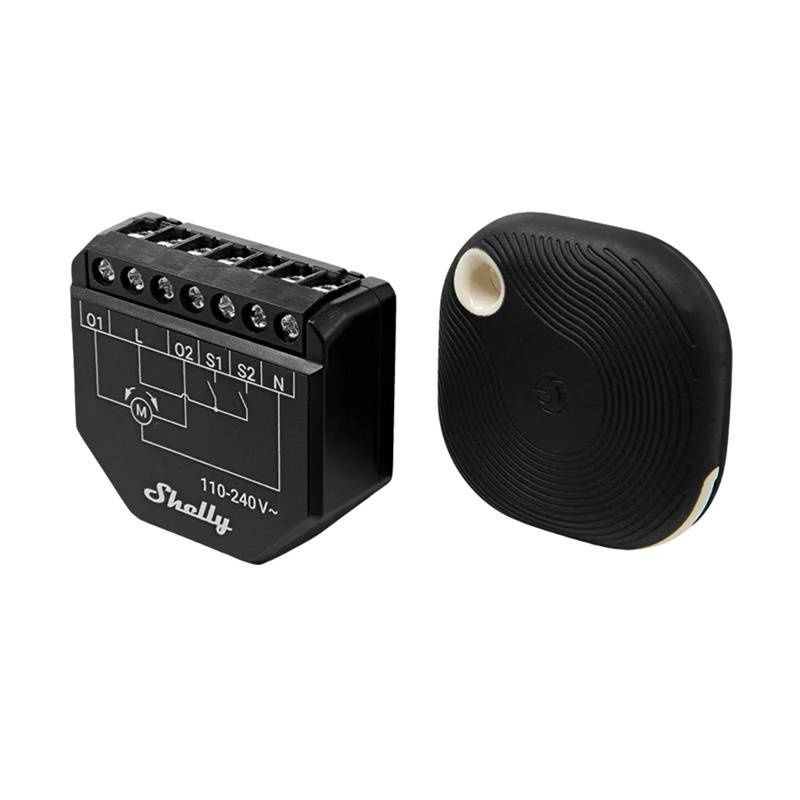

Shelly Shutter + BLU Button Tough 1 - roller blinds controller + action and scene activation button - WiFi / Bluetooth.

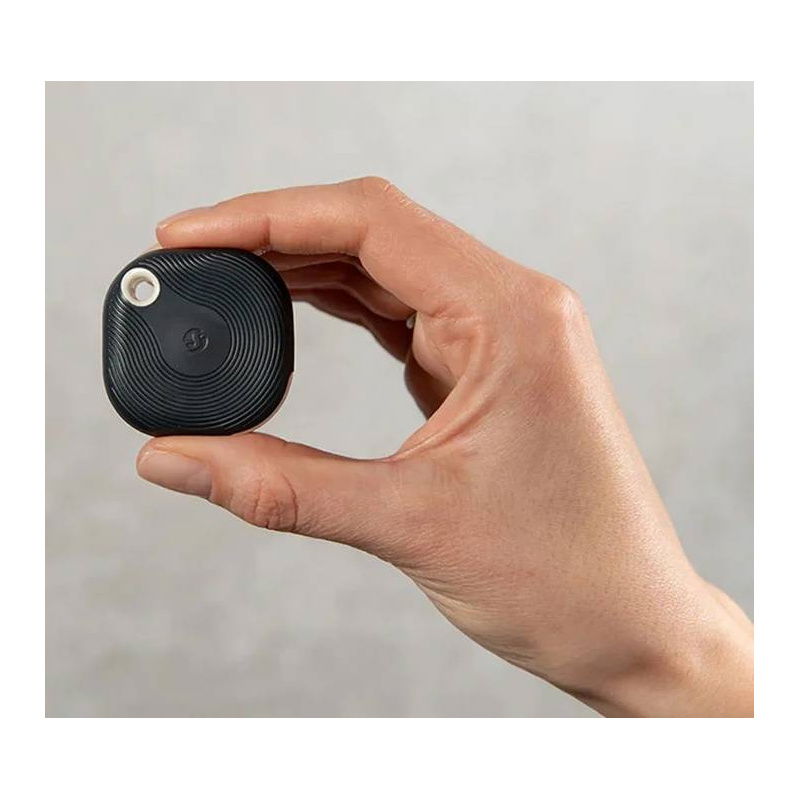

Thanks to its high resistance to shock, dust and splashes (IP54), the button can be safely used in various conditions.

Main features of the Shelly Shutter + BLU Button Tough 1 set

• Roller shutter controller with energy measurement : monitoring the voltage, current and energy consumption of connected blinds
• Support for bidirectional motors : compatible with roller shutters, blinds, awnings and curtains
• Slat angle adjustment : precise tilt control for Venetian blinds
• WiFi 802.11 b/g/n + Bluetooth 4.2 : local and remote operation without additional hub
• 20 schedules and 20 webhooks : advanced automation of actions
• Support for MQTT, HTTP, HTTPS, UDP, TLS, WebSocket, KNXnet/IP : wide integration possibilities
• Safety features : overheating, overvoltage, overload and overpower protection
• BLU Button Tough 1 included : multi-click allows you to trigger several programmed actions
• IP54 protection class of the button : dust, splash and shock resistant

Installation and integration into the roller shutter system

The Shelly Shutter is designed for installation in a standard junction box , behind a roller shutter switch. Its 110V to 240V~ 50/60Hz power supply allows for installation in typical electrical systems. The device works with single-phase AC motors equipped with mechanical or electronic limit switches, which should be properly set before connection. The controller can operate locally via Wi-Fi or remotely via the cloud. Configuration is possible via the Shelly Smart Control app . which is available for Android and iOS systems or via the built-in web interface. The module supports integration with Amazon Alexa, Google Smart Home, Samsung SmartThings , and systems based on MQTT and KNXnet/IP.

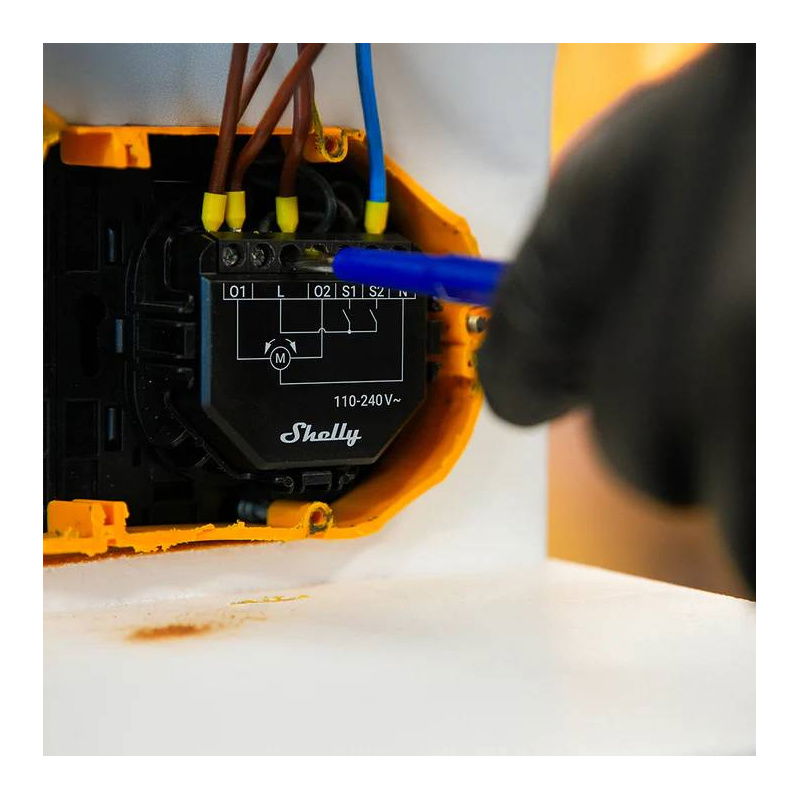

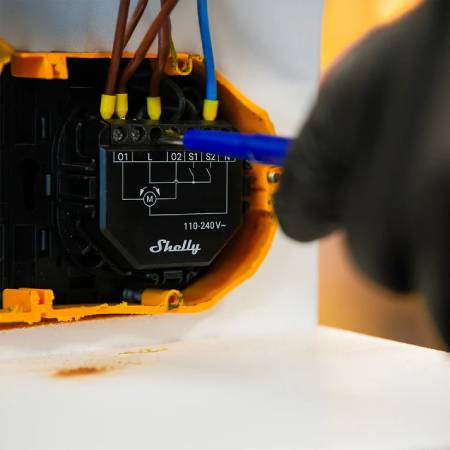

The Shelly Shutter installation process is extremely simple and does not require any electrical upgrades.

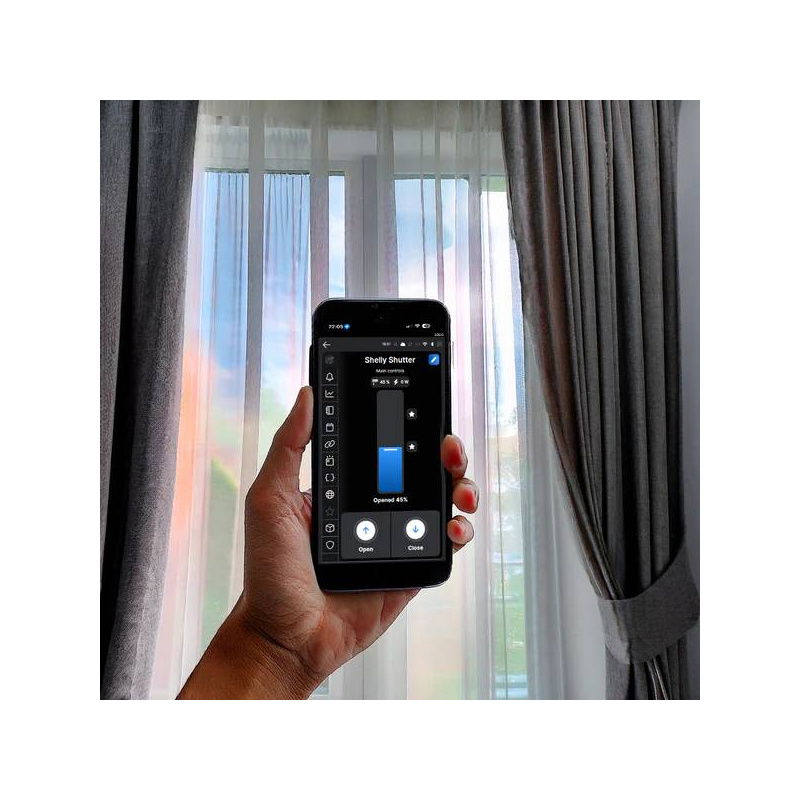

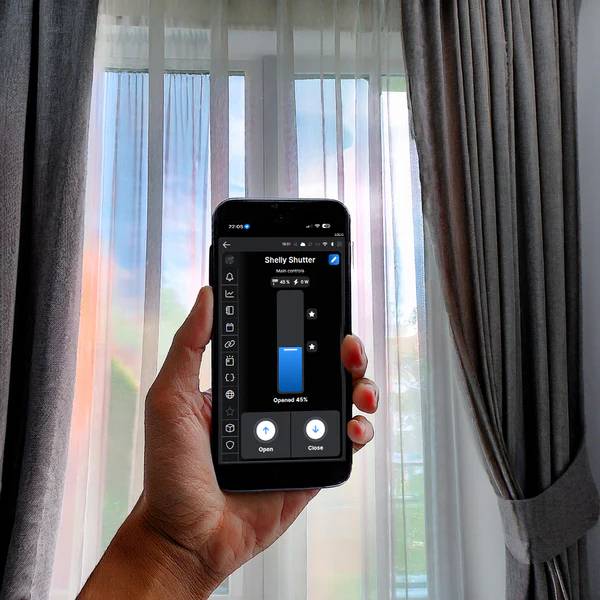

The controller connects to the free Shelly Smart Control app, available for Android and iOS, allowing you to manage your home from anywhere in the world.

Scene control and Bluetooth functionality

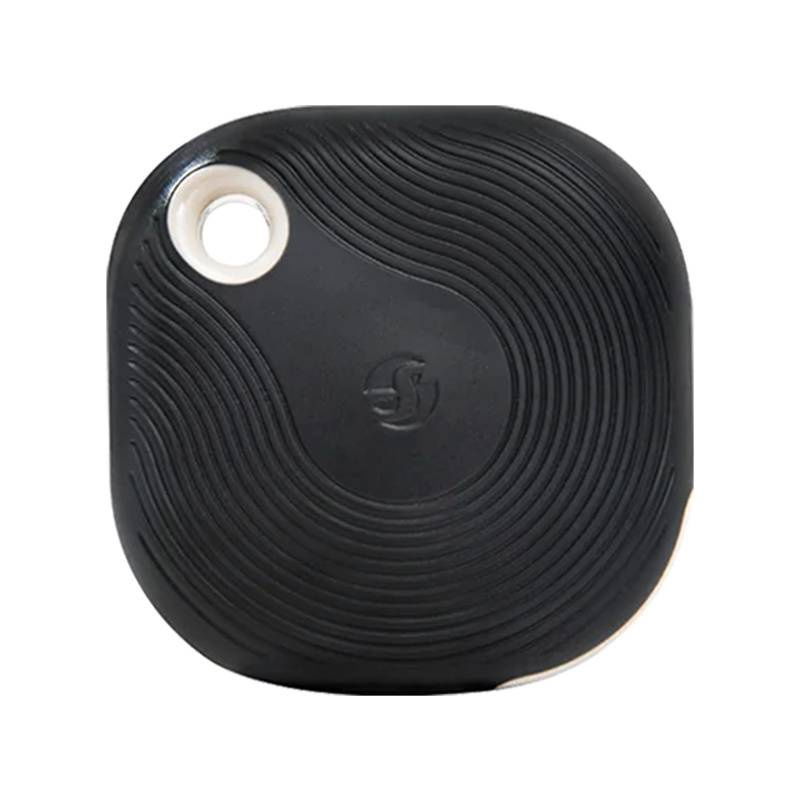

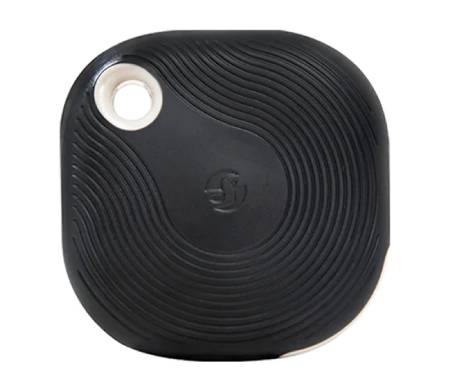

The BLU Button Tough 1 uses Bluetooth Low Energy technology and allows you to trigger actions through various press combinations . Depending on the configuration, you can lower the blinds with a single click, set them to 50% with a double click, or activate the "Leaving Home" scene with a long press. The button is powered by a CR2032 3V battery with a lifespan of up to 2 years. Communication is secured with AES (CCM) encryption . Shelly Shutter can act as a BLE gateway , receiving signals from the button and forwarding them to local or cloud-based automations. Thanks to its high resistance to shock, dust, and splashes (IP54 standard), the button can be safely used in the kitchen, bathroom, and even on the terrace. The Beacon Mode function also allows for automatic scene triggering when the user enters the receiver's range, creating a truly intelligent space.

Shelly Shutter Technical Specifications

• Power supply: 110 V to 240 V~ 50/60 Hz
• Power consumption: < 1.4 W
• Maximum switching voltage: 240 V~
• Maximum AC switching current: 4 A
• Supported motor type: single-phase AC motors
• Required limit switches: electronic or mechanical
• Sensors: AC voltmeter, AC ammeter, temperature sensor
• WiFi: 802.11 b/g/n, 2412 to 2472 MHz, power < 20 dBm
• WiFi range: up to 30m indoors / up to 50m outdoors
• Bluetooth: 4.2, 2402 to 2480 MHz, power < 4 dBm
• Bluetooth range: up to 10 m indoors / up to 30 m outdoors
• CPU: ESP-Shelly-C38F
• Flash memory: 8 MB
• Schedules: 20
• Webhooks: 20 (up to 5 URLs per webhook)
• Operating conditions: -20°C to 40°C, humidity 30% RH to 70% RH
• Dimensions: 37 x 42 x 16 mm
• Weight: 30 g

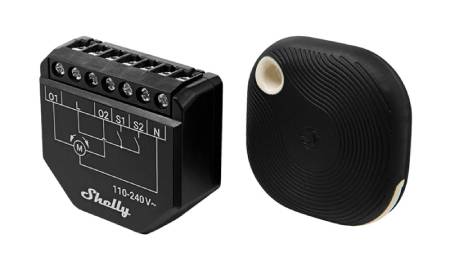

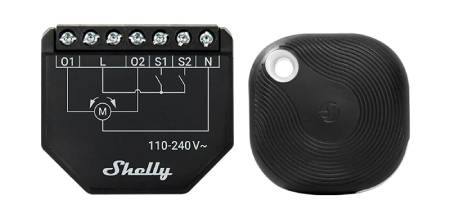

Shelly Shutter roller blind controller with Shelly BLU Button Tough 1 Bluetooth button.

Technical specifications of Shelly BLU Button Tough 1

• Connectivity: Bluetooth Low Energy
• Bluetooth: 4.2, 2400 to 2483.5 MHz, power < 4 dBm
• Range: up to 10 m indoors / up to 30 m outdoors
• Encryption: AES (CCM)
• Protection class: IP54
• Power supply: 1x CR2032 3V battery
• Estimated battery life: up to 2 years
• Color: black
• Operating conditions: -20°C to 60°C, humidity 0% RH to 90% RH
• Dimensions: 42 x 42 x 13 mm
• Weight: 15 g

Contents of the set

• Shelly Shutter Driver
• BLU Button Tough 1 Wireless Button
• Installation and configuration instructions
• Mounting elements
