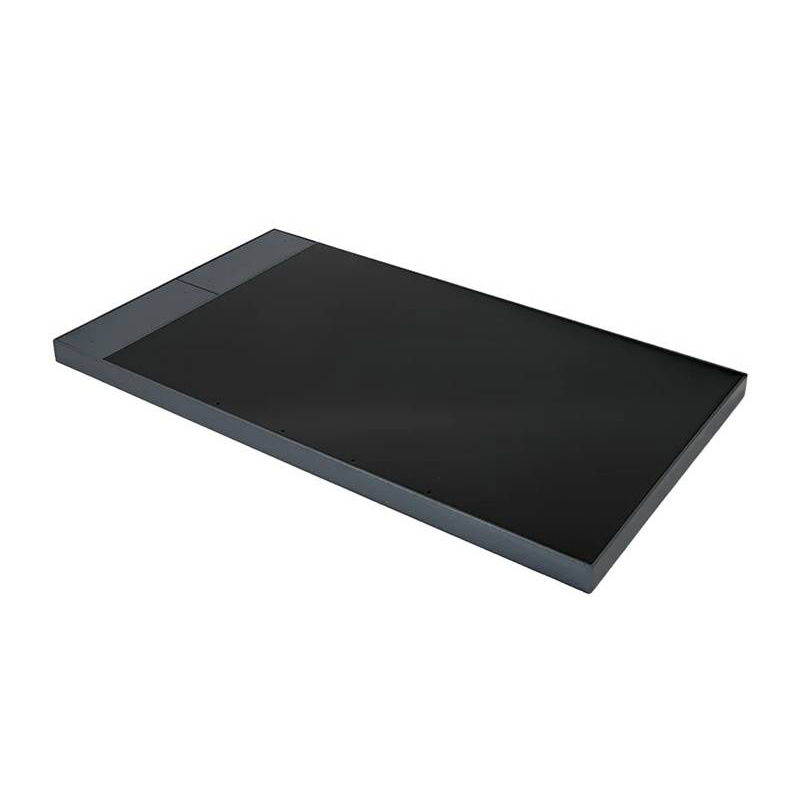

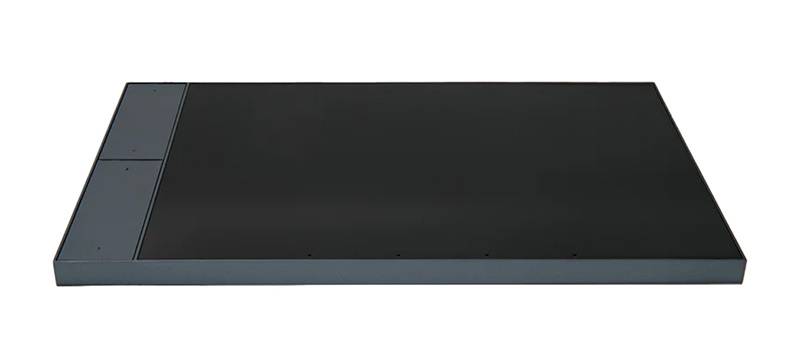

Product description: Shelly Wall Display XL - intelligent control panel with 5A WiFi / Bluetooth relay - gray
The Shelly Wall Display XL is a modern control panel with a 10.1" touchscreen , designed for comprehensive smart home management. The device combines elegant design with extensive functionality, enabling easy management of devices, scenes, and schedules , as well as access to internet radio and a media player . It is equipped with a relay with a power output of up to 1500W , four physical buttons, and modern communication technologies such as WiFi 6 and Bluetooth 5.4 . Thanks to its ability to be mounted in a standard junction box, the panel is easy to install and works well in both residential and commercial spaces.

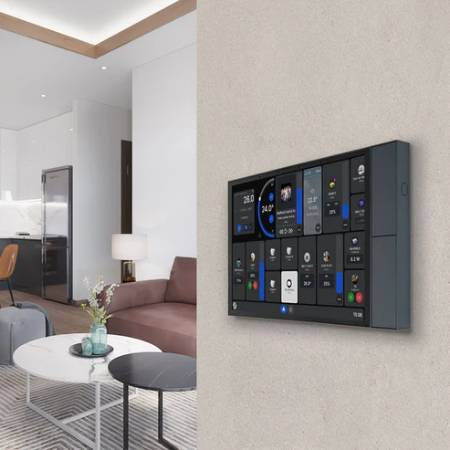

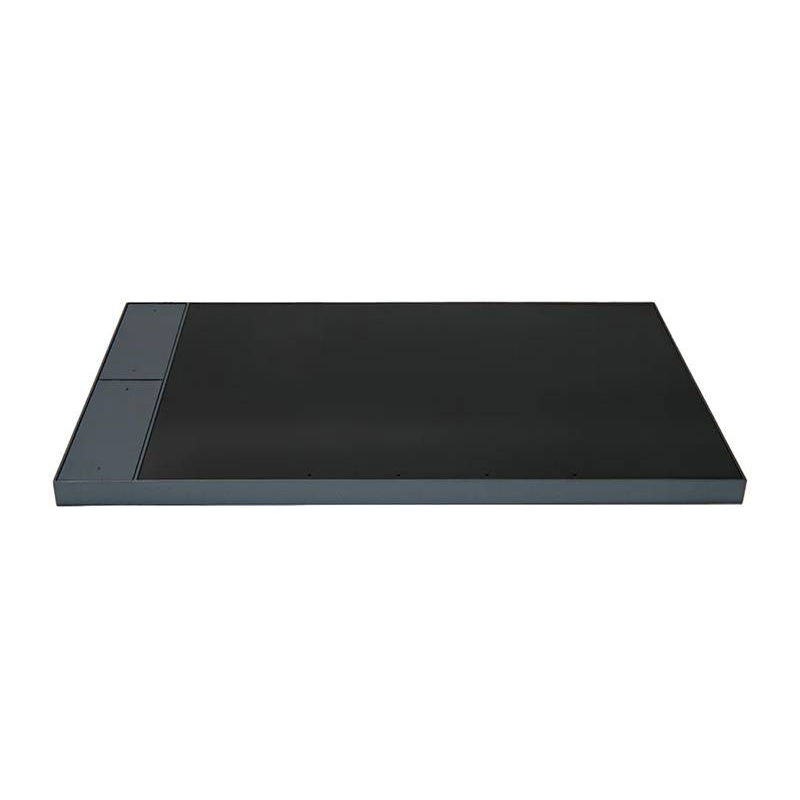

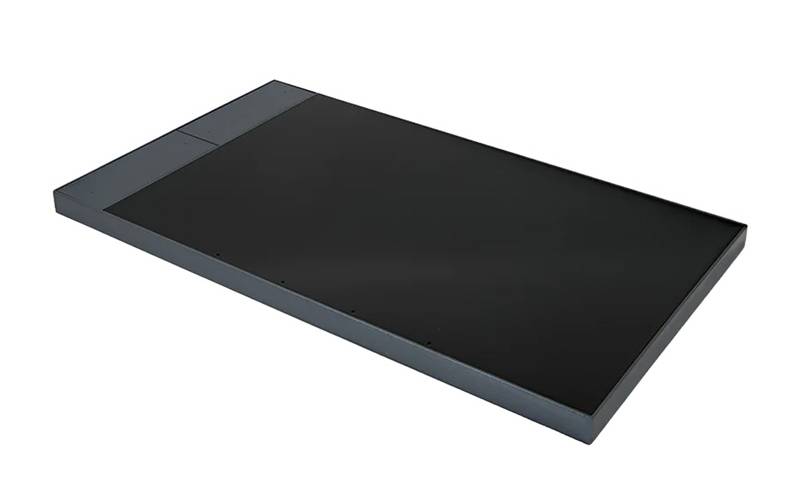

Shelly Wall Display XL - Smart Control Panel with 5A WiFi/Bluetooth Relay - Gray.

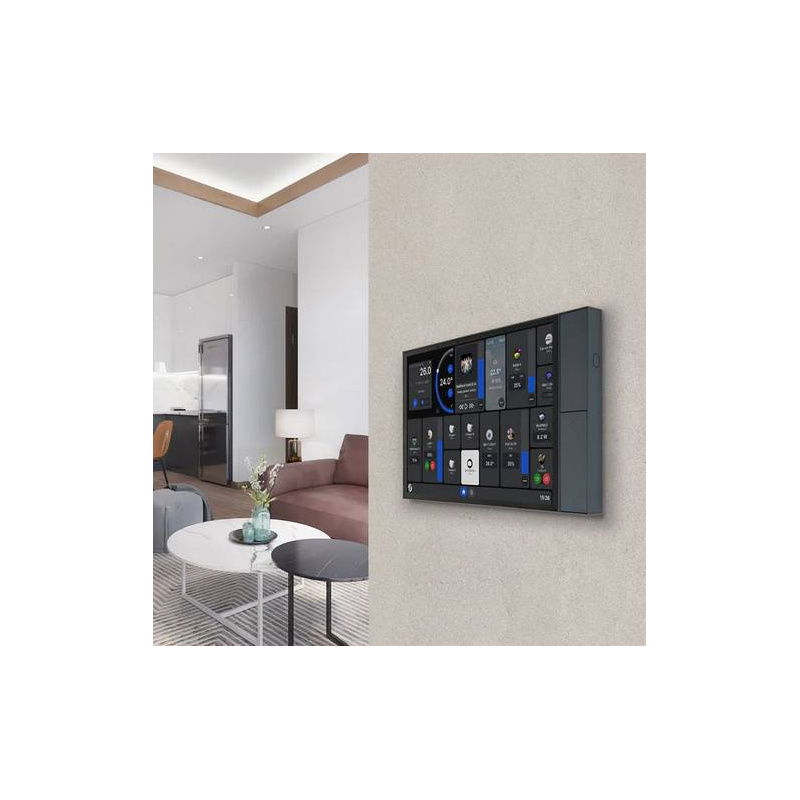

Shelly Wall Display XL is a wall control panel with a touch screen.
Key Features of the Shelly Wall Display XL

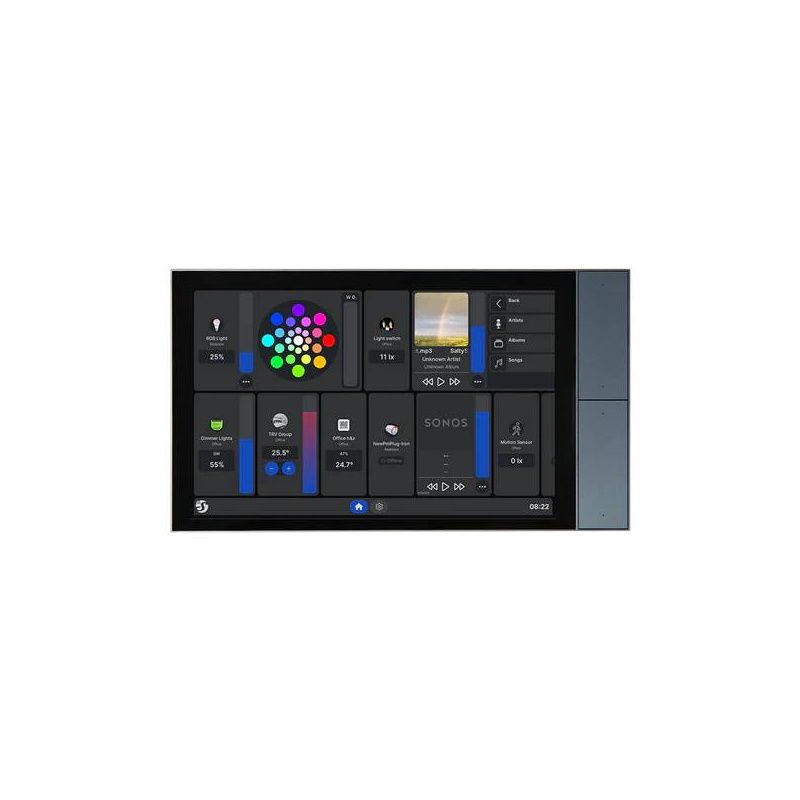

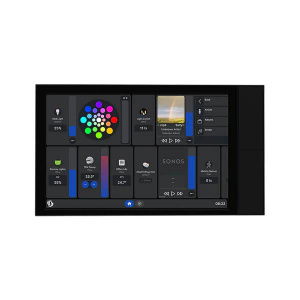

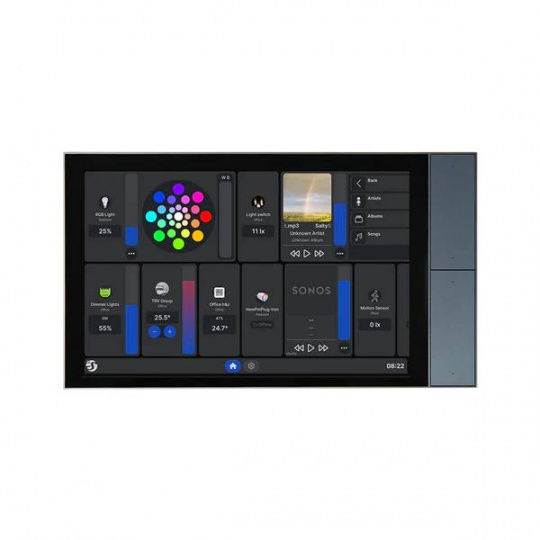

- 10.1'' touchscreen: HD color display with five-point G+FF panel for comfortable operation
- High performance: Quad-core Cortex-A55 processor, 2GB RAM and 32GB Flash guarantee fast response
- Smart Home Integration: Home Assistant, MQTT, and Webhooks Support
- 4 customizable buttons: quick access to selected functions without the need to use the app
- Built-in relay: allows direct control of loads up to 1500 W
- Remote control: via Shelly Smart Control app for Android and iOS

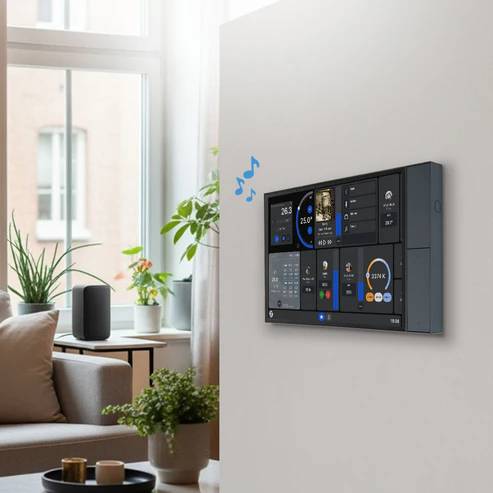

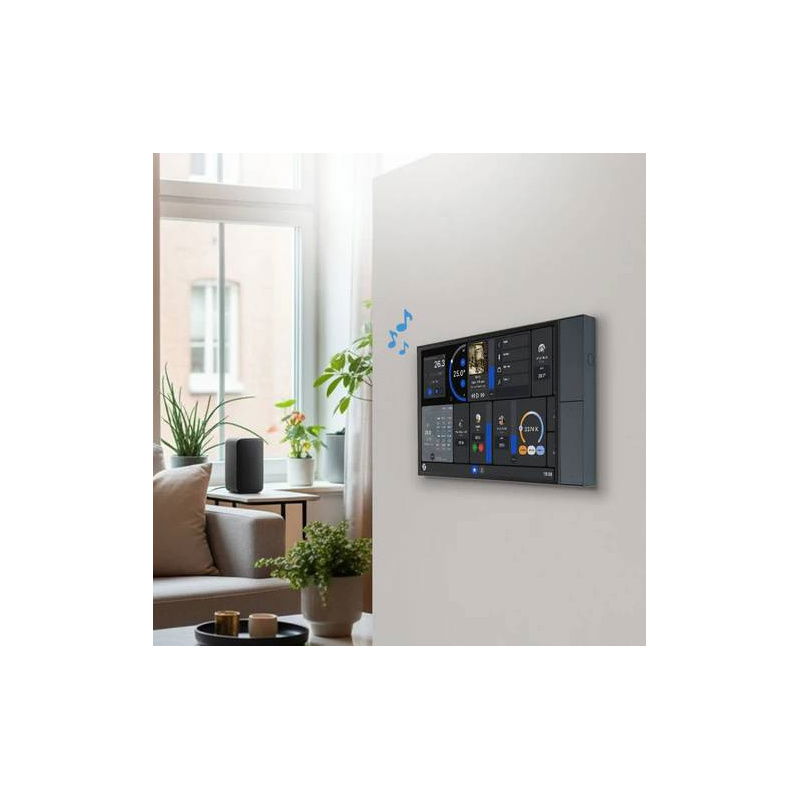

- Multimedia and internet radio: audio player, 2 x 2W speakers, Sonos and Bluetooth support
- Energy monitoring: readings from Shelly PM devices allow you to analyze power consumption
- Sensors: proximity and light automate control
- Stylish housing: grey glass front, wall box installation (EU standard)
Intuitive Smart Home operation

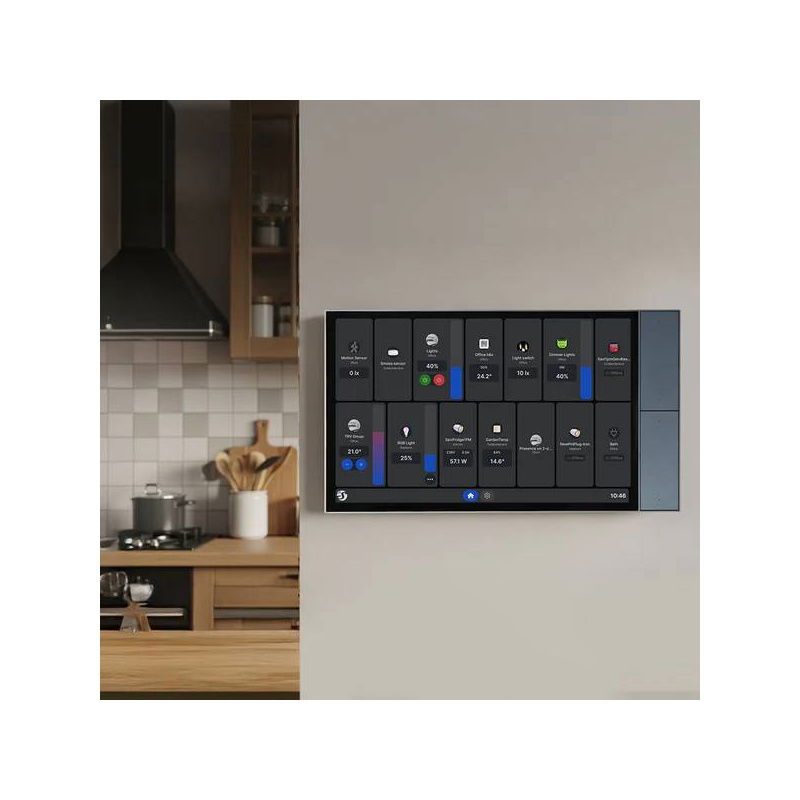

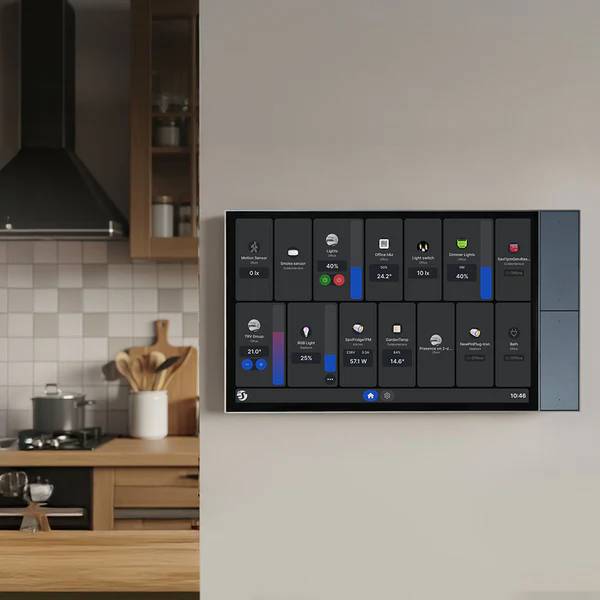

The Shelly Wall Display XL is a smart panel designed to be a home automation or building system management center . The large 10.1-inch touchscreen display provides convenient access to controlling devices, groups, and scenes—no smartphone required. You can freely personalize the interface by creating your own widgets, shortcuts, and screen layouts tailored to your individual preferences. The panel is equipped with a relay for direct control of loads up to 1500W and four programmable physical buttons for quick operation, even when the screen is inactive.
Shelly Wall Display XL offers remote management via the Shelly Smart Control app.
Connectivity and use in commercial environments
The Shelly Wall Display XL offers advanced connectivity with support for WiFi 6 (2.4 GHz and 5 GHz) and Bluetooth 5.4 , ensuring fast and reliable system operation. Compatible with Home Assistant, MQTT, and Webhooks , the panel is ideal for both smart homes and more complex commercial installations. Mounting in a standard junction box , the device can be easily installed in homes, hotels, offices, and other commercial spaces. Integration with the Shelly Smart Control app allows remote scene configuration, device management, and energy consumption monitoring from anywhere.
Technical Specifications of Shelly Wall Display XL
- Screen: 10.1'' capacitive, 5-point, G+FF
- Resolution: 1280 x 752 px
- Processor: Rockchip RK3566 Quad-core Cortex-A55 1.8 GHz
- RAM: 2 GB
- Flash memory: 32 GB
- System: Android 11
- Connectivity: WiFi 6 (2.4GHz / 5GHz), Bluetooth 5.4
- Relay: 240 V~ / 5 A (max. 1500 W)
- Speakers: 2 x 2 W
- Sensors: light, proximity (≤ 1 m), microphone (4-microphone array)
- Power button: 1 (screen ON/OFF)
- Function Button: 4 configurable
- Power supply: 100 V to 240 V~ 50/60 Hz, USB Type-C 5 V⎓ / 3 A
- Power consumption: < 15 W
- Installation: wall box (EU standard)
- Material: metal, glass, PC plastic with coating
- Color: gray
- Operating temperature: -20°C to 40°C
- Operating environment humidity: 30% RH to 70% RH
- Dimensions: 155.8 x 272.5 x 38.3 mm
- Weight: 920 g
Contents of the set
- 1x Shelly Wall Display XL Control Panel (Gray)
The built-in relay allows direct control of devices with a power of up to 1500 W.
