Product description: Shelly 3EM-63W Gen3 - single/three phase WiFi/Bluetooth energy meter - wired
The Shelly 3EM-63W Gen3 is a modern, 1/3-channel energy meter that works well in both three-phase installations and three independent single-phase circuits . It supports four-quadrant measurement and phase sequence error detection . The energy meter is equipped with durable cables and is very easy to install. It can operate as a standalone device in a WiFi network or be integrated with energy management systems via MQTT, HTTP, or WebSocket. Thanks to the built-in real-time clock , data retains accurate timestamps even when internet access is unavailable. Bluetooth and the Shelly Smart Control app ensure easy configuration and real-time monitoring of energy parameters. It's an ideal solution for homes, businesses, and photovoltaic installations.
Our offer includes a wide range of Shelly products - check them out!

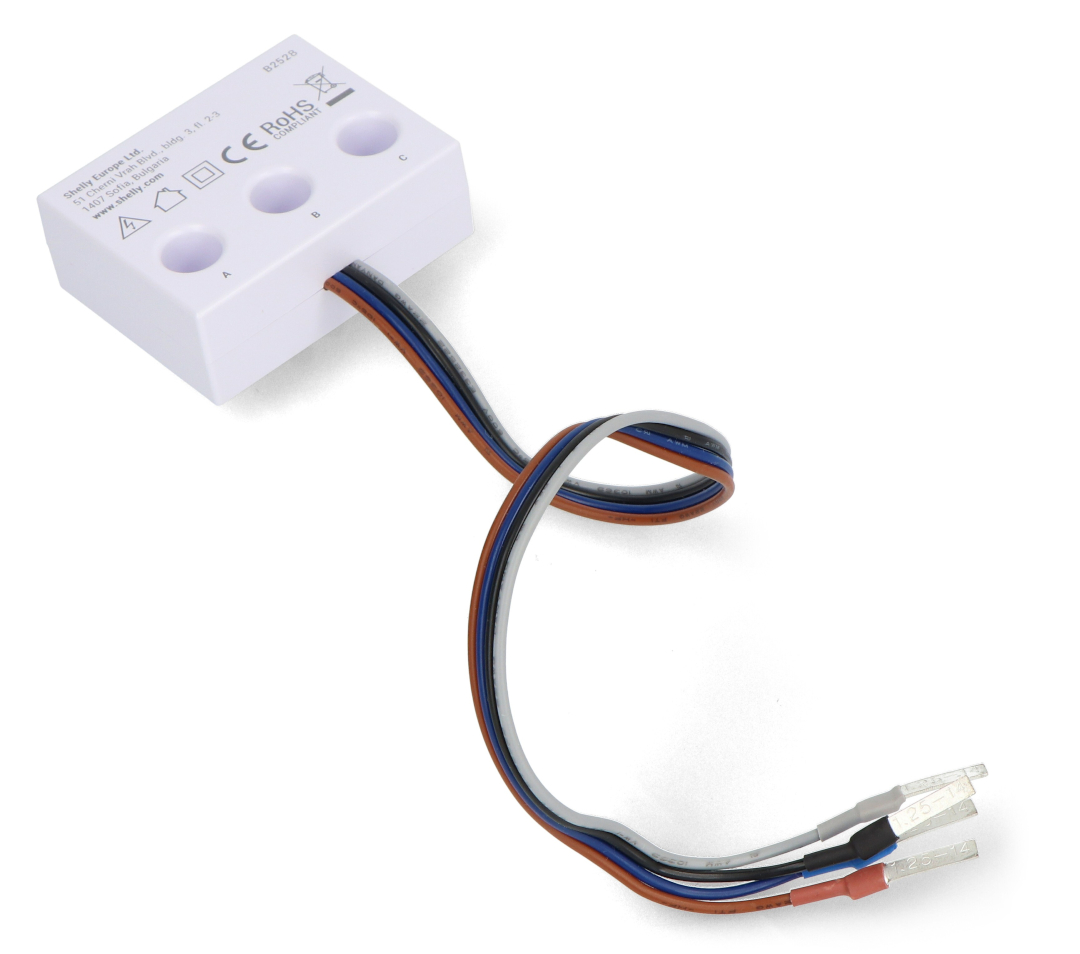

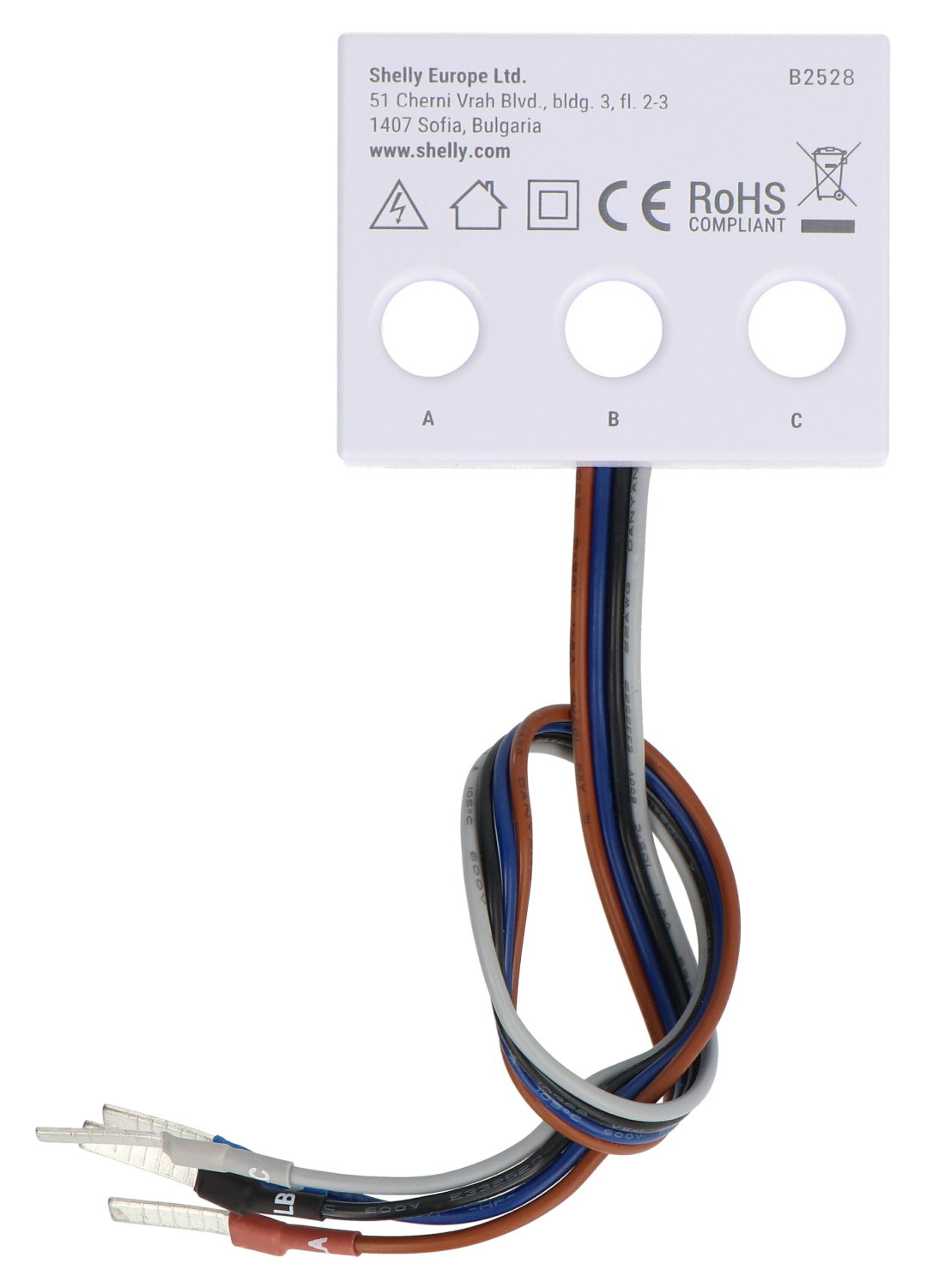

The meter is equipped with durable cables and offers ease of installation.
Main Features of Shelly 3EM-63W Gen3
- WiFi and Bluetooth connectivity : integration with WiFi (802.11 b/g/n) and Bluetooth 4.2 and support for MQTT, HTTP, WebSocket
- Automation : Ability to create up to 20 schedules and webhooks, supports local energy automation
- Four-quadrant energy measurement : recording active and reactive energy in both directions
- Versatile configuration : supports three-phase installations or three independent single-phase circuits
- Non-contact current measurement : using current transformers integrated with the device
- Phase sequence error detection : an optional feature to ensure correct operation in three-phase systems
- Accurate data recording : local memory stores data with a resolution of 1 minute for at least 7 days
Integration and connectivity - local and remote monitoring
The Shelly 3EM-63W Gen3 can operate both locally via a Wi-Fi network and remotely via cloud integration or external automation systems. It supports protocols such as MQTT, HTTP, and WebSocket , allowing for flexible use in both simple home installations and advanced energy management systems in businesses. TLS encryption ensures secure data transmission, protecting against unauthorized access. The device also features a web interface that allows for local monitoring and configuration without the need for internet access. Additionally, Shelly Smart Control allows for convenient data management and automation creation via a mobile app or browser.

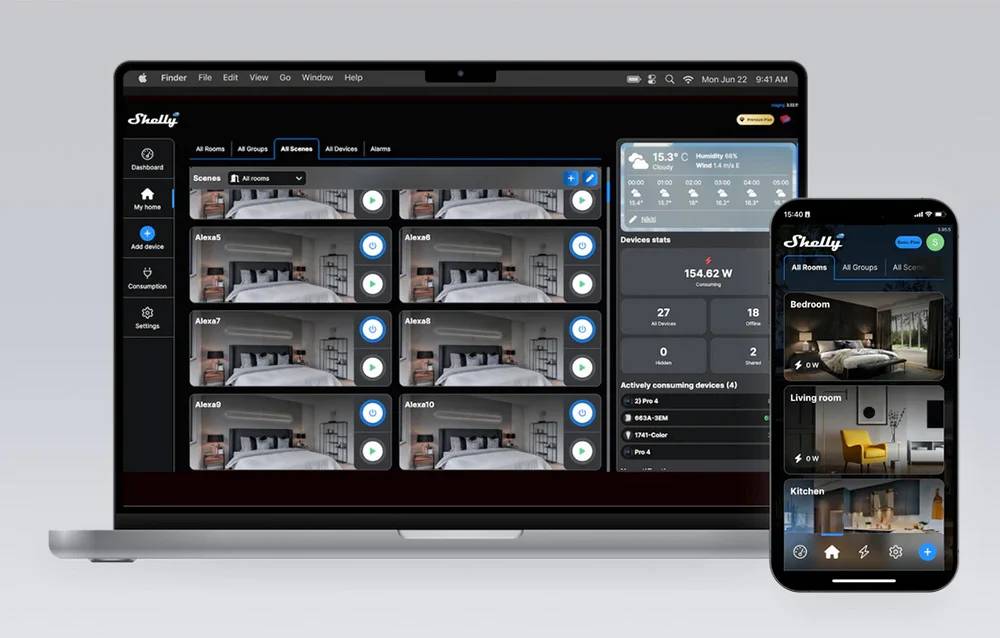

The meter can be managed via the Shelly Smart Control application.
Thanks to 4-quadrant measurement, the meter records both consumed and released energy.
Practical Applications of Shelly 3EM-63W Gen3
The Shelly 3EM-63W Gen3 is an excellent tool for monitoring real-time energy consumption , both in three-phase installations and in three independent single-phase circuits. It allows you to precisely track the power consumption of specific devices or entire zones, which can reveal sources of high energy consumption and help optimize them . Accurate measurements allow, for example, the quick detection of faulty or excessively energy-intensive devices. Additionally, automation features and webhooks allow you to implement logic to shut down devices during peak consumption periods , translating into real savings and increased energy efficiency. This solution is suitable for both households and commercial sectors, such as server rooms, workshops, and manufacturing plants.
Shelly 3EM-63W Gen3 Technical Specifications
- Model: Shelly 3EM-63W Gen3
- CPU: ESP-Shelly-C38F, 8MB Flash
- Voltage range: 220 V to 240 V~ 50/60 Hz (between LA and N)
- Current range: 0 A to 63 A (saturation 130 A)
- Measurement accuracy: voltage: ±1%, current: ±1% (from 2 A to 63 A), ±2% (from 1 A to 2 A), ±5% (from 0 A to 1 A)
- Communication protocol: WiFi 802.11 b/g/n, Bluetooth 4.2
- WiFi range: up to 30m indoors / 50m outdoors
- Bluetooth range: up to 10m indoors / 30m outdoors
- Power consumption: < 2 W
- External protection: 63 A, characteristic B or C, 6 kA short circuit current, energy limitation class 3
- Measurement data storage: at least 7 days with a resolution of 1 minute
- Data export: CSV, JSON via RPC
- Internal temperature sensor: Yes
- Automation: up to 20 schedules, webhooks and scripts, MQTT support
- Photovoltaic service: monitoring energy production and consumption
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% RH to 70% RH
- Cable length: 260 mm (including flat terminal)
- Dimensions: 21 x 54 x 42 mm
- Weight: 53 g
Contents of the set
- 1x Shelly 3EM-63W Gen3 Energy Meter
Connects to the network via WiFi and Bluetooth without the need for an external gateway.
