Product description: Shelly The Pill - universal sensor module - WiFi / Bluetooth
Shelly The Pill is a multifunctional automation and monitoring module equipped with 2.4 GHz WiFi and Bluetooth BLE 4.2 connectivity . It is designed to work with environmental sensors, analog modules, and low-voltage control devices. Thanks to its compact design and USB Type-C power supply, it can be mounted virtually anywhere – in control cabinets, equipment enclosures, aquariums, greenhouses, or technical monitoring systems. The module supports up to five DS18B20 temperature sensors or one DHT22 sensor , enabling real-time temperature and humidity monitoring. Shelly The Pill also offers 3.3V digital inputs and outputs, analog voltage measurement, and integration with external systems via MQTT, HTTP, and WebSocket . The Shelly Gen3 platform supports scheduling, webhooks, encryption, and custom automation scripts.

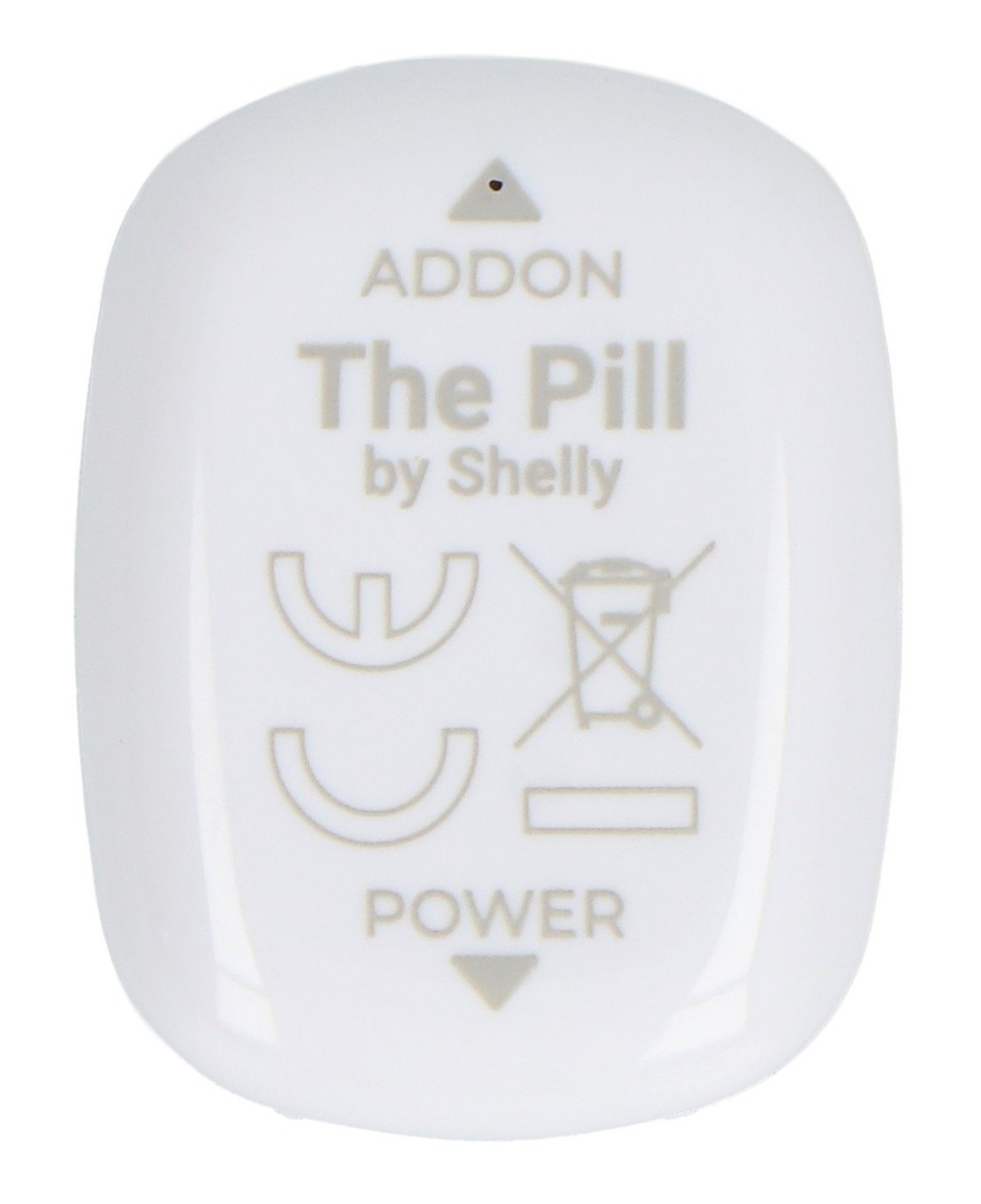

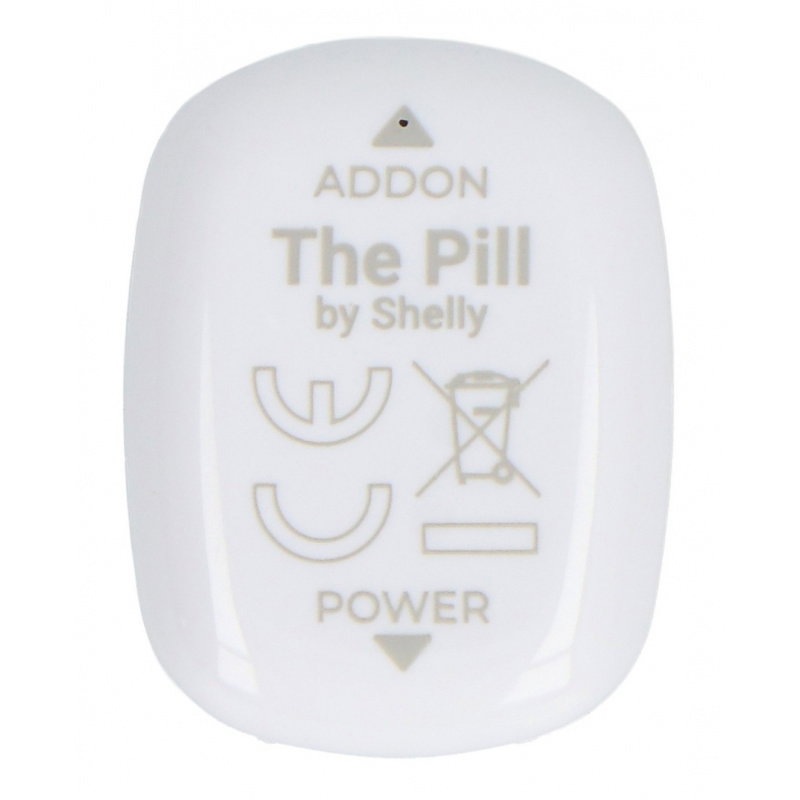

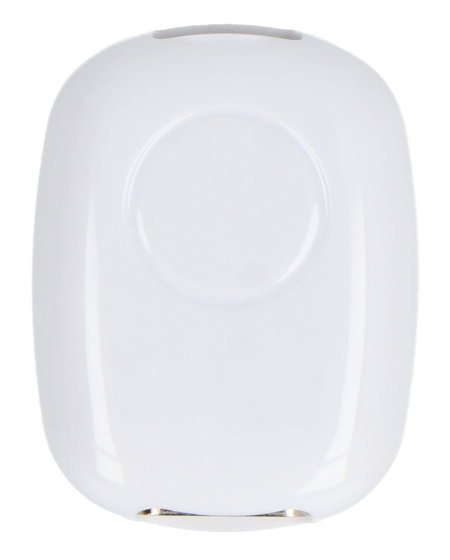

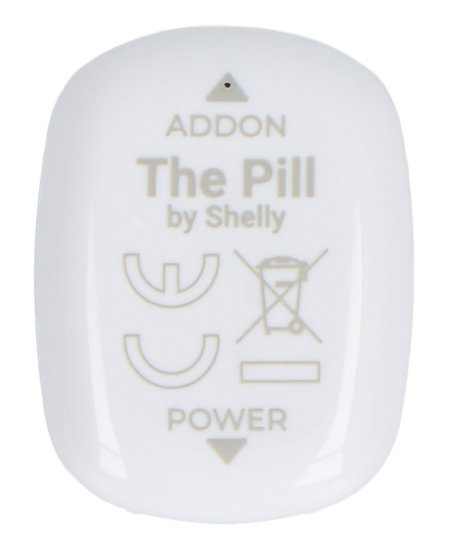

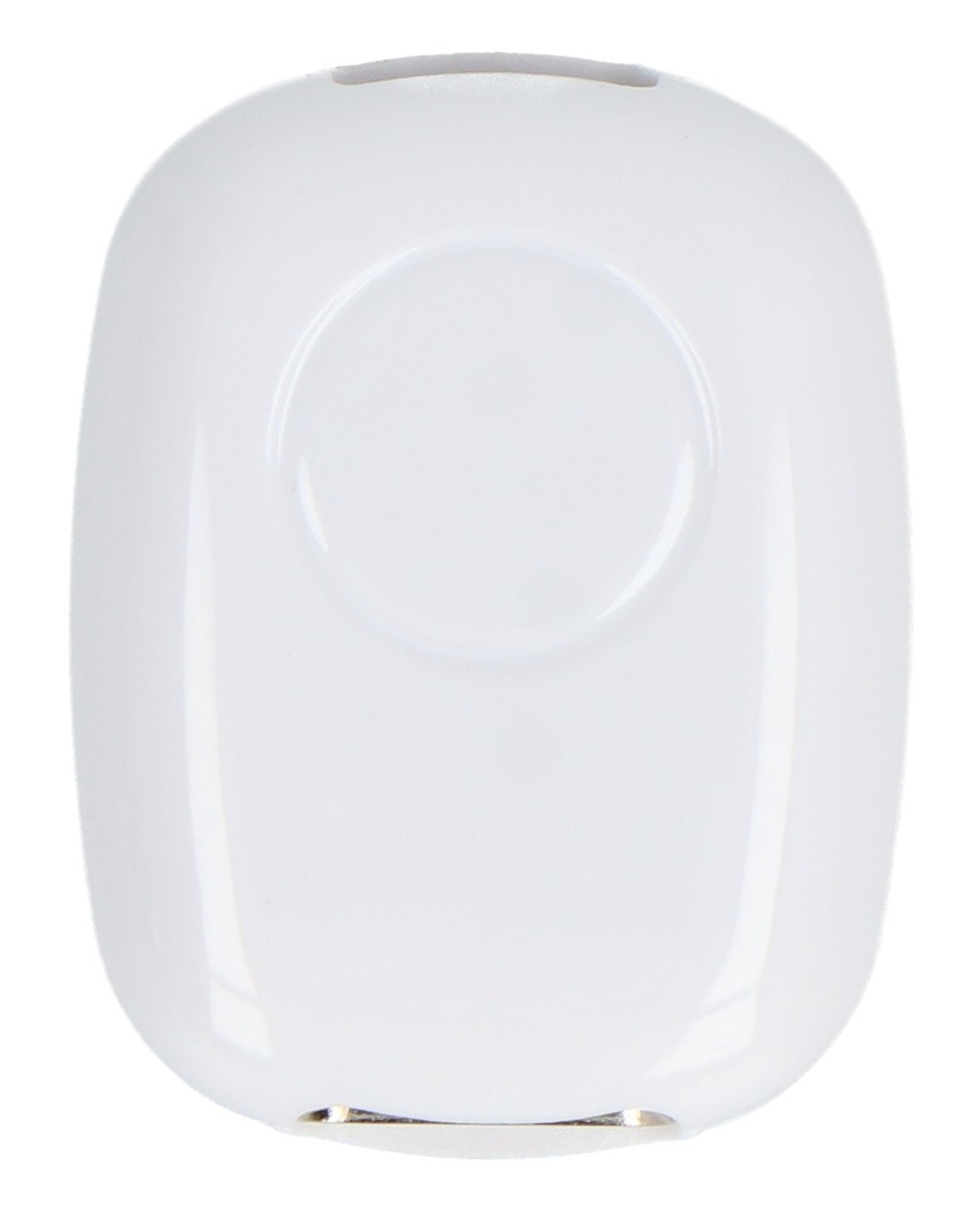

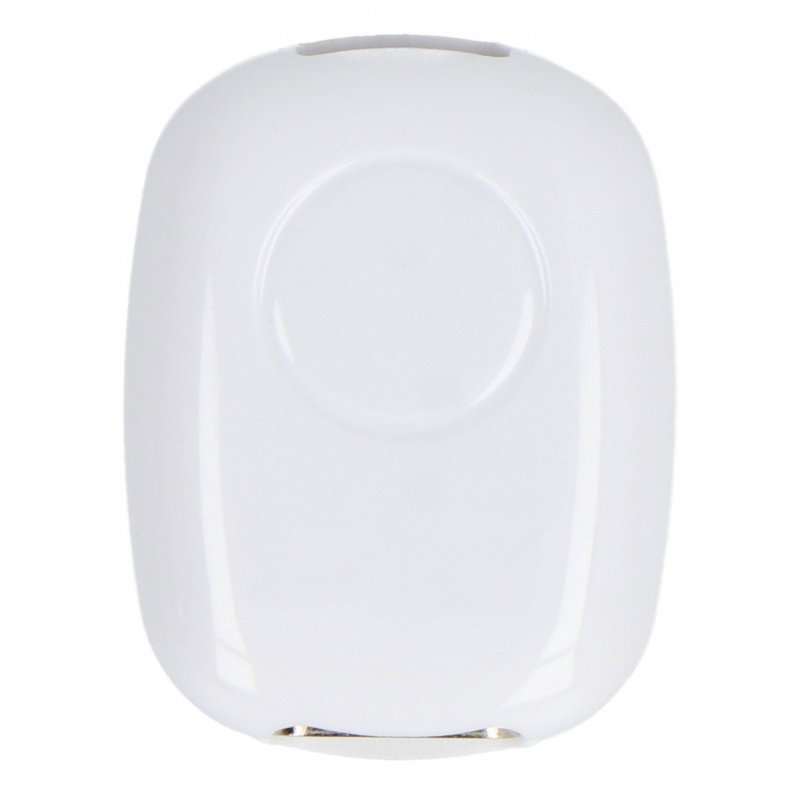

Shelly The Pill - universal sensor module - WiFi / Bluetooth.

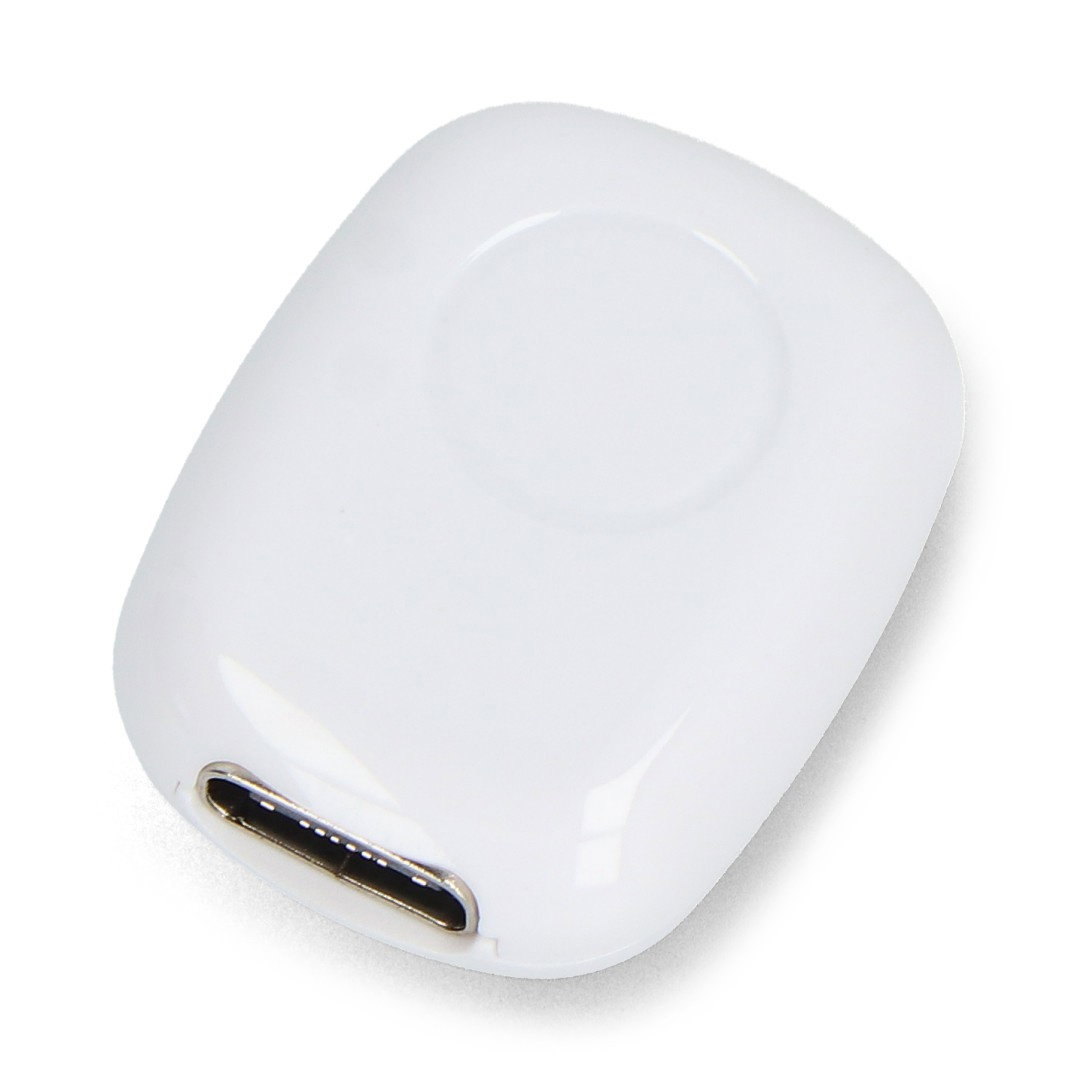

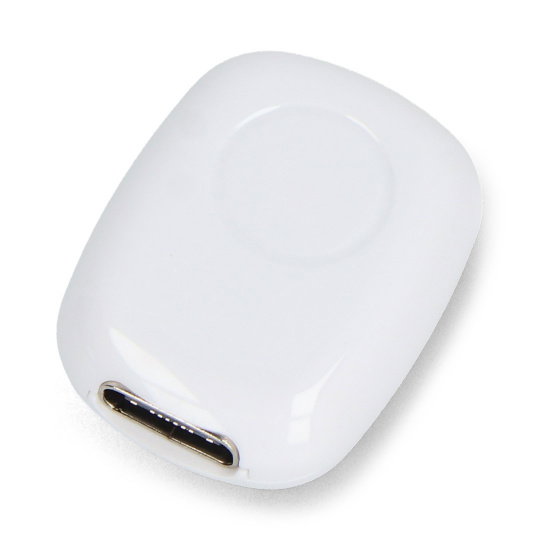

Shelly The Pill is just 26mm tall and can be used to intelligently control common digital or analog sensors and low-voltage actuators.
Key Features of Shelly The Pill
- WiFi and Bluetooth connectivity : WiFi 802.11 b/g/n and Bluetooth BLE 4.2 support
- Temperature and humidity sensor support : compatible with DS18B20 and DHT22
- Up to 5 DS18B20 sensors simultaneously : ability to monitor multiple measurement points
- 3.3V digital inputs and outputs : configure up to 3 independent logic inputs or outputs
- DC voltage measurement : built-in voltmeter from 0 V to 2.5 V and expandable to 30 V
- Shelly Gen3 Advanced Automation : Support for scheduling, webhooks, MQTT, WebSockets, and scripts
- Bluetooth Gateway : compatible with Shelly BLU devices
- Compact design : small dimensions enable installation in confined spaces
- USB Type-C Power : Easy 5V DC power supply
- Expandability : Compatible with SSR add-ons and 0V to 30V analog module
Shelly The Pill Technical Specifications
- Processor: Shelly ESP32-C3 (ESP-Shelly-C38F)
- Flash memory: 8 MB
- WiFi connectivity: 802.11 b/g/n 2.4 GHz
- Bluetooth connectivity: BLE 4.2
- Maximum WiFi transmitting power: < 20 dBm
- Maximum Bluetooth transmitting power: < 10 dBm
- WiFi range: up to 30 m indoors and up to 50 m outdoors
- Bluetooth range: up to 10 m indoors and up to 30 m outdoors
- Power supply: 5V DC via USB Type-C
- Power consumption: < 1 W
- Supported sensors: 1 x DHT22, up to 5 x DS18B20
- DC voltmeter: 0 V to 2.5 V - built-in, 0 V to 30 V - with expansion module
- Voltage measurement accuracy: ±(2% + 5 digits)
- Maximum voltage of digital inputs: 3.3 V
- Maximum switching voltage: 3.3 V
- Maximum switching current: 20 mA
- Operating temperature: -20°C to 40°C
- Operating humidity: 30% RH to 70% RH
- Housing material: plastic
- Color: white
- Dimensions: 26 x 19.95 x 8.5 mm
- Weight: 3 g
Kit contents
- Shelly The Pill
- USB Type-C cable

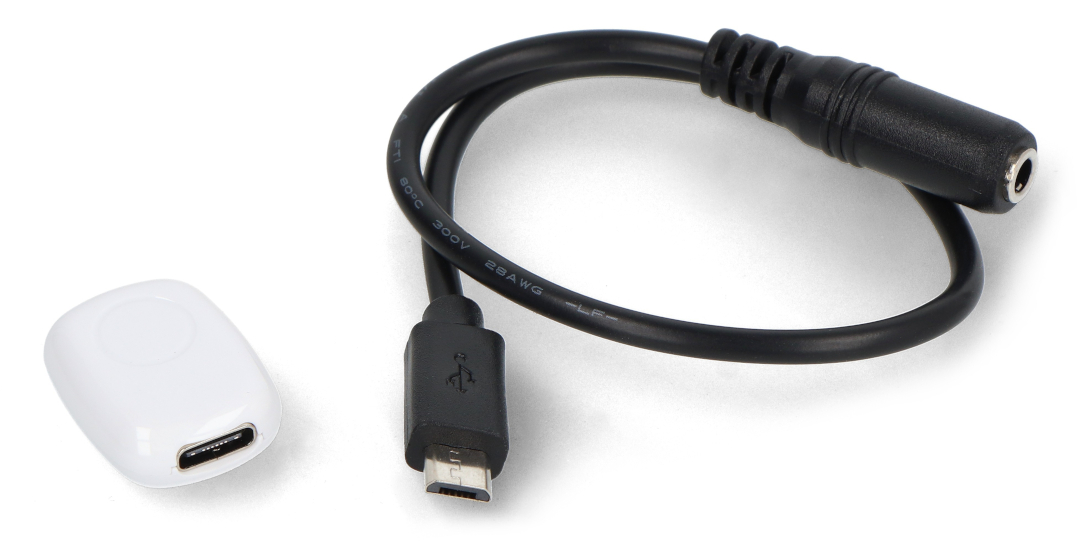

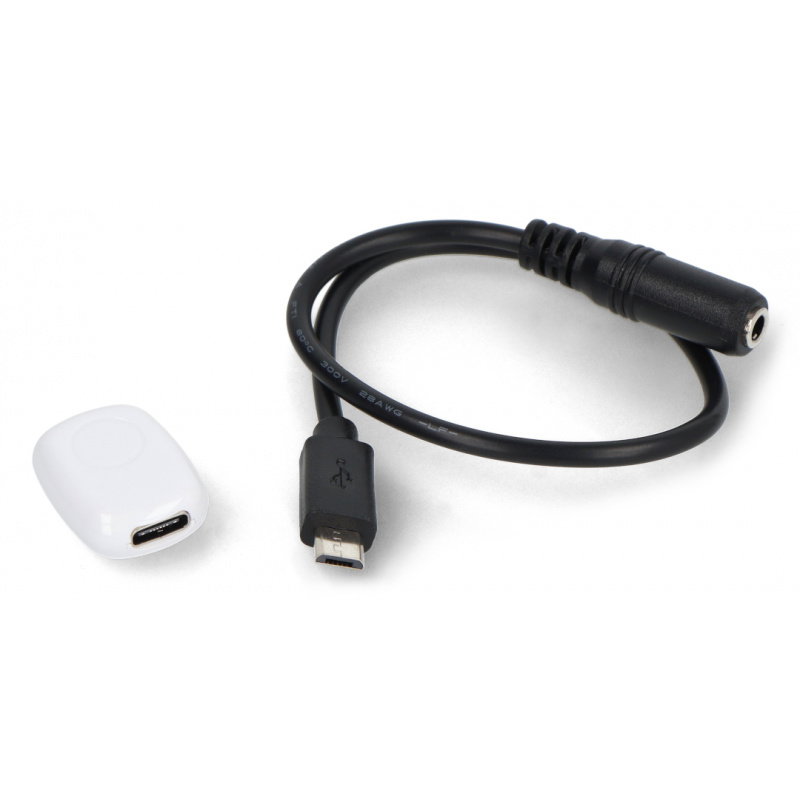

Elements included in the set.
