Product description: 1 to 5 splitter with 3.5mm jack socket - accessory for Shelly The Pill
The Shelly splitter for Shelly The Pill expands a single 3.5mm jack connection into five independent sockets for DS18B20 temperature sensors . It allows you to monitor temperature simultaneously in multiple locations without the need for additional The Pill modules. The accessory is equipped with one cable terminated with a male 3.5mm jack connector and five cables with female 3.5mm jack sockets . The plug-and-play design simplifies installation and allows you to quickly expand your measurement system. The splitter is suitable for both home automation and technical installations requiring multi-point temperature control.

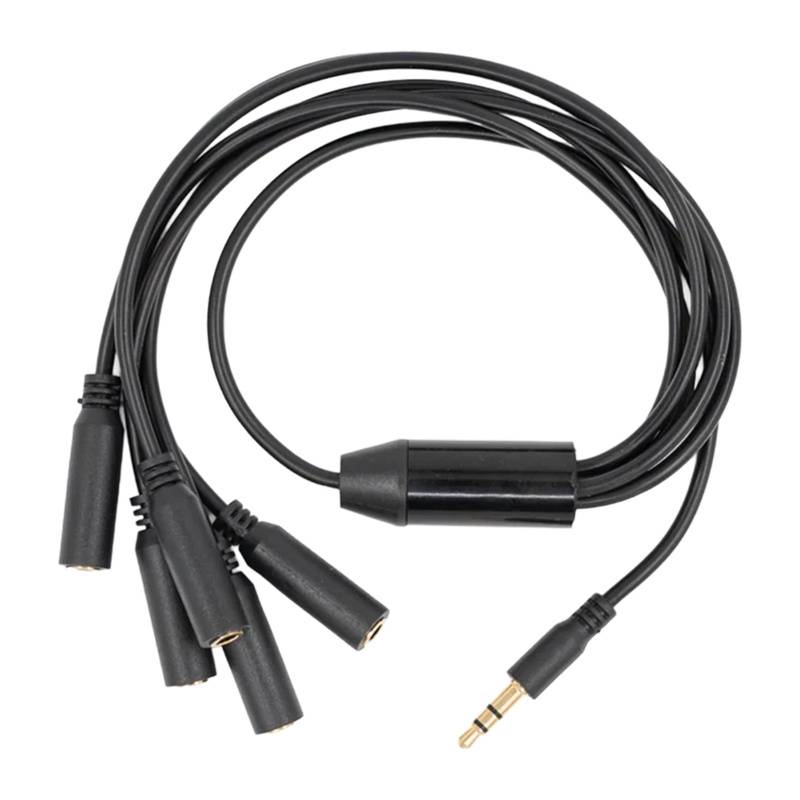

1 to 5 splitter with 3.5mm jack socket - accessory for Shelly The Pill.
The ability to connect five sensors simultaneously allows you to create an extensive temperature monitoring system using a single The Pill module.
Main features of the Shelly splitter
- Supports up to five sensors : allows for simultaneous connection of up to five DS18B20 temperature probes
- Compatibility with Shelly The Pill : an accessory designed to expand the measurement system based on the Shelly module
- 3.5mm jack connectors : one male plug and five female sockets ensure quick and tidy connection
- Plug and play operation : the splitter does not require any additional programming or configuration
- Multi-point temperature measurement : allows you to monitor conditions in several places using a single module
- 21 cm long cables : facilitate the placement of sensors and the organization of the installation
- Compact design : reduces the number of additional components needed to expand the system
- Wide range of applications : suitable for home automation, HVAC installations, server rooms and IoT projects
Shelly Splitter 1 to 5 Technical Specifications
- Compatibility: Shelly The Pill
- Supported sensors: DS18B20 with 3.5mm jack connector
- Maximum number of sensors: 5
- Operation mode: plug and play
- Input Connector: 1x 3.5mm male jack
- Output connectors: 5x 3.5mm female jacks
- Input cable length: 21 cm
- Output cable length: 21 cm
- Color: black
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 40°C
- Relative humidity: 30% RH to 70% RH
- Maximum operating altitude: 2000 m above sea level
- Weight: 40 g
Contents of the set
- 1x Shelly Splitter

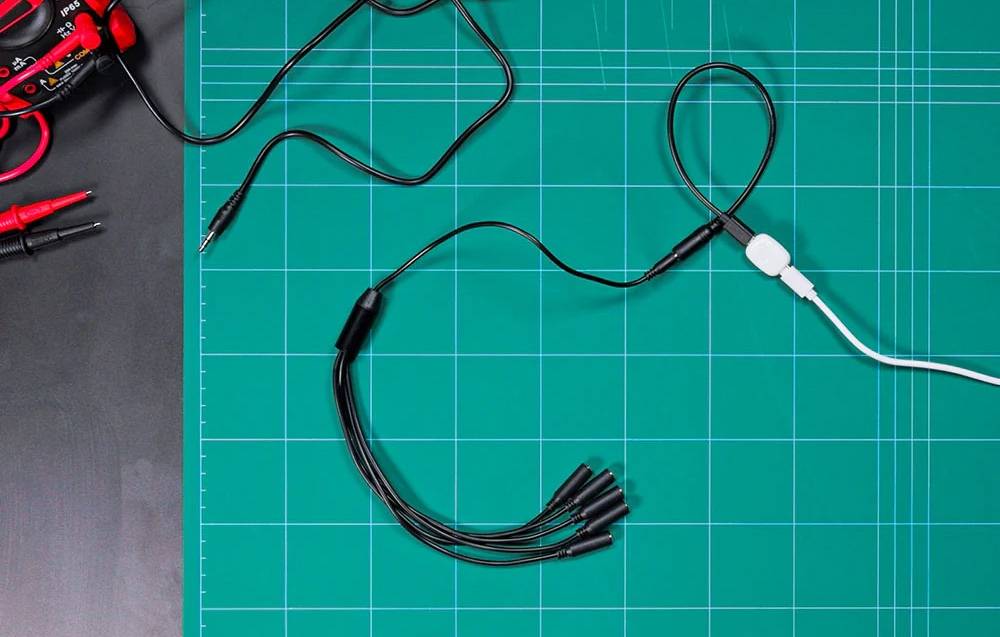

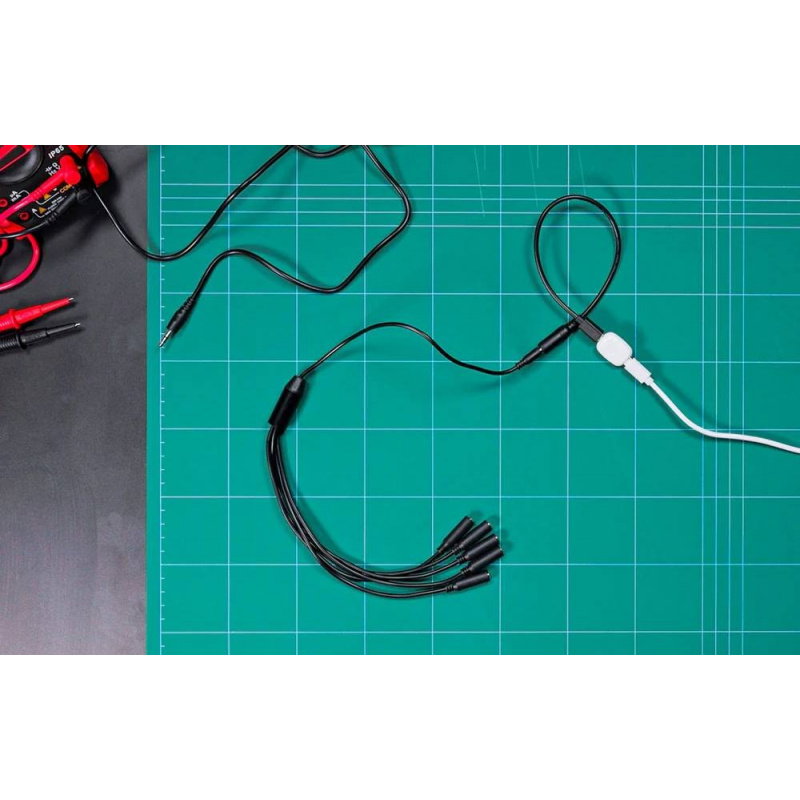

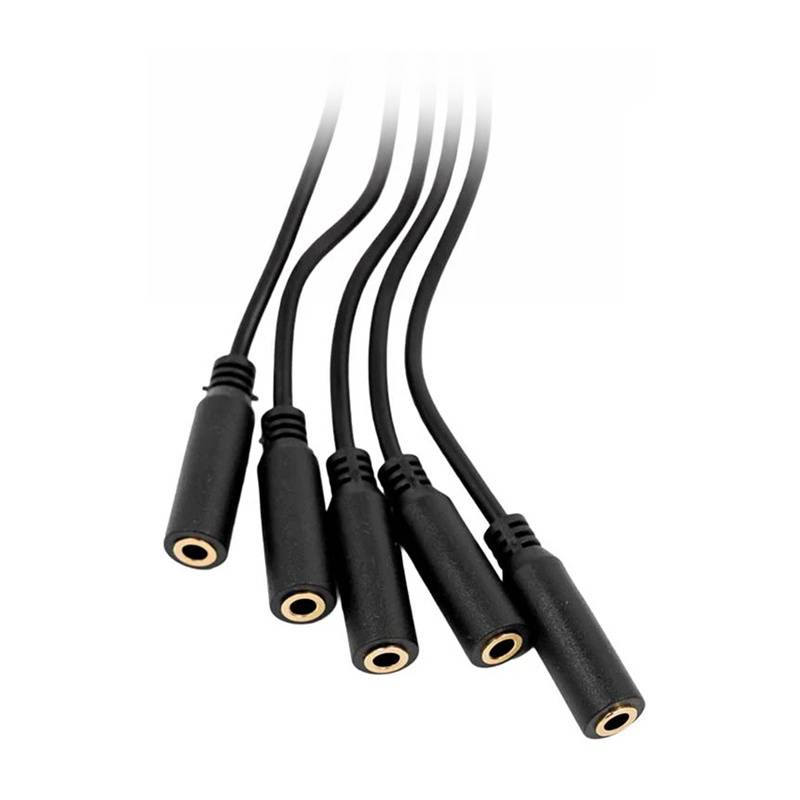

Five separate outputs allow you to conveniently place temperature probes at different points in the installation.
