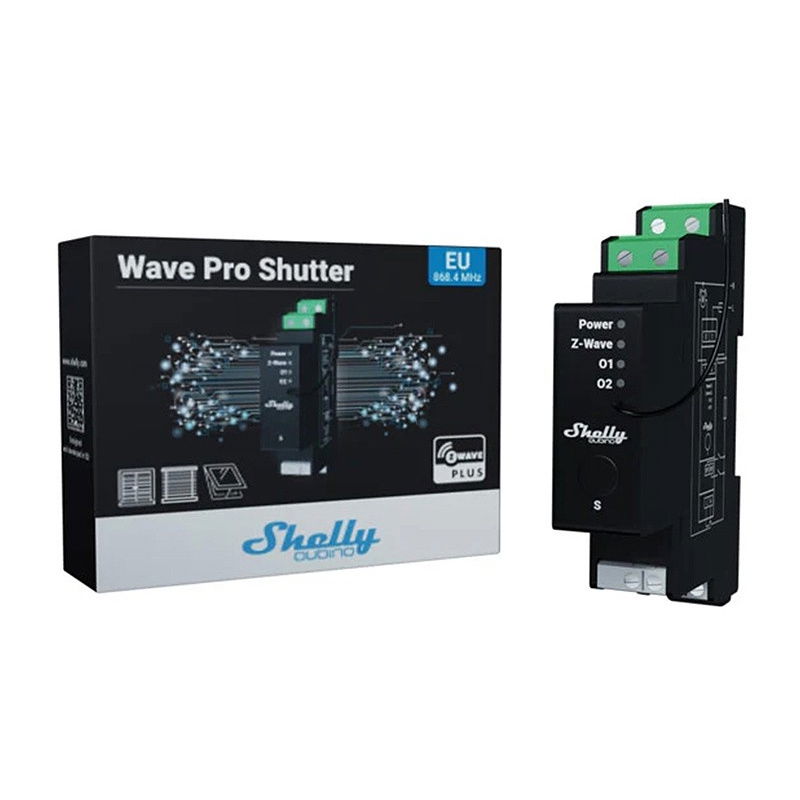

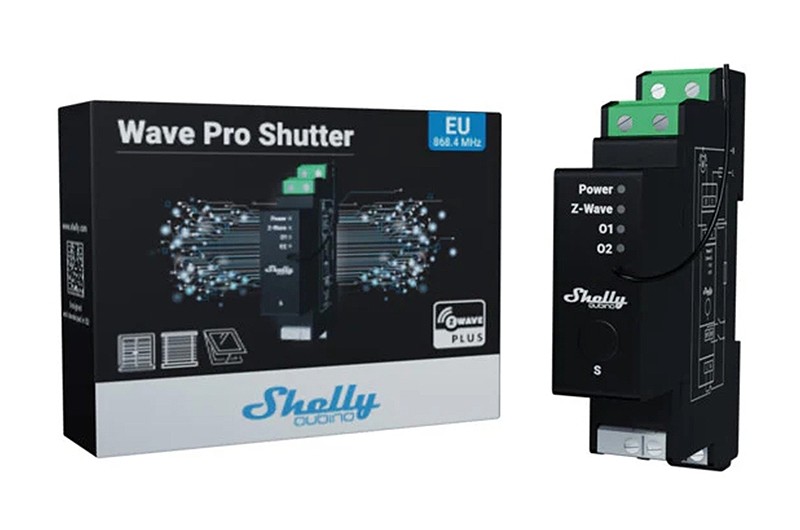

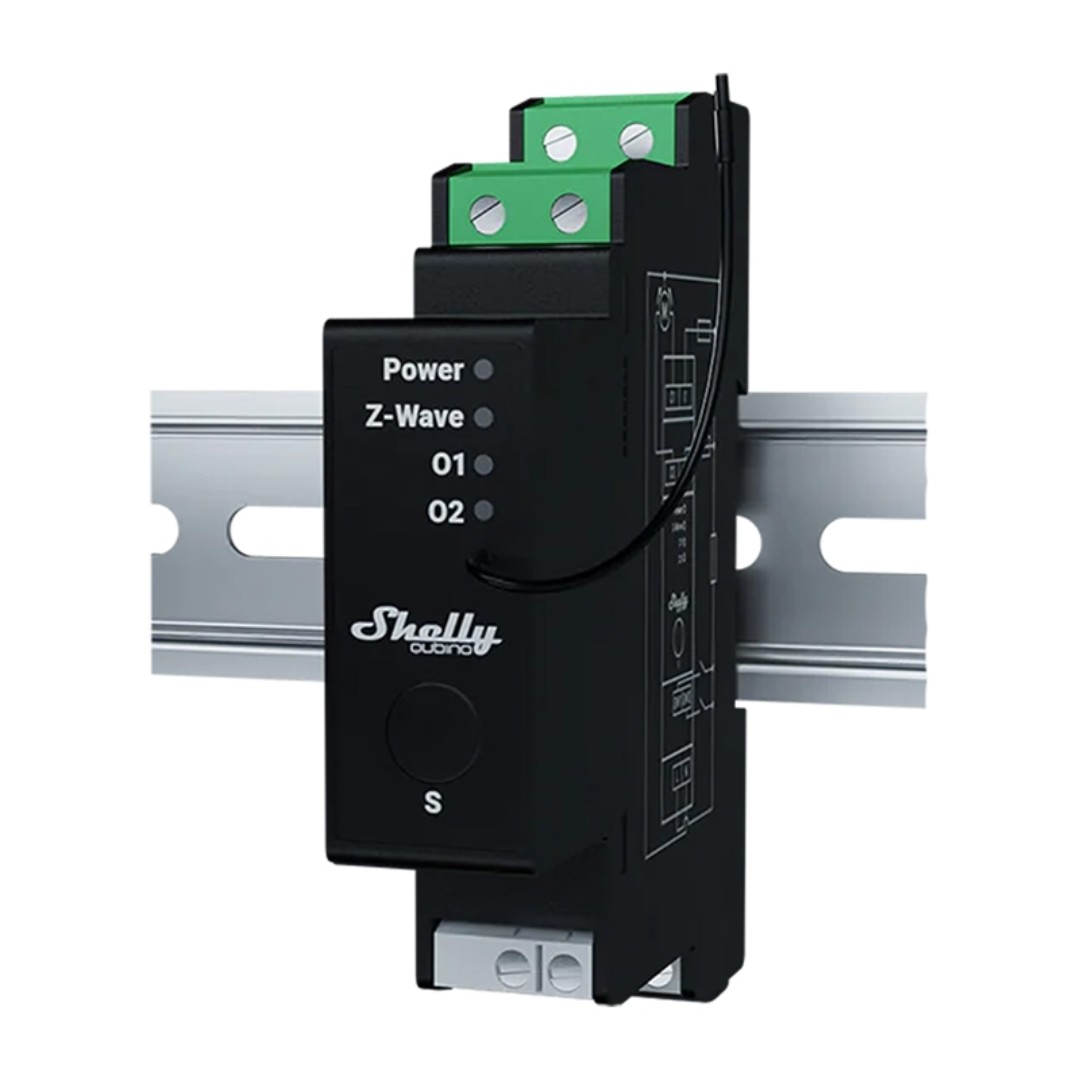

Shelly Qubino Wave Pro Shutter - 2-channel Z-Wave relay with DIN rail power meter
Shelly Qubino Wave Pro Shutter is an intelligent DIN rail-mounted relay that offers precise control of blinds, roller shutters and awnings as well as energy consumption measurement . Thanks to Z-Wave communication and advanced automation functions, it is perfect for modern home and commercial installations. The device supports a load of up to 16 A per channel and has been equipped with a set of safeguards to protect the electrical installation.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Shelly Qubino Wave Pro Shutter - 2-channel Z-Wave relay with power meter for DIN rail

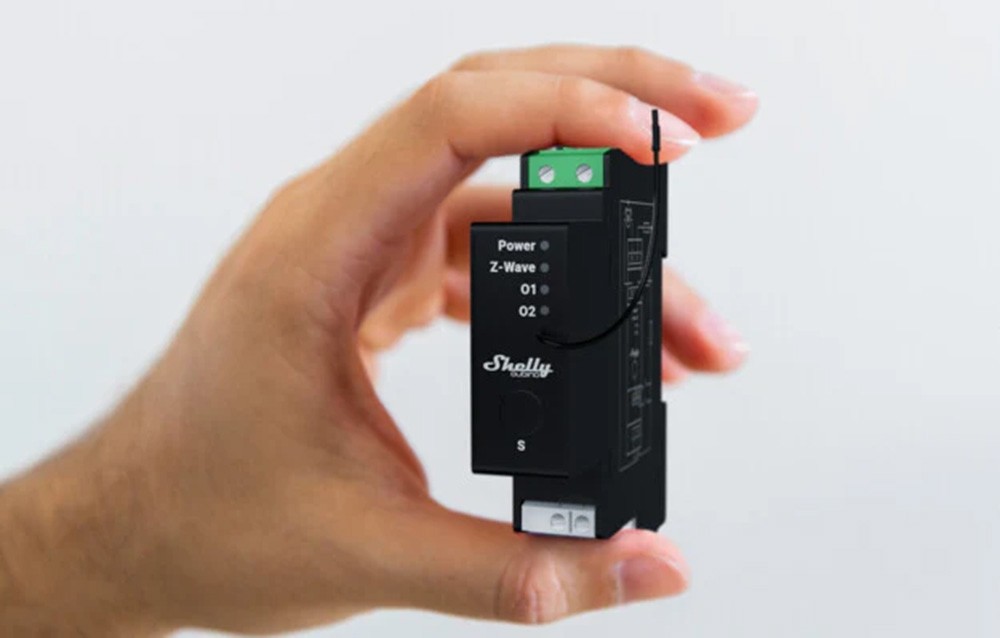

Shelly Qubino Wave Pro Shutter is an intelligent Z-Wave relay with a built-in energy meter that allows remote control of window coverings and automation of operating scenarios. Ideal for Smart Home systems in single-family homes, offices and commercial facilities. Installed on a DIN rail , it offers maximum efficiency with minimal energy consumption. Its compact design and wide compatibility with Z-Wave devices make it a universal and safe solution for any installation.
Shelly Qubino Wave Pro Shutter - 2-channel Z-Wave relay with power meter for DIN rail.
Advanced DIN relay with energy measurement function.
High switching power and precise energy measurement
The Shelly Wave Pro Shutter supports up to 16A per channel , making it an exceptionally robust solution for advanced installations. Built-in energy measurement allows you to monitor your usage in real time, giving you full control over your energy efficiency. Power consumption of less than 0.3W guarantees energy savings, while the ability to set schedules and scenes allows you to adjust the device's operation to your daily needs and rhythm of life.
Z-Wave technology - stability and compatibility
Shelly Wave Pro Shutter is powered by the latest Z-Wave S800 chip , providing full compatibility with over 4,000 Z-Wave certified devices . With AES128 encryption , repeater function and 868.4 MHz band operation, you get a stable and secure connection without interference. The device supports SmartStart , allowing automatic addition to the network, and direct local connections without the need for a hub - ideal for extensive and independent systems.
The "Smart Scenes" function allows you to synchronize your operation with other Z-Wave devices.
Shelly Qubino Wave Pro Shutter has advanced safety features such as overheating, overload and overvoltage protection.
Intelligent Control, Scenes and Automations

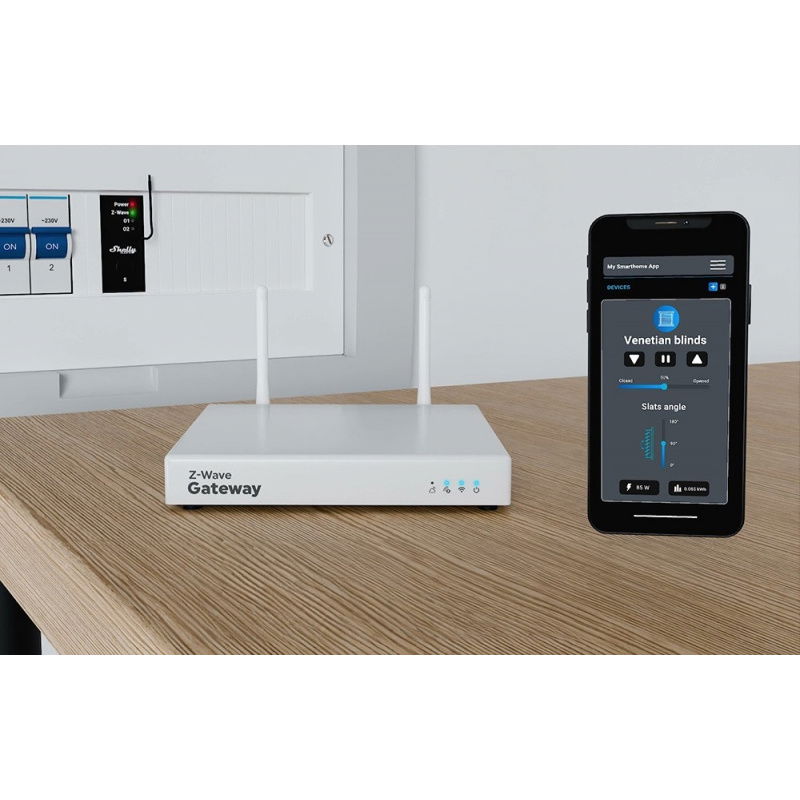

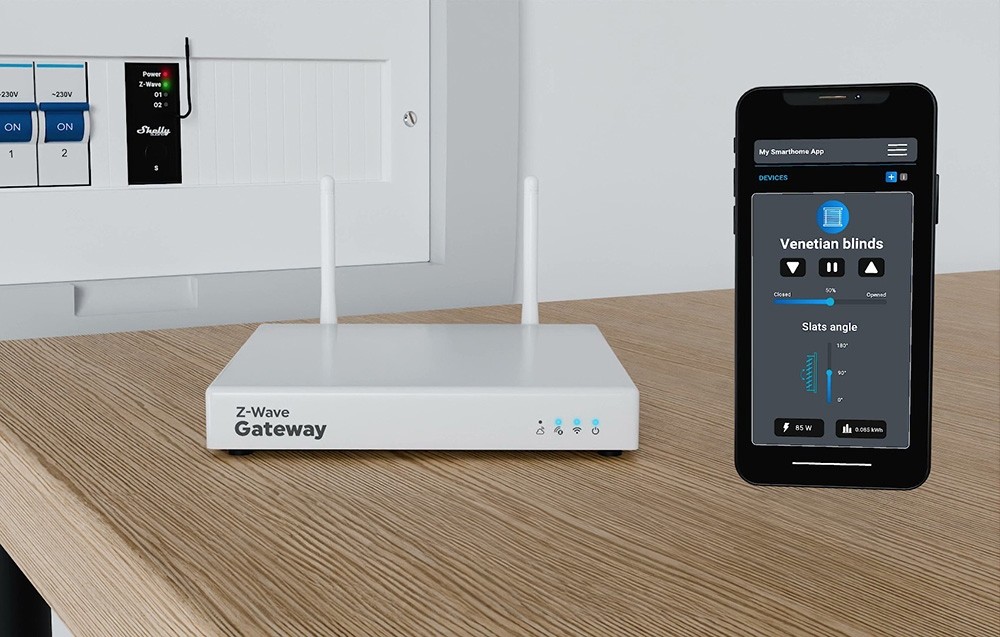

Wave Pro Shutter provides full control over the position of the blinds and the angle of the slats, allowing for precise adjustment of the amount of light. The ability to create intelligent scenes and schedules allows for automation of operation according to the time of day or sunrise and sunset. The direct association function allows communication between devices without using a hub, and the Smart Scenes mode integrates the blind with other elements of the smart home - from weather sensors to lighting .
Safety of use and DIN assembly
The device is equipped with advanced protection against overheating, overload and overvoltage , which ensures safety of use and long service life of the equipment. The housing made of self-extinguishing material (class V-0) increases resistance to high temperatures. Mounting on a DIN rail makes installation easier and does not require additional wiring, which makes the product an ideal choice for installers and integrators of Smart Home systems.
The Wave Pro Shutter supports up to 16A per channel.

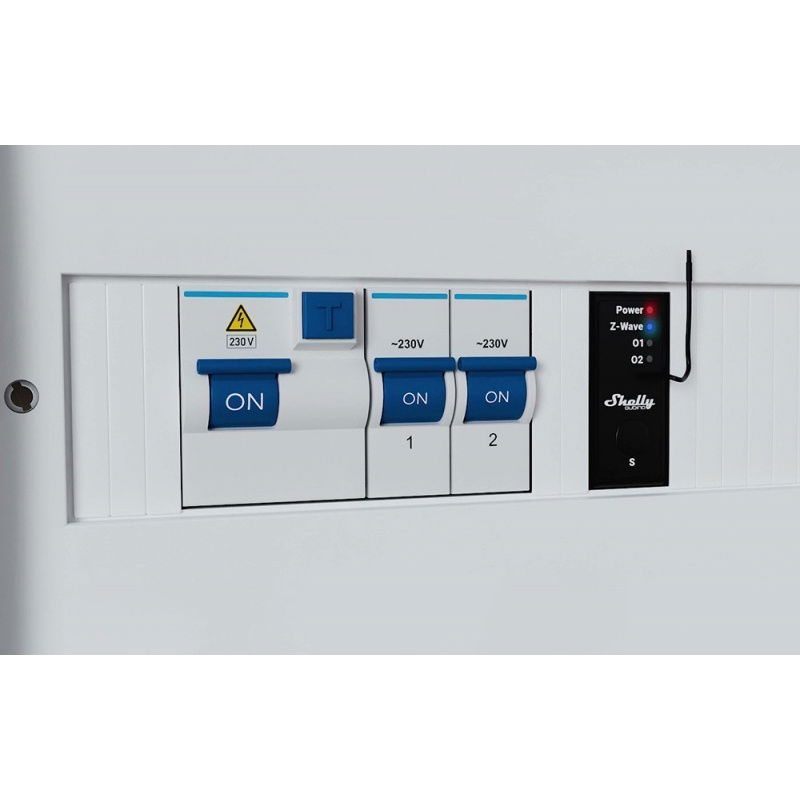

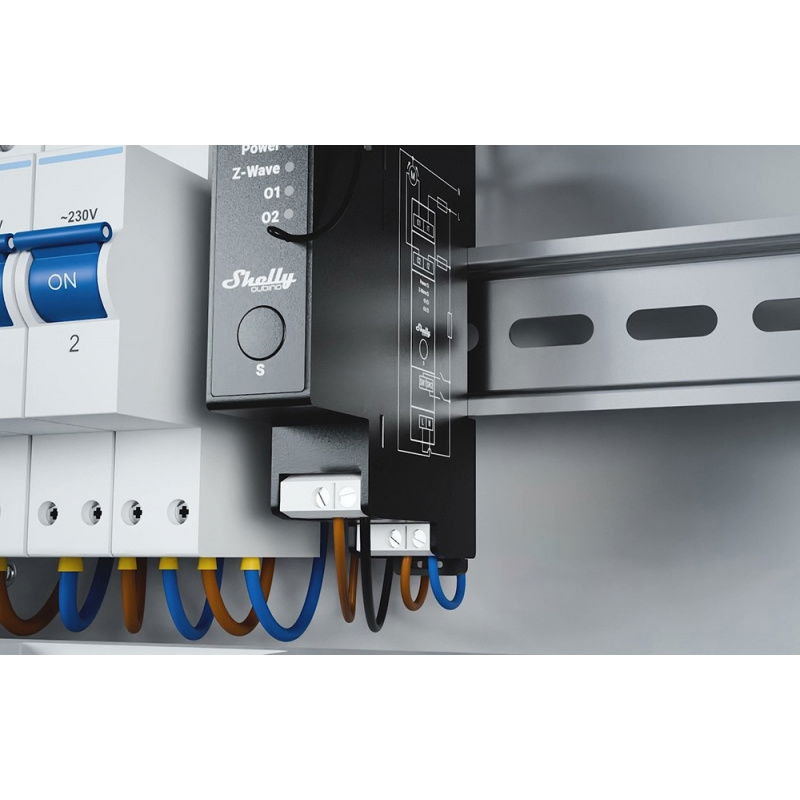

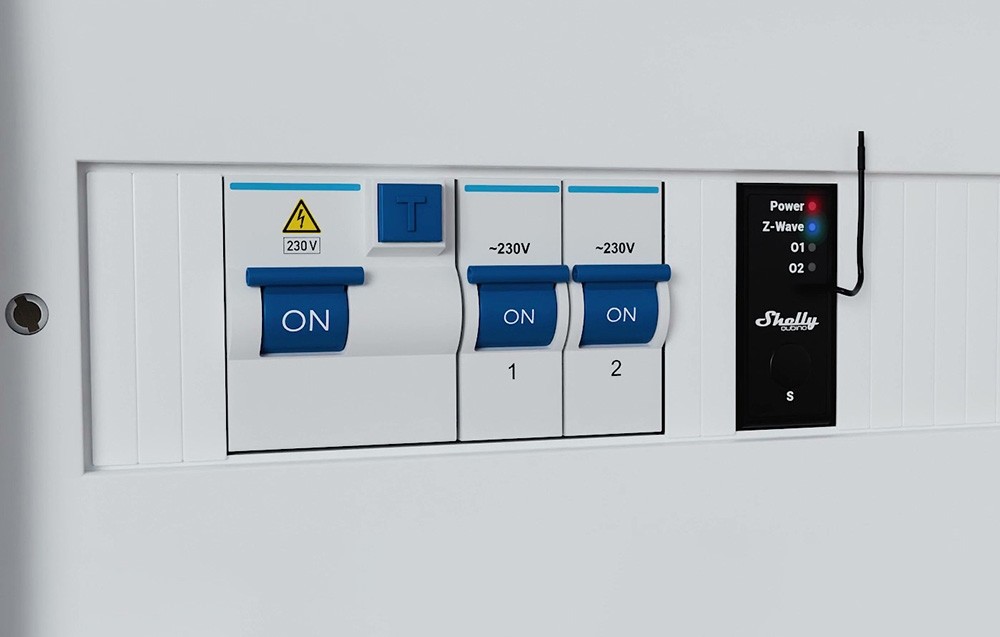

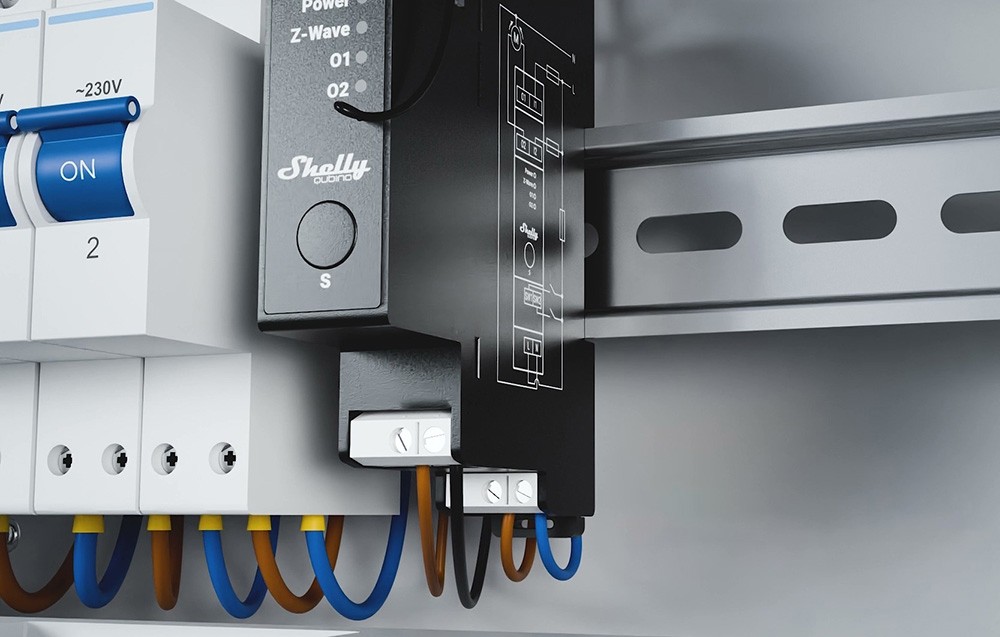

Thanks to mounting on a DIN rail, installation is very simple.
Technical specifications of the relay
- Power supply: 110V to 240V AC, 50/60Hz
- Power consumption: less than 0.3 W
- Maximum switching voltage: 240 V AC
- Maximum switching current: 16 A per channel
- Z-Wave band: 868.4 MHz
- Range: up to 40 m indoors (depending on local conditions)
- Protection: overheating, overload and overvoltage
- Processor: Z-Wave S800
- Support: SmartStart, S2 Security
- Mounting: DIN rail

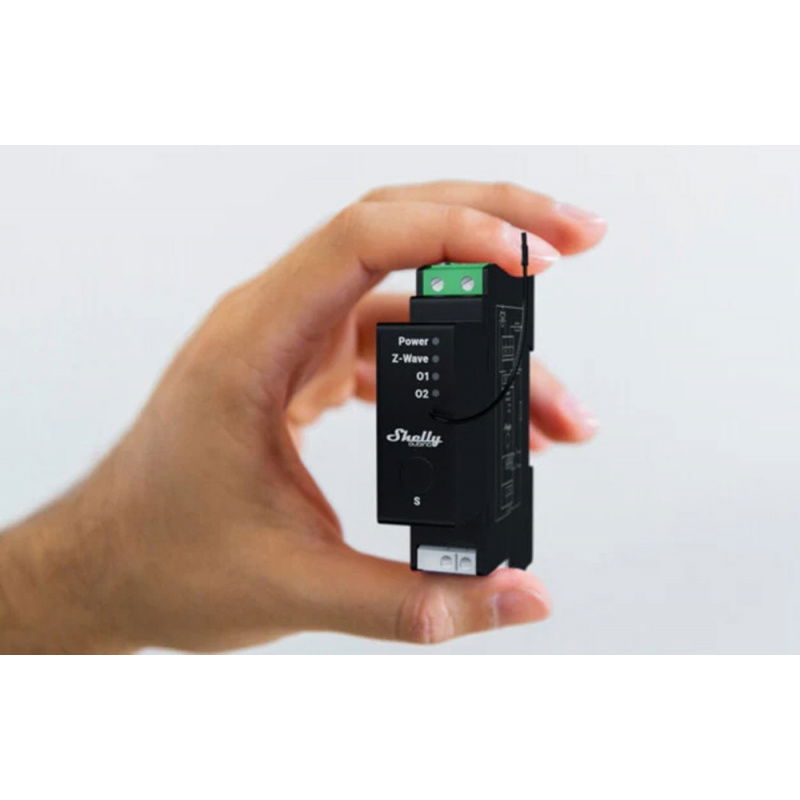

- Dimensions: 94 x 19 x 69 mm
- Weight: 75 g
Useful links
| Name | Value |
|---|---|
| Smart Home | Relay |
| Communication | Z-Wave |
| Width | 10 cm |
| Height | 7.7 cm |
| Depth | 2.7 cm |
| Weight | 0.098 kg |
