Product description: Shelly Plus 1 Mini Gen3 - 240 V / 8 A WiFi / Bluetooth relay - Android / iOS application
Shelly 1 Mini Gen3 is an extremely versatile and efficient WiFi smart switch that allows you to remotely control electrical devices from your smartphone, tablet or computer. Thanks to the new ESP Shelly processor and increased Flash memory, this mini relay offers not only excellent performance, but also greater programming and personalization possibilities . Shelly 1 Mini Gen3 supports a load of up to 8 A at 240 V AC and 5 A at 30 V DC , and, thanks to its potential-free contacts, there is the option of contactor control. Shelly 1 Mini Gen3 is equipped with a WiFi range extender and a Bluetooth gateway , which allows you to quickly connect to a wireless network and use the device as a Bluetooth gateway. Additionally, no hub is required, which makes controlling your devices easy and convenient. Shelly devices are compatible with many platforms and protocols , including the Shelly Smart Control application, the Home Assistant platform, the MQTT protocol and voice assistants such as Alexa and Google Home. Thanks to this, you can adapt your smart home environment to your needs and preferences.
Shelly Plus 1 Mini Gen3 - 240 V / 8 A WiFi / Bluetooth relay - Android / iOS application.
Shelly Plus 1 Mini Gen3 - WiFi relay for remote control.Main features of the relay
- New Processor and Increased Flash Memory: Equipped with Shelly's latest ESP processor and increased Flash memory, Shelly 1 Mini Gen3 offers performance and operational reliability.
- Increased terminal durability: ensures solid connections and long-term use.
- Supports loads up to 8 A: The relay supports loads up to 8 A at 240 V AC and 5 A at 30 V DC, allowing you to control a variety of electrical devices.
- Potential-free contacts: The potential-free contact option enables contactor control for added flexibility of use.
- WiFi range extender and Bluetooth gateway: makes it easy to quickly connect to a wireless network and use the device as a Bluetooth gateway.
- No Hub Required: No hub is required to control the device, making control easy and convenient.
- Multi-Protocol Support: Supports scripts, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates, allowing integration with various systems and platforms.
- Full compatibility: compatible with multiple platforms and protocols, including the Shelly Smart Control app and voice assistants such as Alexa and Google Home.
Applications of Shelly 1 Mini Gen3
Shelly 1 Mini Gen3 is used in a wide range of home and commercial scenarios . It is the world's smallest relay switch that provides intelligent control of electrical devices . With it, you can automate lighting, garage doors, irrigation systems and other small electrical devices in less than 10 minutes . It is an ideal solution for both individual users and companies looking for simple and intelligent solutions to increase energy efficiency and automate their processes. Thanks to the possibility of control via a mobile application and voice assistants, Shelly 1 Mini Gen3 provides flexibility and convenience in managing the home or business environment, regardless of location and time.
The relay supports various protocols such as scripts, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS, and custom certificates.

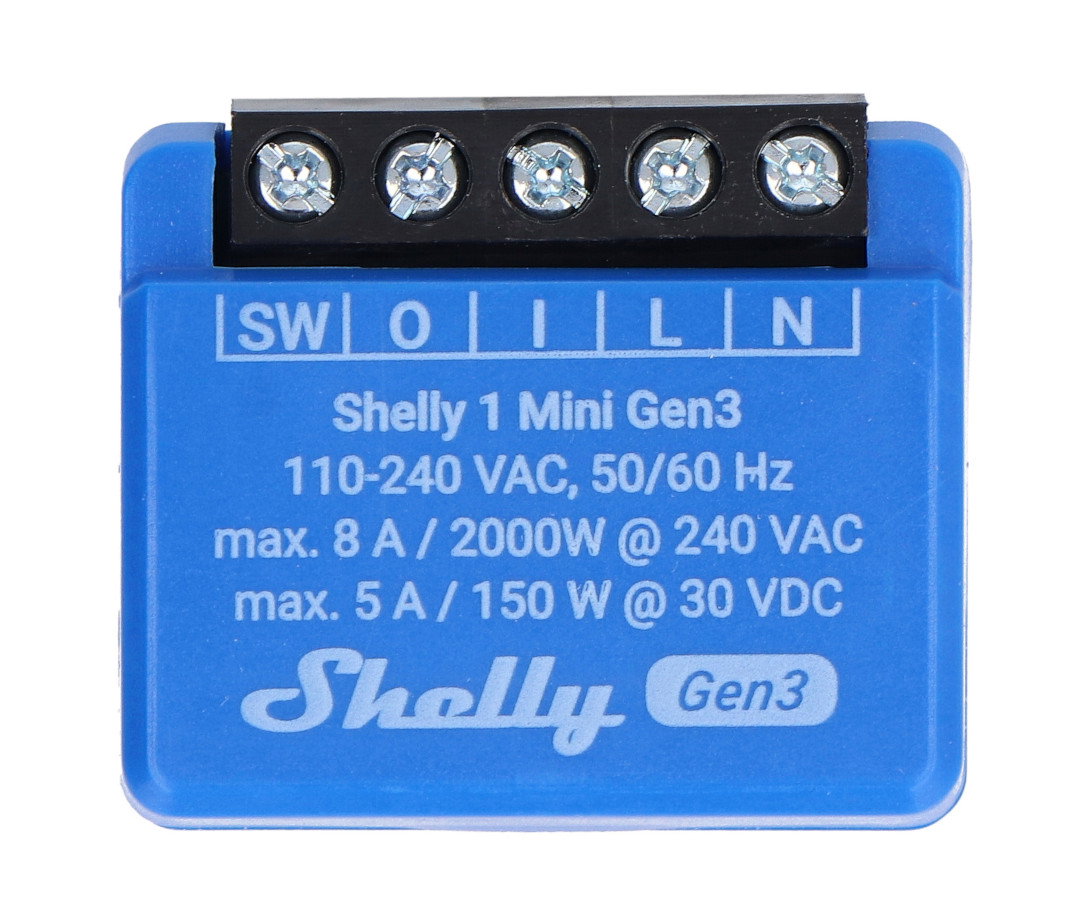

The device has screw connections for mountingcables , and its small dimensions allow the module to be closed in an electrical box.
Technical specifications of Shelly Plus 1 Mini Gen3
- Producer: Shelly
- Model: Plus 1 Mini Gen3
- Processor: ESP-Shelly-C38F
- Flash memory: 8 MB
- Power supply: 110 V to 240 V AC
- Maximum measurement voltage: 240V / 30V
- Maximum measurement current: 8 A
- Maximum measurement power: 2000 W
- Power measurement: no
- Internal temperature sensor: yes
- RF band: from 2400 MHz to 2495 MHz
- WiFi protocol: 802.11 b/g/n
- WiFi range: up to 30 m indoors and 50 m outdoors (depending on local conditions)
- Bluetooth protocol: 4.2
- Bluetooth range: up to 10 m indoors and 30 m outdoors (depending on local conditions)
- Webhooks: 20 with 5 URLs per hook
- MQTT: yes
- UPD: yes
- Scripts: yes
- Ambient temperature: -20°C to 40°C
- Dimensions: 29 x 35 x 16 mm
- Weight: 19 g
| Comparison of Shelly Gen1, Gen2, Gen3 and Gen4 Devices | ||||
|---|---|---|---|---|
| Feature | Shelly Gen 1 | Shelly Gen 2 (Plus/Pro, Mini) | Shelly Gen 3 | Shelly Gen 4 |
| WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi | 2.4 GHz WiFi (WiFi 6) |
| Processing Power | Basic | More powerful processors than Gen 1 | Shelly chip for optimal performance | Most advanced processing power |
| Memory | Basic memory | Up to 4 MB Flash (8 MB in PRO) | 8 MB Flash, 256 kB RAM | More than Gen 3 (512 kB RAM) |
| Bluetooth | No | Yes - for easy setup | Yes - for easy setup | Yes - for easy setup |
| Scripting and Automation | No | Enhanced automation capabilities | Advanced scripting and automation | Advanced scripting and automation |
| Energy Monitoring | Basic (selected models) | Extended monitoring (some models) | Advanced monitoring and safety | Advanced monitoring and safety |
| Device Control | MQTT, CoAP, HTTP Webhooks | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud | MQTTS, HTTP/HTTPS Webhooks, MQTT + Cloud |
| Virtual Components | No | Available (PRO only) | Supported | Supported |
| KNX Support | No | Yes (selected PRO only) | Yes (selected devices) | Yes (selected devices) |
| Bluetooth Gateway | No | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) | Yes (except BLU TRV, Gen 3 gateway required) |
| KVS (Key-Value Store) | No | Yes | Yes | Yes |
| Timer Loop | No | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously | Auto ON/OFF simultaneously |
| Range Extender | No | Yes | Yes | Yes (WiFi and ZigBee) |
| Simultaneous AP and WiFi | No | Yes | Yes | Yes |
| Ethernet | No | Yes (PRO only) | Yes (PRO only) | Yes (PRO only) |
| Intended Use | Basic home automation | More features, scripting, better hardware | Advanced automation, future-proof | Full automation, maximum flexibility |
| Protocol Support | None | BTHome, MQTT+Cloud, KNX (PRO) | BTHome, KNXnet/IP, Matter, MQTT+Cloud, Virtual Components | BTHome, Matter, ZigBee, TCP/IP Modbus, KNXnet/IP, MQTT+Cloud |
