Product description: 5-clamp attachment - accessory for Shelly The Pill
The 5-terminal Shelly shield enables convenient use of The Pill 's hardware interfaces. The accessory provides access to three input and output lines, a 5V power terminal, and GND , simplifying the connection of sensors, buttons, and other controls. The IO1 line can be used with DS18B20 temperature sensors , DHT22 temperature and humidity sensors, analog input, and digital signals . The IO2 and IO3 lines can be configured as digital inputs or outputs. The shield is a practical solution for building smart home installations, testing prototypes, and developing your own electronics projects.

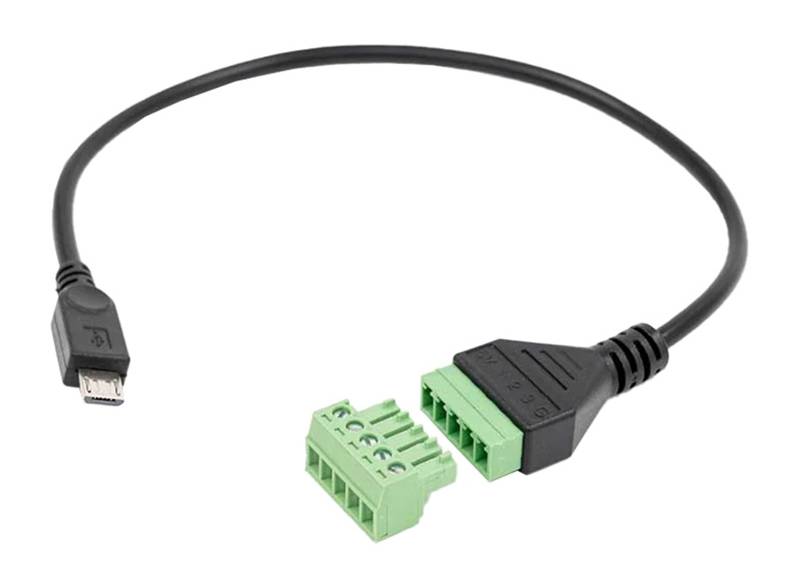

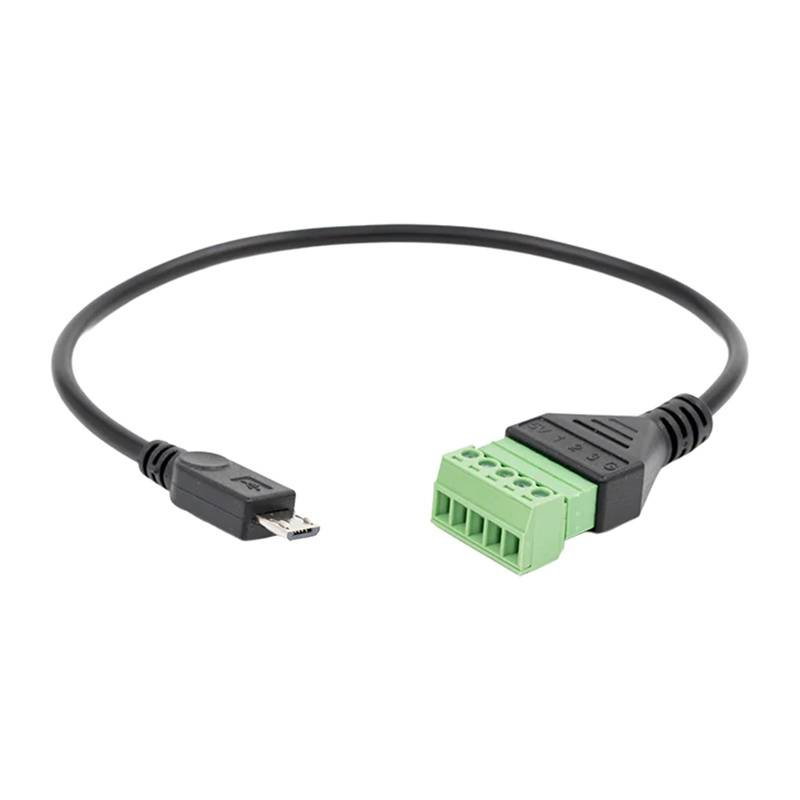

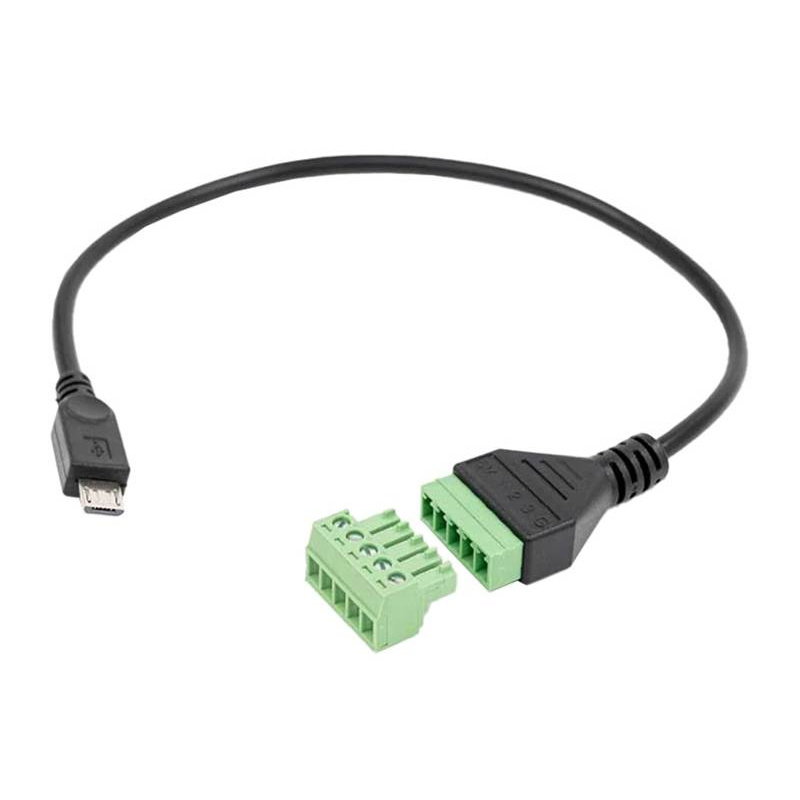

5-clamp attachment - accessory for Shelly The Pill.

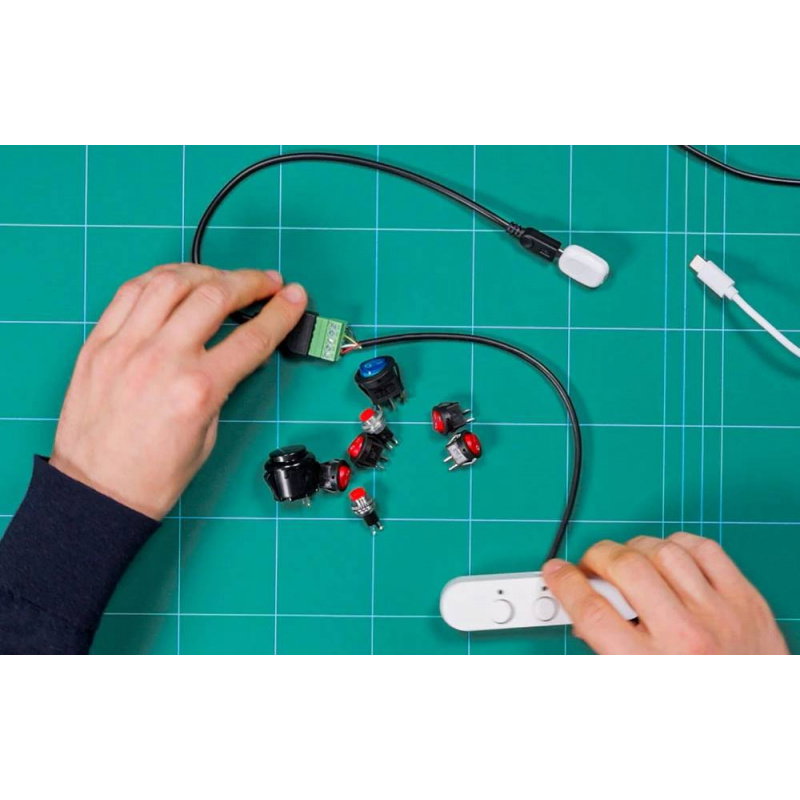

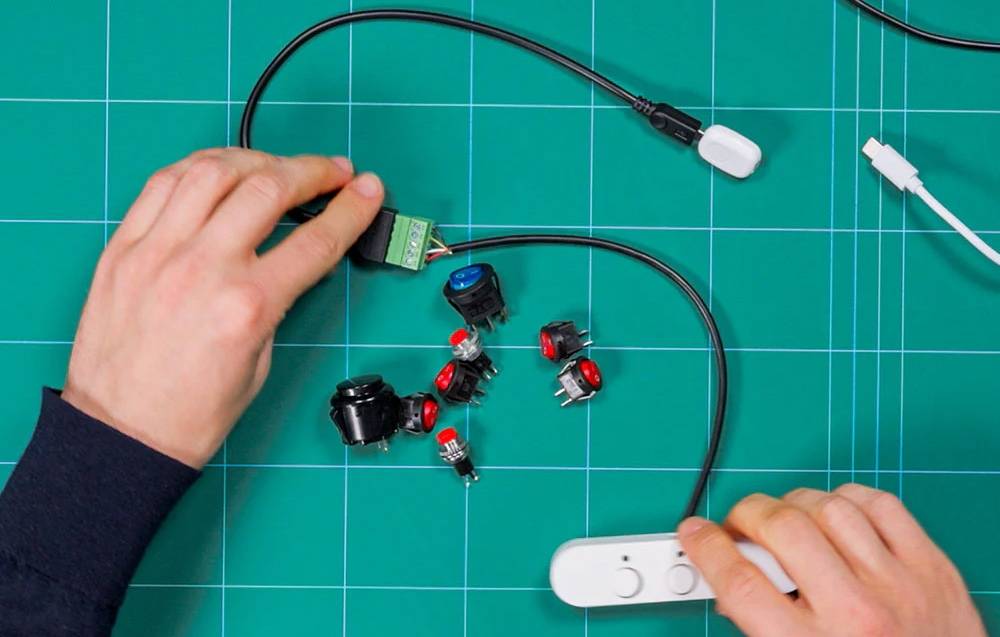

The adapter can be used to connect temperature and humidity sensors, buttons, switches and devices transmitting analog or digital signals.
Key Features of the Shelly 5-Terminal Add-on
- Five connection terminals : easy connection of power, sensors and controls
- Three configurable I/O lines : access to 3.3V logic level inputs and outputs
- Multifunctional IO1 line : supports DS18B20 and DHT22 sensors, analog input and digital input or output
- Two digital lines IO2 and IO3 : configurable as digital inputs or outputs
- Analog input : measurement of signals in the range from 0 V to 2.5 V
- 5V and GND terminals : can power connected sensors or The Pill module
- Dedicated Compatibility : An accessory designed to work with Shelly The Pill
- 24 cm long cable : convenient arrangement of elements during assembly
Technical specifications of the extension to
Shelly The Pill
- Compatibility: Shelly The Pill
- Number of clamps: 5
- Terminals: 5V, IO1, IO2, IO3, GND
- Number of configurable inputs and outputs: 3
- Logical level of inputs and outputs: 3.3 V
- IO1: Support DS18B20, DHT22, analog input and digital input or output
- IO2: Digital Input or Output
- IO3: Digital Input or Output
- Analog input range: 0 V to 2.5 V
- Power terminal: 5V
- Reference terminal: GND
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 40°C
- Relative humidity: 30% RH to 70% RH
- Maximum operating altitude: 2000 m above sea level
- Cable length: 24 cm
- Color: black
- Dimensions: 44 x 23 x 10 mm
- Weight: 23 g
Contents of the set
- Shelly 5-terminal cover
Access to power and configurable I/O lines reduces the need for additional adapters and facilitates quick design changes.
