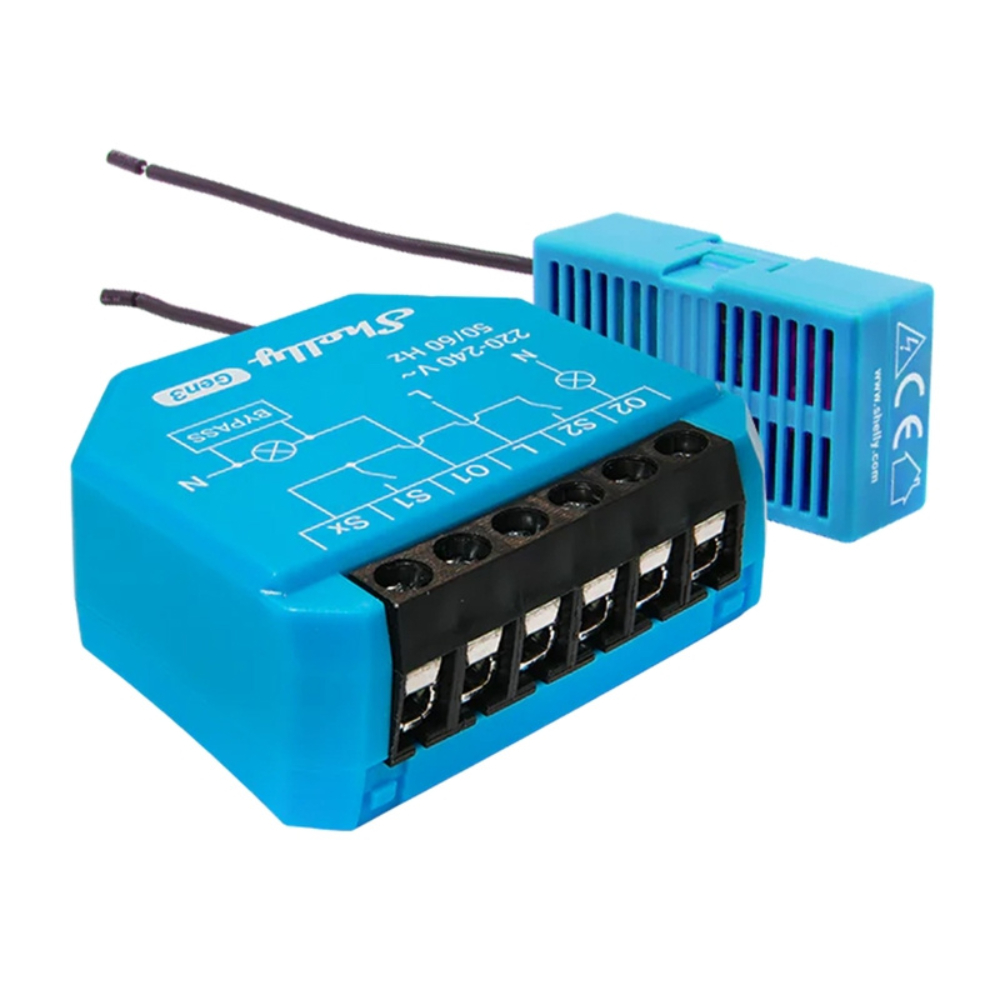

Product description: Shelly 2L Gen3 - 2-channel WiFi/Bluetooth lighting controller - Android/iOS app
Shelly 2L Gen3 is a modern, 2-channel lighting controller that enables intelligent lighting management without the need for a neutral wire. This makes it ideal for older electrical installations and for modernization without costly repairs . The device allows for remote lighting control via WiFi and Bluetooth , offering full control via an app or home automation system.
Shelly 2L Gen3 - 2-channel WiFi/Bluetooth lighting controller - Android/iOS app.
Special features
- Neutral-free operation: allows installation in older electrical systems without the need to upgrade the wiring
- 2 independent channels: ability to control two lighting circuits simultaneously
- High switching power: up to 200 W at output O1 and up to 700 W at output O2
- Wireless connectivity: WiFi and Bluetooth support for convenient control and quick pairing
- App control: full control via Shelly Smart Control for Android and iOS
- Schedules and automation: the ability to create scenes, timers, and dependencies between devices
- MQTT and scripting support: advanced integration with automation systems and custom solutions
- Built-in temperature sensor: overheating protection for added safety
- WiFi repeater and Bluetooth gateway function: extend network coverage and integrate other devices
- Compact housing: easy installation in flush-mounted boxes with limited space
Technical specifications
- Model: 2L Gen3
- Device type: 2-channel lighting controller
- Power Supply: 220 to 240 VAC, 50 Hz (Shelly Bypass required)
- Number of channels: 2
- Maximum switching power: 200 W (O1), 700 W (O2)
- Maximum switching voltage: 240 V
- Power consumption: < 1.2 W
- Power supply without neutral wire: yes
- Bypass Shelly: Included
- Communication interface: WiFi 802.11 b/g/n, Bluetooth 4.2
- WiFi Frequency: 2401 to 2495 MHz
- WiFi range: up to 30 m indoors, up to 50 m outdoors
- Bluetooth frequency: 2400 to 2483.5 MHz
- Bluetooth range: up to 10 m indoors, up to 30 m outdoors
- Processor: ESP-Shelly-C38F
- Clock speed: 160 MHz
- Memory: 512 kB RAM, 8 MB Flash
- MQTT support: yes
- Scripting: Yes
- Number of schedules: 20
- Number of webhooks: 20 (5 URLs per webhook)
- Temperature sensor: built-in
- Operating temperature: -20°C to 40°C
- Storage temperature: 10°C to 40°C
- Operating humidity: 30% to 70% RH
- Maximum operating altitude: 2000 m
- Wire cross-section: 0.2 to 2.5 mm²
- Stripped wire length: 6 to 7 mm
- Maximum tightening torque: 0.4 Nm
- Installation: in a flush-mounted box
- Housing material: plastic
- Dimensions: 37 x 42 x 16 mm
- Weight: 28 g
Contents of the set
- Shelly 2L Gen3
- Shelly Bypass
The device allows remote lighting control via WiFi and Bluetooth, offering full control from an application or home automation systems. Useful links |
