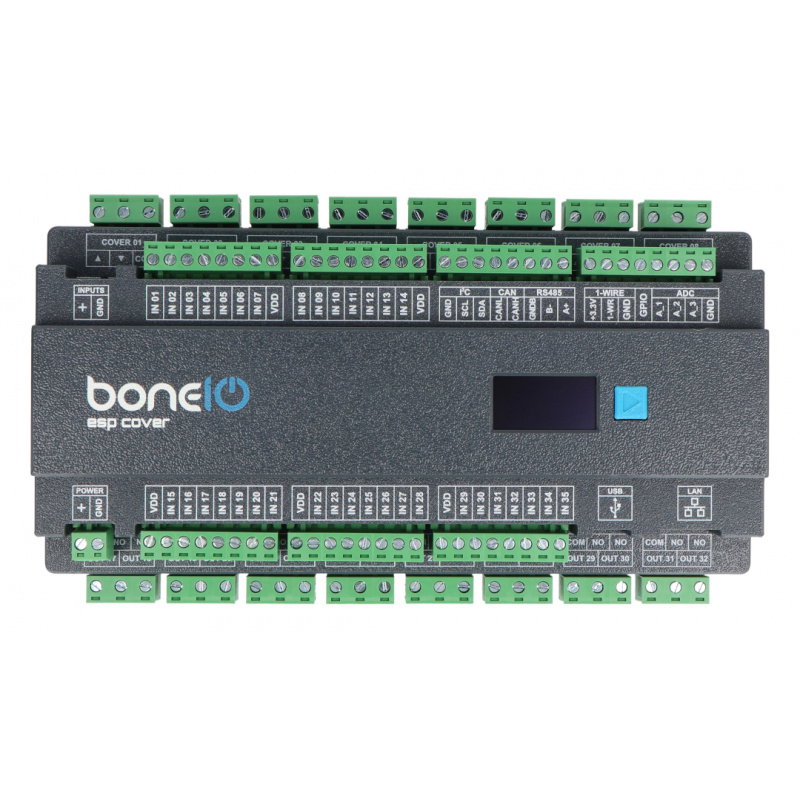

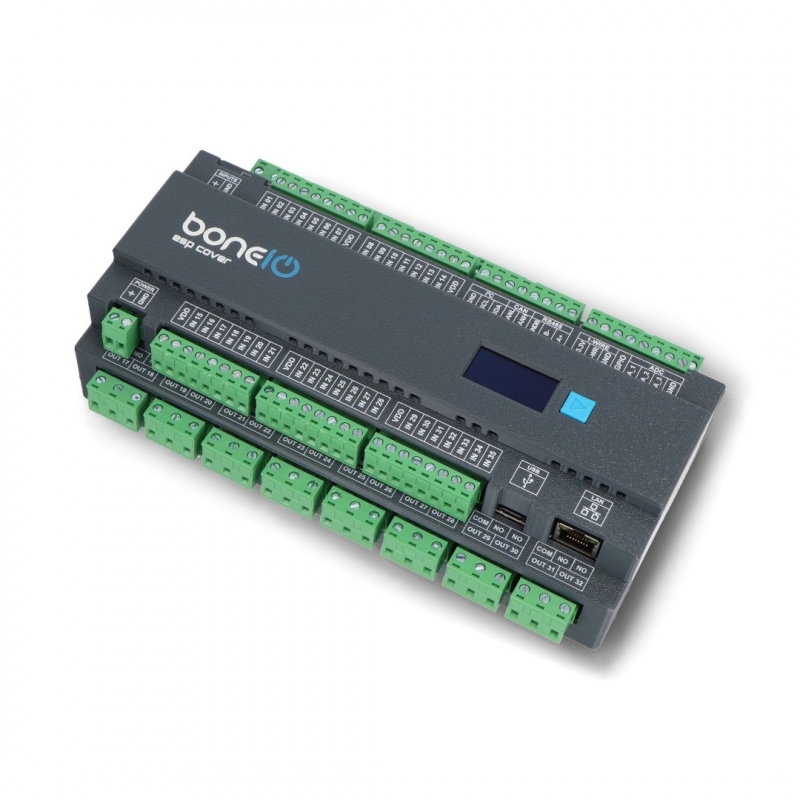

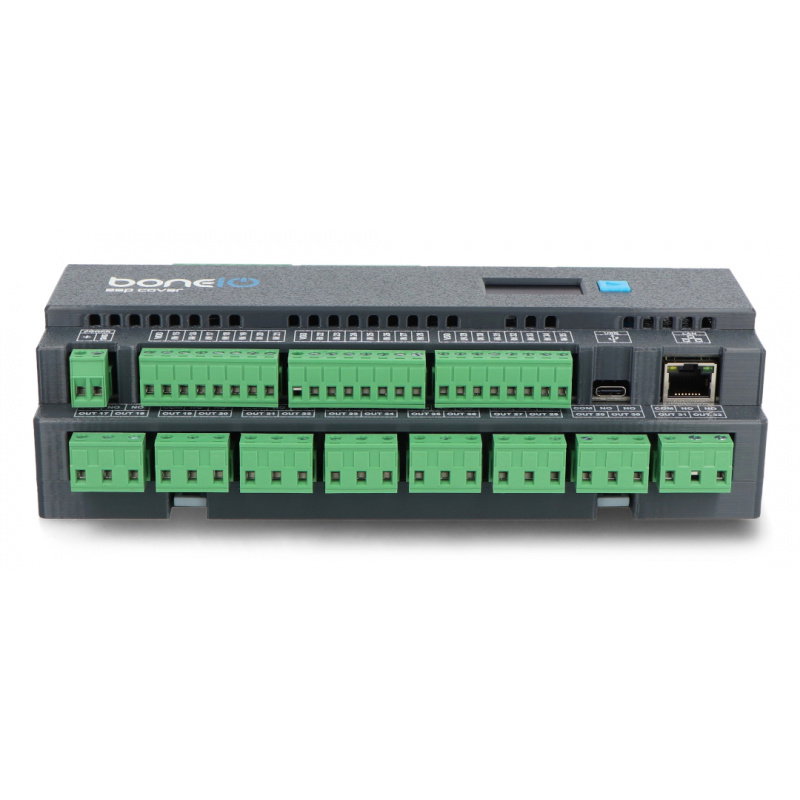

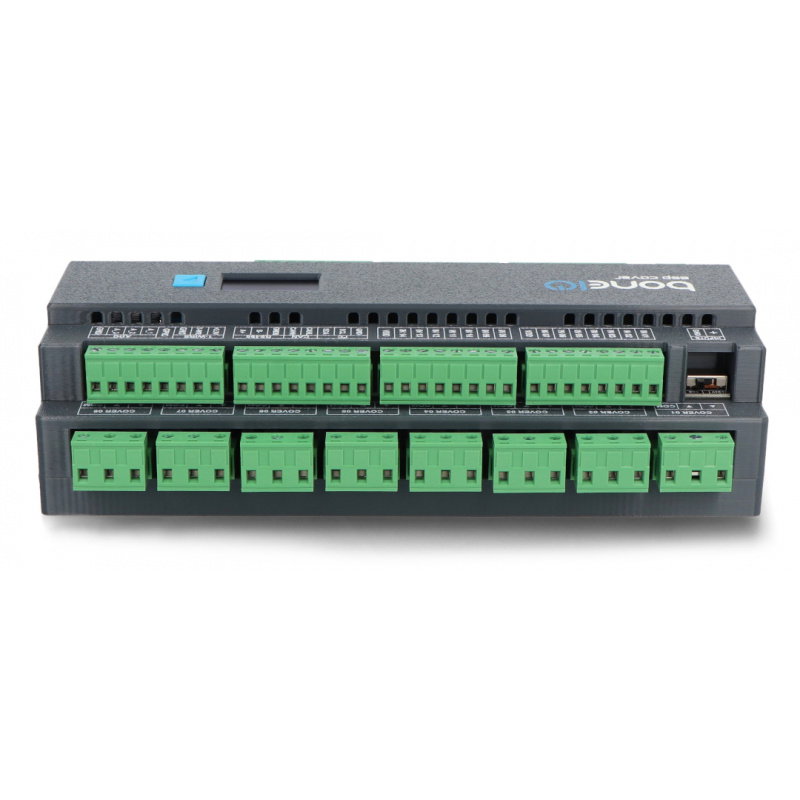

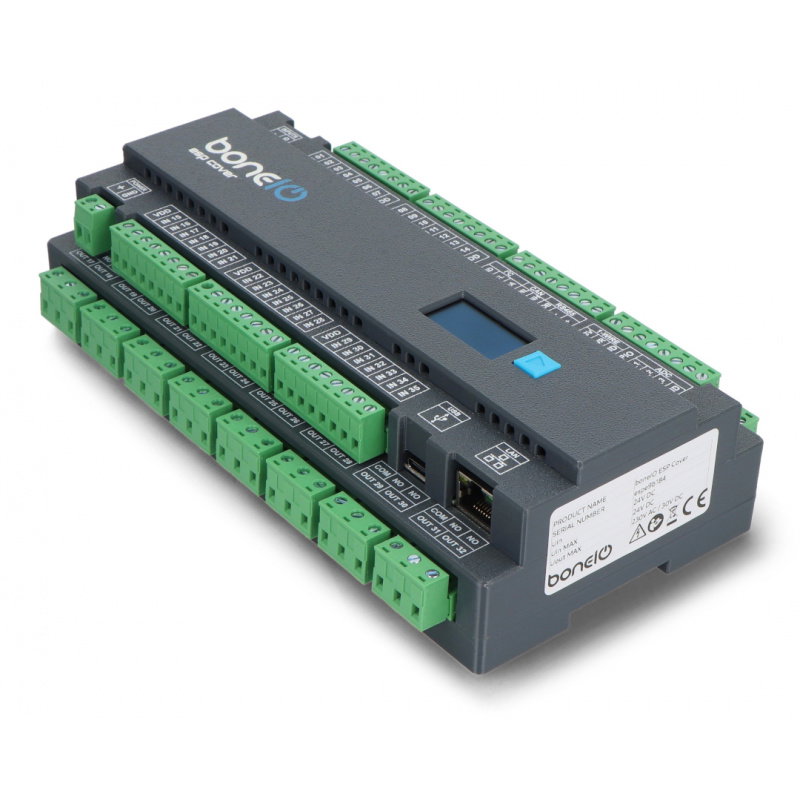

boneIO ESP Cover – smart roller blind controller - Home Assistant/ESPHome
The boneIO ESP Cover is an intelligent controller designed to automatically control roller shutters, blinds, awnings, and other drives equipped with 230 V AC and up to 30 V DC motors. The device works with Home Assistant and ESPHome , enabling the creation of advanced automation and remote management of window coverings. Its compact design and DIN rail mounting make the controller ideal for both new and retrofit Smart Home installations.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: boneIO ESP Cover - intelligent roller shutter controller - Home Assistant/ESPHome
The boneIO ESP Cover was designed for convenient and reliable control of roller shutters in modern building automation systems. The device supports up to 16 drives equipped with 230 V AC and 30 V DC motors, enabling automatic raising and lowering of roller shutters, blinds, and awnings. Integration with Home Assistant and ESPHome enables the creation of intelligent operating scenarios that can be adjusted to the time of day, occupant presence, or weather conditions. The controller is based on the powerful ESP32 microcontroller , which ensures stable communication and extensive configuration options. Also noteworthy are the available Modbus RS485, I2C, 1-Wire, and CAN communication interfaces , which are ready for use in future software versions. These interfaces expand the controller's integration capabilities with additional sensors, measurement modules, and other building automation components, making the boneIO ESP Cover a part of an extensive Smart Home system . Local operation does not require the use of cloud services, allowing the user to maintain complete, secure control over the installation and data. An additional advantage of the device is its compatibility with wall switches, providing the freedom to choose between remote or traditional control of the window coverings.
The manufacturer has prepared a comprehensive user guide that allows you to go through the configuration in Home Assistant step by step.
boneIO ESP Cover - intelligent roller shutter controller.

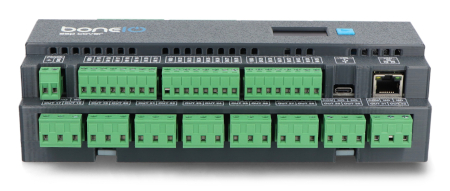

35 independent digital inputs allow you to connect switches, motion sensors, window contacts and any other device that provides a signal up to 24 V.
Main features of the controller
- Control of multiple window coverings: control of up to 16 roller shutters, blinds or awnings equipped with 230 V AC and up to 30 V DC drives
- Integration with Home Assistant and ESPHome: the ability to manage the installation locally and create advanced automation between different types of devices
- ESP32 microcontroller: ensuring high performance and stable operation
- Wall button support: the ability to physically control devices
- Creating automation: enabling the implementation of schedules and action scenarios

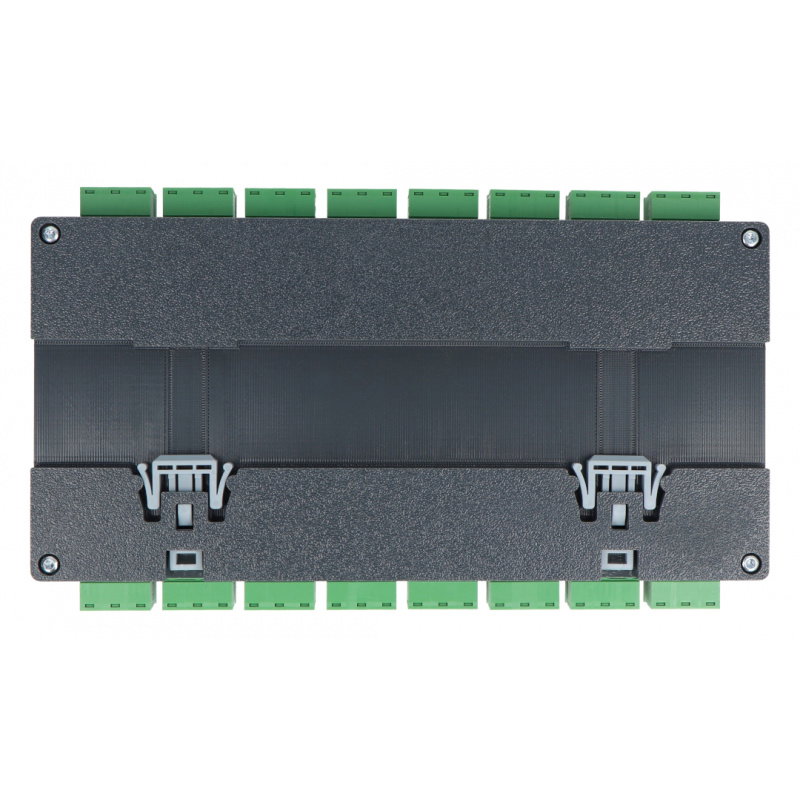

- DIN rail mounting: ensuring convenient installation in the electrical distribution board
- Compact design: easy integration into existing installations
- Working locally without the cloud: increasing data security and system independence
- Open software platform: enabling configuration customization to individual needs
The safety and versatility of roller shutter automation in the Smart Home system
boneIO ESP Cover enables the creation of intelligent scenarios that increase building security and the comfort of everyday use. Integration with the Home Assistant system allows roller shutters to automatically respond to events from other system components, such as motion sensors, reed switches, alarm systems, and weather sensors. This allows for the development of advanced interconnections between devices without the need for manual operation. Automatic control of window coverings can support privacy protection and simulate the presence of household members when away. Roller shutters can raise and lower according to a pre-defined schedule or respond to specific conditions, helping to reduce the risk of unwanted events and increasing residents' sense of security. The controller's versatility also allows roller shutters to be used as a means of improving the building's energy efficiency. Automatically closing the blinds during intense sunlight can reduce room heat buildup, while lowering them after dark helps reduce heat loss. This automation system not only improves safety and comfort but also supports cost-effective energy management in the building.
boneIO ESP Cover enables the creation of dependencies between various building systems, automation of daily processes and monitoring of device operating parameters from a single interface.

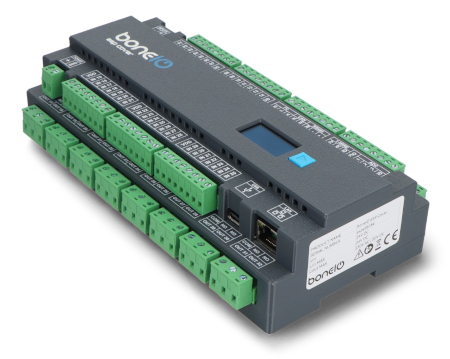

The compact housing with a width of 12 DIN modules enables convenient installation in standard electrical distribution boards.
Freedom of integration and professional installation
The boneIO ESP Cover intelligent controller is based on open-source ESPHome software, which provides complete configuration freedom and the ability to customize functionality to individual user needs and preferences. The open-source platform allows for integration with a wide range of devices and services, without reliance on closed ecosystems or paid subscriptions. Thanks to an active community, users have access to numerous guides, ready-made configurations, and regularly updated features. The compact, 12-DIN housing allows for convenient installation in standard electrical distribution boards. Despite the large number of inputs and outputs, the controller occupies a relatively small space . This simplifies the design of new installations and the modernization of existing building automation systems. The well-thought-out design allows for tidy wiring and easy access to connectors during device configuration and servicing. DIN rail mounting ensures high integrity with other devices in the distribution board. The boneIO ESP Cover is suitable for both Smart Home systems and more complex building automation installations.
Technical specifications of boneIO ESP Cover - intelligent roller shutter controller
| Parameter | Value |
|---|---|
| Device type | intelligent controller for roller shutters, blinds and gates |
| Microcontroller | ESP32 |
| Number of outputs | 32 (16 pairs of roller shutter outputs with hardware lock) |
| Number of supported blinds | 16 |
| Number of digital inputs | 35 |
| Supply voltage | 24V DC |
| Energy consumption | from 3 W to 15 W |
| Digital input voltage | 24V DC |
| Output type | relay with hardware interlock |
| Maximum output voltage | 230V AC / 30V DC |
| Maximum output current | 10 A |
| Analog inputs | 3 |
| ADC Range 1 | from 0 to 5 V |
| ADC Range 2 | from 0 to 10 V |
| ADC Range 3 | from 0 to 25 V |
| External interfaces | Modbus RS485, I2C, 1-Wire, CAN (for future use) |
| Communication | Ethernet 10/100 Mbit, USB Type C |
| Integration | Home Assistant, ESPHome |
| Display | OLED |
| Local control | 24V DC wall buttons |
| Installation | DIN rail (12 DIN) |
| Software | ESPHome (open source) |
| Certification | CE |
| Dimensions (without plugs) | 216mm x 106mm x 57mm |
| Dimensions (with plugs) | 216mm x 123mm x 57mm |
| Mass | 800 g |
