Product description: boneIO Edge Temp & Humidity - temperature and humidity sensor
The boneIO Edge Temp & Humidity is a precise environmental sensor designed for modern installations. The device is powered by 5 to 24 V DC and monitors air temperature and humidity, providing reliable data essential for effective control of heating, ventilation, and air conditioning systems. Thanks to the use of high-quality components, measurements are accurate and stable even during extended operation. The compact design, measuring 33 x 8 x 3 mm, allows for installation in places where standard sensors would be difficult, such as in electrical junction boxes, equipment frames, control cabinets, or distribution boards, without compromising the aesthetics or functionality of the installation. An additional advantage is wired Modbus RTU (RS-485) communication , ensuring stable data transmission and high interference immunity.
The manufacturer has prepared a comprehensive user guide that allows you to go step by step through the configuration of the sensor in boneIO ESP.

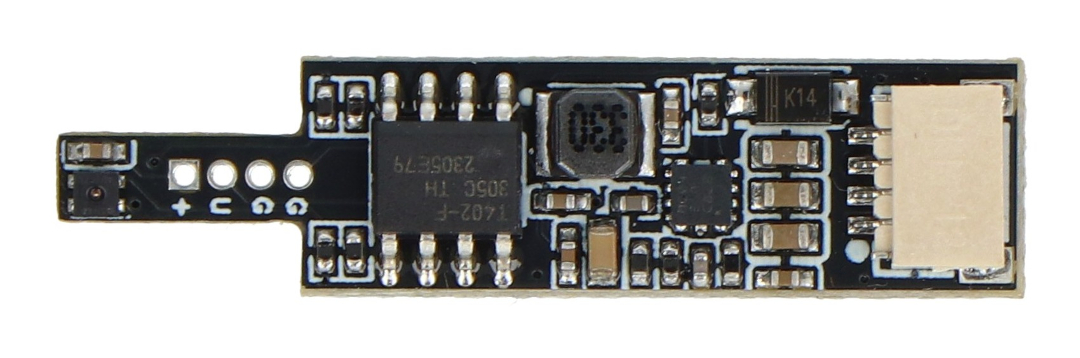

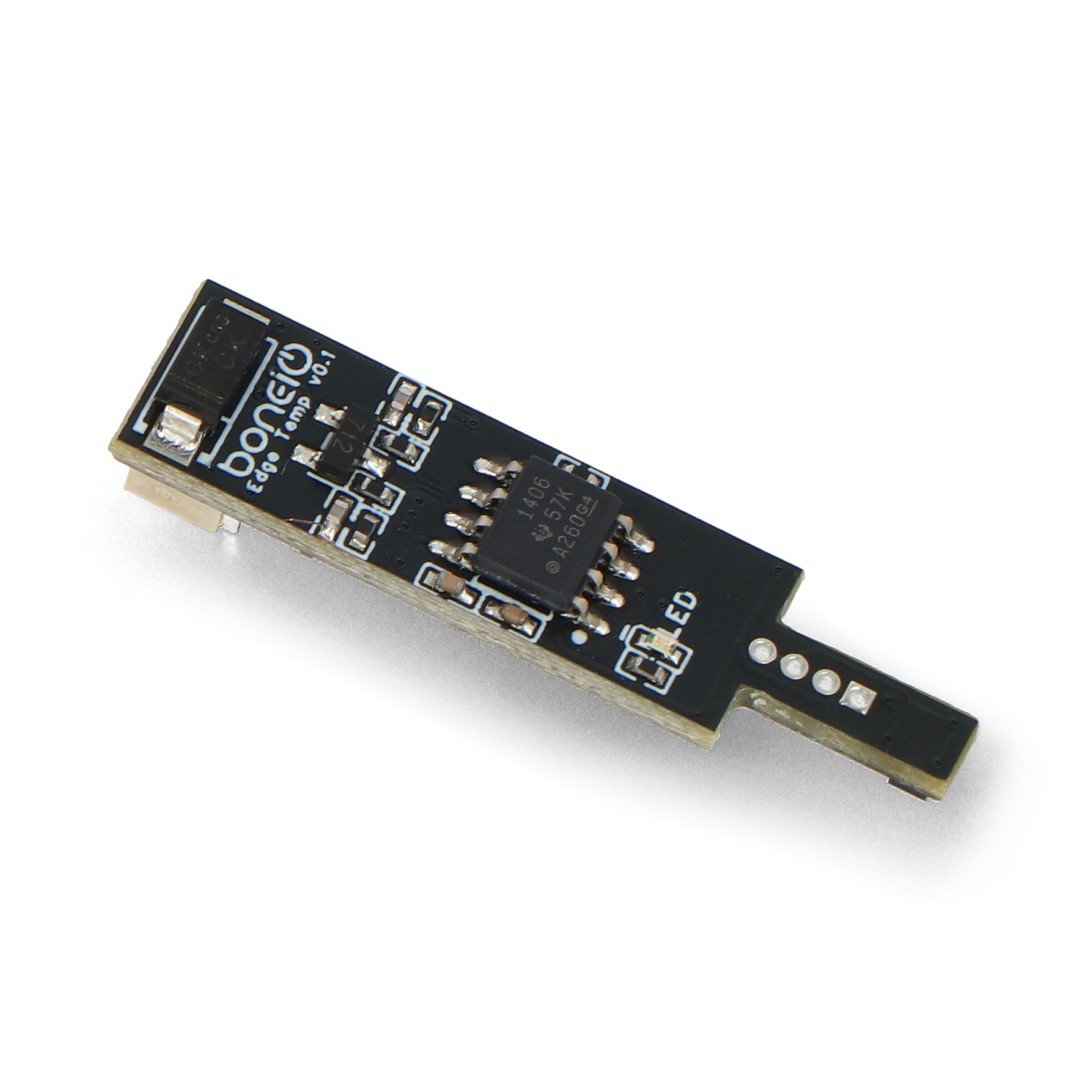

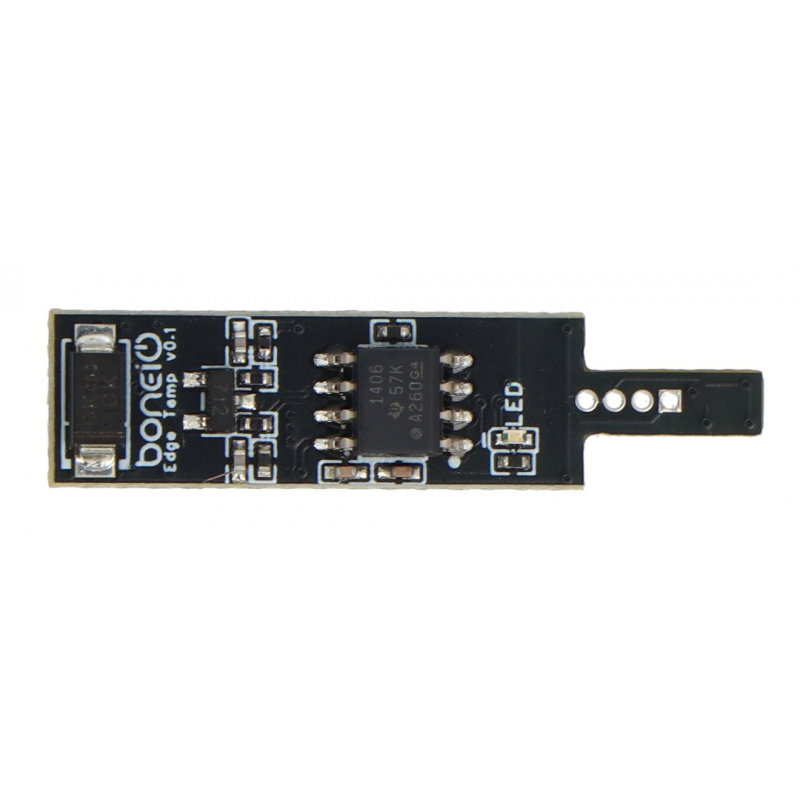

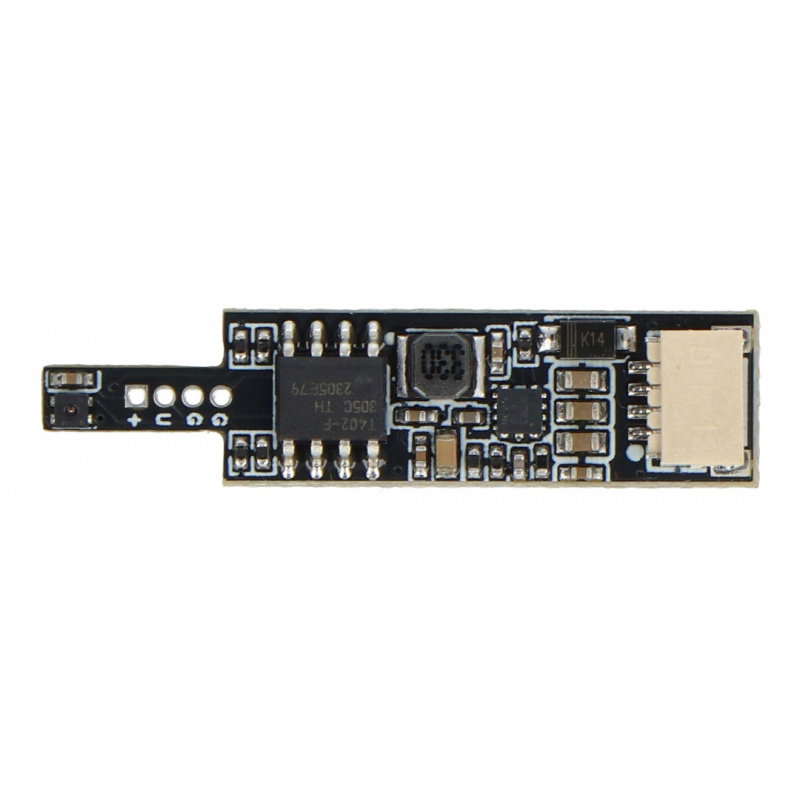

boneIO Edge Temp & Humidity - temperature and humidity sensor.
The low weight and compact dimensions of the sensor allow for monitoring conditions in switchboards thanks to the possibility of installation inside control cabinets, especially in places with limited space.
Main features of the sensor
- Temperature and humidity measurement function: ensuring ongoing monitoring of environmental conditions (achieving temperature measurement accuracy of 0.2°C and humidity measurement accuracy of 1.8%)
- Modbus RTU communication: enabling stable and reliable data transmission
- Wide power supply range: allows operation from 5V to 24V DC
- Fast sensor response time: enabling real-time monitoring of temperature and humidity changes
- Compact dimensions: allows for installation in confined spaces
- Monitoring conditions in switchboards: the ability to control temperature and humidity inside control cabinets
- Low power consumption: limits power consumption to less than 20 mW
- Cable included: facilitates quick installation and start-up of the device
- Integration with building automation: enabling cooperation with HVAC and Smart Home systems
Small dimensions - wide range of applications
boneIO Edge Temp & Humidity is designed for discreet installation anywhere in your building. The sensor measures just 33 x 8 x 3 mm. It can be installed in electrical junction boxes, switchboards, control cabinets, and inside devices requiring environmental monitoring. Thanks to its clever design, the boneIO Edge Temp & Humidity does not generate heat and therefore does not compromise measurement accuracy . The device can be used to control room temperature, monitor bathroom humidity, monitor electrical switchboard operating conditions, and control ventilation and heat recovery systems. This allows for the creation of more energy-efficient and user-friendly building automation systems that respond to real-world environmental conditions .
The sensor enables intelligent ventilation control based on actual humidity measurements.

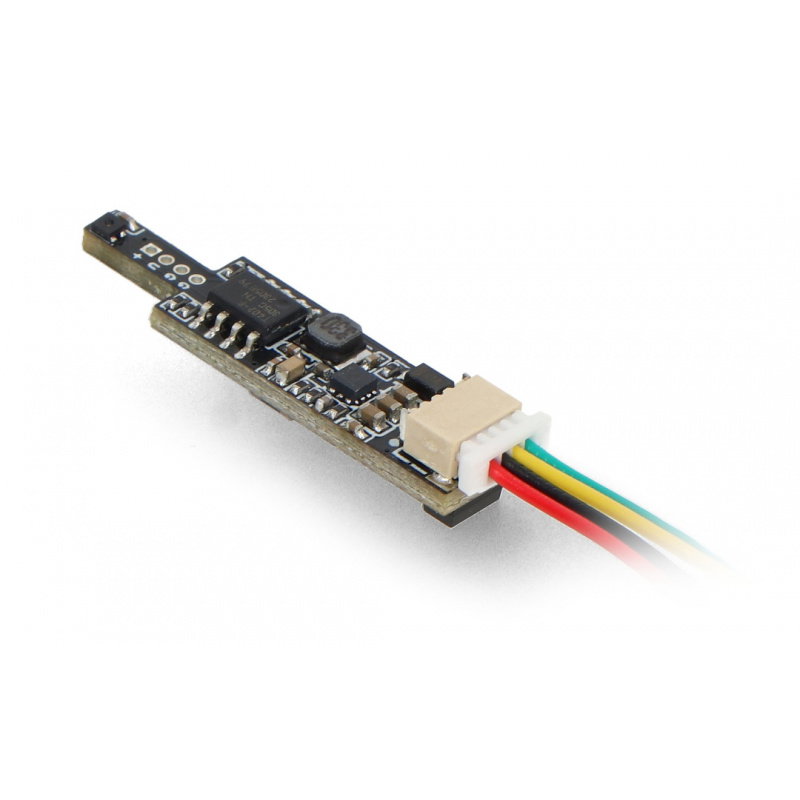

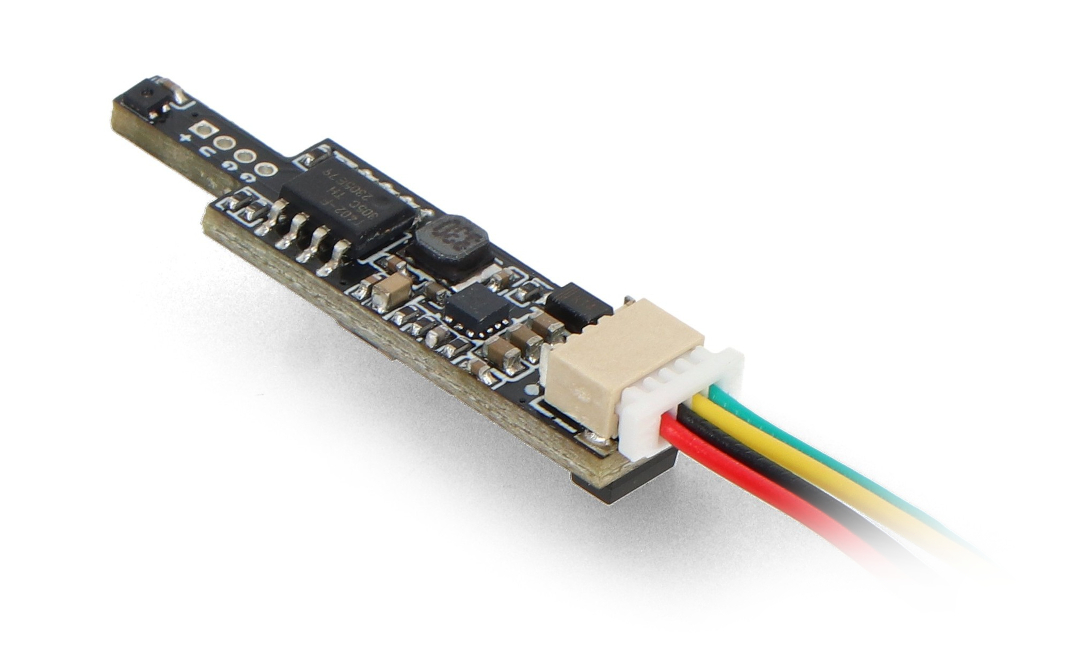

The ability to quickly connect and disconnect the cable significantly simplifies the installation process and subsequent servicing of the device.
Greater mounting options thanks to the detachable cable
The sensor is equipped with a detachable cable , which significantly simplifies the installation process and subsequent servicing. This solution allows the installer to first prepare the wiring and then connect the sensor without the need for additional installation work in confined spaces. The ability to quickly disconnect the cable is particularly useful during installation upgrades, system diagnostics, or device replacement . This eliminates the need to reconnect electrical connections, shortening work time and reducing the risk of installation errors. The well-thought-out design allows the sensor to be conveniently installed in electrical junction boxes, distribution boards, and control cabinets. The detachable cable increases the installer's work comfort and allows for easier cable management, even in areas with limited installation space.
boneIO Edge Temp & Humidity Technical Specifications
| Parameter | Value |
|---|---|
| Device type | temperature and humidity sensor |
| Communication | Modbus RTU (RS485) |
| Power supply | from 5 V to 24 V DC |
| Power consumption | below 20 mW |
| Temperature measurement range | from -40°C to 125°C |
| Temperature measurement accuracy | 0.2°C |
| Humidity measurement range | from 0% to 100% RH |
| Humidity measurement accuracy | 1.8% RH |
| Cable included | yes, length: 15 cm |
| Certification | CE |
| Dimensions | 33mm x 8mm x 3mm |
| Mass | 2 g |
