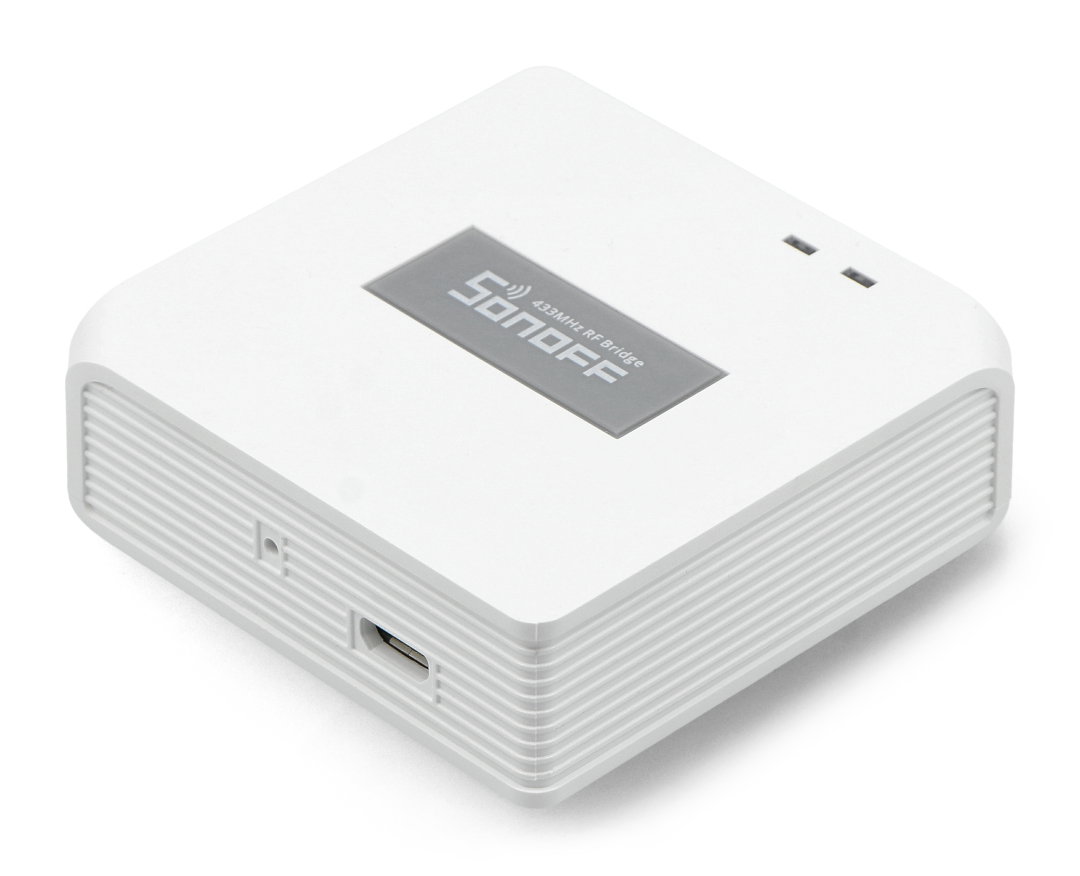

Sonoff RF Bridge R2 - WiFi Bridge - RF 433 MHz - White

Index: HRL-22950 EAN: 6920075776560
Sonoff RF BridgeR2 is a Smart Home system control unit, thanks to which it is possible to control Sonoff RF 433 MHz devices via the WiFi network, as well as WiFi devices via RF 433 MHz. It has the ability to remember up to 64 different 433 MHz codes . It allows you to set schedules, send notifications, set complete scenes, or direct control via LAN, without the need to connect to an external server. Works with the dedicated eWeLink application, as well as Amazon Alexa and Google Assistant systems.
Sonoff RF Bridge R2 - WiFi Bridge - RF 433 MHz - White
€13.90
€11.30 tax excl.
Waiting time: 3-5 days
Temporarily unavailable
PayPal payment
Manufacturer: Sonoff

Product description: Sonoff RF Bridge R2 - WiFi gateway - RF 433 MHz - white

Sonoff RF BridgeR2 is a Smart Home system control unit, thanks to which it is possible to control Sonoff RF 433 MHz devices via the WiFi network, as well as WiFi devices via RF 433 MHz. It can remember up to 64 different 433 MHz codes , but does not support rolling codes. It allows you to set schedules, send notifications, set complete scenes, or direct control via LAN, without the need to connect to an external server. Works with the dedicated eWeLink application, as well as Amazon Alexa and Google Assistant systems. Power is supplied via the microUSB port - 5 V / 1 A.

Sonoff RF Bridge R2 - WiFi gateway - RF 433 MHz - white

The control unit makes it possible to integrate sensors with a different wireless communication standard.

Integration of many types of wireless communication

The Sonoff intelligent building system allows integration with already used devices, based on, among others, RF 433 MHz and ZigBee technologies. For this purpose, an appropriate control unit should be placed within their wireless communication range, which connects to the rest of the system via a WiFi network.

In the case of RF BridgeR2, configuration involves saving in memory the individual codes of the sensors or RF 433 MHz remote controls that we want to use. After that, each activation of these devices will start the action we choose. This may mean changing the lighting, controlling blinds, alarms or fans.

RF BridgeR2 technical specifications

  • Wireless communication type: RF 433 MHz
  • Maximum number of memorized codes: 64
  • Built-in chip: ESP8285
  • WiFi communication: IEEE 802.11 b/g/n 2.4 GHz
  • Control via LAN
  • Security: WPA/WPA2
  • Control: eWeLink app (Android, iOS)
  • Supported systems: Amazon Alexa, Google Home, IFTTT
  • Material: PC V0 (fireproof polycarbonate)
  • Power supply: 5V/1A
  • Power connector: Micro-USB
  • Weight: 37.5 g
  • White color
  • Dimensions: 62 mm x 62 mm x 20 mm
  • Operating temperature: from -10°C to 40°C
  • Certificates: CE, FCC, ROH

The gateway enables communication with devices via RF 433 MHz.

Colour white
Voltage to 5.0 V
Voltage from 5.0 V
Temperature -10 - 40 °C
UC - Microcontroller ESP-8285
UC - WiFi yes
Power supply - Plug microUSB
Package width 6.5 cm
Package height 6.5 cm
Package depth 2.5 cm
Package weight 0.044 kg
