Product description: Sonoff SNZB-06P - intelligent human presence sensor - ZigBee - Android / iOS application
Sonoff SNZB-06P is a modern human presence sensor that allows for intelligent management of lighting and other devices at home. Thanks to the use of 5.8 GHz radar technology , the sensor detects not only presence and movement, but also minimal fluctuations, such as breathing or minor activities at speeds of just 3 mm / s , which allows for precise and sensitive monitoring of a person's presence in the room. The sensor supports ZigBee communication, which ensures a reliable and fast connection with smart home control units and applications such as Home Assistant, eWeLink, Alexa, Google Home, SmartThings, Alice and IFTTT. The operating range is up to 4 m , and the device offers the possibility of personalizing settings, such as the time to turn off the light after leaving the room. Additionally, the built-in light sensor can turn on the lighting, e.g. only in the dark, which allows for effective energy saving.
Sonoff SNZB-06P - intelligent human presence sensor - ZigBee - Android / iOS application.
The sensor uses 5.8 GHz radar technology.
Main features of the sensor
- 5.8 GHz radar technology: detects both movement and the presence of a person at rest.
- Built-in light sensor: automatically turns on the light only in darkness, saving energy.
- Three sensitivity levels: adjust the detection sensitivity to suit your needs.
- Detection range up to 4 m: effective operation even on large areas.
- ZigBee integration: compatibility with popular ZigBee hubs and home automation platforms.
- Smart local scenes: works even without internet access, supporting ZigBee local scenes.
- Supporting Multiple Platforms: Compatible with Home Assistant, eWeLink, Alexa, Google Home, SmartThings, Alice and IFTTT.
ZigBee connectivity
The Sonoff SNZB-06P sensor uses the latest ZigBee 3.0 protocol, which provides a stable and energy-saving connection to the smart home control unit. ZigBee is a popular wireless technology that allows the integration of various devices into one network. Thanks to it, devices communicate with each other without delay , which is crucial for home automation. ZigBee 3.0 also offers better compatibility with third-party devices, making this sensor a versatile element of your smart home system.
ZigBee ensures fast operation, safe and stable communication and low power consumption.

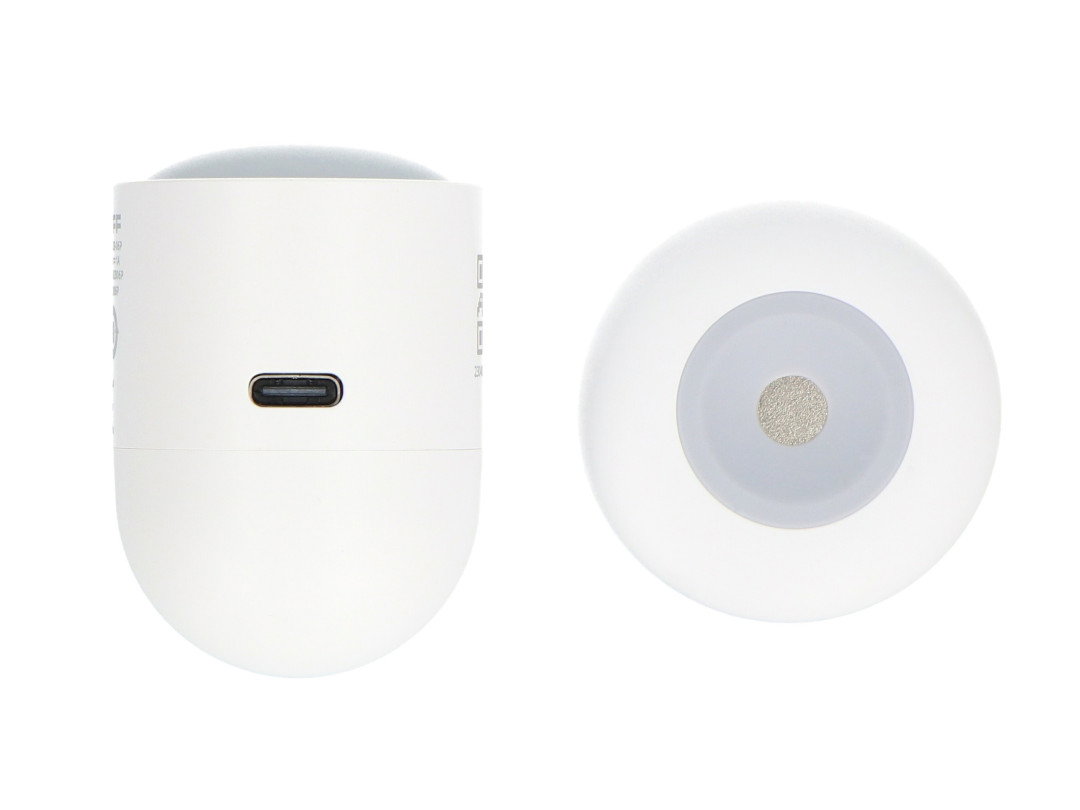

On the front of the device there is a button with an LED indicator.
Sonoff SNZB-06P sensor operation
The microwave radar sensor uses electromagnetic waves with a frequency of 5.8 GHz , which are emitted by the antenna. These waves are reflected from objects within the sensor's range and returned to the device. By analyzing the time that has passed from sending the waves to receiving them and the changes in the frequency of the reflected signals, the sensor is able to precisely determine the presence, movement and distance of objects in its detection field . Thanks to its high frequency, the microwave radar is characterized by high resolution and sensitivity, which allows effective detection of even small movements.
Sensor Technical Specifications
- Model: SNZB-06P
- Power supply: 5V/1A
- Communication: ZigBee 3.0
- Operating range: up to 4 m
- Material: ABS + PC
- Operating temperature: -10°C to 40°C
- Dimensions: 44.2 x 44.2 x 59 mm
- Weight: 31 g
Kit Contents
- 1x Sonoff SNZB-06P Human Presence Sensor
- 1x USB Type-C Power Cable
- 1x 3M mounting sticker
- 1x Mounting bracket
- 1x Mounting accessories
- 1x User Manual

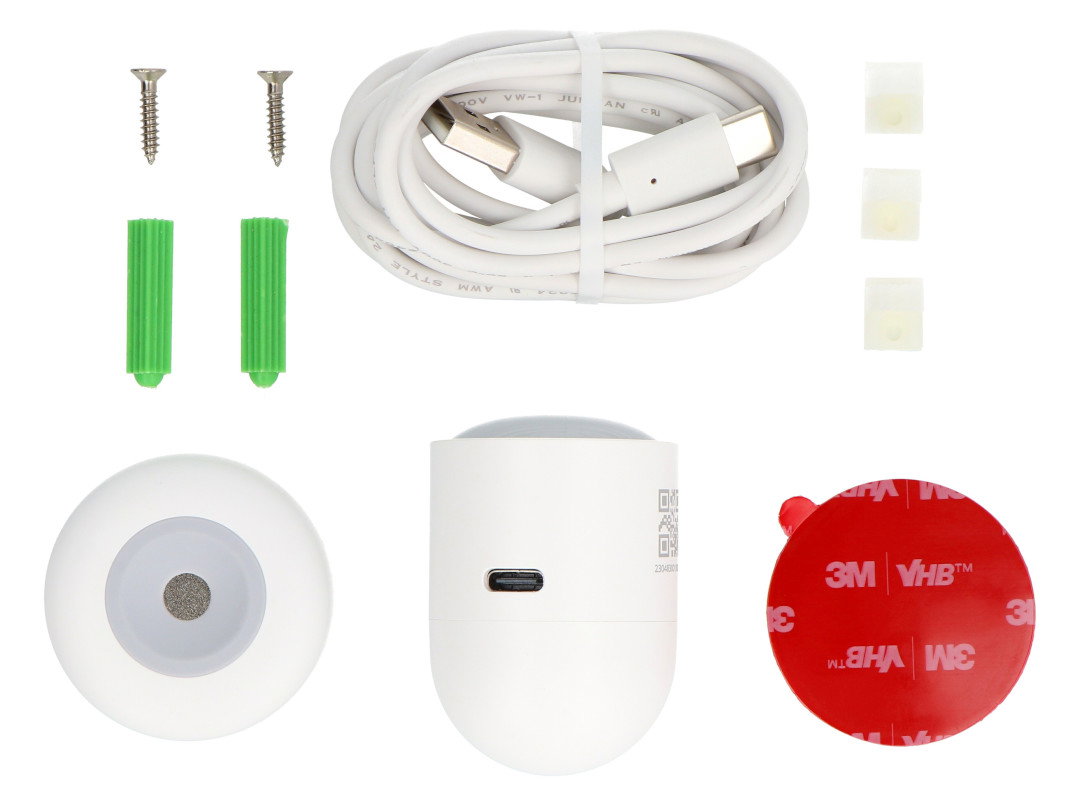

Items included in the set.
