Product description: Sonoff TX T5 3C - Smart Touch WiFi Wall Switch - 3-Channel - White
The Sonoff TX T5 3C is a smart 3-channel WiFi wall switch that allows you to conveniently control your lighting. With the eWeLink app, you can manage your lights from anywhere in the world, set schedules, and create automatic scenes. It works with popular voice assistants like Amazon Alexa, Google Home, and Alice , allowing you to control your lights with simple voice commands. The built-in colorful LED backlight with various modes can function as a night light or decorative ambient lighting. The TX T5 3C also offers two-way wireless control , allowing you to control a single lamp from multiple locations without the need for additional wiring.

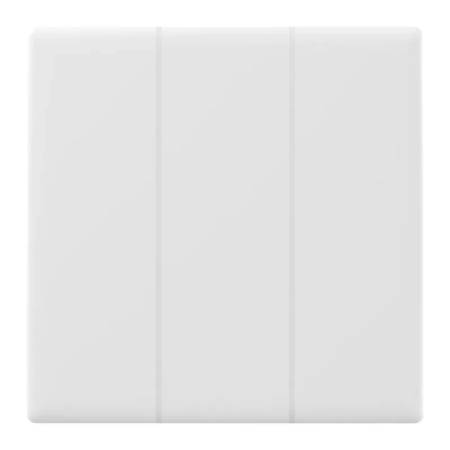

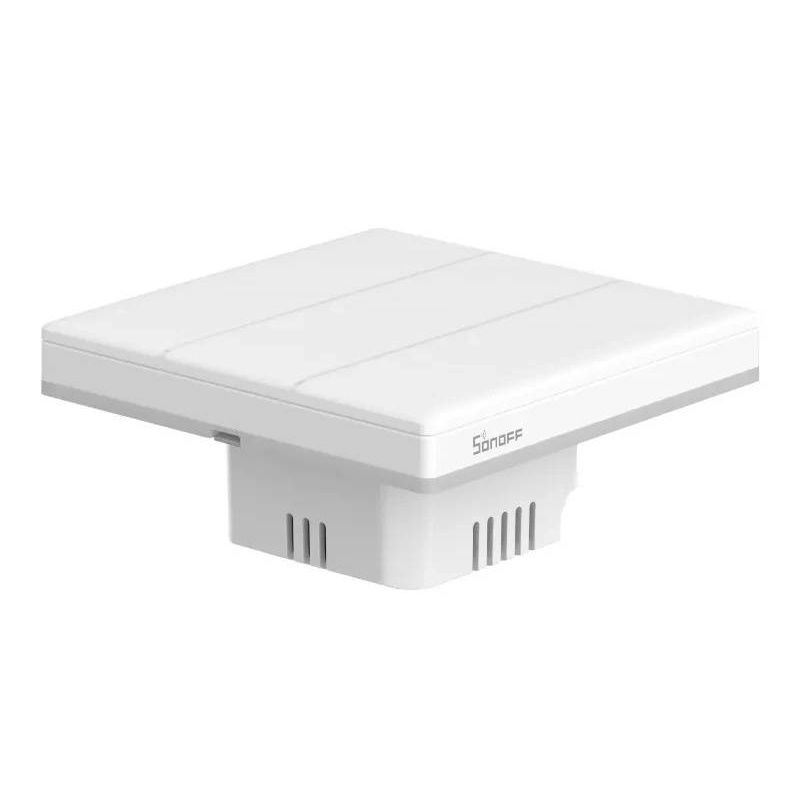

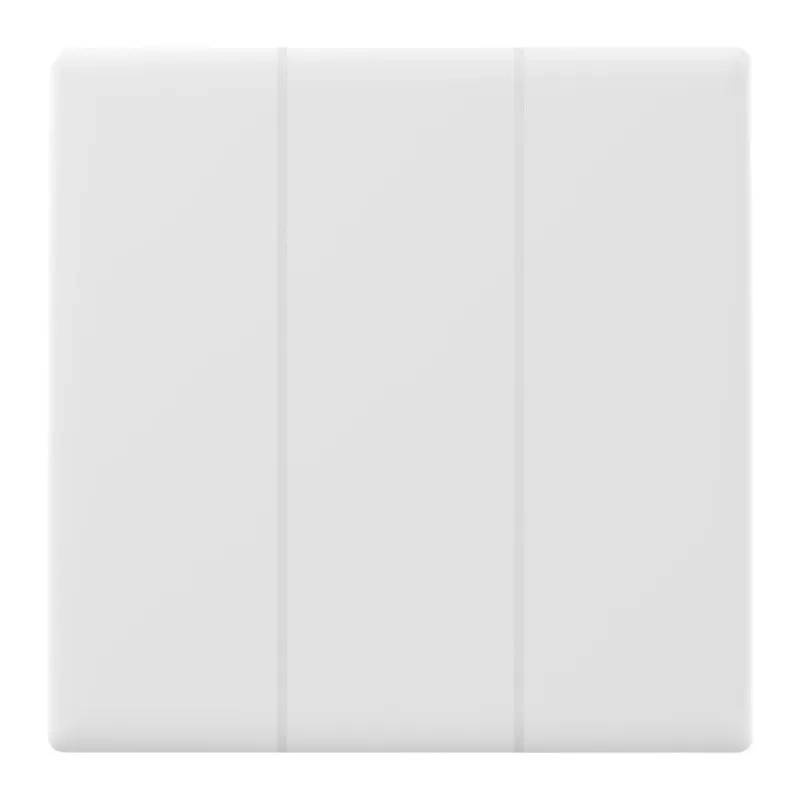

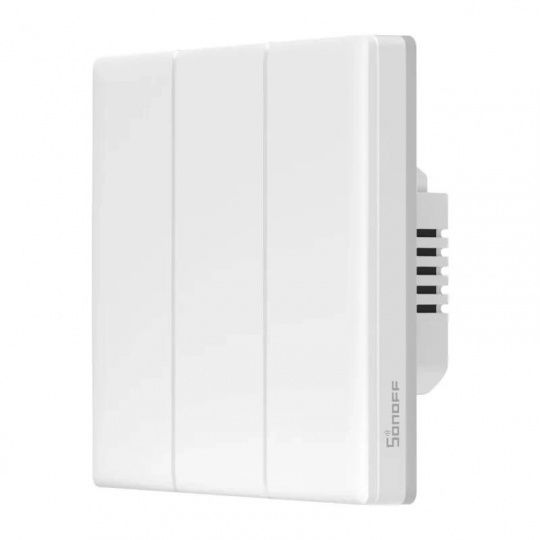

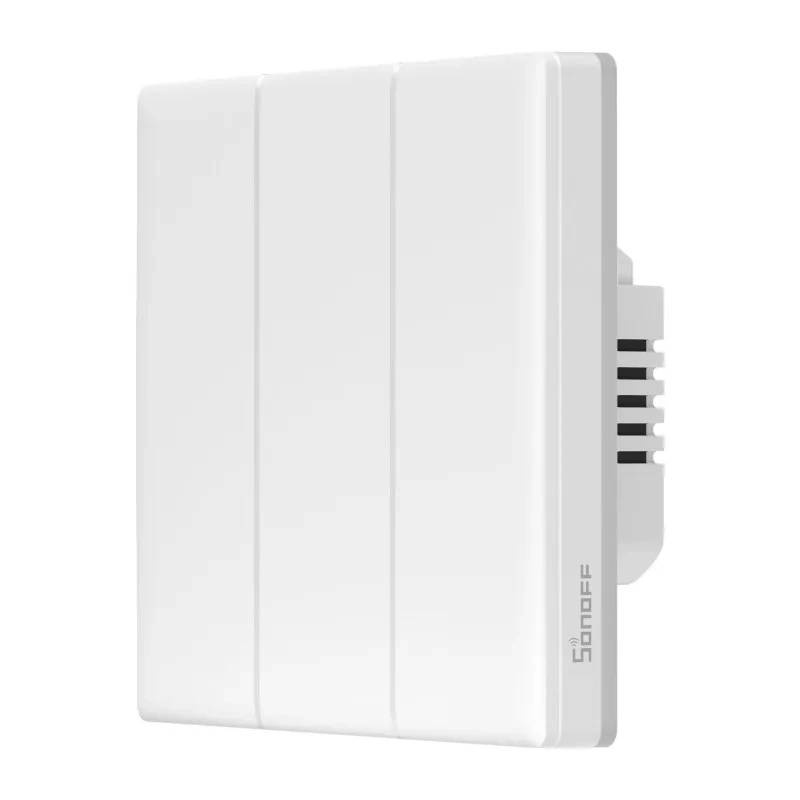

Sonoff TX T5 3C - Smart Touch WiFi Wall Switch - 3 Channels - White.
Sonoff TX T5 supports not only traditional light switches but also roller blinds.
Main features of the Sonoff TX T5 3C switch
- 3 control channels : allows independent control of three lighting circuits from one panel
- 2.4 GHz WiFi connectivity : allows you to remotely control your lighting via the eWeLink app
- Voice control : compatible with Amazon Alexa, Google Home and Alice
- Timer and schedules : ability to set lights to turn on and off automatically

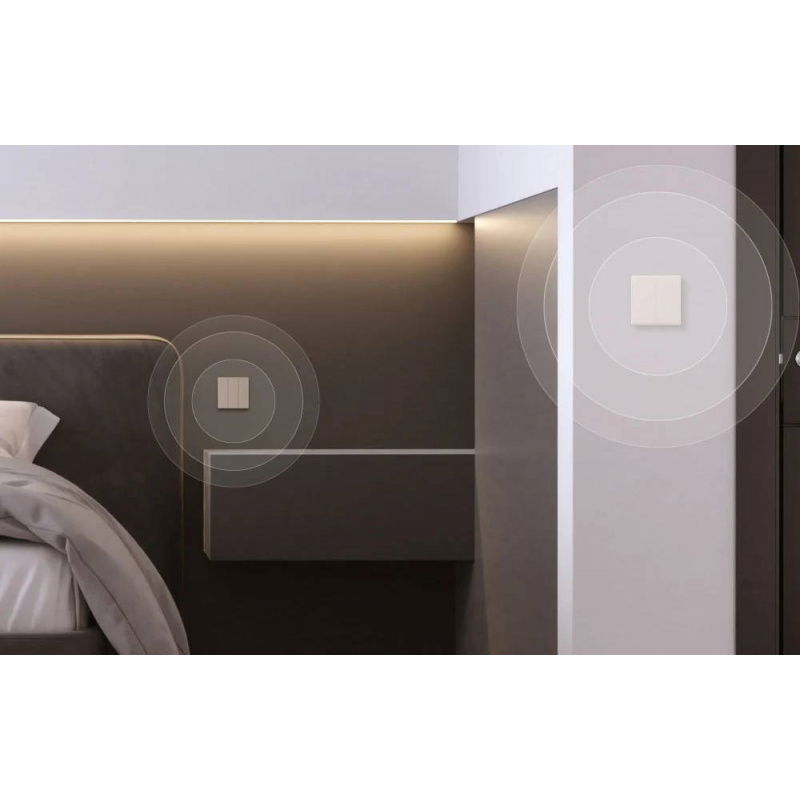

- Bidirectional control : cooperation with R5 and S-MATE controllers allows you to control one lamp from several places
- Colorful LED backlight : up to 8 ambient lighting modes to suit different situations
- Gesture Control : Supports swipe and multi-touch gestures to trigger scenes
- Motor operation mode : ability to control curtain or roller blind drives (support for AC motors with limiters)
- Device Sharing : Control can be shared with other users in the app
Multifunctional control panel with LED backlight

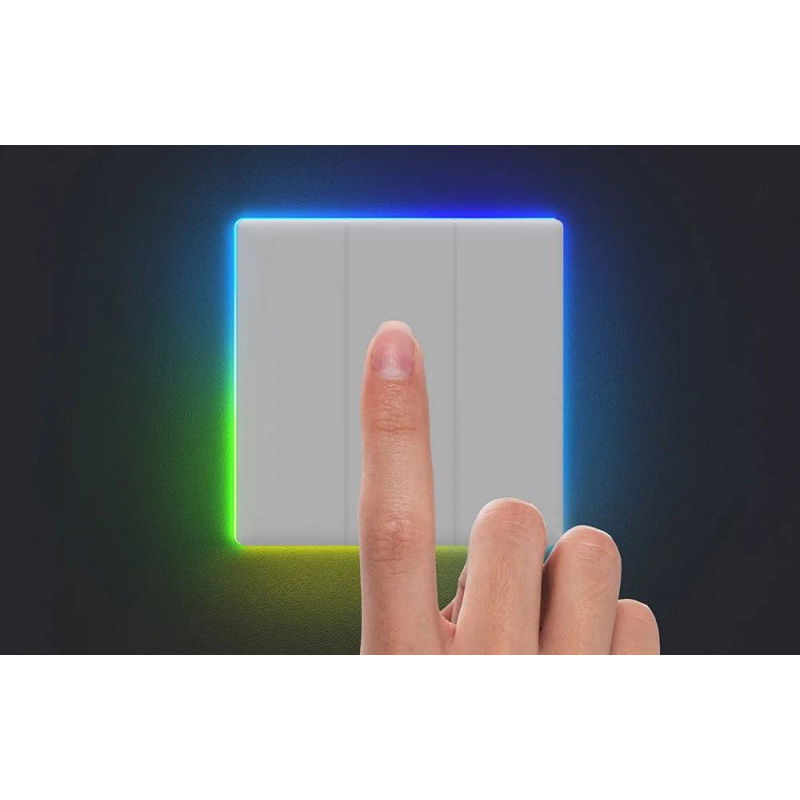

The switch features a large touch panel with three buttons that covers almost the entire front surface. This makes operation intuitive and convenient – a light touch is enough to turn the light on or off. The edges of the panel are surrounded by intelligent LED lighting , which indicates the device's status and can also serve as decorative lighting. There are eight different lighting modes to choose from, including Night Light, Party, and Color. Built-in lighting effects allow you to adjust the room's ambiance to the current situation. Additionally, touching the panel triggers a subtle backlight, an audible signal, and a subtle vibration , confirming that the command has been executed even in a dark room.

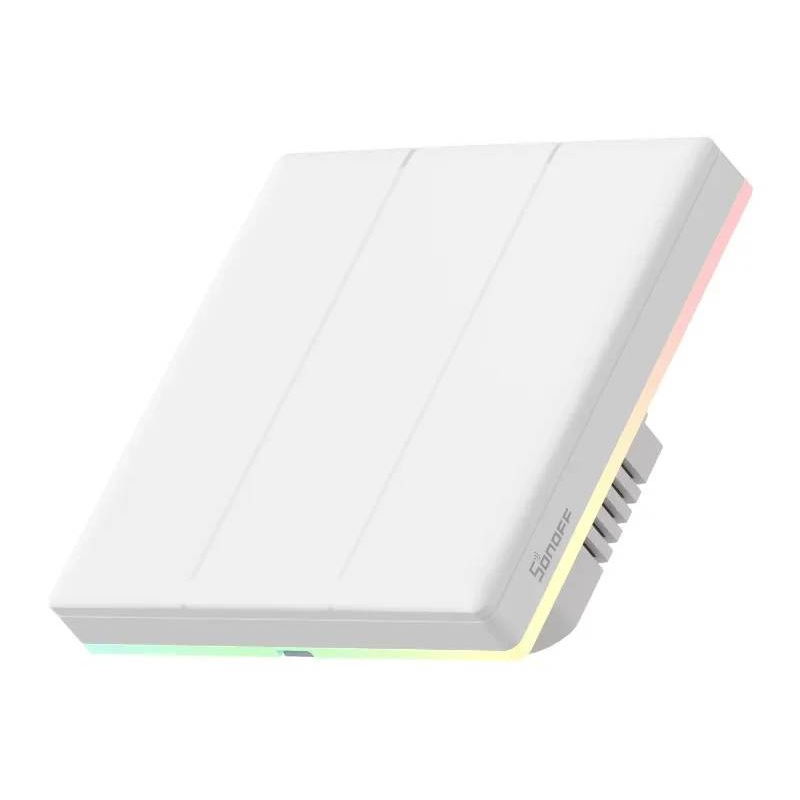

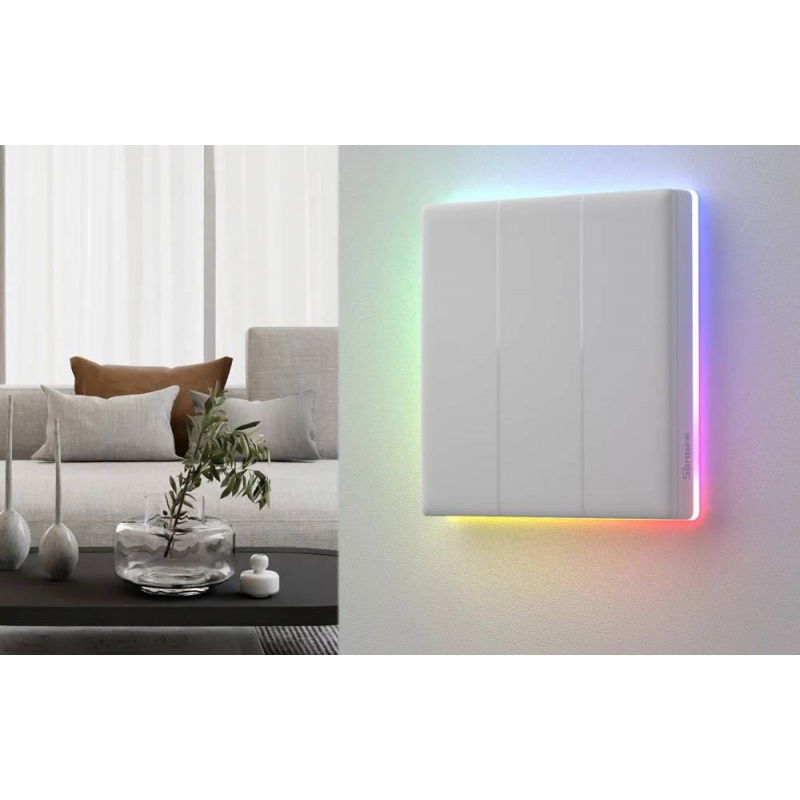

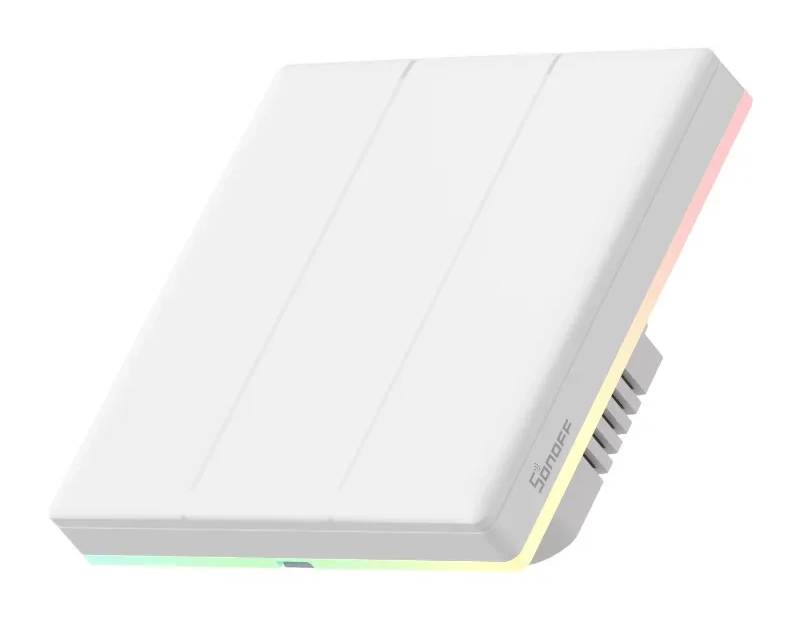

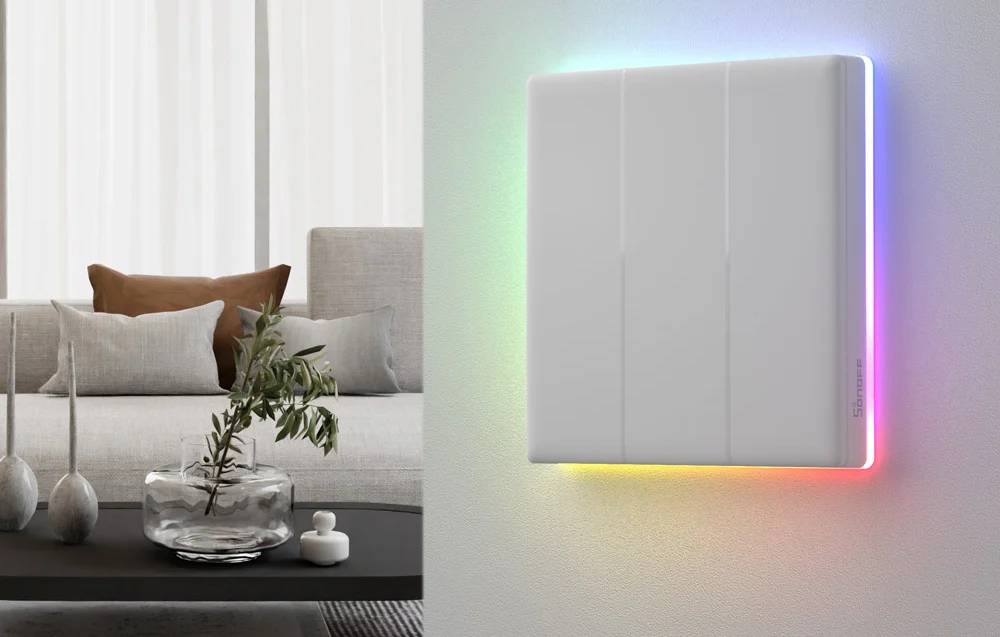

LED lighting on the edges shows the switch status and allows you to customize the colors.
The switch works with voice assistants such as Amazon Alexa, Google Home, and Alice.
Sonoff TX T5 control and eWeLink app
The Sonoff TX T5 3C works with the eWeLink app, which allows you to fully manage the device from your smartphone. You can remotely turn lights on and off, set schedules, and create smart automation scenes . The app also allows you to create device groups, share control with other household members, and monitor the switch's operation history. The LAN Control feature allows you to control the device locally on your home network, even without internet access. Additionally, the switch supports voice commands through integration with Amazon Alexa, Google Home, and Alice. This allows you to control your lighting hands-free—for example, turn off the lights in the living room while watching a movie.

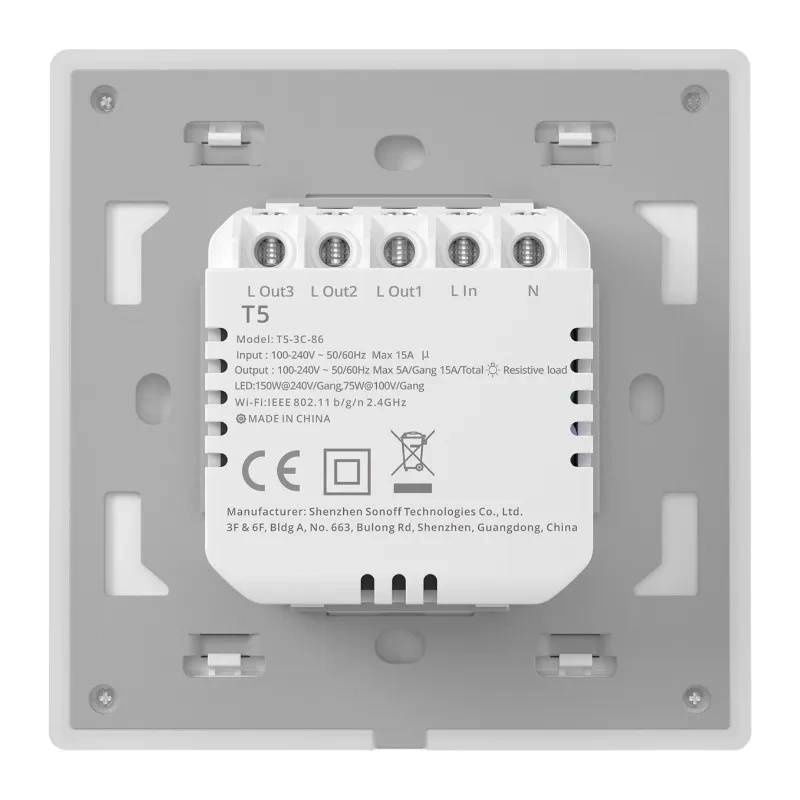

Sonoff TX T5 3C Technical Specifications
- Number of channels: 3
- Input voltage: 100 to 240 V ~ 50/60 Hz max. 15 A
- Output voltage: 100 to 240 V ~ 50/60 Hz max. 5 A per channel
- Maximum power: 1200 W per channel, 3600 W total
- LED load: 150W at 240V per channel
- WiFi: IEEE 802.11 b/g/n 2.4 GHz
- Bluetooth: 4.2
- Application: eWeLink
- Voice control: Amazon Alexa, Google Home, Alice
- Operating systems: iOS, Android
- Housing material: PC, CRS
- Color: white
- Operating temperature: -10°C to 40°C
- Operating humidity: 5% RH to 95% RH, non-condensing
- Application: for internal use
- Dimensions: 86 x 86 x 39 mm
- Weight: 174 g
Kit contents
- 1x Sonoff TX T5 3C Switch
- 2x mounting screws
- 1x User Manual
The switch allows remote control via the eWeLink application, available for iOS and Android.
