Product description: Sonoff ZBMINIL2-E Orb-ZBW1L - ZigBee smart wall switch - 1-channel - white
The Sonoff Orb-ZBW1L (model ZBMINIL2-E) from the Fusion series is a single-channel ZigBee 3.0 smart wall switch , designed to work without a neutral wire . It allows you to easily upgrade your electrical installation without having to cut holes in the walls or run additional wires. It supports loads from 3W , ensuring stable, flicker-free operation of modern LED bulbs without the need for anti-flicker modules. The device operates as a ZigBee endpoint device and requires a compatible gateway .
For proper operation, the switch requires a ZigBee gateway - compatible models include: NSPanel Pro, Sonoff ZigBee Bridge, ZBDongle-E/P, SmartThings Hub V3 and others.

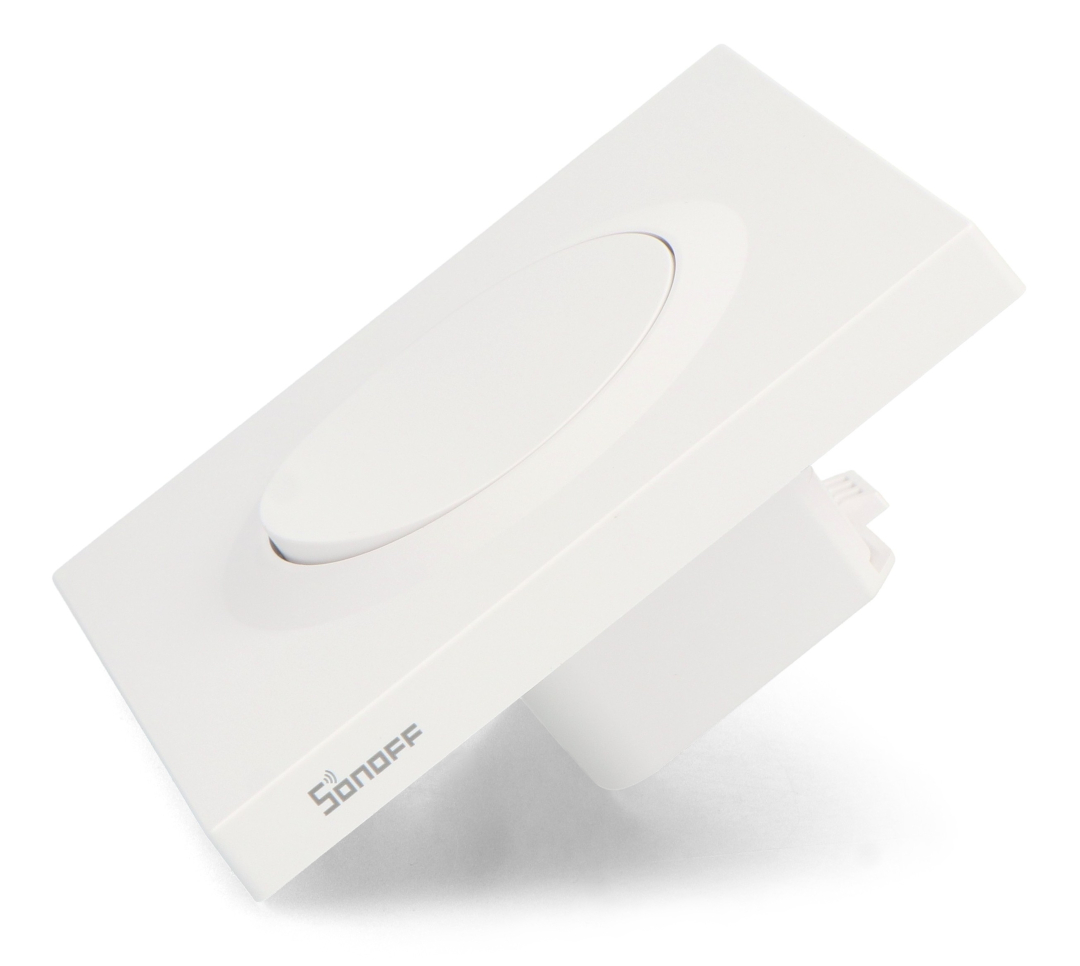

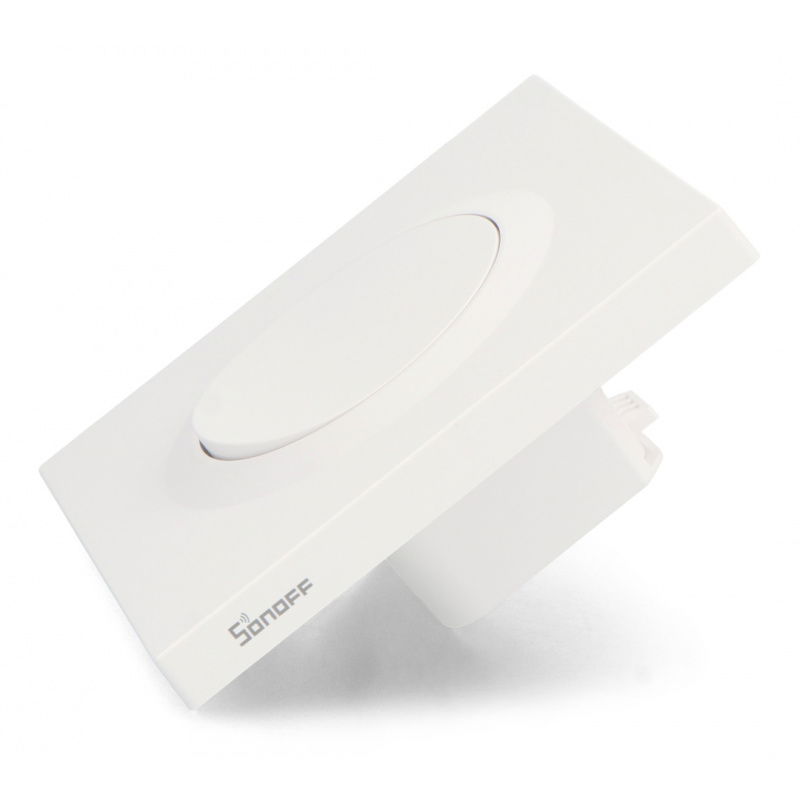

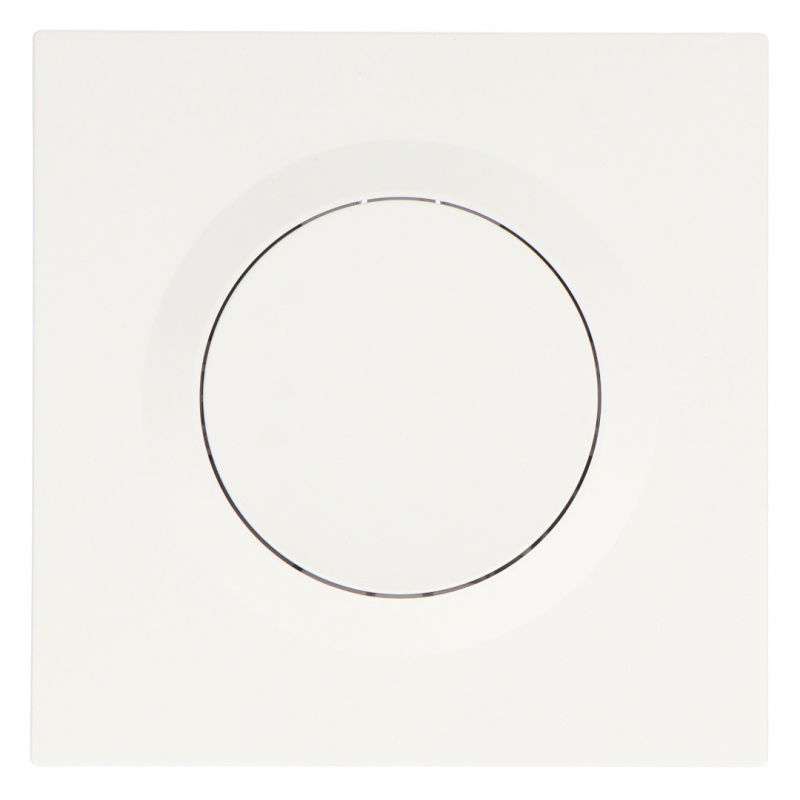

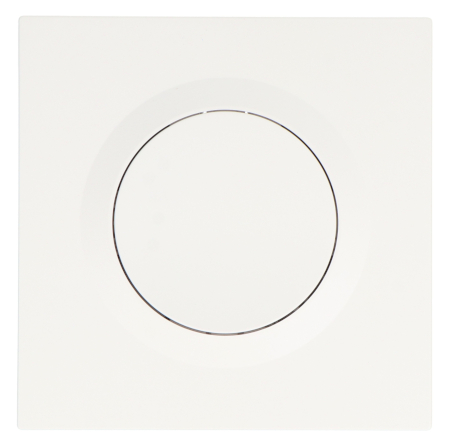

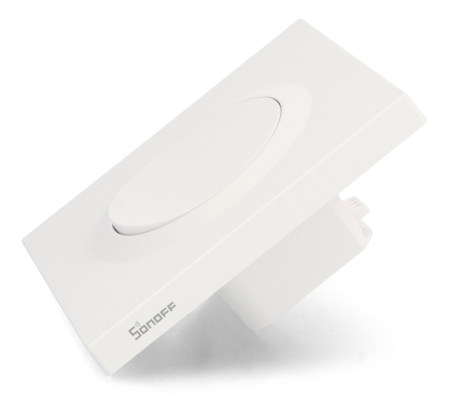

Sonoff ZBMINIL2-E Orb-ZBW1L - ZigBee smart wall switch - 1-channel - white.
Orb-ZBW1L works without a neutral wire.
Main features of the Sonoff ZBMINIL2-E switch
- No neutral wire : installation without N, ideal for upgrading older installations
- Low load support : stable operation from 3W without flickering
- Maximum load : up to 6 A / 1440 W (resistive load)
- Wireless connectivity : ZigBee 3.0
- Integration with Home Assistant : ZHA and Zigbee2MQTT support
- Voice control : compatible with Amazon Alexa and Google Assistant
- Smart functions : schedules, timers, time loops, automation scenes
- Status after power restoration : start-up mode configurable
Installing and connecting a ZigBee switch without a neutral wire

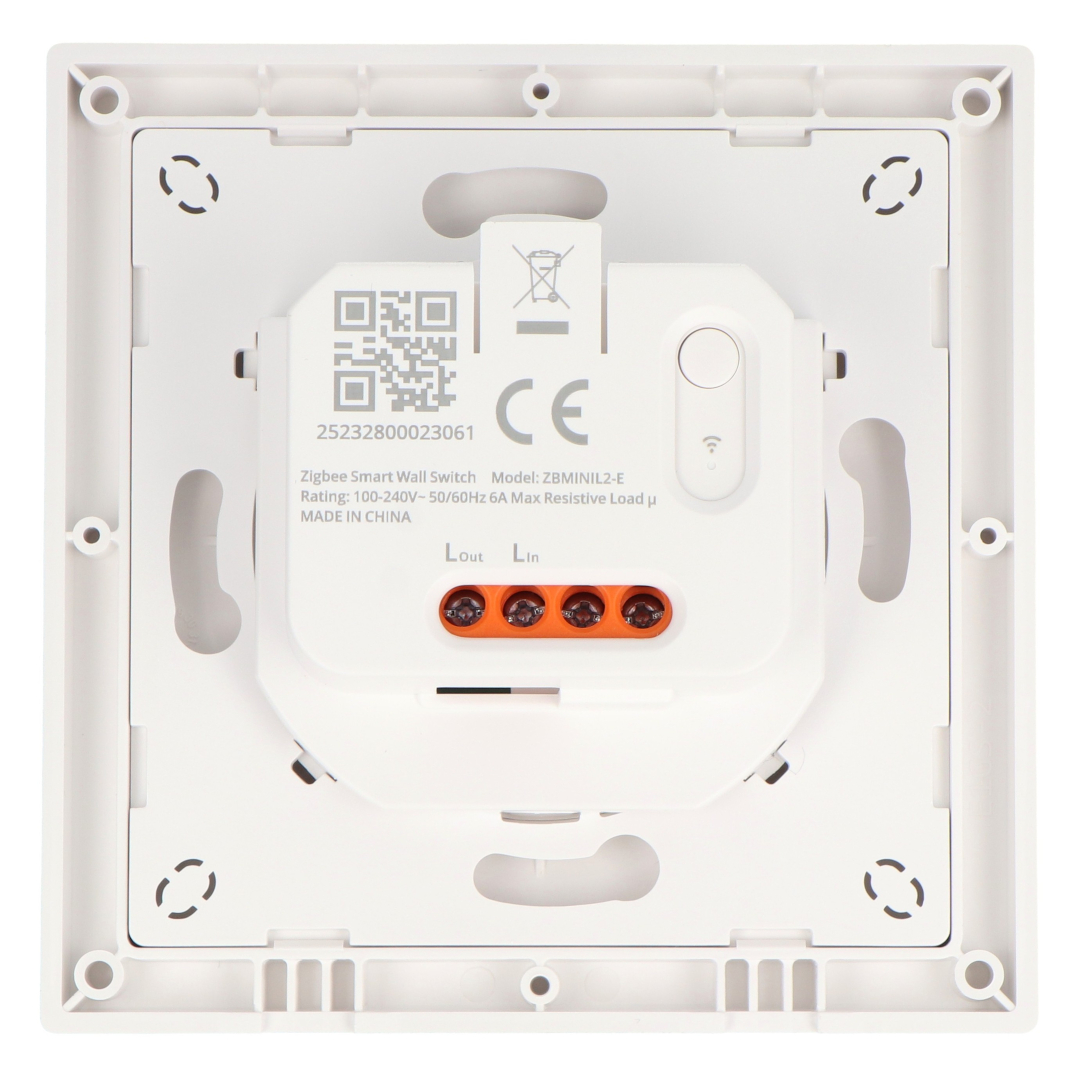

The Sonoff Orb-ZBW1L is designed to work in installations without a neutral wire , significantly simplifying installation in older buildings. The device connects to the live L wire (L In) and the load L Out. It is recommended to install a 6A overcurrent protection device before connecting the device. The manufacturer recommends using copper wires with a cross-section of 16 AWG to 14 AWG . Installation should be performed by a qualified electrician after disconnecting the power supply.
The button is designed to handle low-power loads starting from 3 W.
Supports voice control with Amazon Alexa and Google Assistant.
Compatibility with apps, ZigBee gateways and Smart Home systems
The switch works with ZigBee 3.0 gateways such as ZBBridge-P , ZBBridge-U , NSPanel Pro , iHost , ZBDongle-P, and ZBDongle-E . It supports integration with Home Assistant via ZHA and Zigbee2MQTT, as well as with the SmartThings V3 hub and select Amazon Echo devices with a built-in ZigBee hub. When added to the eWeLink app, you can create scenes, schedules, device groups, and voice control . Integration with Matter Bridge enables collaboration with Apple Home on the same LAN.
Sonoff ZBMINIL2-E Technical Specifications
- Model: ZBMINIL2-E
- Series: Fusion
- Power supply: 100 V to 240 V~ 50/60 Hz
- Maximum resistive load: 6 A
- Maximum load: 1440 W
- LED load: up to 150 W at 100 V / up to 300 W at 240 V
- Minimum load: 3 W
- Wireless connectivity: ZigBee 3.0
- MCU: EFR32MG22
- Operating temperature range: -10°C to 40°C
- Operating humidity: 5% RH to 95% RH non-condensing
- Housing material: PC
- Dimensions: 86 x 86 x 35.8 mm
- Weight: 80 g
Contents of the set
- 1 x Sonoff Orb-ZBW1L
- 1x User Manual

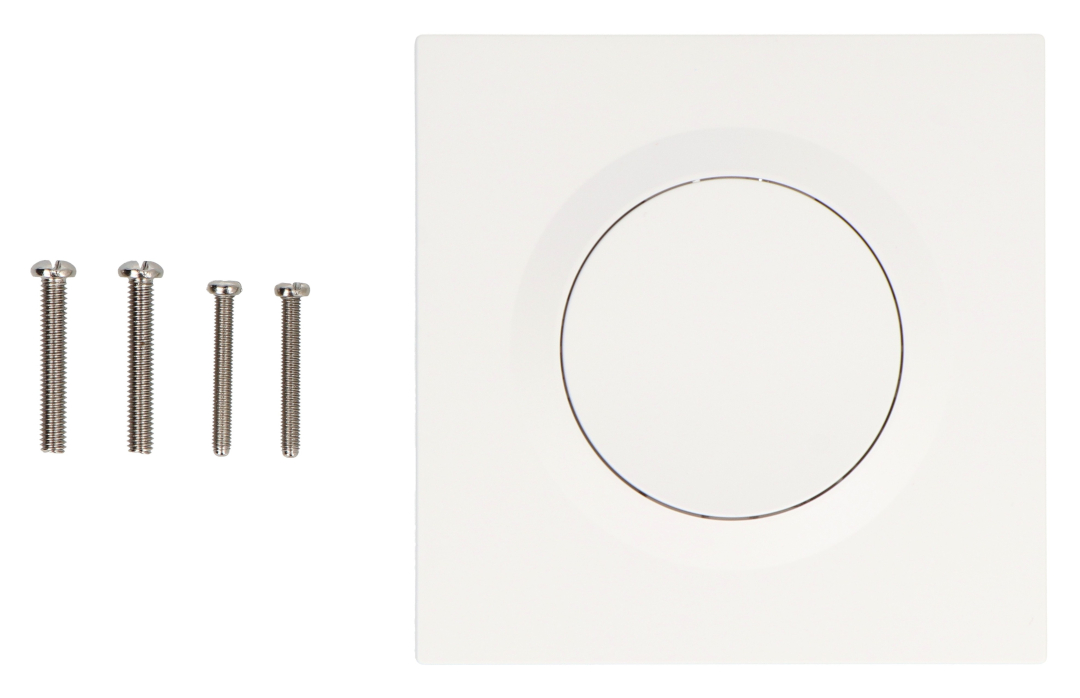

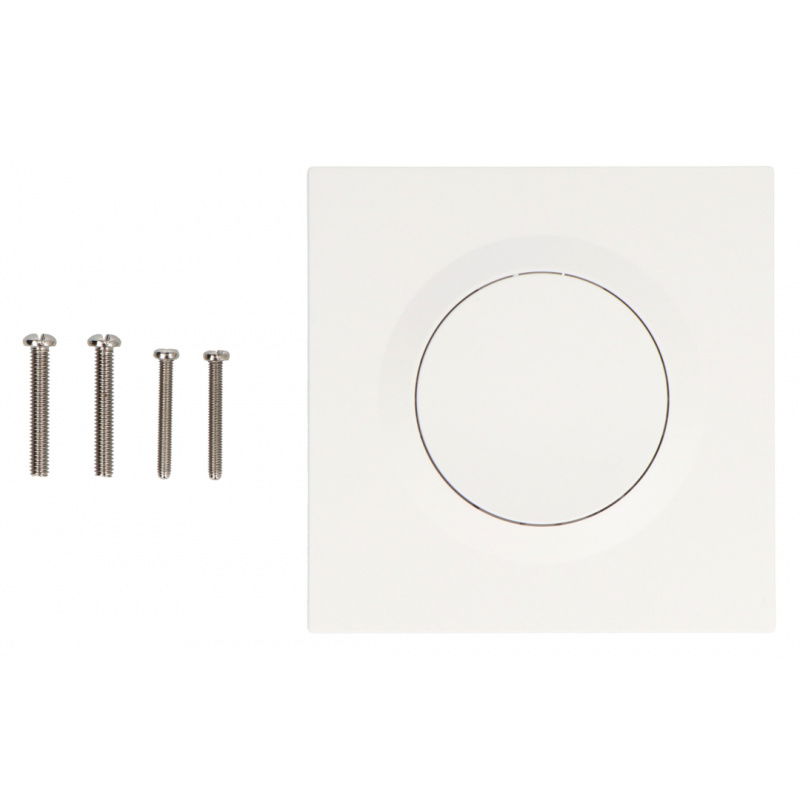

Elements included in the set.
