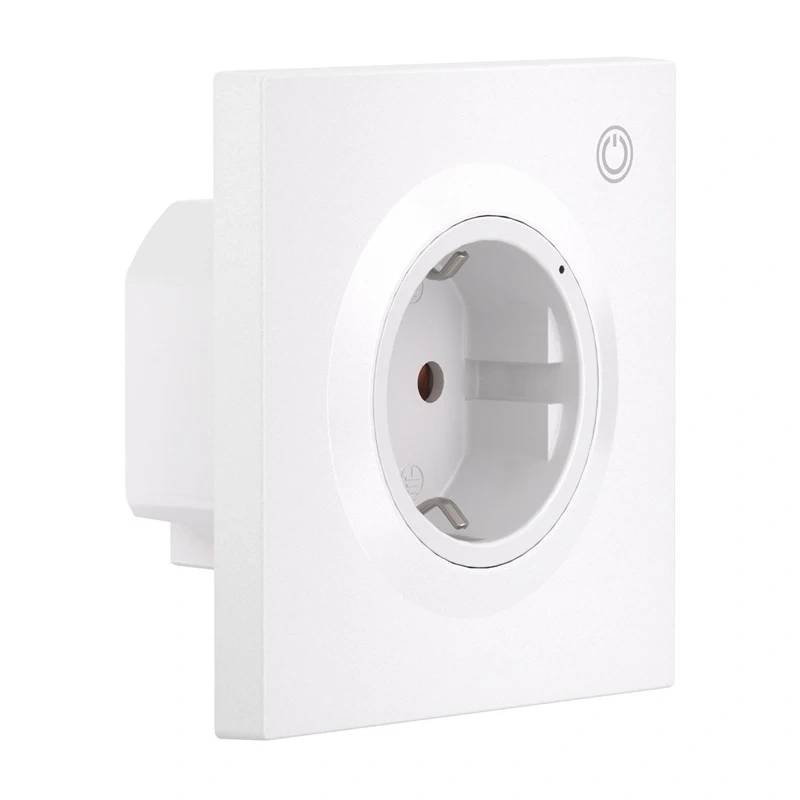

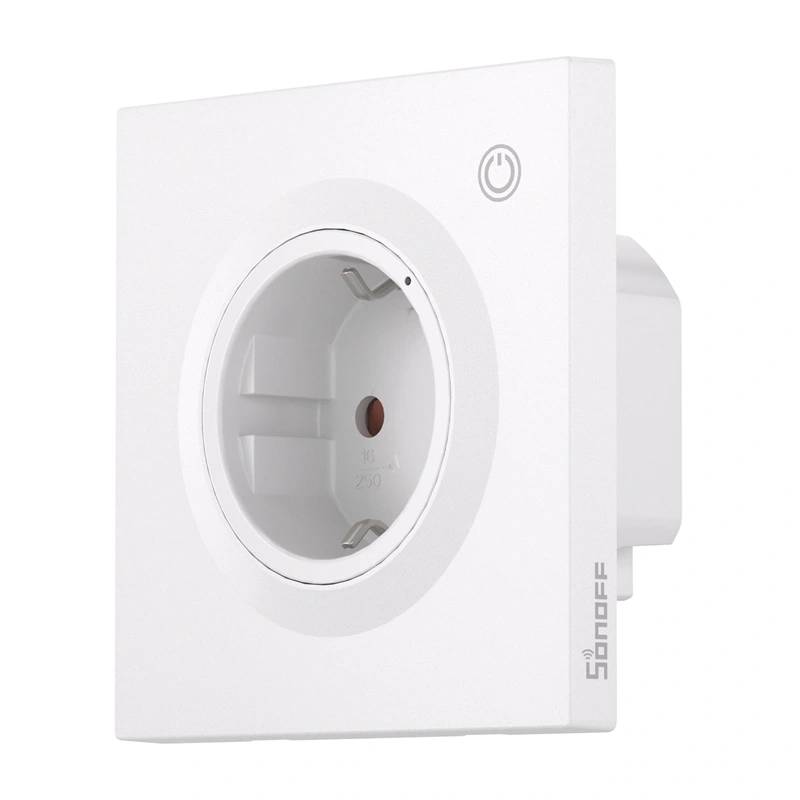

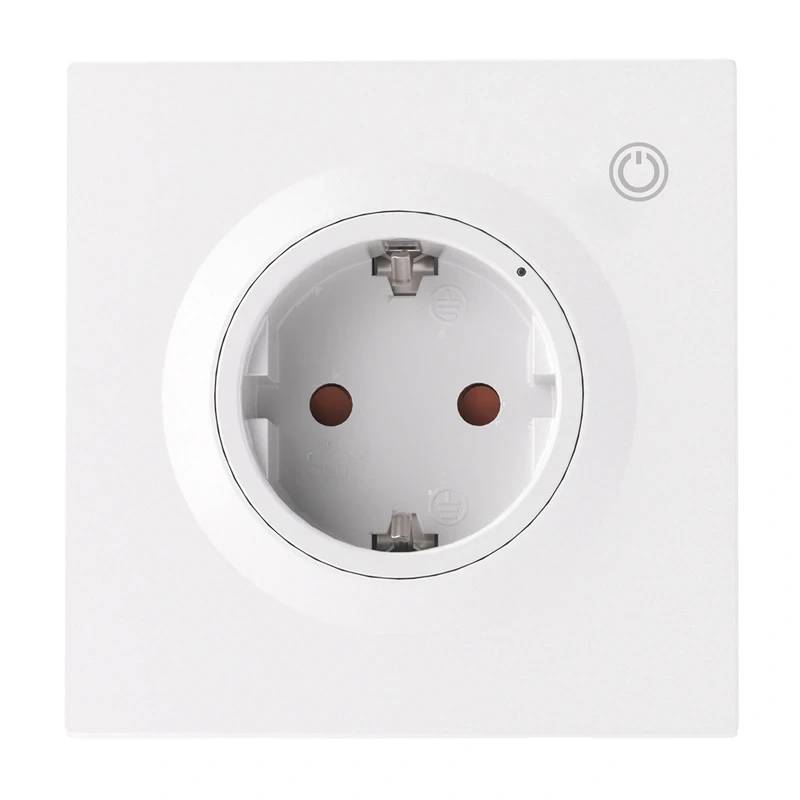

Product description: Sonoff WS01TPF-E - WiFi / Matter Smart Wall Socket - Type F - 16A 4000W
The Sonoff WS01TPF-E replaces a traditional wall socket, adding smart home functionality to your electrical installation. The Matter standard allows integration with popular smart home ecosystems from various manufacturers, and the eWeLink app provides access to voltage, current, power, energy consumption, and operating costs measurements. The socket also allows you to set schedules, countdowns, and automatic scenes . Overload and overcharge protection can automatically disconnect the power supply when certain conditions are met. This model is designed for indoor installation and supports CEE 7/7-compliant F, C, and F&E plugs .
Sonoff WS01TPF-E - WiFi / Matter Smart Wall Socket - Type F - 16A 4000W
The socket accepts type F, C and F & E plugs compliant with CEE 7/7 and is intended for indoor installation.
Main features of the Sonoff smart socket
- Matter standard support : enables integration with popular Smart Home systems from various manufacturers
- 2.4 GHz WiFi connectivity : provides wireless communication in the IEEE 802.11 b/g/n standard
- Schedules and timers : allow you to automatically turn the power on and off at selected times or after a specified period of time
- Smart scenes : allow you to combine the socket's operation with other home automation elements
- Energy Monitoring : Allows you to check voltage, current, power, working time and total energy consumption on the eWeLink app
- Energy cost tracking : helps you analyze the costs associated with the operation of connected devices
- Overload protection : can disconnect the power supply when the configured current, voltage or power threshold is exceeded
- Overcharge protection : automatically turns off the power supply when the set conditions related to the decrease in power consumption of the device being charged are met
- Physical button control : allows you to manually turn the power on and off without using the app
- Configurable power outage behavior : allows you to define the socket's behavior when power is restored.
- LAN local control : allows you to operate the device on the same local network without using a cloud server
- Maximum load 4000 W : can handle a resistive load of up to 16 A
Automation, scheduling, and energy usage history
The Sonoff WS01TPF-E offers extensive automation features, allowing you to set schedules, countdowns, and automatically turn the power on or off after a specified time. The socket also allows you to create smart scenes and configure the device's behavior when power is restored, making it easier to tailor its operation to your daily needs. The eWeLink app also provides historical energy consumption and cost data , visualization, export capabilities, device status logs, and notifications. The range of available features may vary depending on the Matter platform selected.
Matter support enables integration with popular cross-vendor ecosystems, including Apple Home, Google Home, Alexa, SmartThings, and Home Assistant.
The Sonoff WS01TPF-E socket supports a load of up to 4000W and 16A.
Technical specifications of Sonoff WS01TPF-E
- Socket type: F
- Compatible plugs: Type F, Type C, Type F & E - CEE 7/7
- Microcontroller: BK7238
- Nominal voltage: 100 V to 250 V AC
- Frequency: 50/60 Hz
- Maximum resistive load current: 16 A
- Maximum load: 4000 W
- Power consumption in standby mode: < 1 W
- Wireless connectivity: WiFi IEEE 802.11 b/g/n 2.4 GHz
- Smart Home Protocol: Matter
- Supported platforms: eWeLink, Apple Home, Google Home, Amazon Alexa, SmartThings, Home Assistant
- eWeLink measurement functions: voltage, current, power, energy, working time, energy costs
- Controls: App, Matter, Voice Control, Local Button
- Time functions: schedule, countdown, automatic switching after a set time
- Safety features: overload protection, overcharge protection
- Housing material: PC
- Color: white
- Place of use: indoors
- Operating temperature: -10°C to 40°C
- Operating humidity: 5% RH to 95% RH, non-condensing
- Recommended wire cross-section: 1.5 mm² to 2.5 mm², SOL/STR copper wires only
- Recommendation for operation with a current of 16 A: phase, neutral and protective conductors with a cross-section of at least 2.5 mm² according to the manufacturer's information
- Compatible mounting boxes: Type 86 and European 60 mm diameter boxes
- Dimensions: 86 x 86 x 42.5 mm
