Product description: Sonoff SNZB-01P - wireless ZigBee action and scene activation button
Sonoff SNZB-01P is a modern, round switch that expands the possibilities of controlling a smart home. Thanks to support for the ZigBee 3.0 protocol, it works seamlessly with a wide range of gateways and Smart Home systems. It allows you to assign three different actions to one button - single, double and long press - which allows you to control many scenarios and devices from one place. Thanks to its compact dimensions, the switch can be placed anywhere - at home, in the office or service premises.

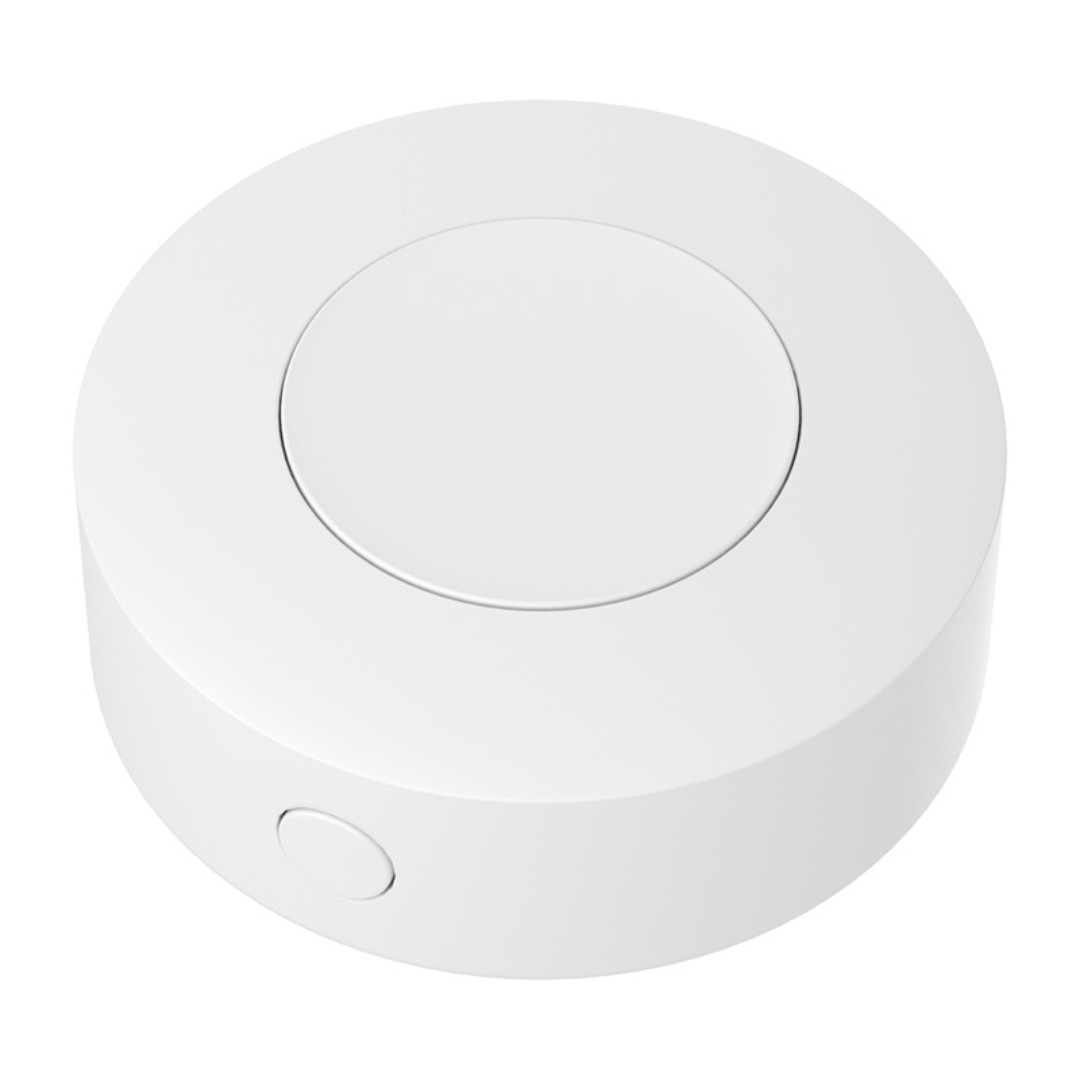

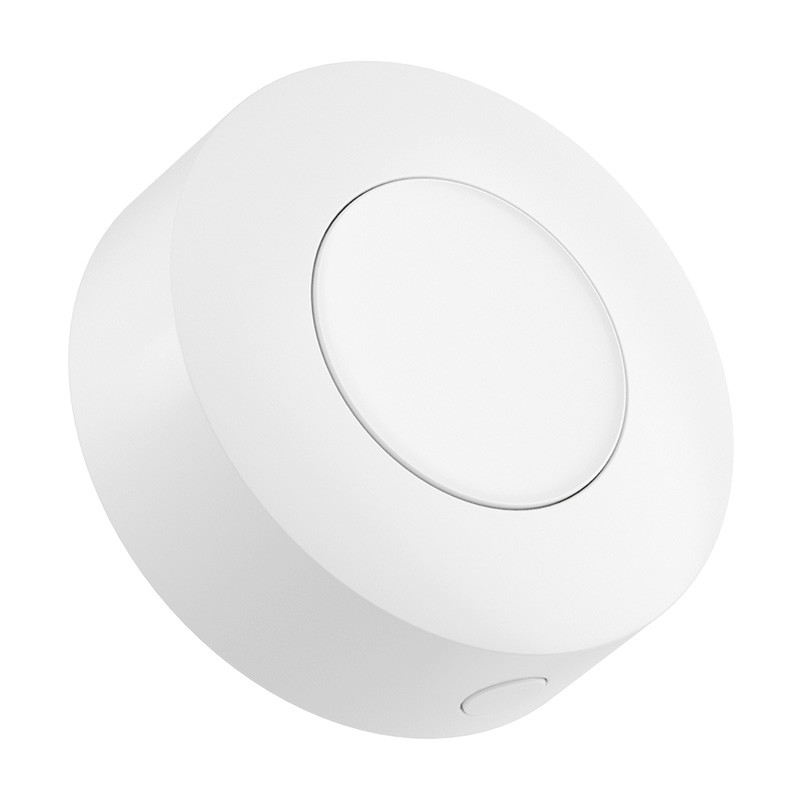

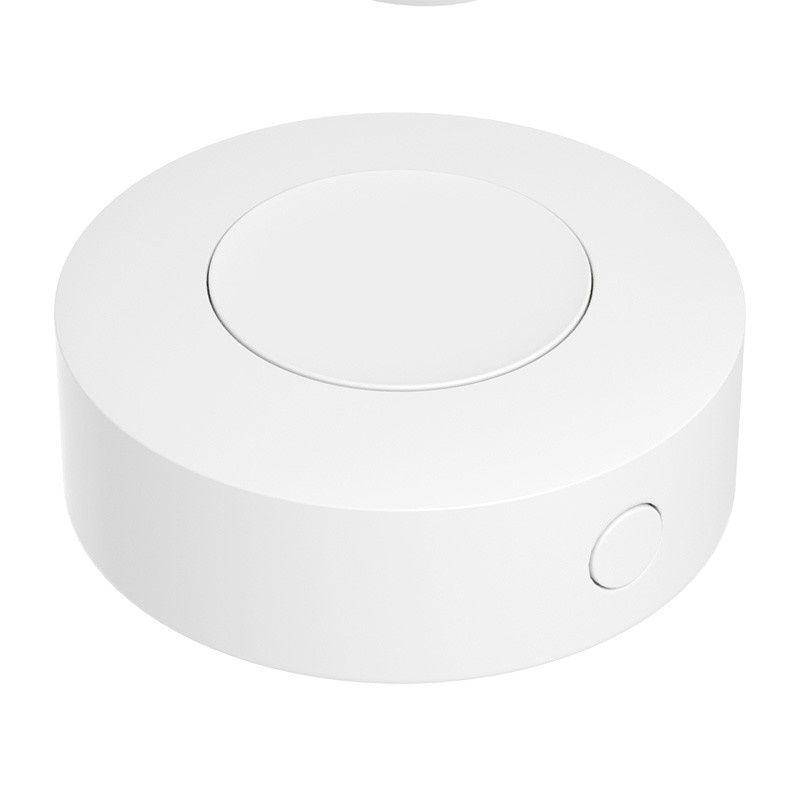

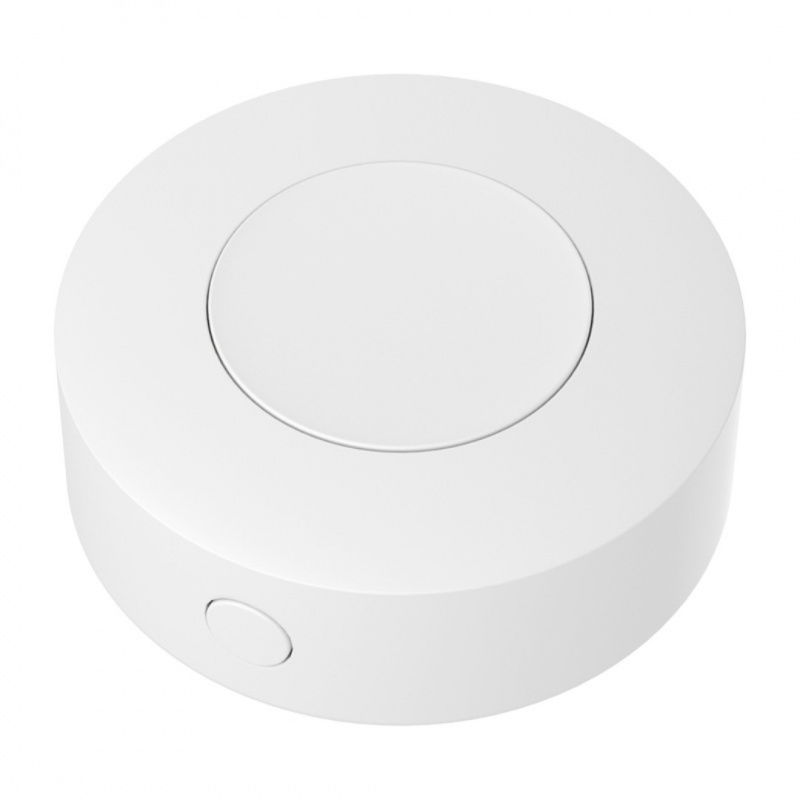

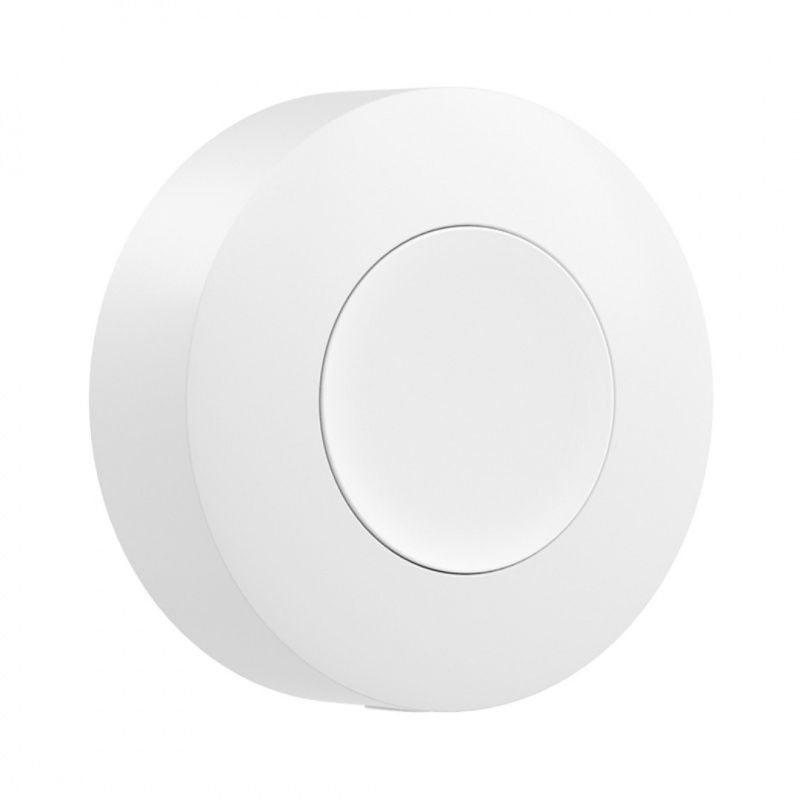

Sonoff SNZB-01P - wireless ZigBee action and scene activation button.

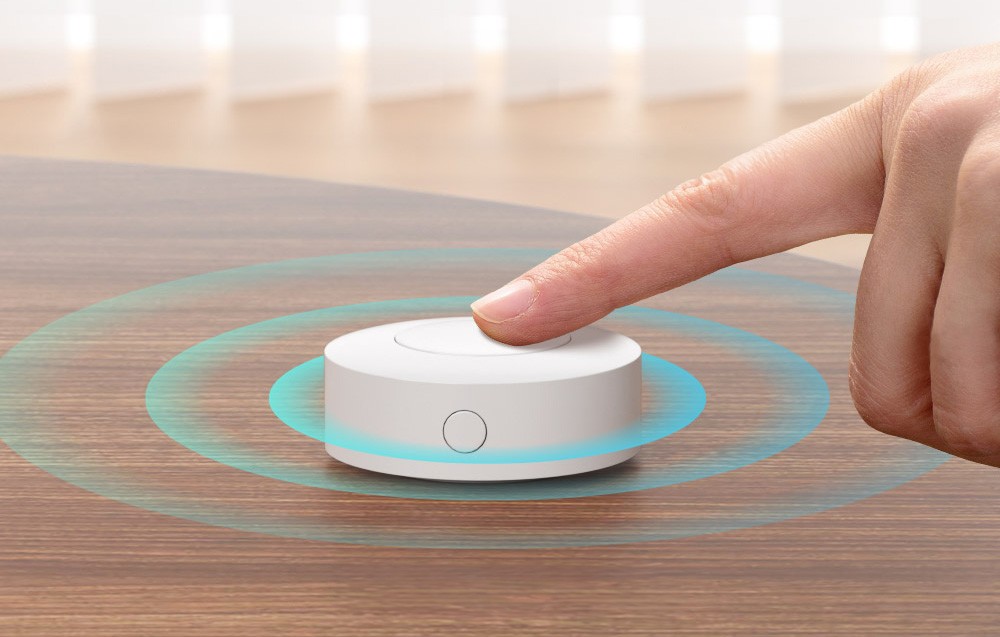

The button supports single, double or long press to control multiple devices.
Main Features of Sonoff SNZB-01P
- Three programmable actions: single, double and long press enable multiple functions
- ZigBee 3.0 Compatibility: Ensures broad compatibility with hubs from different manufacturers
- Alexa support: voice scripts can be activated via a physical button
- Multifunctional: can act as a doorbell, emergency button or central scene controller
- Versatile installation: 3M tape and metal plate included for easy installation anywhere
- Long battery life: thanks to the use of CR2477 battery, the button works for up to 5 years
ZigBee connectivity and wide gateway compatibility
The Sonoff SNZB-01P switch uses the energy-saving ZigBee 3.0 protocol , which ensures low power consumption and stable communication with gateways. It can be easily paired with most gateways supporting this standard - not only from Sonoff, but also other manufacturers supporting ZigBee 3.0. This makes it a universal solution for any home automation system.
The button requires a ZigBee gateway to function properly - compatible models include: NSPanel Pro , Sonoff ZigBee Bridge, ZBDongle-E /P, SmartThings Hub V3 and others.
Compliance with the Zigbee 3.0 protocol ensures seamless integration with a wide range of devices.
Full control and freedom of installation in any space
SNZB-01P allows you to create advanced automation scenes - e.g. turning off all devices with one click, activating the doorbell or calling for help in an emergency. In combination with NSPanel Pro, it can also act as a doorbell - you will receive a notification when someone presses the wireless switch. Thanks to the support of voice assistants such as Alexa, you can run voice scripts with one button . Additionally, SNZB-01P offers the ability to view the history of activities for the last three months. Small dimensions and included mounting elements allow you to easily mount the switch on a wall, furniture or desk surface . Ideal for home, office and commercial applications.
Technical specifications of the button
- Model: SNZB-01P
- Connectivity: ZigBee (IEEE 802.15.4)
- Protocol: ZigBee 3.0
- Battery type: CR2477
- Input voltage: 3V
- Processor (MCU): EFR32MG22
- Pairing time: up to 180 sec
- Antenna: PCB
- Security: AES-128
- Operating temperature: -10°C to 60°C
- Housing material: PC
- Working altitude: up to 5000 m above sea level
- Intended use: indoor use
- Color: white
- Shape: round
- Dimensions: 45 x 45 x 17.7 mm
- Weight: 27.7 g
Kit Contents
- 1x Sonoff SNZB-01P ZigBee Switch
- 1x CR2477 Battery (installed)
- 1x 3M double-sided tape
- 1x Metal mounting plate
- 1x Mounting screw

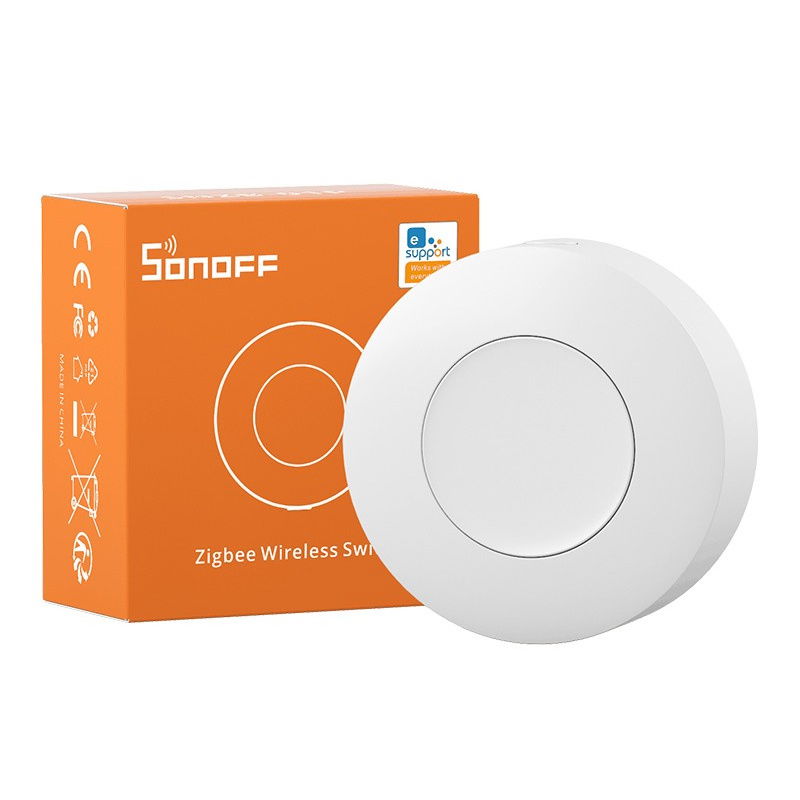

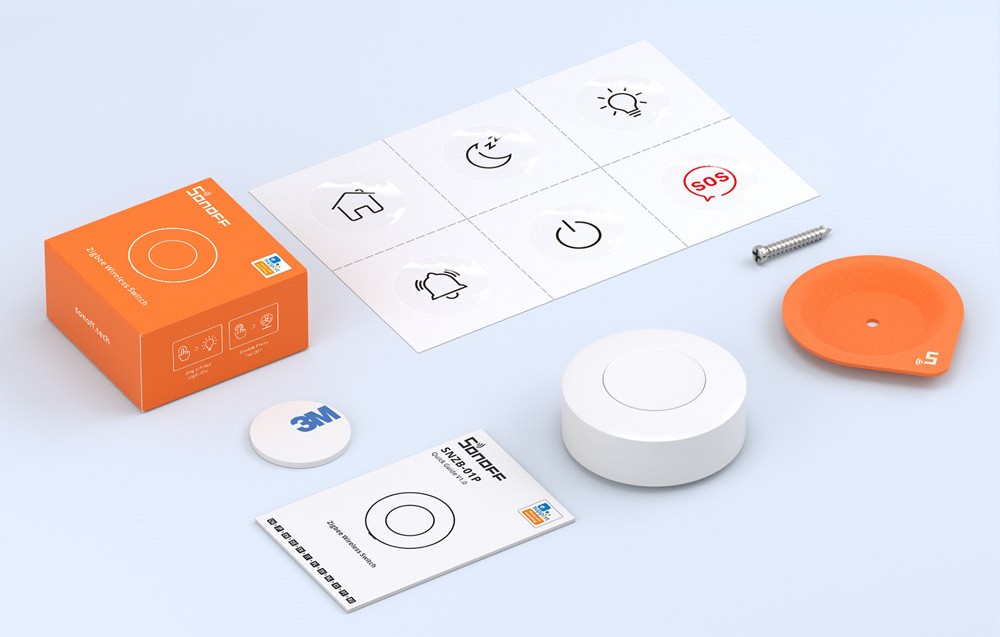

Items included in the set.
