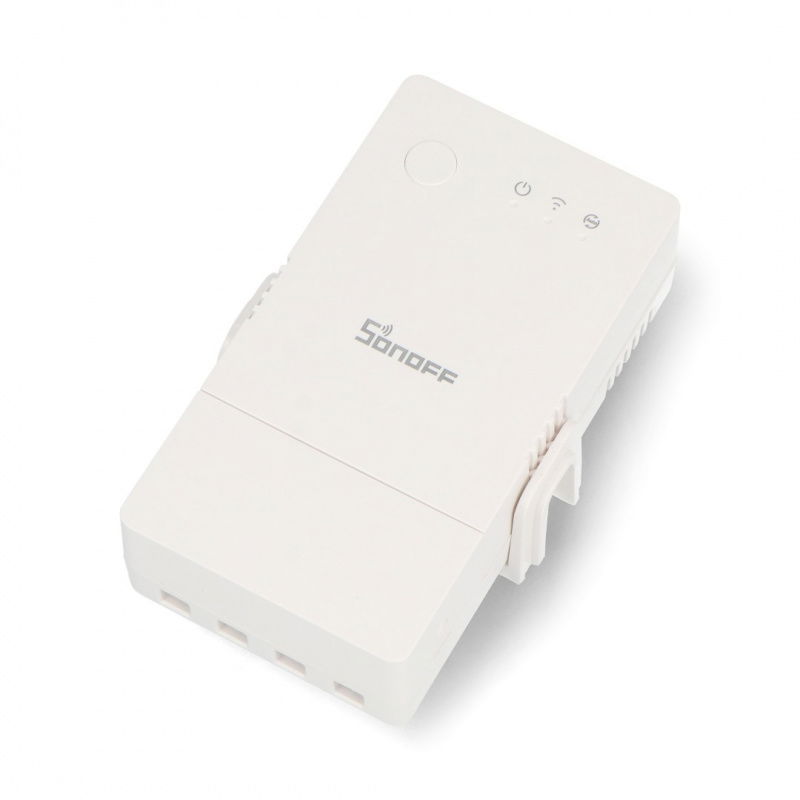

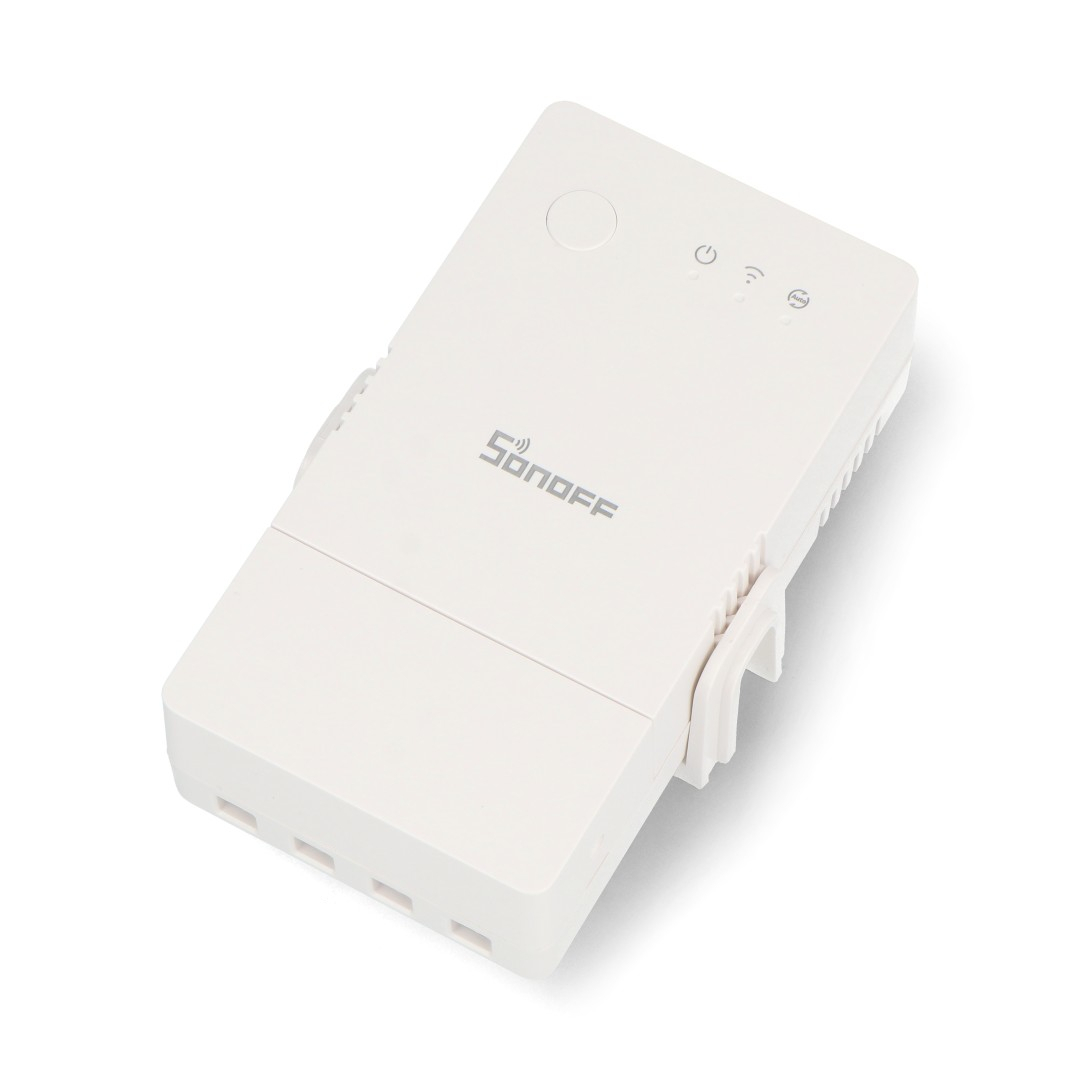

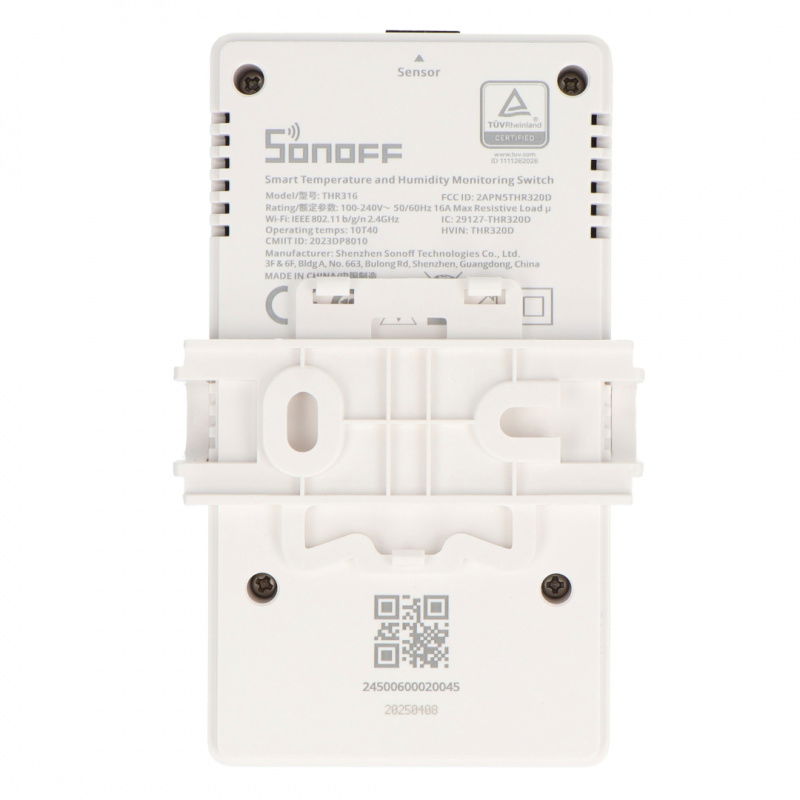

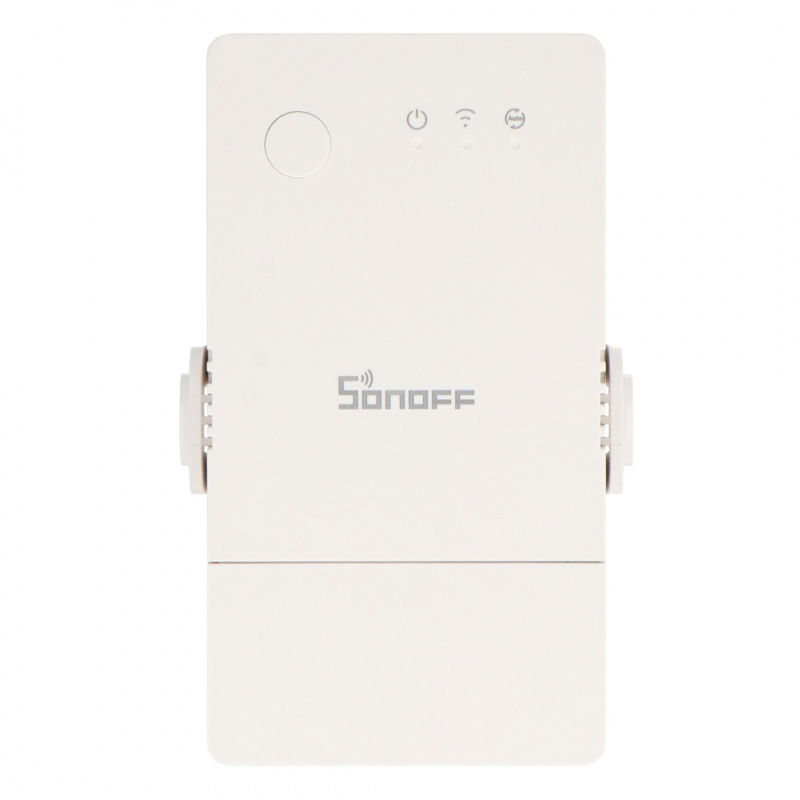

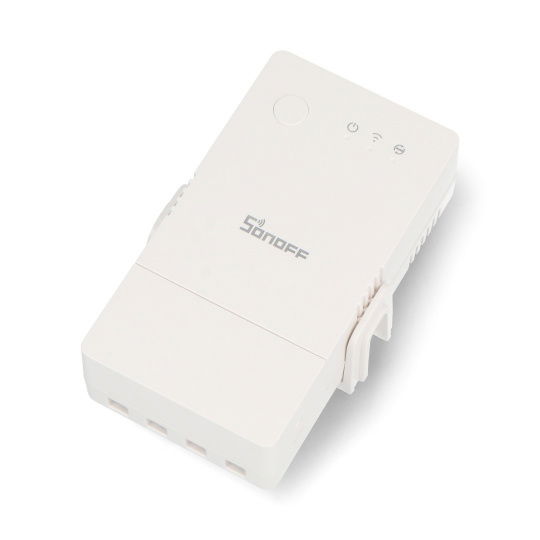

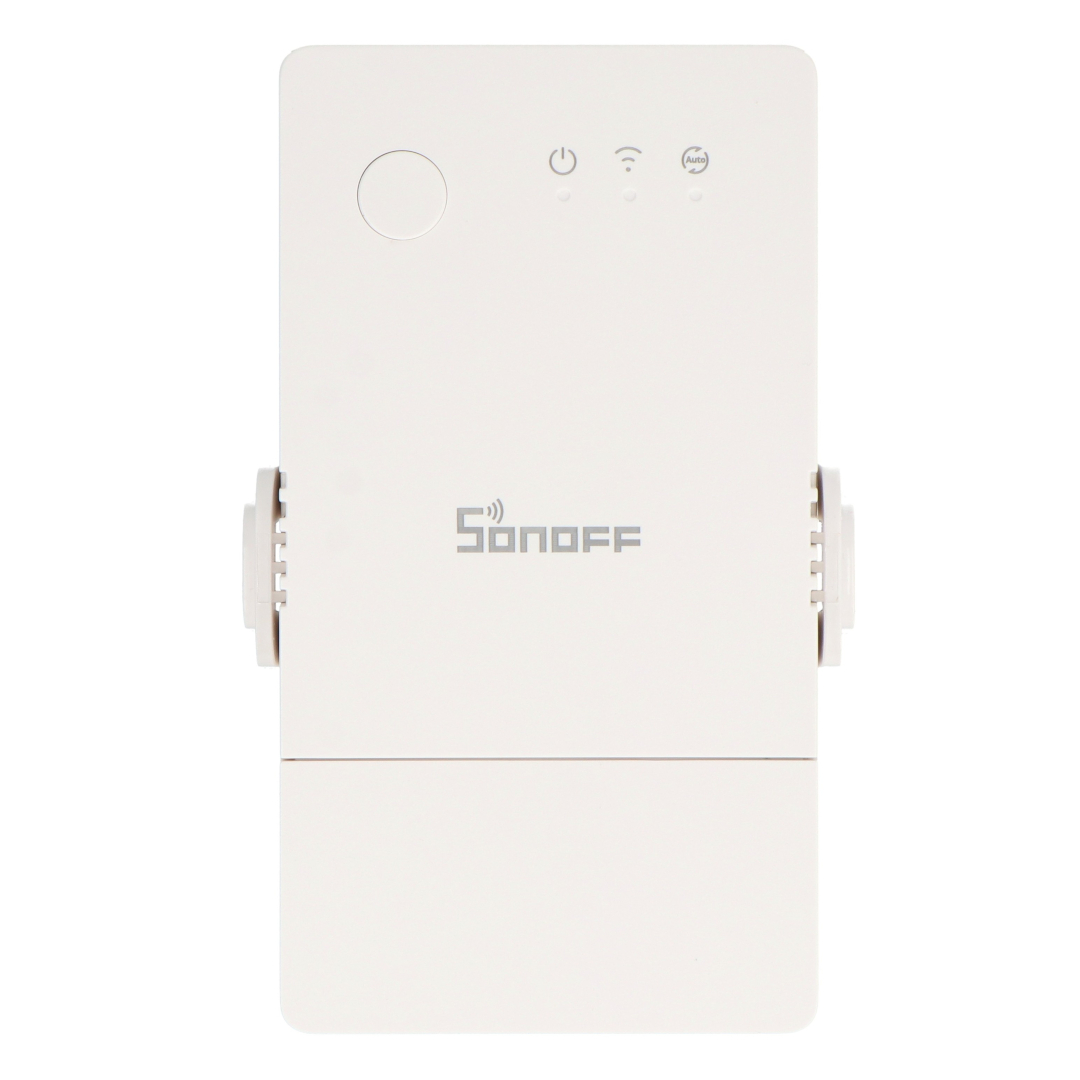

Product description: Sonoff THR316 TH Origin - WiFi / Matter relay with temperature and humidity measurement function - 16 A - white
The Sonoff THR316 TH Origin is an advanced WiFi relay designed to intelligently manage electrical devices based on user needs and environmental conditions. The device supports a maximum load of 16A , allowing for safe control of even more demanding devices, such as heaters, ventilation systems, pumps, and irrigation systems. A key feature of the THR316 is its ability to work with Sonoff temperature and humidity sensors , allowing for automation, such as turning on ventilation when humidity exceeds a certain level or activating irrigation when humidity is too low. Additionally, the relay offers the ability to create schedules, record measurement history, and export data from the last six months , which allows for data analysis and device optimization. Voice assistant support and integration with the Smart Home ecosystem make the Sonoff THR316 a perfect fit for both modern home and industrial automation systems.
The Sonoff THR316 TH Origin is compatible with temperature, humidity, and soil sensors. Sonoff sensors and probes are not included and must be purchased separately.
Sonoff THR316 TH Origin - WiFi / Matter relay with temperature and humidity measurement function - 16 A - white.
The switch supports a maximum load of up to 16A, making it an ideal choice for controlling high-power devices.Special features of the switch
- Maximum load 16A : supports high-drain devices such as electric underfloor heating
- Supports various sensors: compatible with Sonoff THS01, WTS01 and MS01 sensors
- Data history : ability to view and export historical data from the last six months
- Real-time notifications: receive push notifications and alerts on your phone when there are changes in your environment or on your device
- Voice Control: Compatible with Google Assistant and Amazon Alexa, allowing you to control it via voice commands
- Conditional control: the ability to automatically turn devices on or off based on reading data
- eWeLink and Home Assistant integration: local or remote automation and control via the eWeLink app and integration with Home Assistant via the eWeLink add-on
- Apple Home compatibility: seamlessly connect your devices with the Matter gateway
eWeLink app
Sonoff THR316 TH Origin enables not only real-time temperature and humidity readings, but also long-term archiving of collected data . The app allows you to remotely turn connected devices on and off, create automations and schedules, monitor temperature and humidity levels in real time, and view historical data. A data export function allows you to download recorded information and analyze it further , for example, in spreadsheets. This solution is particularly useful in professional applications, where documenting environmental parameters is crucial, but it can also be a very useful tool for household members.
TH Origin supports LAN control, which allows the device to operate even in situations with limited WiFi access.

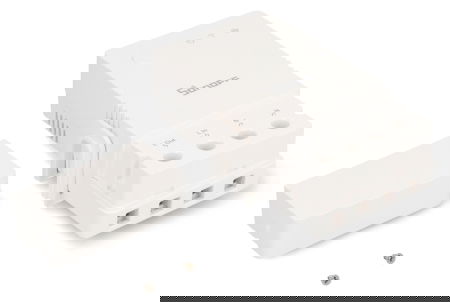

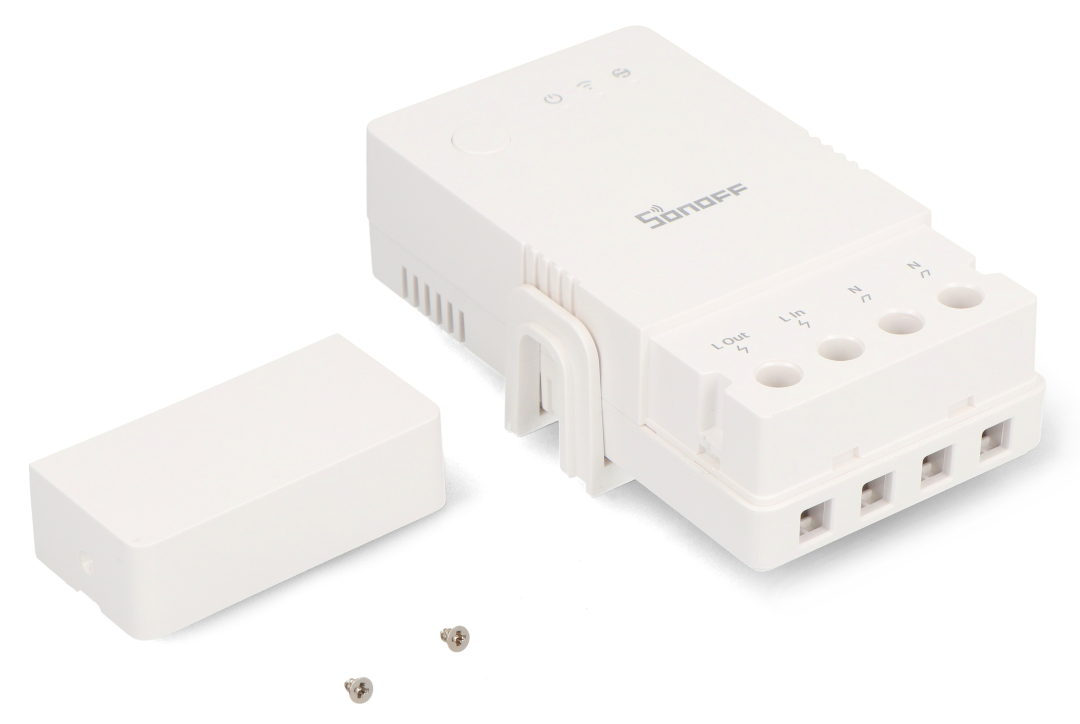

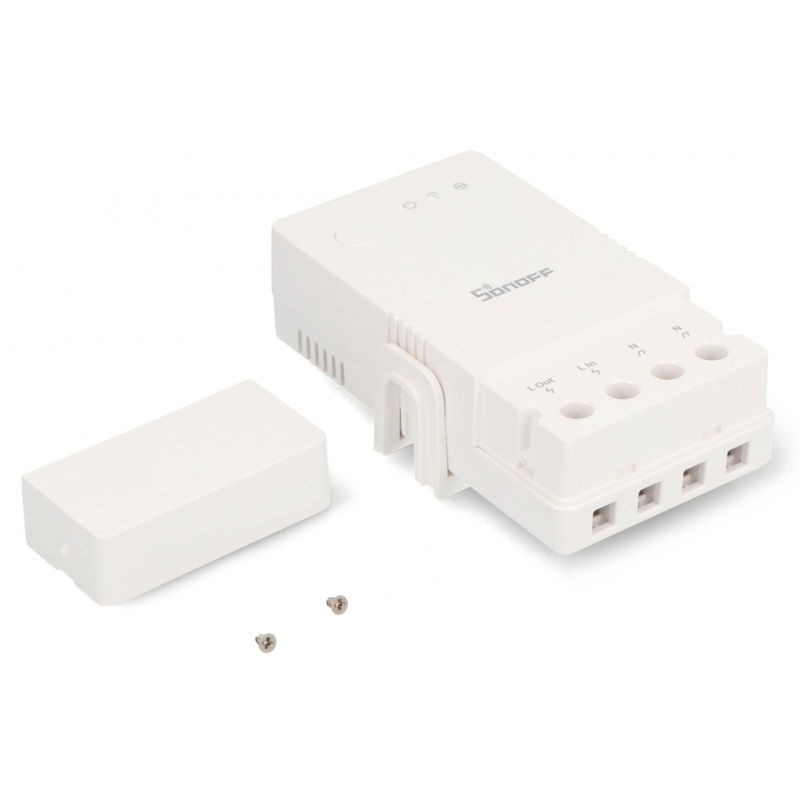

Sonoff relay kit contents.Technical specifications of the switch
- Model: THR316 TH Origin
- Microcontroller: ESP32
- Input/Output Voltage: 100V to 240V ~ 50/60Hz
- Maximum load: 16 A
- Operating temperature: -10°C to 40°C
- Operating humidity: 5% to 95%
- Housing material: PC V0 (fireproof)

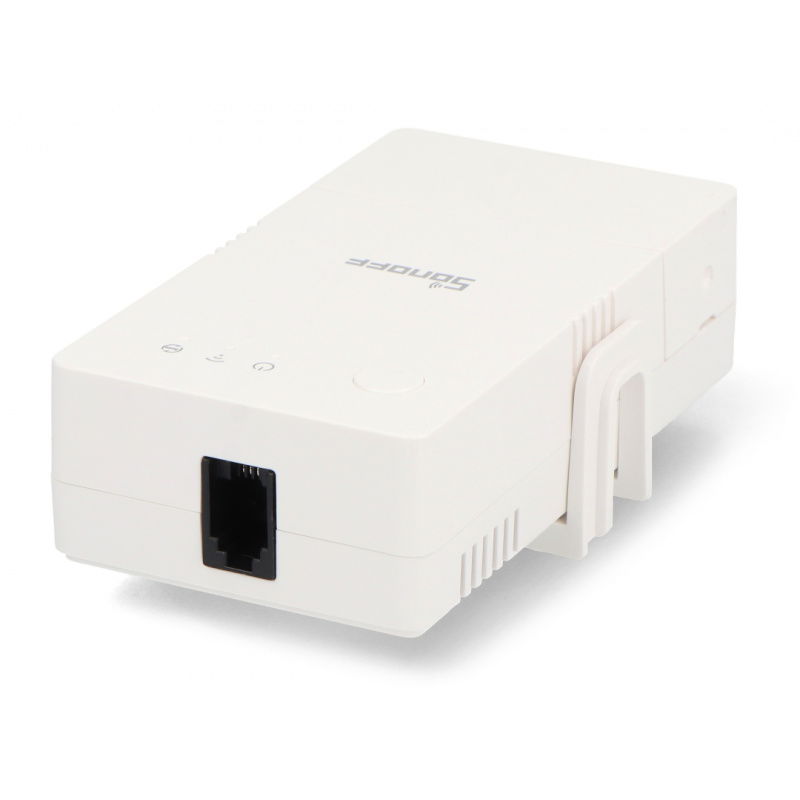

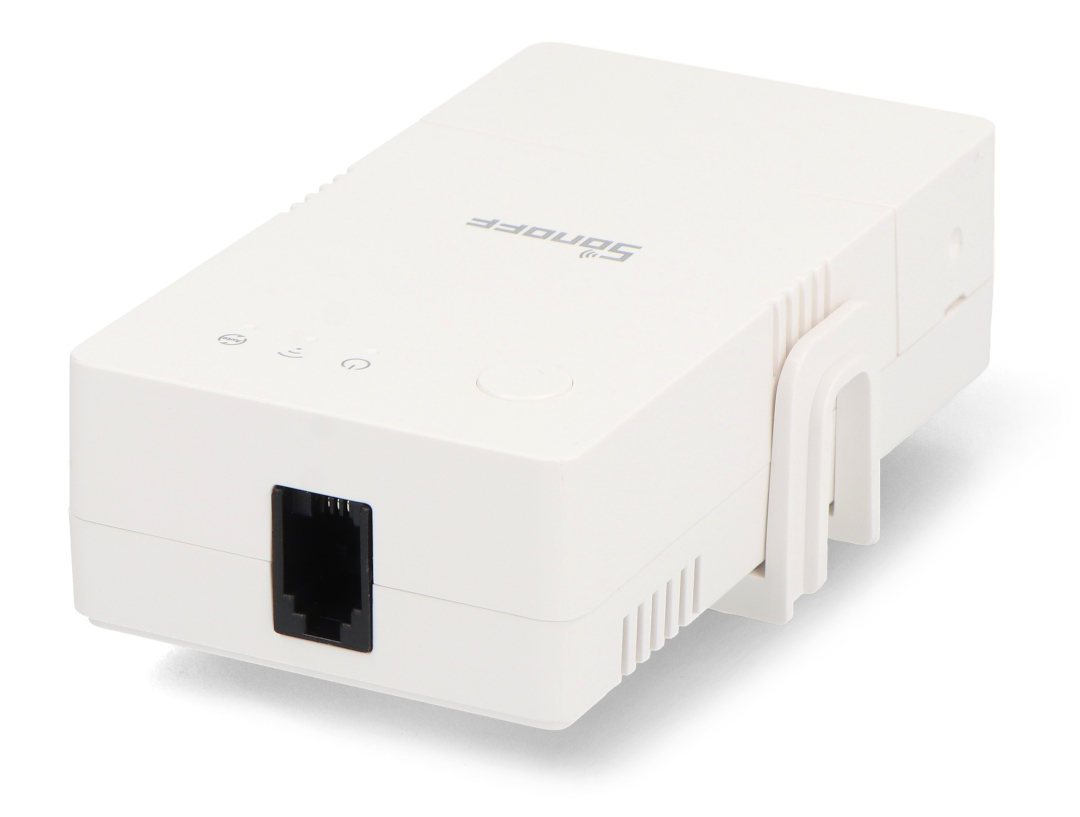

- Sensor interface: RJ9 4P4C
- Compatible sensors: THS01, DS18B20, MS01
- Voice control: Amazon Alexa, Google Assistant
- Integration: eWeLink, Home Assistant and Apple Home App
- Data history: readings from the last 6 months and the ability to export them
- Dimensions: 98 x 54 x 27.5 mm
