Sonoff ZBMINI-L2 - smart switch without N - ZigBee - Android/iOS application
Sonoff ZBMINI-L2 is a compact, smart ZigBee 3.0 switch that does not require a neutral wire . Its miniature dimensions allow for installation in small mounting boxes. It supports voice control (Amazon Alexa), remote app control, and Home Assistant integration (ZHA, Zigbee2MQTT). It supports external switches and works even with lighting from 3W. It is compatible with many ZigBee gateways, ensuring stable and energy-saving operation.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Sonoff ZBMINI-L2 - smart switch without N - ZigBee - Android / iOS application
Sonoff ZBMINI-L2 is one of the smallest ZigBee 3.0 smart switches , which does not require a neutral wire . Its compact design fits into European mounting boxes, type 86 and type 120 boxes. It ensures stable operation even at low power consumption (from 3 W). It supports voice control (Amazon Alexa, Alice, Google Home), mobile application and local control via Zigbee2MQTT and ZHA in Home Assistant. ZBMINI-L2 supports both traditional wall switches and wireless control , which allows integration with various Smart Home systems. It is energy-saving and compatible with a wide range of ZigBee control units.
Sonoff ZBMINI-L2 - smart switch without N - ZigBee - Android / iOS application.
The smart switch fits easily into an EU mounting box.
Main Features of Sonoff ZBMINI-L2
- No neutral wire - ideal solution for installation in older buildings
- Super compact size - fits into European mounting boxes
- ZigBee 3.0 - stable communication and energy efficiency
- Home Assistant Compatibility - Zigbee2MQTT and ZHA support
- Voice control support - works with Amazon Alexa, Alice and Google Home
- Support for external switches - ability to connect traditional switches
- Operation from 3 W - no need for additional anti-flicker modules
Connecting the switch
The Sonoff ZBMINI-L2 is easy to install and can be installed in standard mounting boxes. All you need to do is:
- Disconnect power before installation
- Connect the phase wires (L) according to the diagram
- Connect the wires to the wall switch (S1, S2) - supports different types of switches
- Close the mounting box and turn on the power
- Connect the device to the application using ZigBee 3.0

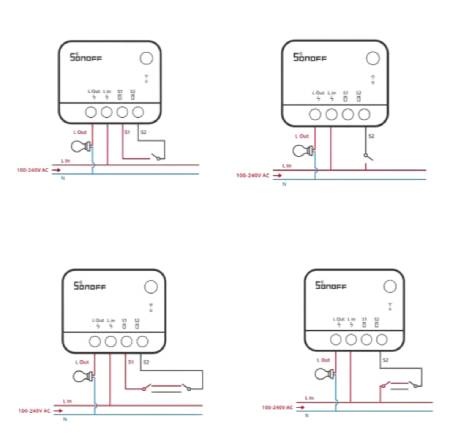

Connection diagram.
Supports external switches and operates with lighting power from 3 W.
ZigBee 3.0 communication
Sonoff ZBMINI-L2 uses the ZigBee 3.0 protocol, which ensures a stable connection, low power consumption, and the ability to work in a Mesh network . It is compatible with ZigBee hubs from various manufacturers, including Amazon Echo (with built-in ZigBee), as well as Sonoff ZBBridge, NSPanel Pro , ZBDongle-E , iHost models and Home Assistant systems (ZHA, Zigbee2MQTT).
Practical applications
The switch allows you to automate your lighting without having to cut walls or rewire. Ideal for upgrading electrical installations, it allows you to control your lights via an app or voice. It can be used to manage lamps, fans or other devices connected to the wall switch . Integration with Home Assistant allows you to create advanced automations, such as turning on lights when motion is detected.
Sonoff ZBMINI-L2 Technical Specification
- Model: ZBMINI-L2
- Microcontroller: EFR32MG22
- Voltage: 100V to 240V AC 50/60Hz
- Maximum load: 6 A
- Maximum LED load: 150 W at 100 V, 300 W at 240 V
- Minimum load power: 3 W
- Communication protocol: ZigBee 3.0
- Supported platforms: Amazon Alexa, Home Assistant (ZHA, Zigbee2MQTT), eWeLink
- Supported ZigBee gateways:
- Sonoff: ZBBridge, ZBBridge-P, iHost, NSPanel Pro, ZBDongle-P, ZBDongle-E
- Amazon Echo: Echo Studio, Echo Plus (ZE39KL), Echo Show 2nd gen. (DW84JL), Echo Plus 2nd gen. (L9D29R)
- Switch support: monostable and bistable
- Security: AES-128, ZigBee Pro Standard
- Antenna: Built-in ceramic
- Housing material: PC V0
- Operating temperature: -10°C to 40°C
- Dimensions: 39.5 x 32 x 18.4 mm
- Weight: 22 g
ZBMINI-L2 does not require a neutral wire.
Useful links
- Manufacturer's website: Sonoff ZBMINI-L2
- Technical documentation
- User manual
- Quick Setup Guide
- Sonoff - What is it and where is it used?
| Name | Value |
|---|---|
| Smart Home | Relay |
| Communication | ZigBee |
| Width | 3.7 cm |
| Height | 4.8 cm |
| Depth | 2.3 cm |
| Weight | 0.03 kg |
