Product description: Sonoff MINI-RBS - smart switch roller blinds controller WiFi / Matter - 2 pcs.
The Sonoff MINI-RBS is a modern smart roller shutter switch that transforms a traditional drive into an advanced smart home system. The module works with AC motors up to 1A and allows you to not only open and close roller shutters but also precisely adjust their opening and closing height . Support for the Matter standard allows you to integrate the device with popular platforms and conveniently control your roller shutters via apps, create automations, and use voice commands. The compact design allows for easy installation in standard 60mm junction boxes , eliminating the need for costly remodeling of existing installations. The set includes two Sonoff MINI-RB controllers.

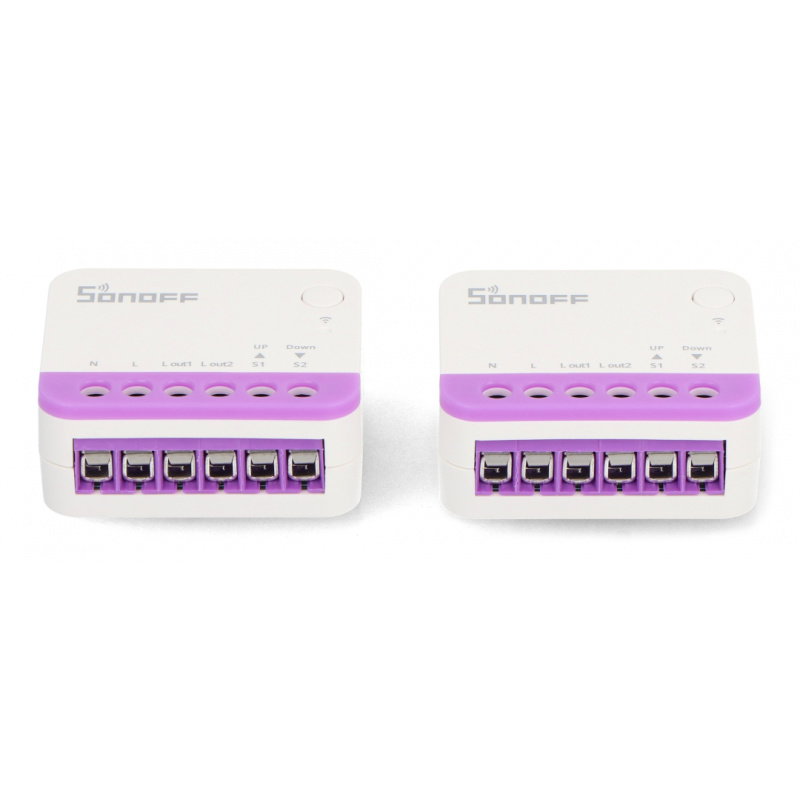

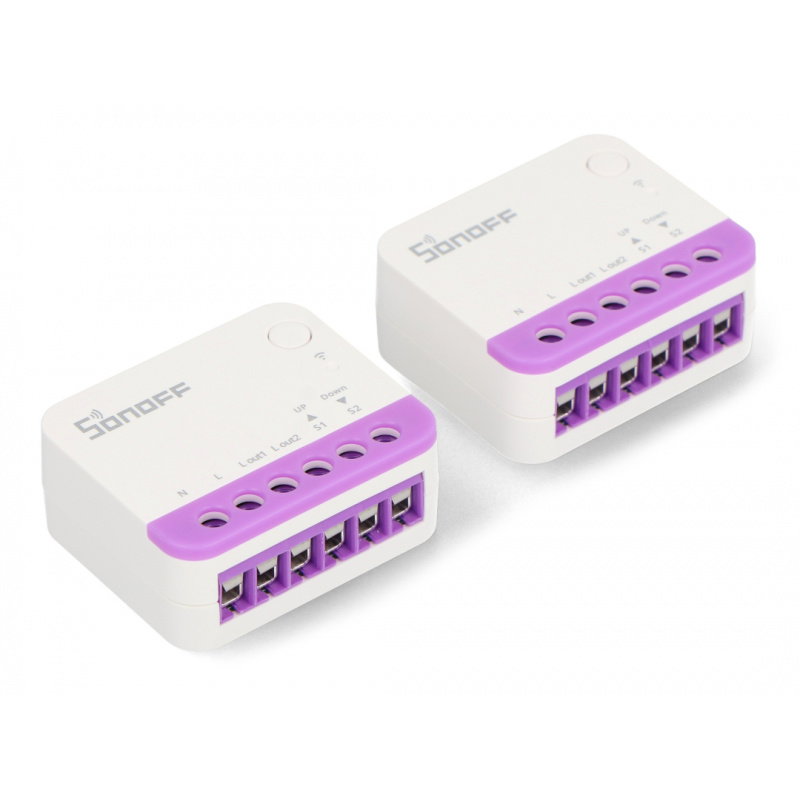

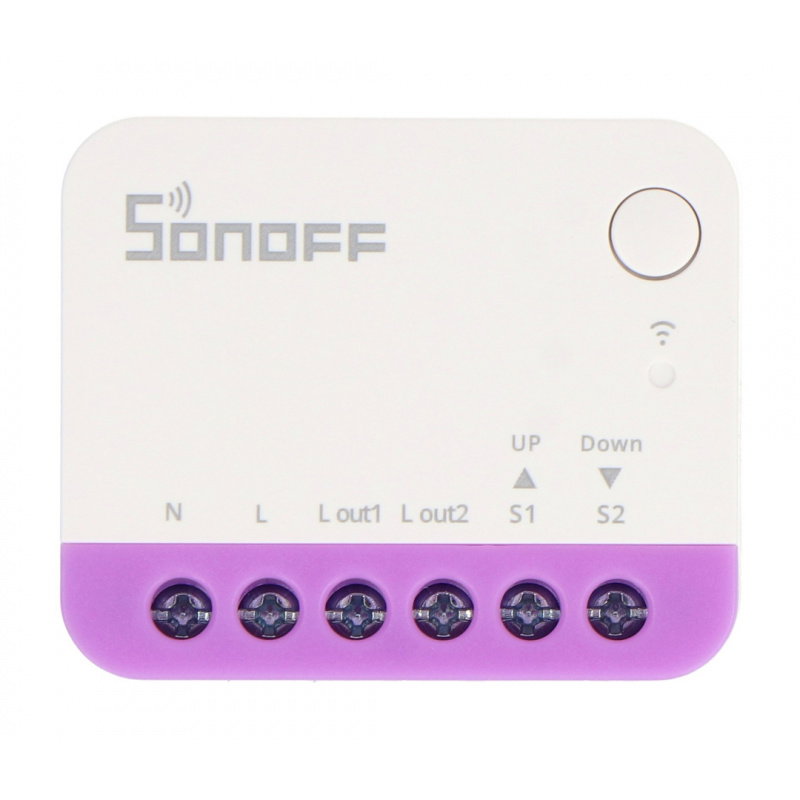

Sonoff MINI-RBS - smart switch roller blinds controller WiFi / Matter - 2 pcs.

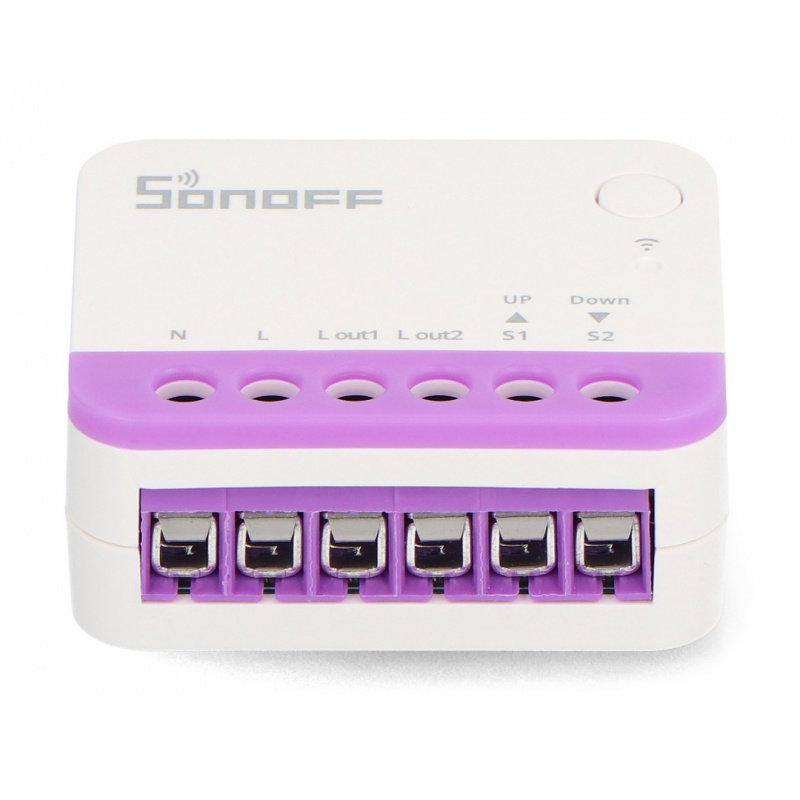

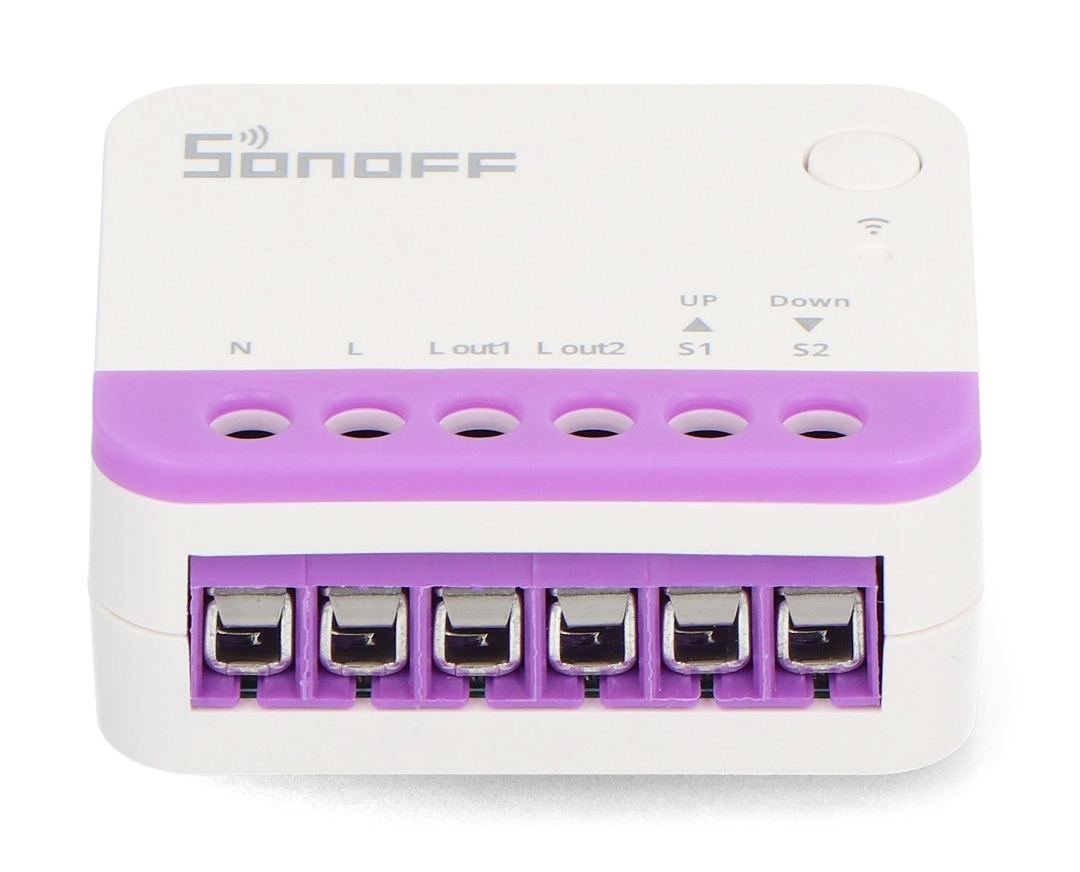

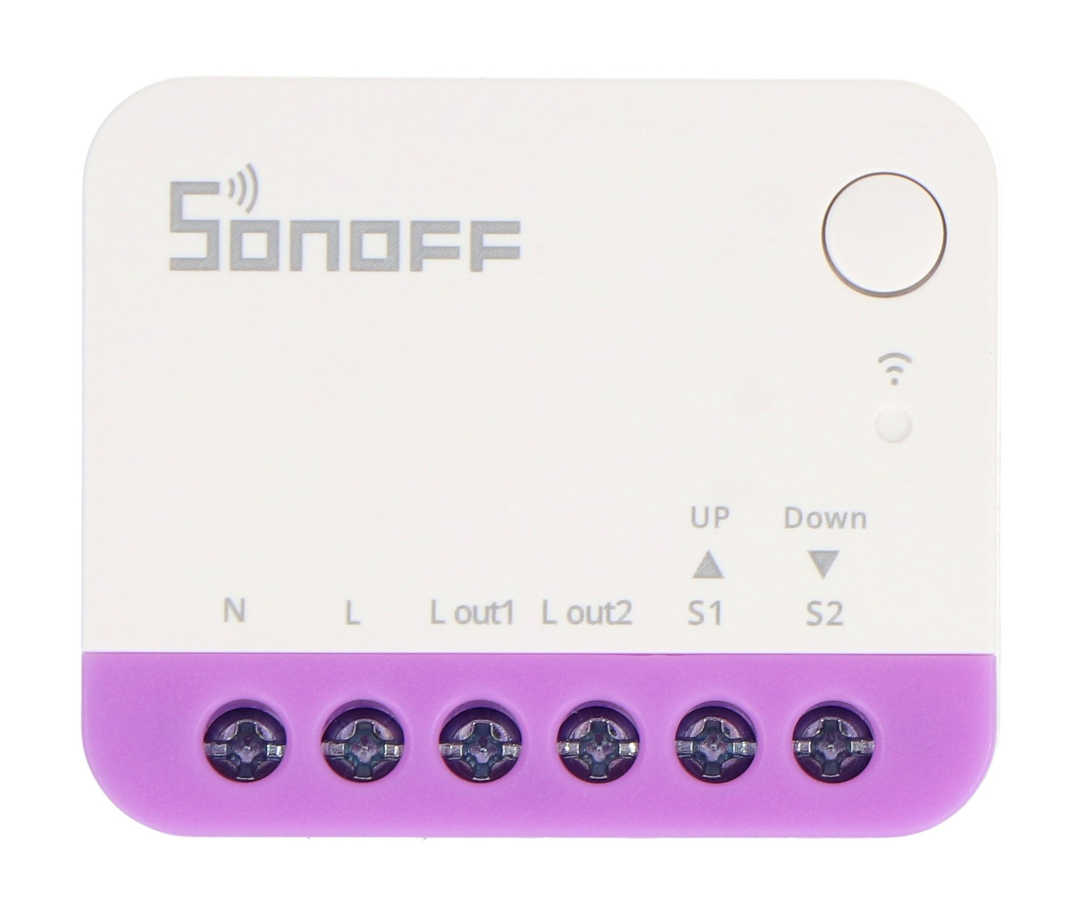

The controller is compatible with standard installation boxes.
Main features of the Sonoff MINI-RBS roller shutter controller
- Compact housing : small dimensions of 39.5 x 33 x 16.8 mm allow for installation in standard installation boxes
- Matter Support : Full integration with the Smart Home ecosystem and compatibility with many popular platforms
- Percentage control : precise setting of the blinds opening level for greater comfort and better light control
- Work schedules : automatic opening and closing according to the time of day or the daily rhythm of household members
- Position calibration : motor deviation correction function improves roller shutter control accuracy
- Voice control : convenient voice control without using a wall switch
- Local operation : control over a local network without the need for a permanent connection to the cloud
- Drive Compatibility : Supports 4- and 5-wire AC motors with neutral and directional wires
WiFi connectivity and the eWeLink app - convenient control of roller shutters in your Smart Home
The Sonoff MINI-RBS uses IEEE 802.11 b/g/n 2.4 GHz WiFi , allowing it to easily connect to your home wireless network. Supporting the Matter standard, it works with platforms like Apple Home, Google Home, Alexa, and Home Assistant , allowing you to create a cohesive smart home system without manufacturer restrictions. The controller works with the eWeLink app, which allows you to remotely control your blinds, configure settings, share the device with other users, and manage schedules.
The MINI-RBS supports Matter, so it can be integrated with Apple Home, Google Home and Alexa.
The controller supports motors with a maximum current of 1 A.
Installation of the Sonoff MINI-RBS roller shutter controller and compatibility with devices
The Sonoff MINI-RBS is designed for easy installation in standard flush-mounted boxes with a minimum depth of 60mm. It works with 4- and 5-wire AC roller shutter motors that have a neutral wire and directional control lines. The controller supports various types of wall switches , including momentary pushbuttons and roller shutter switches. It can also be used with Sonoff devices, such as the Sonoff R5 wireless button, for convenient roller shutter control without the need for additional wiring.

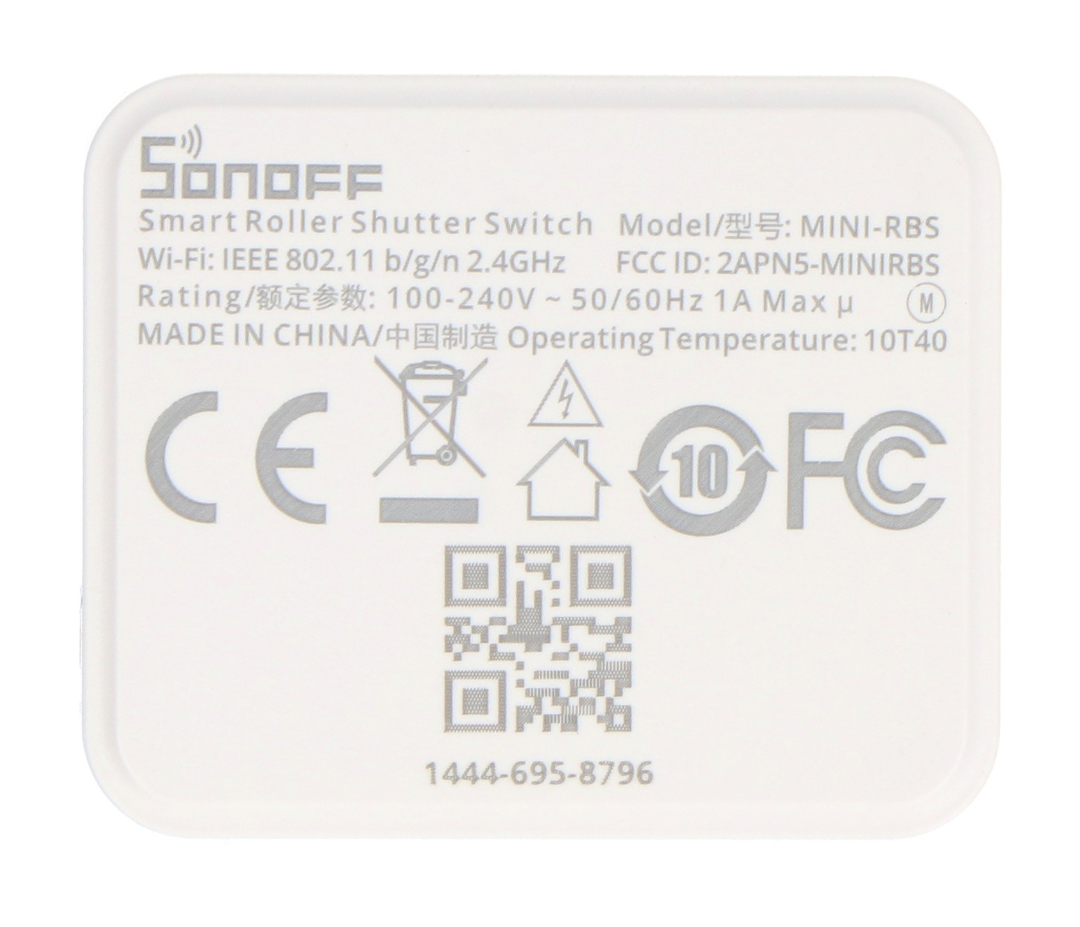

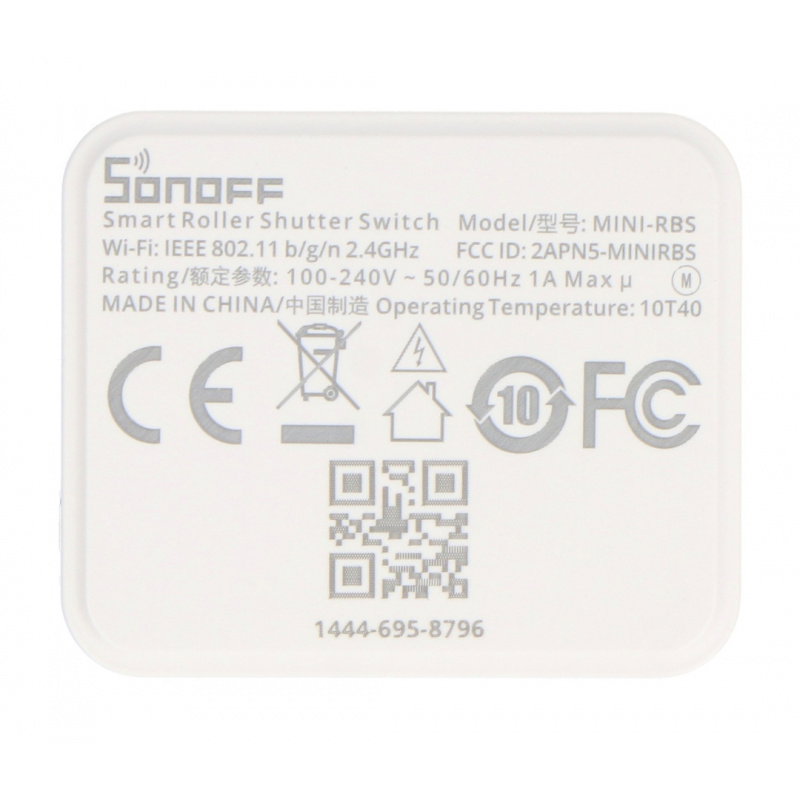

Technical specifications of the roller shutter controller
- Model: MINI-RBS
- Device type: WiFi roller shutter controller
- Power supply: 100V to 240V AC, 50/60Hz
- Motor load: 100 W to 240 W / 1 A
- Wireless connectivity: WiFi IEEE 802.11 b/g/n 2.4 GHz
- Supported App: eWeLink
- Compatibility: Matter, Apple Home, Google Home, Alexa, Home Assistant, SmartThings
- Compatible installation boxes: 60, 86, 120
- Motor type: AC 4- or 5-wire with direction limiter
- Housing material: PC
- Operating temperature: -10°C to 40°C
- Operating humidity: 5% to 95% RH, non-condensing
- Dimensions: 39.5 x 33 x 16.8 mm
- Weight: 25.1 g
Contents of the set

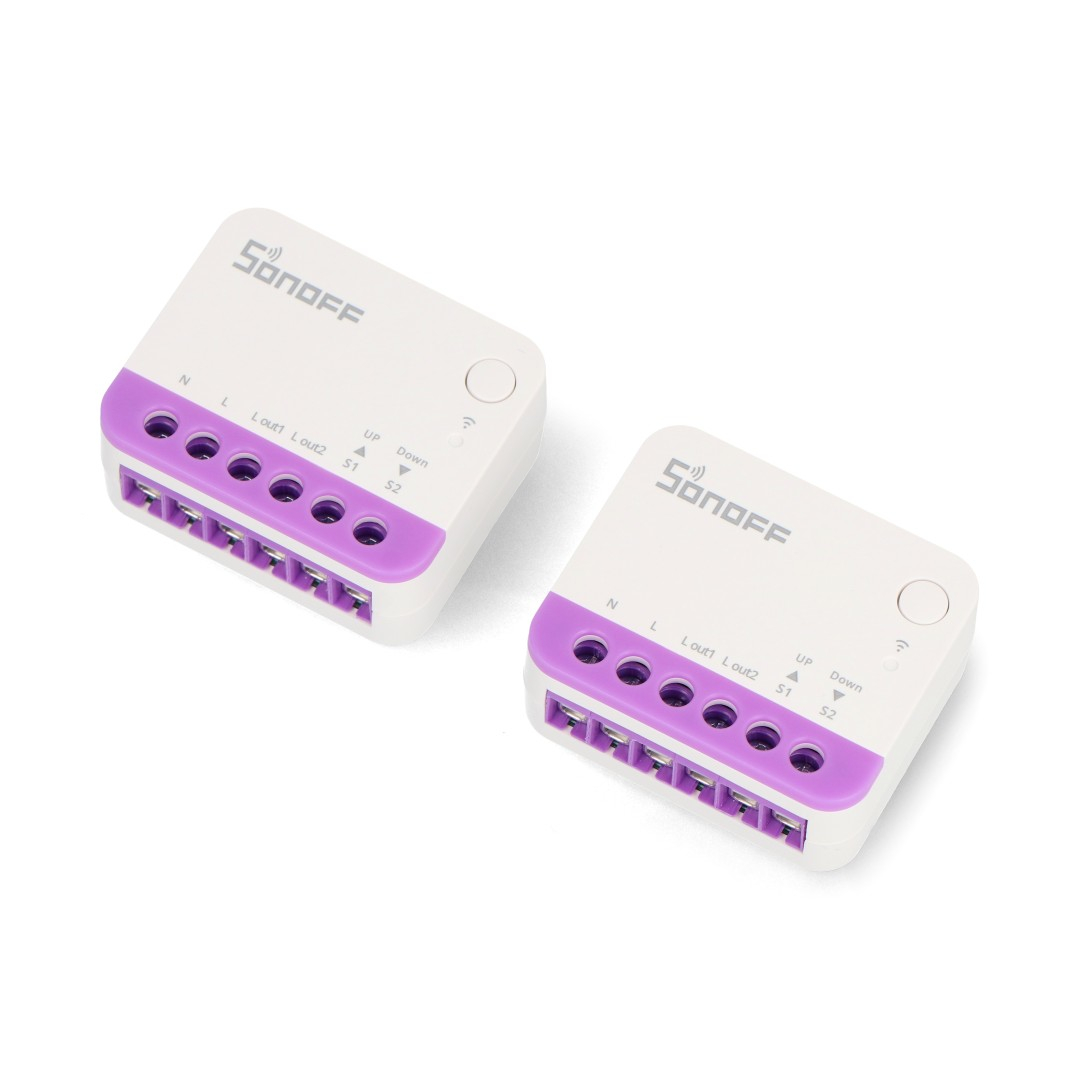

- 2x Sonoff MINI-RBS WiFi Roller Shutter Controller
The kit includes two drivers.
