Sonoff TH Elite - WiFi Relay with Temperature and Humidity Measurement - 20 A - White
Sonoff TH Elite is an intelligent Smart Home relay. It was designed to control the temperature and humidity of rooms, therefore it is equipped with an RJ9 4P4C connector for connecting one of the dedicated sensors. The operating status and current measurement values are presented on a clear display, and the control is wireless thanks to the ESP32 system. It can communicate via WiFi and LAN using the eWeLink application. Works with systems such as: IFTTT, Amazon Alexa, Google Assistant, Home Assistant.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Sonoff TH Elite - WiFi transmitter with humidity and temperature measurement function - 20 A - white
Sonoff TH Elite is an intelligent Smart Home relay. It was designed to control the temperature and humidity of rooms, therefore it is equipped with an RJ9 4P4C connector for connecting one of the dedicated sensors. The operating status and current measurement values are presented on a clear display, and the control is wireless thanks to the ESP32 system. It can communicate via WiFi and LAN using the eWeLink application for Android and iOS. Works with systems such as: IFTTT, Amazon Alexa, Google Assistant, Home Assistant. The maximum current is 20 A. It also has a currentless output for direct control of air conditioning or a central heating furnace.
Sonoff TH Elite - WiFi transmitter with humidity and temperature measurement function - 20 A - white
In our store you will also find other intelligent relays and Smart Home devices!
The relay can be controlled wirelessly.
Main features of the WiFi relay
- Control via WiFi - the built-in ESP32 system allows for wireless control using a dedicated application or in connection with systems such as: IFTTT, Home Assistant, Google Assistant, Amazon Alexa.
- High-current and no-current outputs - the relay allows you to control the load with a maximum current of up to 20 A, and the dry contacts (NC, NO, COM) allow you to switch on the heating or air conditioning.
- Wide selection of sensors - the manufacturer used an RJ9 4P4C connector in the relay, allowing the installation of many humidity and temperature sensors that can be placed in a place appropriate for the application, without the need to change the mounting location of the relay.
- Recording measurements - the device allows you to save temperature and humidity measurements from the last 6 months and easily export them to the .xlsx format.
- Setting intelligent scenes and schedules - the eWeLink application allows you to integrate the relay with other Smart Home devices, as well as create work schedules and set thresholds for switching on controlled devices.
Technical specifications of Sonoff TH Elite
- Number of channels: 1
- Maximum current: 20 A
- Sensor connector: RJ9 4P4C
- Measured parameters: temperature and air humidity
- Display: LCD
- Built-in chip: ESP32
- WiFi communication: 2.4 GHz 802.11 b/g/n
- App: eWeLink (Android and iOS)
- Supported systems: IFTTT, Home Assistant, Amazon Alexa, Google Assistant
- Dry Contact Output: 5V to 30V, 1A
- Overvoltage protection: varistor
- Dimensions: 98 mm x 54 mm x 32 mm
- Weight: 150 g
- Material: PC V0 (fireproof polycarbonate)
- White color
- Installation: DIN strip
- Certificates: CE, FCC, RoHS, TUV, SRRC

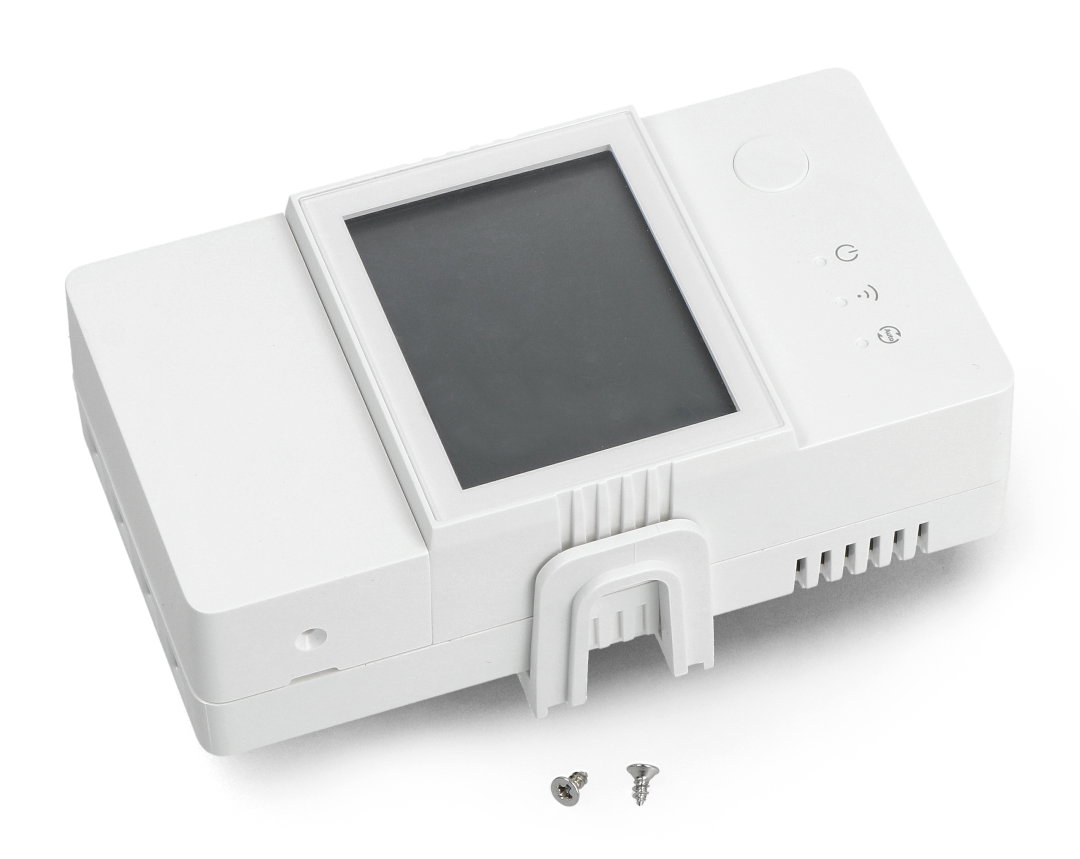

Elements included in the set.
Useful links
| Name | Value |
|---|---|
| Colour | white |
| Channels | 1 |
| UC - Microcontroller | ESP32 |
| UC - WiFi | yes |
| Communication | WiFi |
| Width | 10.5 cm |
| Height | 6.5 cm |
| Depth | 4 cm |
| Weight | 0.15 kg |
