Product description: Sonoff E1GS - ZBMINIR2 / MINIR4M / MINIR4 wall switch housing with N
The Sonoff E1GS wall switch housing is designed as a component of the Fusion series smart home system. It acts as a physical switch for Sonoff ZBMINIR2 , MINIR4M , or MINIR4 flush-mounted modules, enabling convenient lighting control and integration with home automation systems. Its ultra-slim design makes it ideal for spaces with limited installation space, such as shallow junction boxes. The housing is made of high-quality PC material that is resistant to temperature, scratches, and deformation . The minimalist design and ergonomic micro-arc button ensure comfortable operation and aesthetic appeal in modern interiors.
Sonoff E1GS - ZBMINIR2 / MINIR4M / MINIR4 wall switch housing with N.
The E1GS requires a neutral wire connection.
Main features of the Sonoff E1GS case

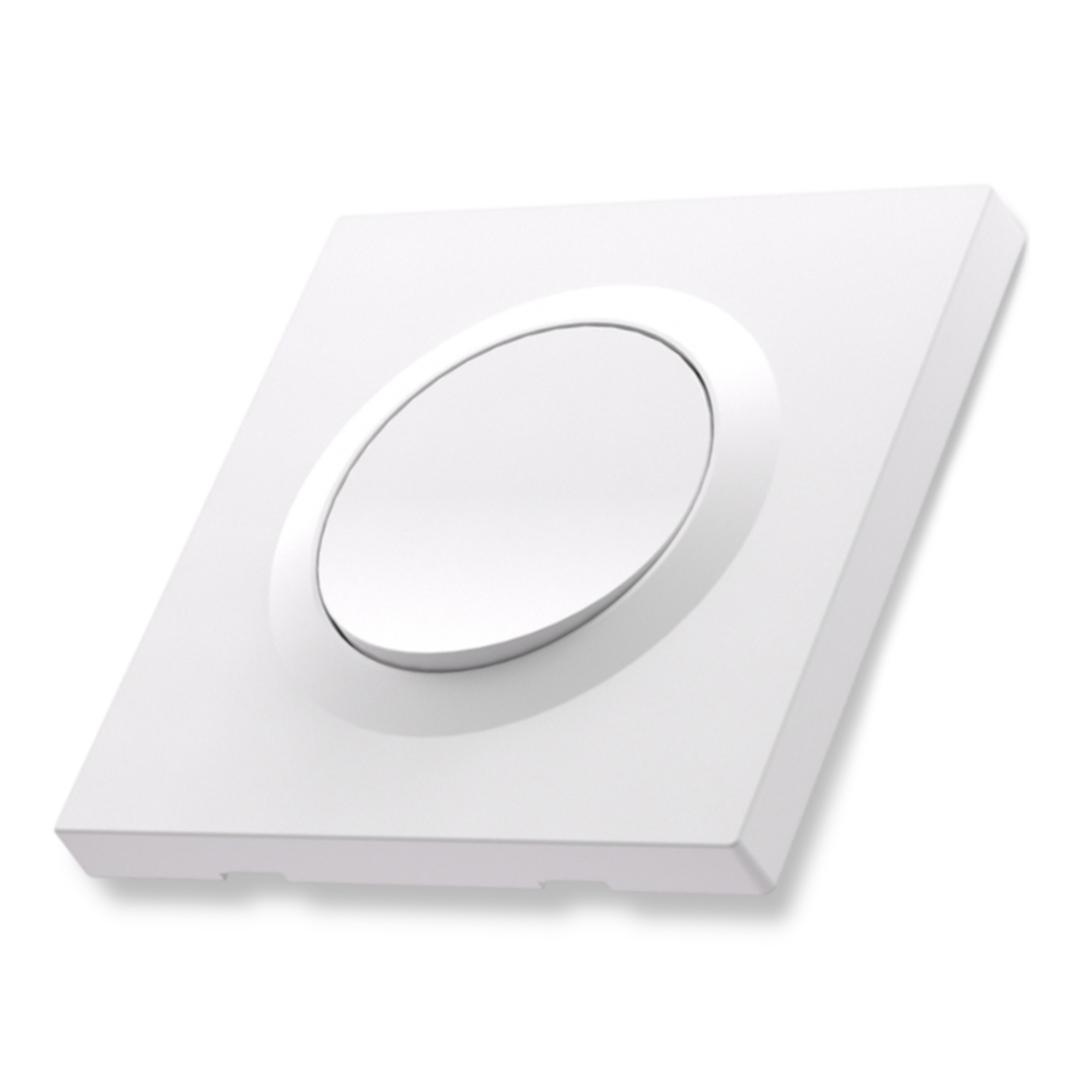

- Ultra-thin design : housing less than 23 mm thick allows installation even in shallow installation boxes
- Neutral wire required : designed to work with Sonoff ZBMINIR2, MINIR4M and MINIR4 modules
- PC material : resistant to temperature, scratches and deformation, ensures durability and safety of use
- Clip-on mounting system : quick installation thanks to the snap-in design

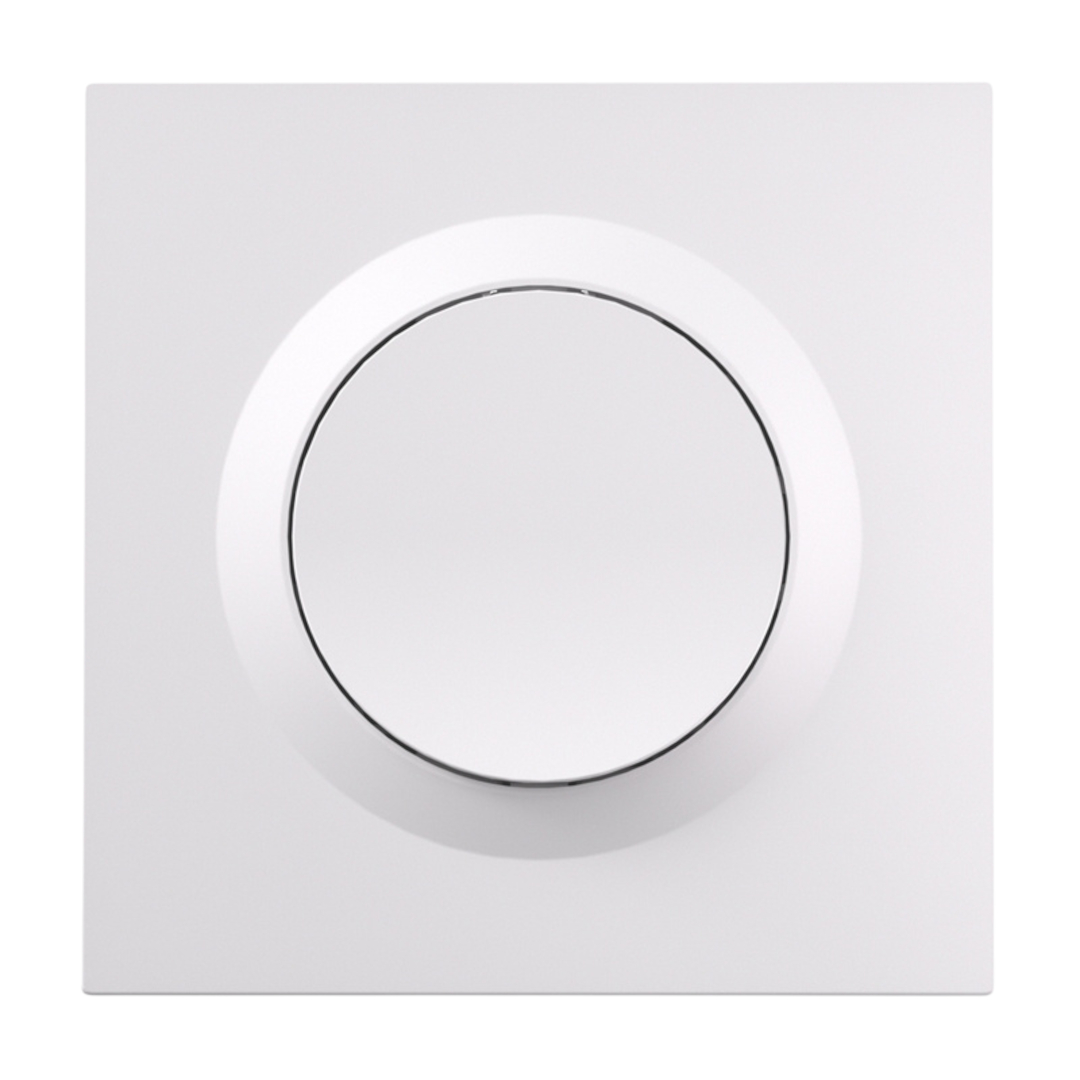

- Micro-arc button : ergonomic shape ensures precise and comfortable control
- European standard : compatible with EU 60 mm and type 86 boxes
Sonoff E1GS Switch Case Compatibility and Installation

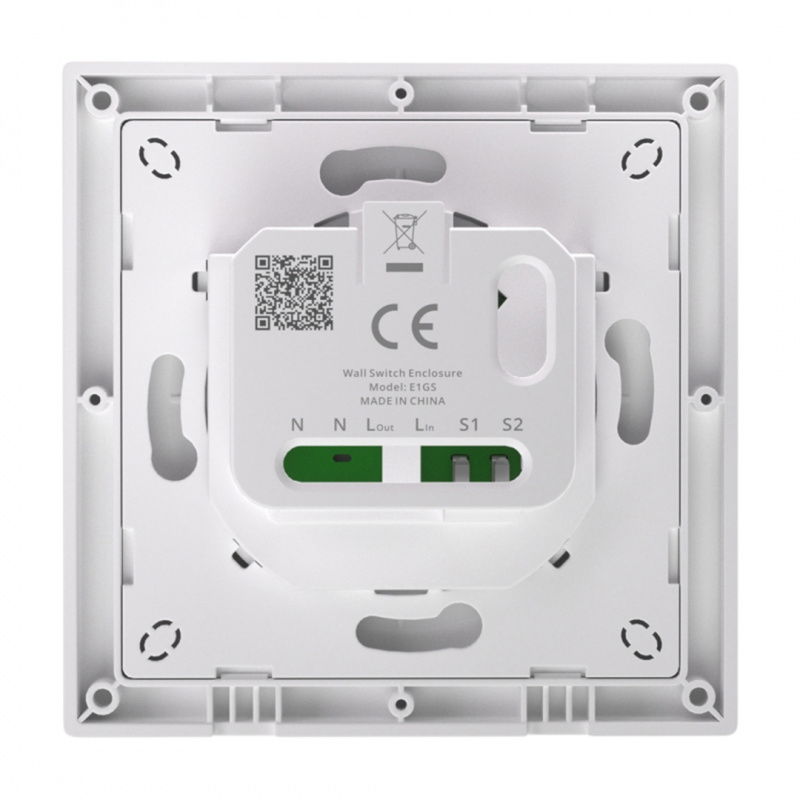

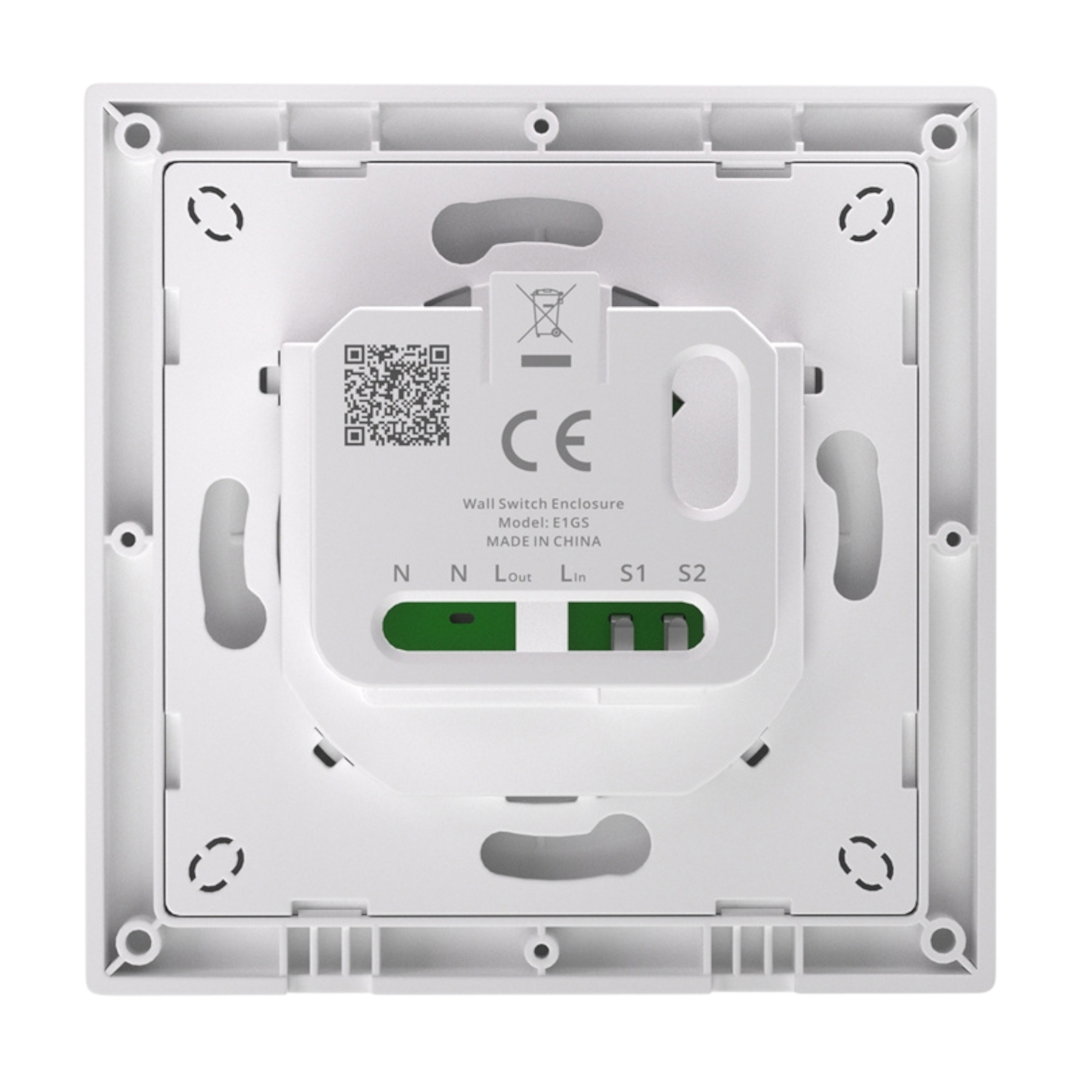

The Sonoff E1GS housing is designed to work with Sonoff ZBMINIR2, Sonoff MINIR4M, and Sonoff MINIR4 flush-mounted modules. The module is mounted on the back of the housing, allowing the switch to function as a physical lighting control in a smart home system. The clip-on design makes installation quick and convenient – the housing can be easily attached without the need for specialized tools. Simply mount the compatible module, connect the wires according to the wiring diagram, and insert the entire unit into a mounting box. The product is compatible with standard 60mm EU installation boxes and square type 86 boxes . When configuring the Sonoff module , set the switch mode to pulse mode to ensure proper operation with the housing.
For proper operation, it requires one of the compatible Sonoff modules: ZBMINIR2, MINIR4M or MINIR4.
Sonoff E1GS Technical Specifications
- Model: E1GS
- Compatible modules: Sonoff ZBMINIR2 (ZigBee), Sonoff MINIR4M (Matter), Sonoff MINIR4 (WiFi)
- Neutral wire required: yes
- Compatible cans: EU 60 mm, type 86
- Housing material: PC
- Color: white
- Dimensions: 86 x 86 x 34 mm
- Weight: 56.5 g

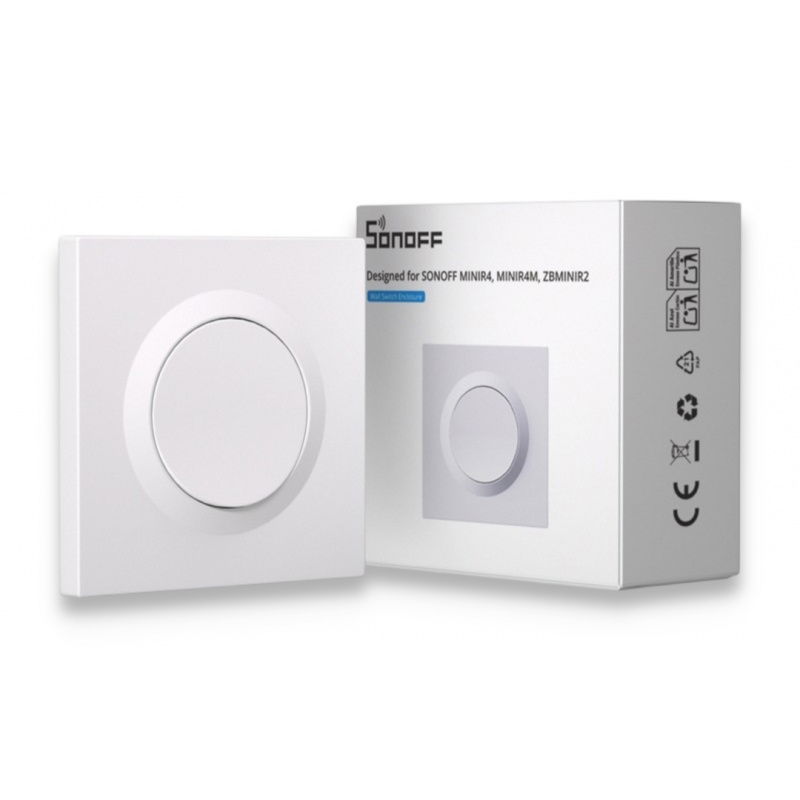

Contents of the set
- 1x Sonoff E1GS Wall Switch Case
