Product description: Aeotec Zi-Stick - USB - ZigBee module

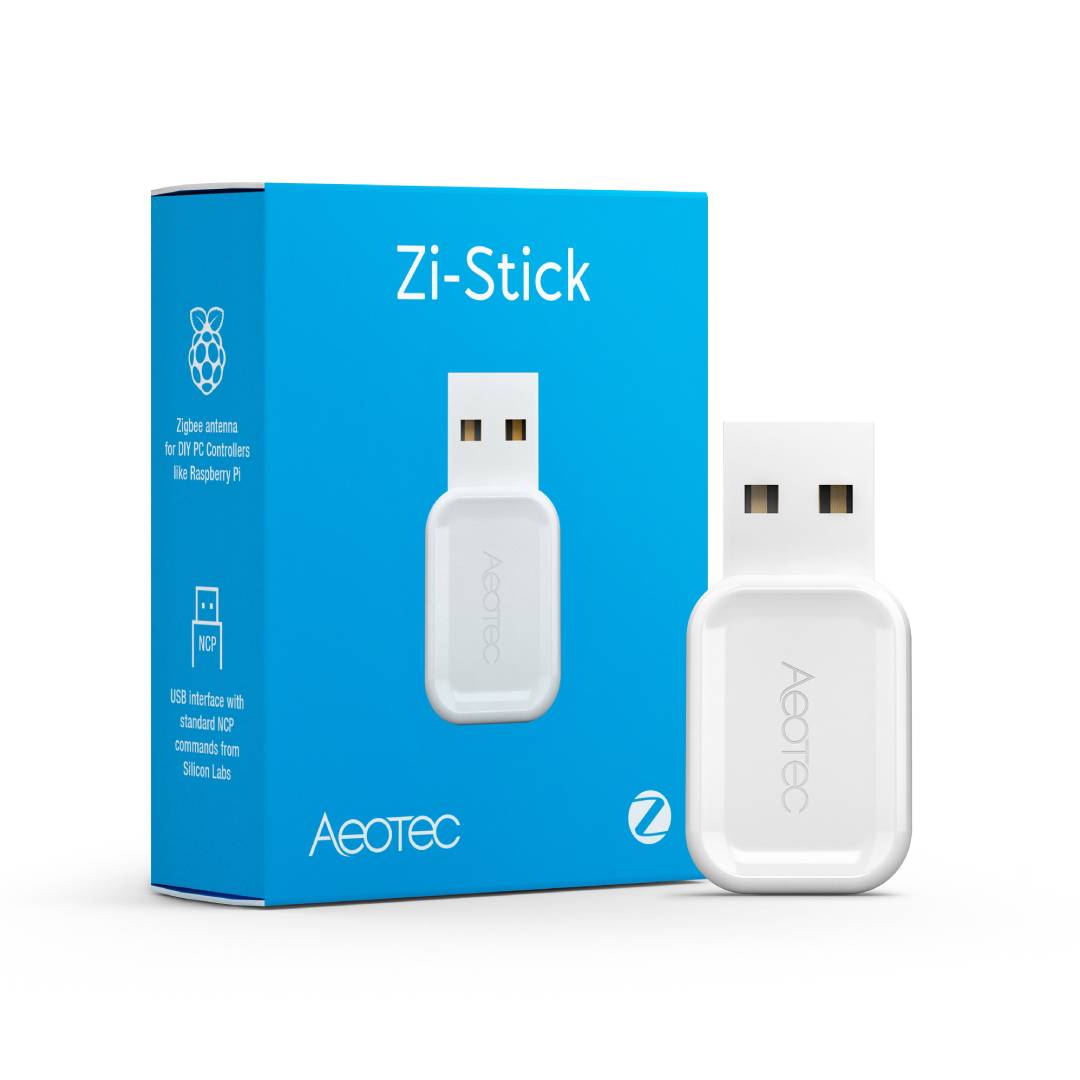

The Aeotec Zi-Stick (model ZGA008) is a modern ZigBee 3.0 USB adapter that allows you to build your own Smart Home gateway, operating entirely locally. The device works with systems such as Home Assistant, openHAB, and ZigBee2MQTT , providing full control over data and automation. At the heart of the controller is the powerful Silicon Labs EFR32MG21 chip, offering a receiver sensitivity of -99 dBm and a transmit power of up to 20 dBm. The Zi-Stick communicates via USB as a serial port and is compatible with Windows, Linux, and macOS . Additionally, the device is prepared for future firmware updates to support Thread and Matter.

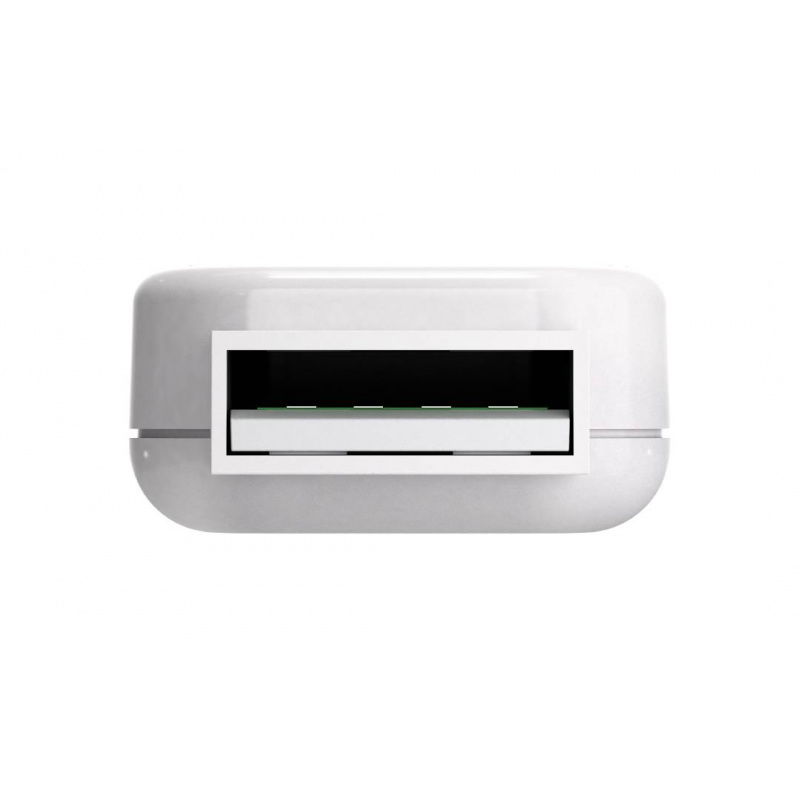

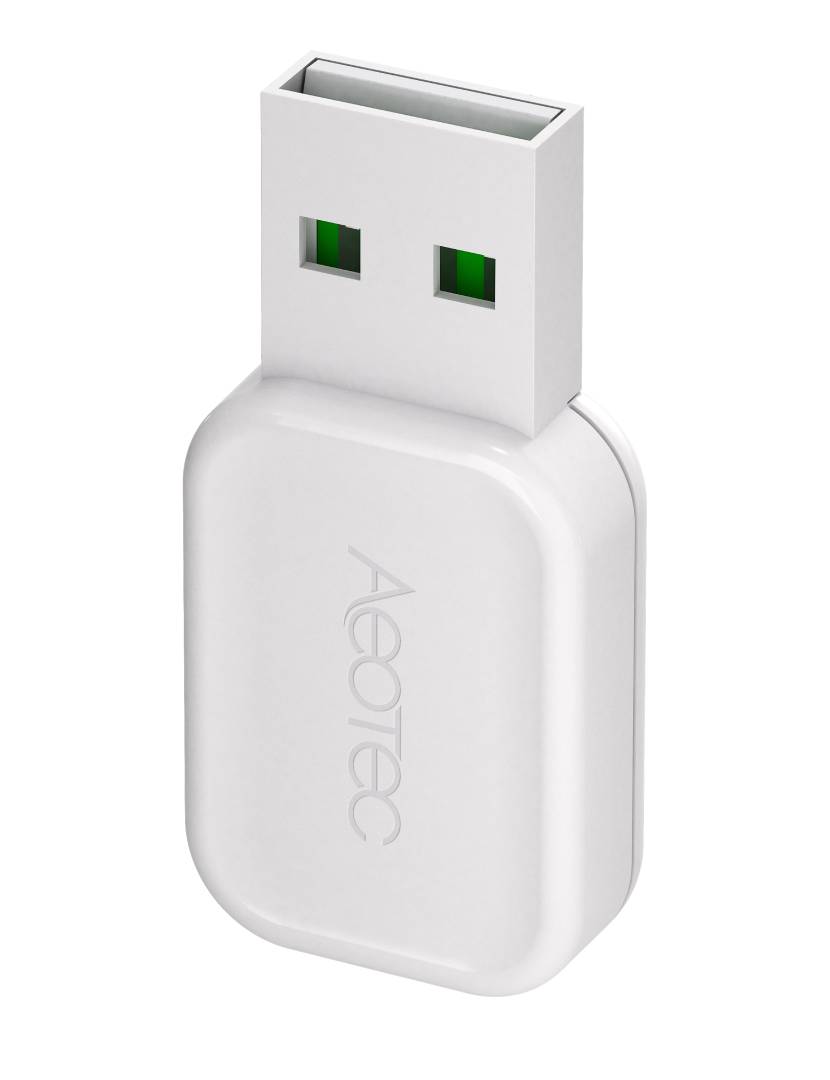

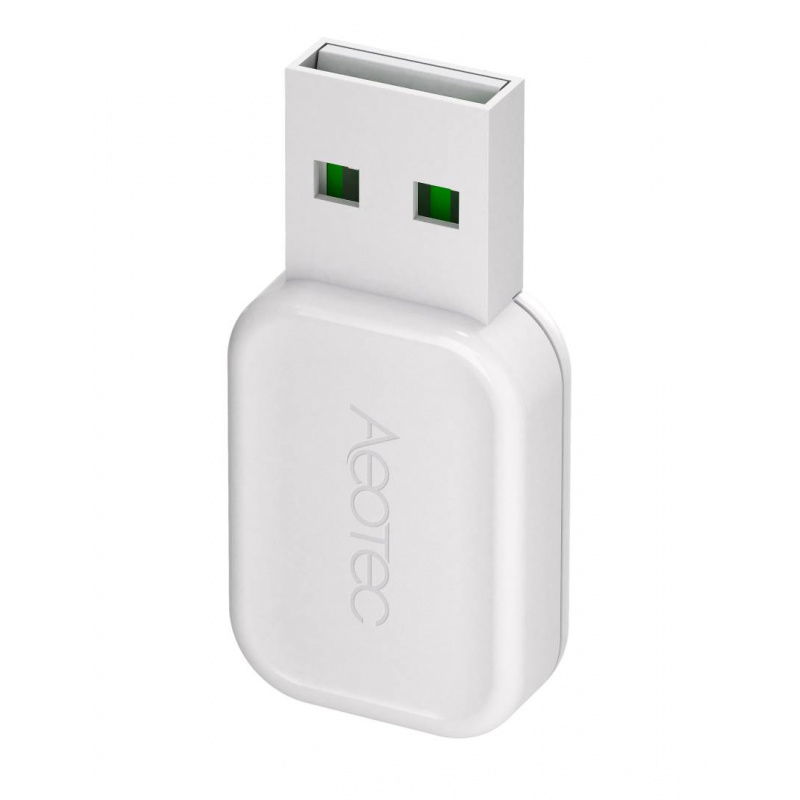

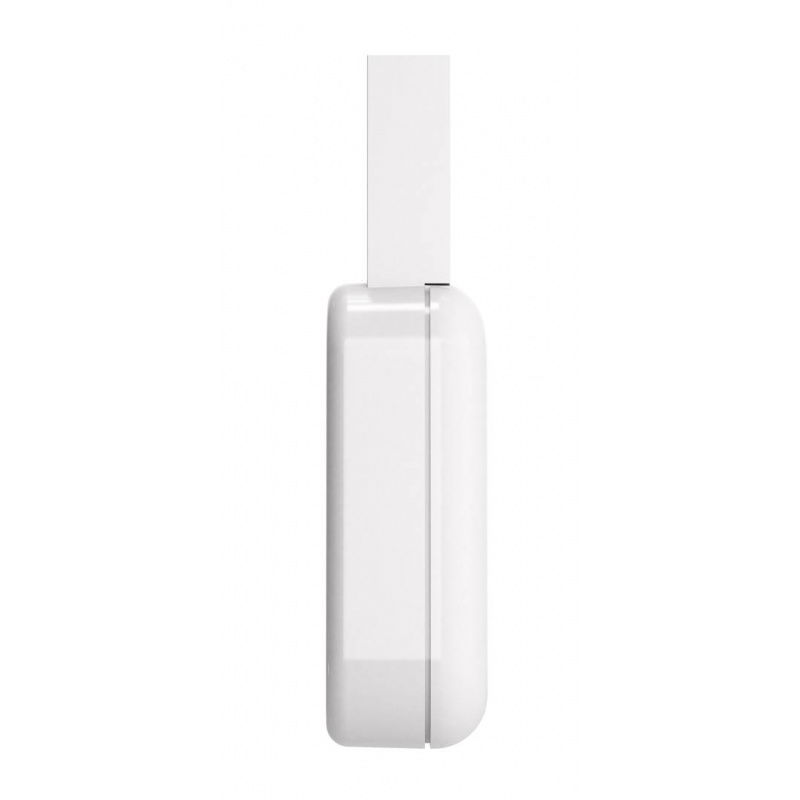

Aeotec Zi-Stick - USB module - ZigBee.
This is an ideal solution for users of Home Assistant, openHAB or Zigbee2MQTT systems.
Main features of the Aeotec Zi-Stick
- ZigBee 3.0 : 2.4 GHz frequency support and compatibility with thousands of devices from different manufacturers
- EFR32MG21 system : a modern ZigBee microcontroller with high operational stability
- Easy integration : Support for the most popular open-source projects, including Home Assistant and Zigbee2MQTT
- Signal power : 20 dBm transmit power and -99 dBm receiver sensitivity
- Range up to 200 m : maximum range in open space up to 200 m
- USB interface : communication as a Silicon Labs-compliant NCP serial port
- Work locally : no need to use the cloud
- Thread ready : Upgradeable to support Thread and Matter devices
- Wide compatibility : supports thousands of ZigBee devices from brands like Philips Hue, Lidl, IKEA, Xiaomi and many more
- Versatility : compatibility with Windows, Linux, macOS, and Raspberry Pi and Orange Pi platforms
Aeotec Zi-Stick Configuration
Installing the ZigBee controller is quick and intuitive. Simply connect the device to the USB port of a host device such as a Raspberry Pi , PC, or laptop. The operating system will usually automatically install drivers and detect the device as a serial port. In Windows, the Zi-Stick appears as a COM port, in Linux as ttyUSB, and in macOS as a USB Modem device. Then, in your home automation software, you select the appropriate communication port and enable ZigBee integration. The adapter works with Home Assistant, openHAB, ZigBee2MQTT, Node-RED , and other DIY platforms, allowing you to create your own scenes, automations, and rules.

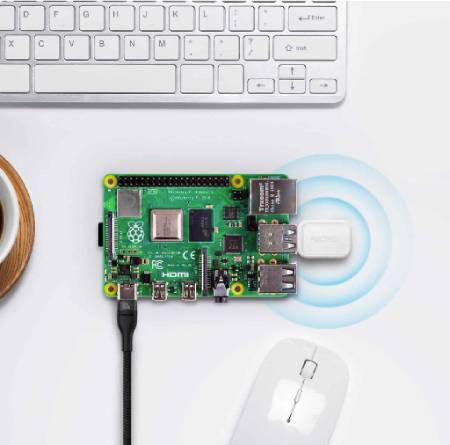

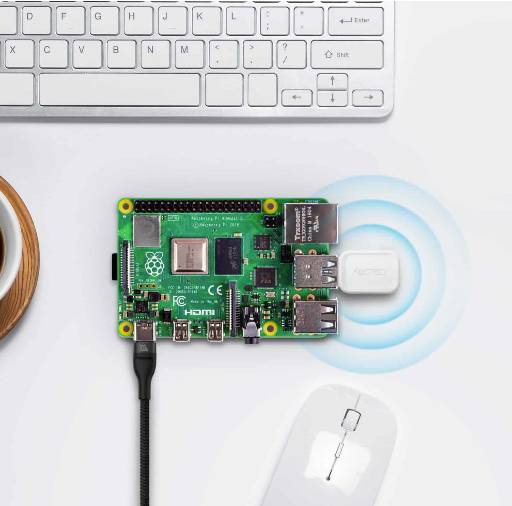

Zi-Stick transforms any computer or microcomputer (e.g.

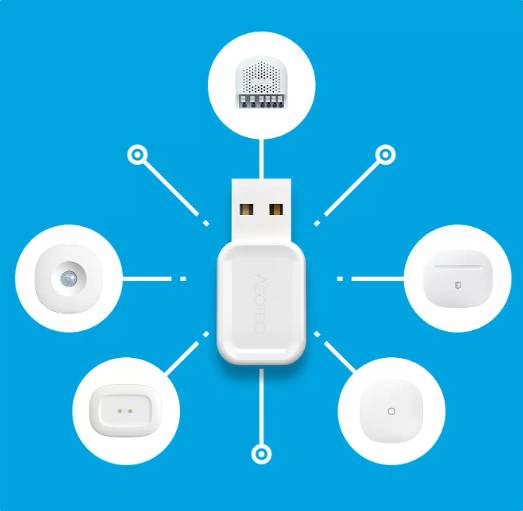

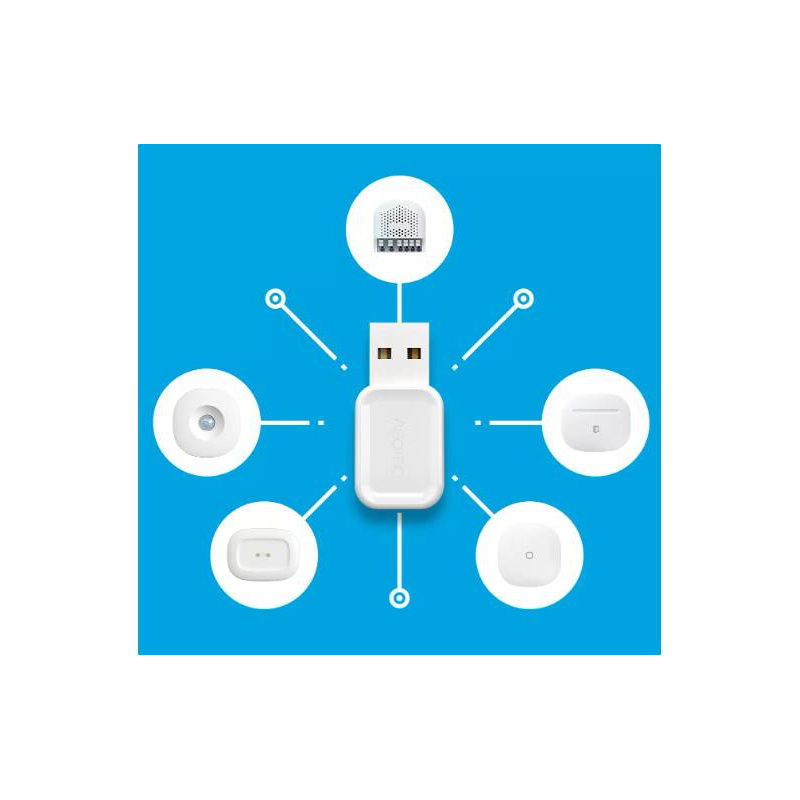

Zi-Stick works with thousands of devices from popular brands such as Philips Hue, IKEA Tradfri and Xiaomi Aqara.
ZigBee 3.0 technology
ZigBee 3.0 is an energy-efficient wireless communication standard operating in the 2.4 GHz band . It enables the creation of a stable mesh network in which devices transmit signals to each other, increasing the range and reliability of the entire system. This allows for the connection of sensors , lighting controllers , switches, and thermostatic valves from various manufacturers . The network can be expanded with additional devices without losing stability. Combined with appropriate smart home software, you can create schedules, scenes, and advanced automations that increase comfort and energy efficiency in your building.
Aeotec Zi-Stick Technical Specifications
- Model: ZGA008
- Communication standard: ZigBee 3.0
- Operating frequency: 2.4 GHz
- ZigBee chip: EFR32MG21
- Transmit power: 20 dBm
- Receiver sensitivity: -99 dBm
- Range in open space: up to 200 m
- Power supply: USB DC 4.75V to 5.25V
- Recommended host current: 50 mA
- Operating temperature: 0°C to 40°C
- Degree of protection: IP20
- System compatibility: Windows 10/11, Linux, macOS
- Dimensions: 37 x 17 x 8.5 mm
- Weight: 3.5 g
Contents of the set
- 1x Aeotec Zi-Stick
Zigbee 3.0 technology is one of the safest and most energy-efficient connectivity standards in a smart home.
