xTool RA3 Lite rotary module for xTool M2
Engraving around mugs, bottles and rings in the xTool M2: RA3 Lite rotary module with no riser base.
- Items 0-100 mm in diameter
- You change jaws magnetically, without tools
- Horizontal beam holder and laser shield included
We could not load the price.
The promotional price does not combine with quantity discounts.
Engrave all the way around an item without lifting M2
xTool RA3 Lite is a rotary module designed for the xTool M2 that lets you engrave all the way around mugs, bottles, balls and rings up to 100 mm in diameter. M2 directs the laser beam horizontally, so you do not need a riser base or to lift the machine.
You change jaws and mounting parts magnetically, without tools. The kit includes jaws for mugs and small items, ring parts, a horizontal beam holder and a laser shield, and you connect the module to any M2 expansion port.

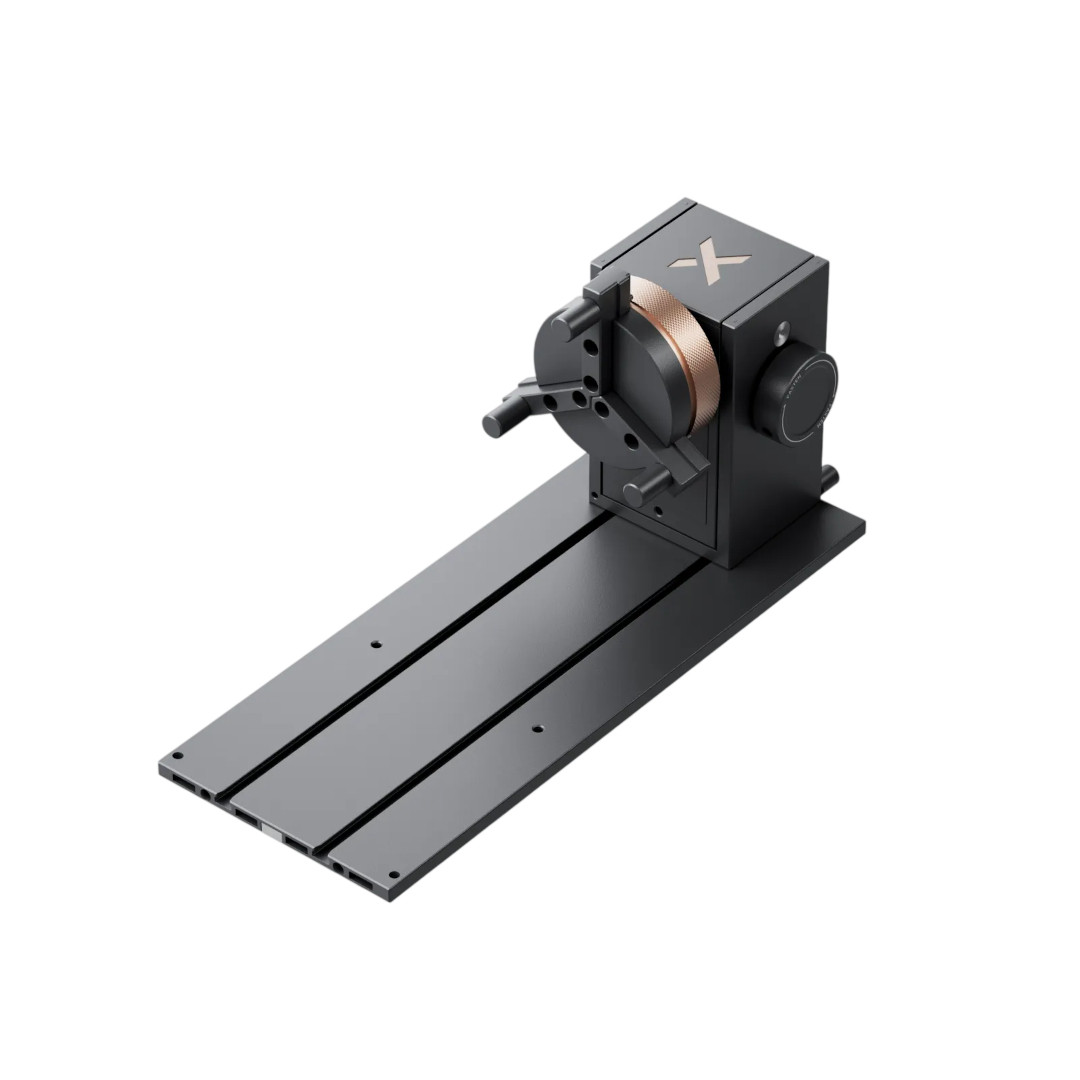

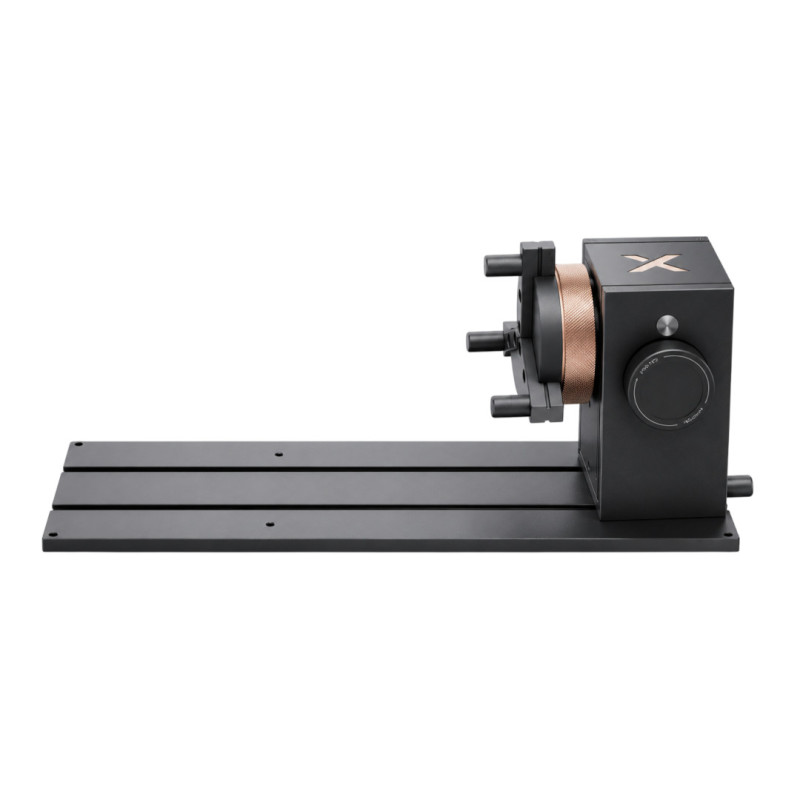

xTool RA3 Lite rotary module on its base plate
0-100 mm
diameter of the item in the jaw chuck
3 modes
jaw chuck, balls and rings
no tools
magnetic jaw change
2.26 kg
module weight
RA3 Lite module in the xTool M2
The video shows installing the RA3 Lite in M2 and rotary engraving.
Video: the manufacturer's official YouTube channel.
A good choice for you?
A good choice if:
- You engrave mugs, thermos flasks and bottles to order
- You make personalised jewellery, e.g. wedding bands and rings
- You have an M2 and want to engrave around the whole circumference of an item without an extra base
Consider another option if:
- You do not have an M2 yet: see xTool M2 with 20 W laser
- You have an xTool F1 or F2: see RA2 Pro rotary module
Did you know?
Magnetic jaws
In the RA3 Lite, xTool uses the MagSwap system: jaws and supports are held on by magnets, so switching from the mug holder to the ring holder takes a moment and needs no wrench.
Source: xTool: RA3 and RA3 Lite
Frequently asked questions
Do I need an adapter for M2?
No. The horizontal beam holder, laser shield and positioning plates are already included with the RA3 Lite.
What items will fit?
In the jaw chuck you can mount items up to 100 mm in diameter, and balls and rings you set up in separate working modes using parts from the kit.
How do I set up the engraving?
In xTool Studio you choose the rotary module working mode. The software guides you through the settings for cylinders, rings and irregularly shaped items.
Kit contents
- 1 x Jaw chuck
- Jaws: cylindrical, T-shaped and extended
- 1 x Drive module
- 1 x Base plate
- 1 x Support module
- Ring parts
- 1 x Laser shield
- 1 x Horizontal beam holder
- Positioning plates
- 1 x Device connection cable
- 1 x Measuring tape
Technical specifications
| Parameter | Value |
|---|---|
| Type | rotary engraving module |
| Compatibility | xTool M2 |
| Working modes | jaw chuck, balls, rings |
| Item diameter | 0-100 mm (jaw chuck) |
| Jaw change | magnetic, tool-free |
| Connection | cable to the M2 expansion port |
| Dimensions | 324 x 187 x 148 mm |
| Weight | 2.26 kg |
| Manufacturer code | P0103000140 |
| Manufacturer | xTool |
