Product description: 2-in-1 rotary module for the TOOCAA NOVA laser plotter

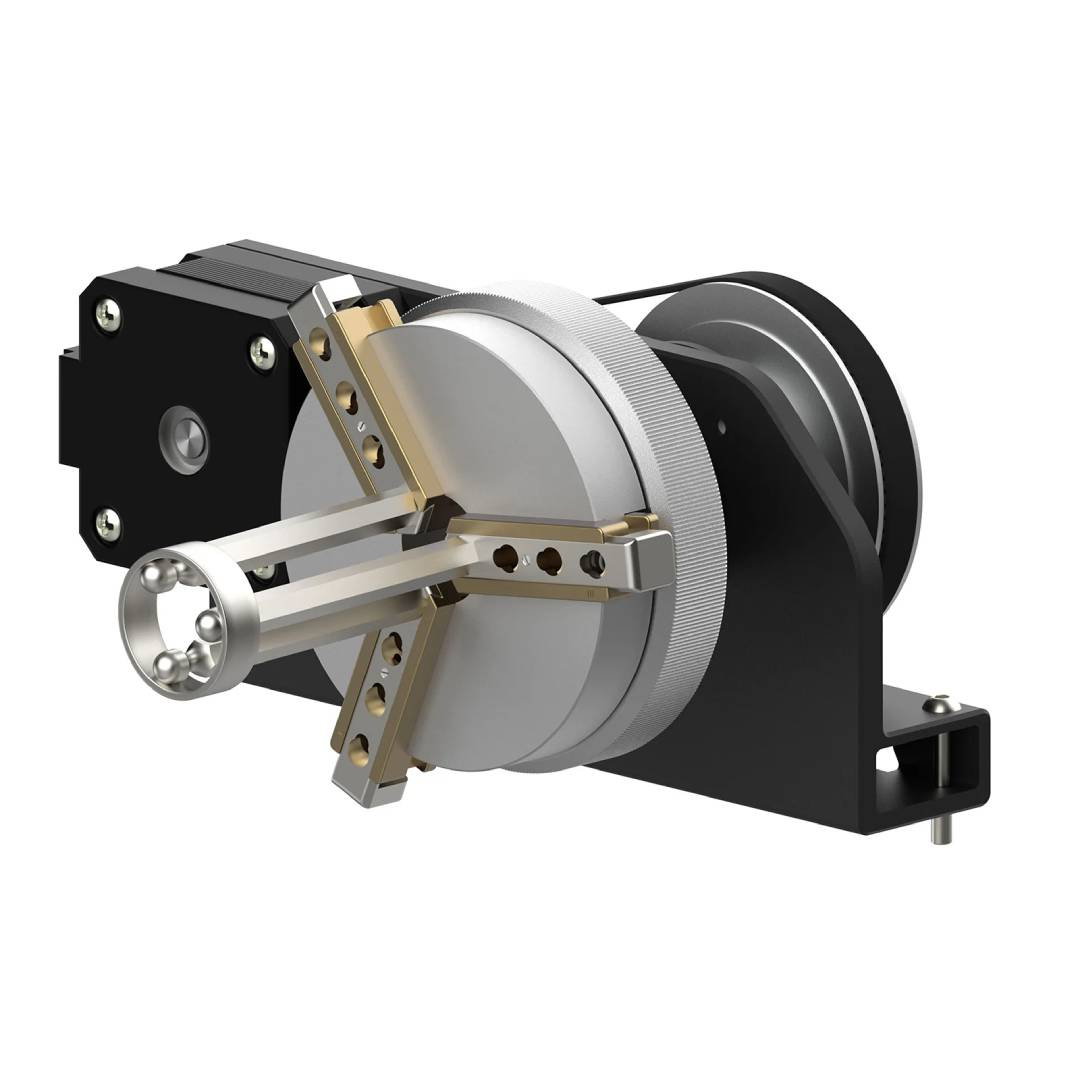

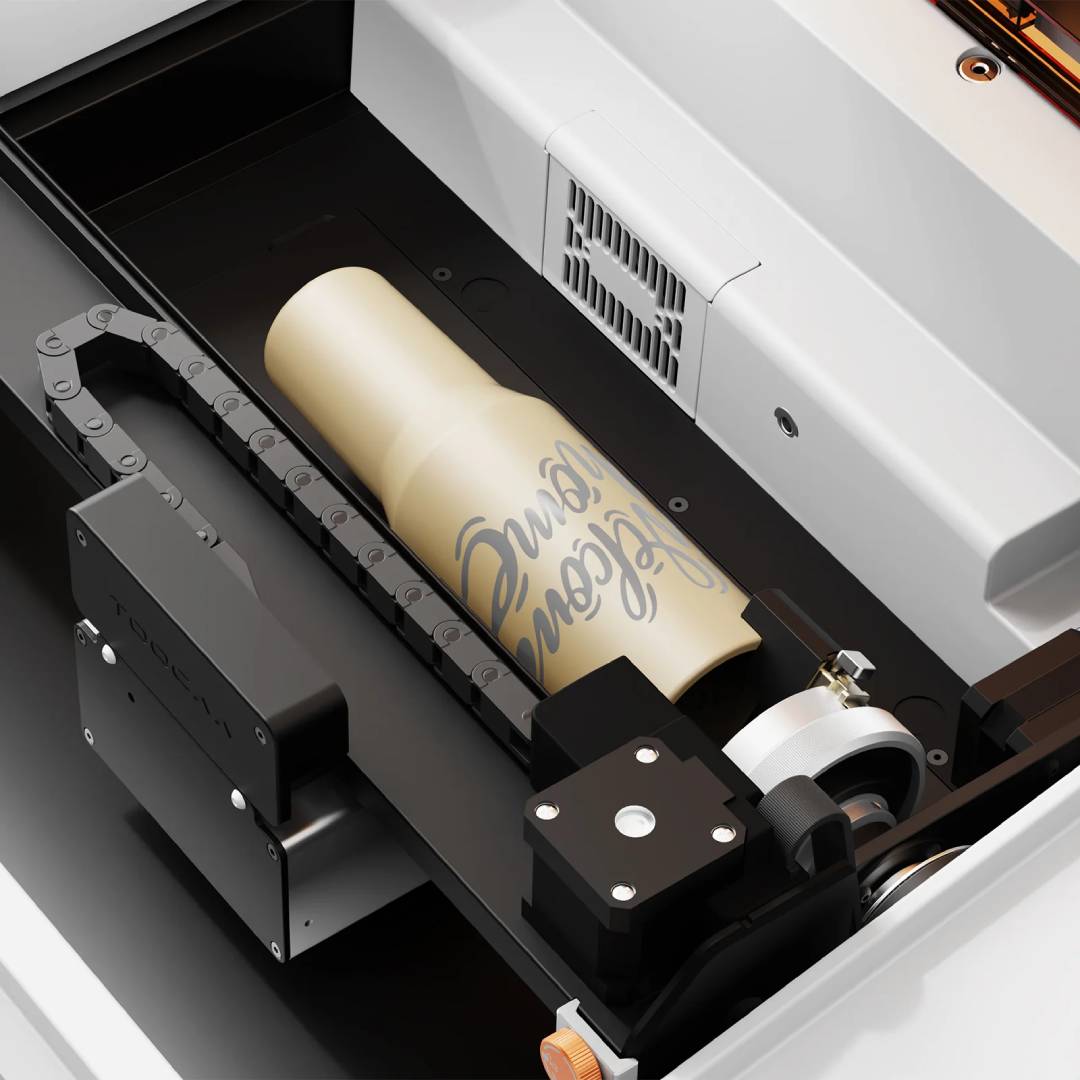

The TOOCAA NOVA rotary module for plotters is an advanced accessory designed for laser engraving on cylindrical, spherical, and irregularly shaped objects. The 2-in-1 design and adjustable three-jaw chuck with a 180° range allow for handling approximately 90% of common objects, such as glasses, jewelry, rings, and decorative elements. The patented quick-change jaw system allows for jaw changes in just 3 seconds, without disassembling the device or using additional components. This allows you to easily adapt the module to different diameters and types of processed materials , increasing work efficiency. The rotary attachment offers high precision thanks to the use of a stepper motor with a minimum increment of 0.02°, allowing for the reproduction of fine details. Rotation speeds of up to 360°/s ensure fast and smooth engraving around the entire circumference of the object. Module installation is quick and intuitive – there's no need to lift the plotter or use additional accessories. The module is fully compatible with TOOCAA Studio and LightBurn software, which enables convenient design and operation of the engraving process.
The rotary module is dedicated to TOOCAA NOVA laser plotters.
Technical specifications of the rotating module
- Compatibility: TOOCAA NOVA plotters
- Design: 2 in 1 (jaw chuck + ring rotation mode)
- Handle adjustment: 180°

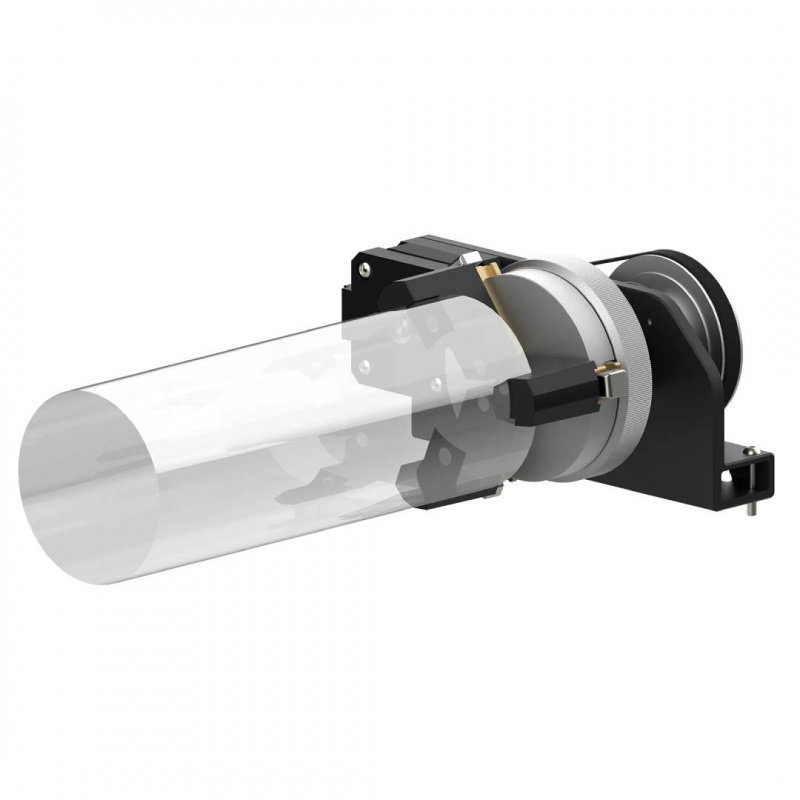

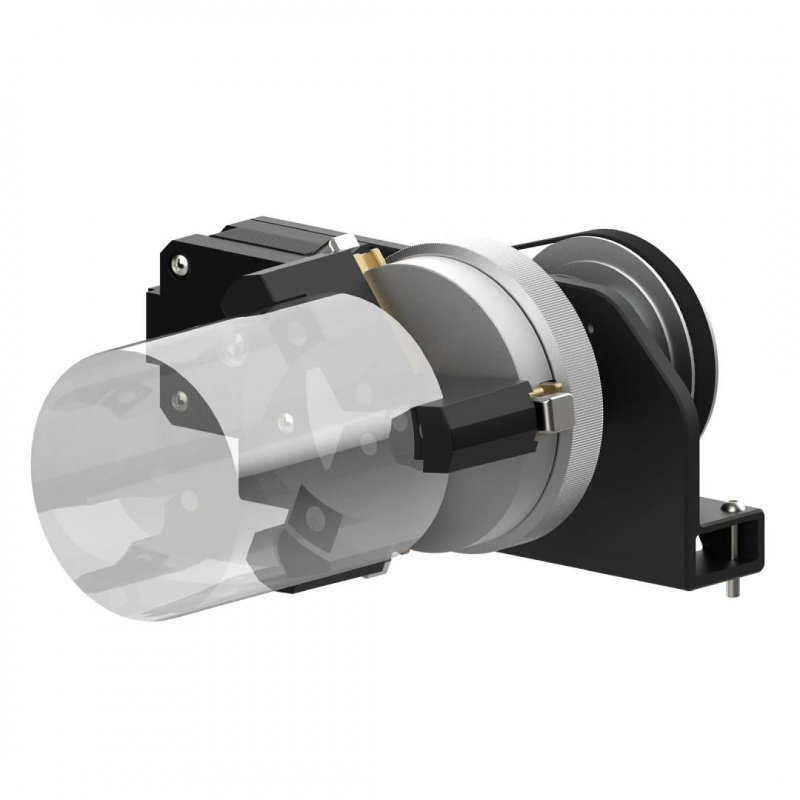

- Diameter range (jaw chuck): 0 mm to 120 mm
- Diameter range (ring mode): 12 mm to 100 mm
- Rotation speed: up to 360°/s
- Minimum step angle: 0.02°
- Motor: high precision stepper
- Jaw change system: quick change in 3 seconds
- Supported software: TOOCAA Studio, LightBurn
- Dimensions: 130 x 106 x 80 mm
- Weight: 0.83 kg
Contents of the set
- Rotary module for TOOCAA NOVA plotters
- Handle elements
