Product description: 5-in-1 rotary module for the TOOCAA L2 laser plotter
The 5-in-1 rotary attachment for the TOOCAA L2 plotter is designed for precise laser engraving of objects of various shapes and diameters. With interchangeable configurations, it can operate as a roller module, jaw chuck, spherical object chuck, ring chuck, and 180° angle adjustment module . This solution is ideal for hobby projects, gift personalization, education, modeling, and small-scale production. The patented quick-change jaw system (change time: approximately 3 seconds) allows for quick adjustment of the chuck to the workpiece, reducing setup time. A high-precision stepper motor with a minimum step angle of 0.02° enables smooth operation at speeds of up to 360°/s , allowing for sharp details on surfaces such as glass, metal, wood, and plastics suitable for laser engraving .
Rotary attachment operating modes

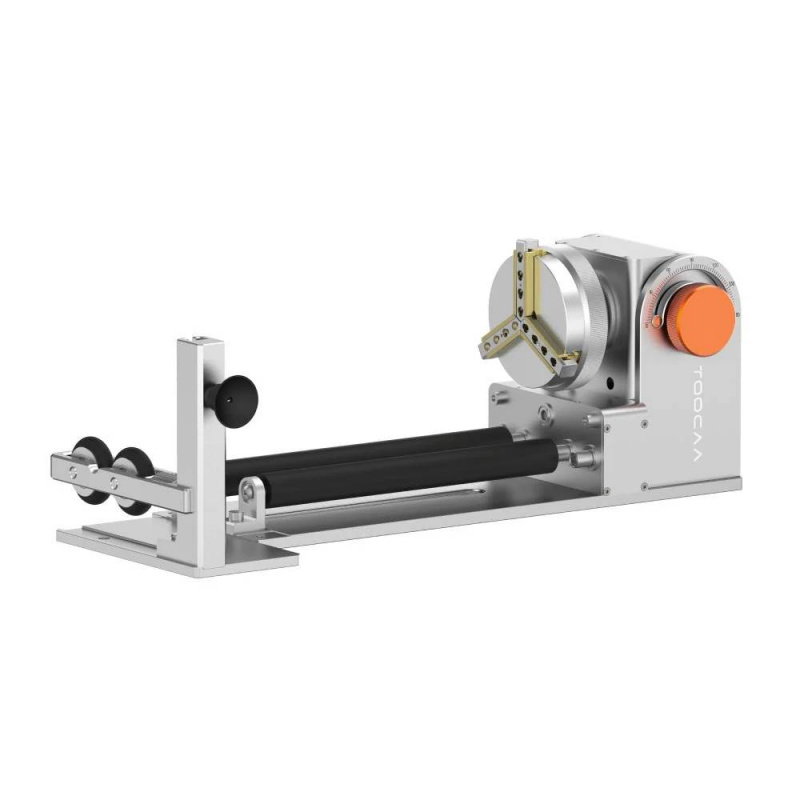

- Roller module - for regular cylinders and long objects with a diameter of 5 mm to 200 mm, e.g. bottles

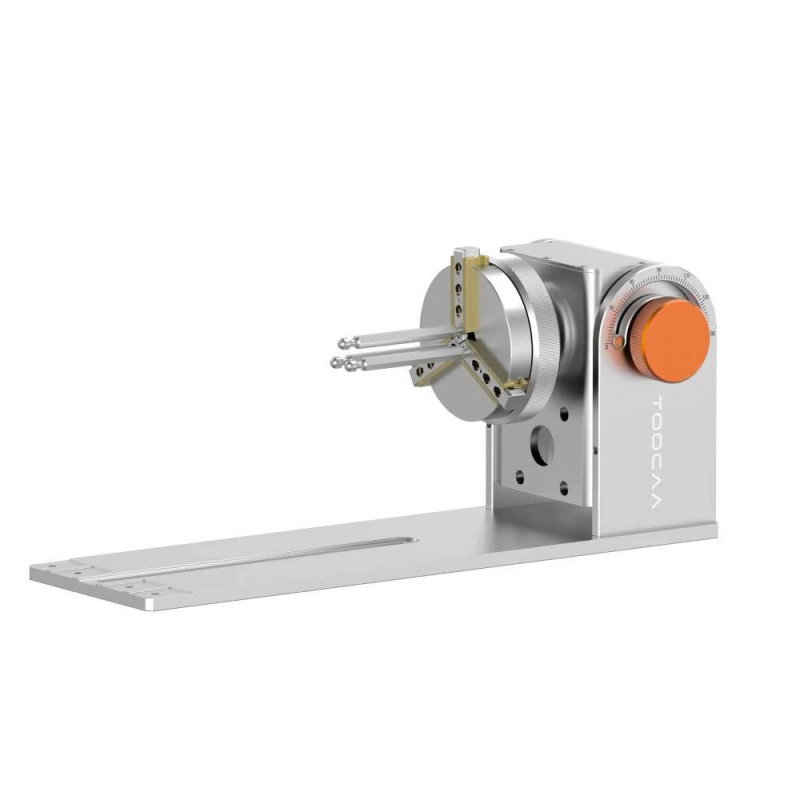

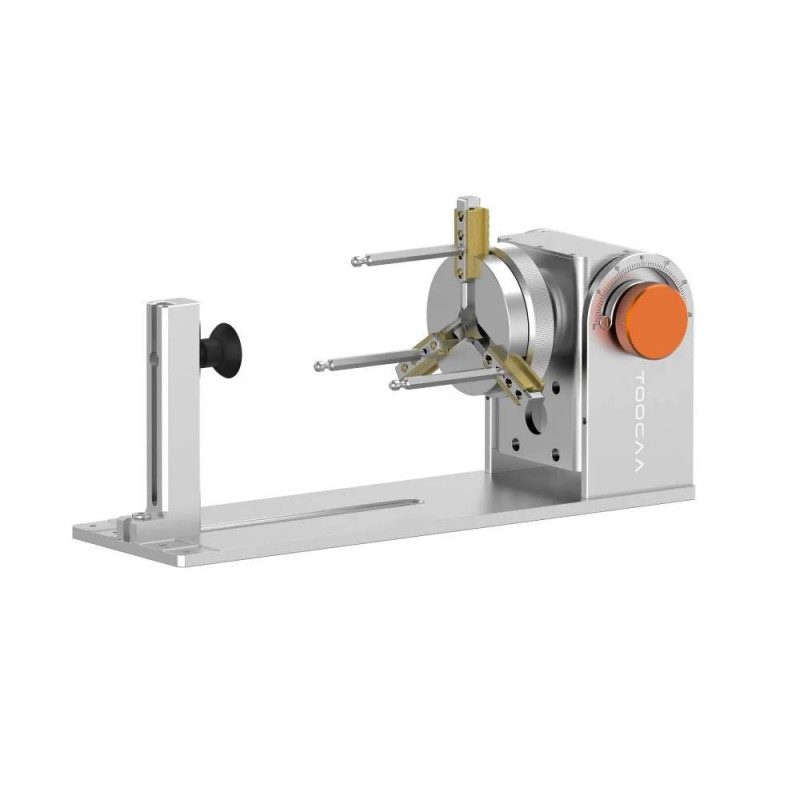

- Jaw chuck - for round and irregular objects with a diameter of 0 mm to 140 mm, e.g. baseball bats

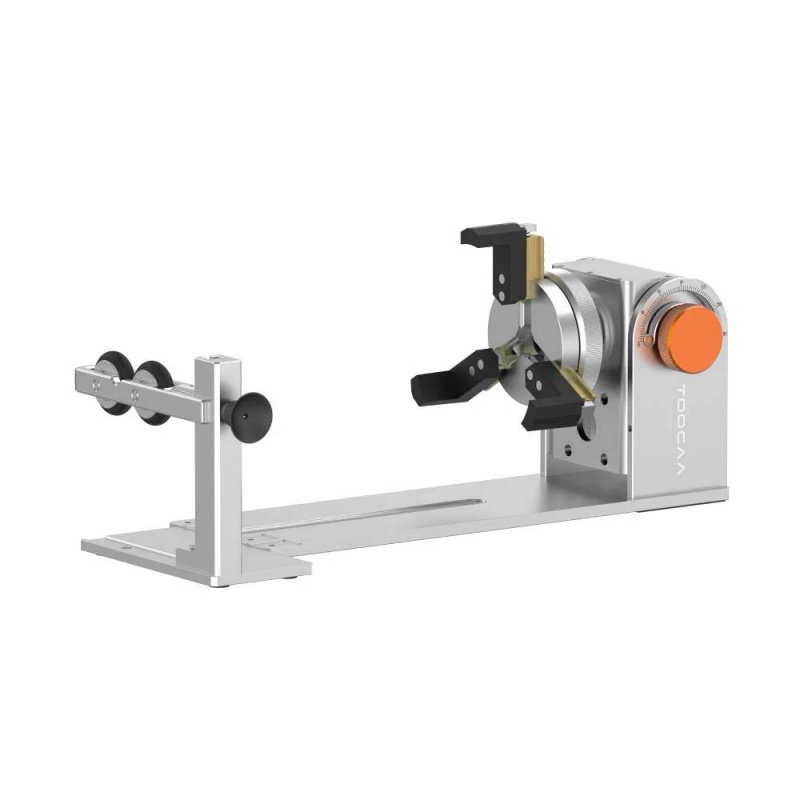

- Spherical object holder - for spherical objects with a diameter of 25 mm to 120 mm, e.g. balls

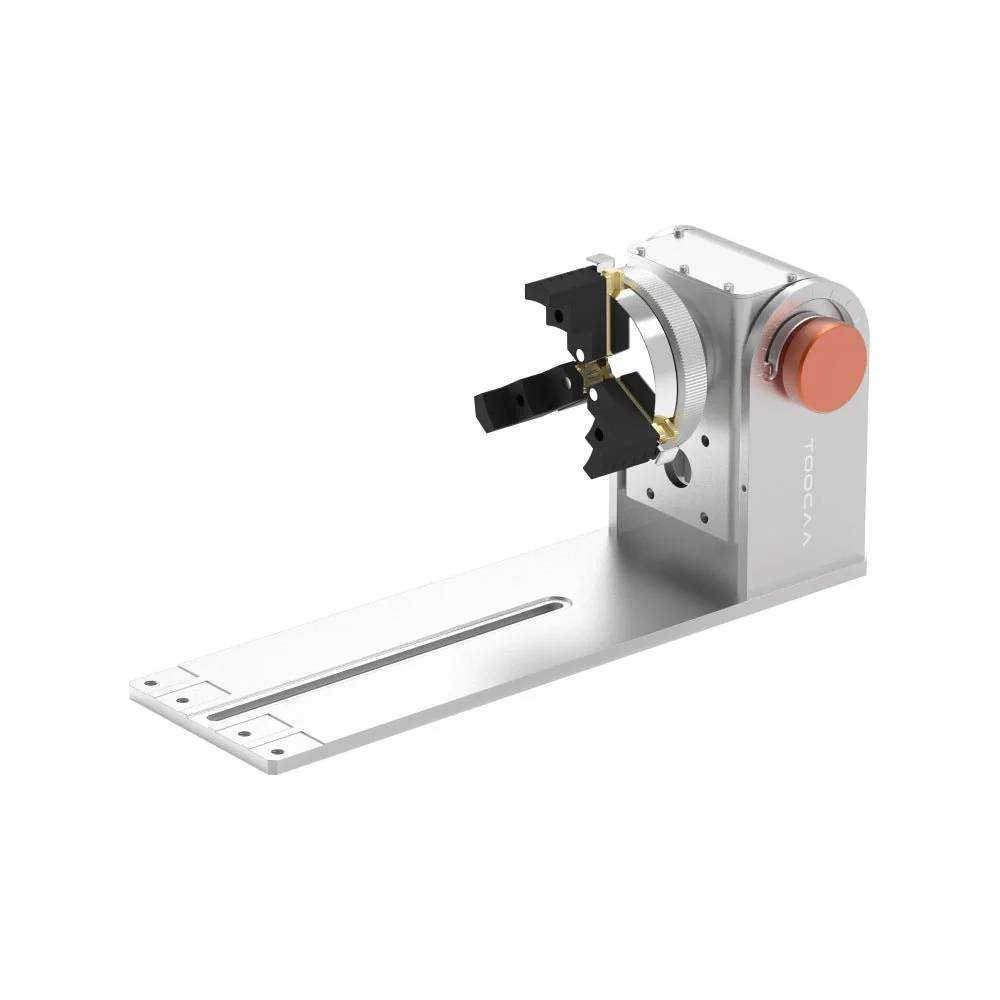

- Ring holder - for engraving the outer surfaces of rings with a diameter of 12 mm to 100 mm

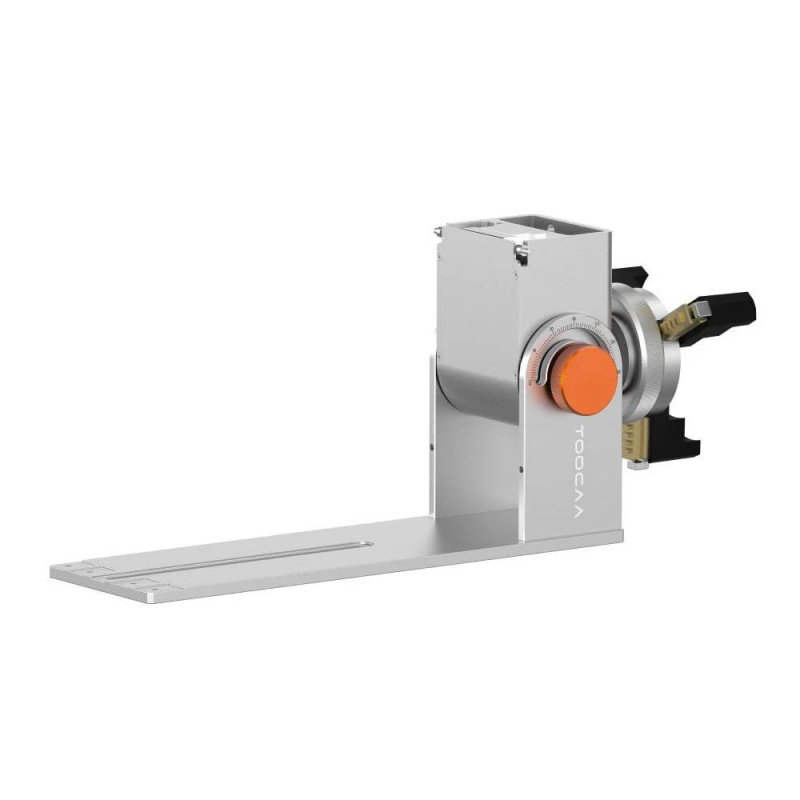

- 180° adjustable mode - for irregularly shaped workpieces, chamfered cylinders and inner rings with a diameter of 12 mm to 100 mm
Elements included in the set.
Technical specifications of the TOOCAA rotation module
- Compatibility: TOOCAA L2
- Number of work configurations: 5
- Diameter range for the roller module: 5 mm to 200 mm
- Diameter range for jaw chuck: 0 mm to 140 mm
- Diameter range for spherical object holder: 25 mm to 120 mm
- Diameter range for ring holder: 12 mm to 100 mm
- Handle angle adjustment range: 0° to 180°
- Maximum rotation speed: 360°/s
- Minimum step angle: 0.02°
- Mounting system: quick-change jaw system (change time approx. 3 s)
- Compatible software: LightBurn, TOOCAA Studio, LaserGRBL
- Dimensions: 286 x 88 x 128 mm
- Weight: 2 kg

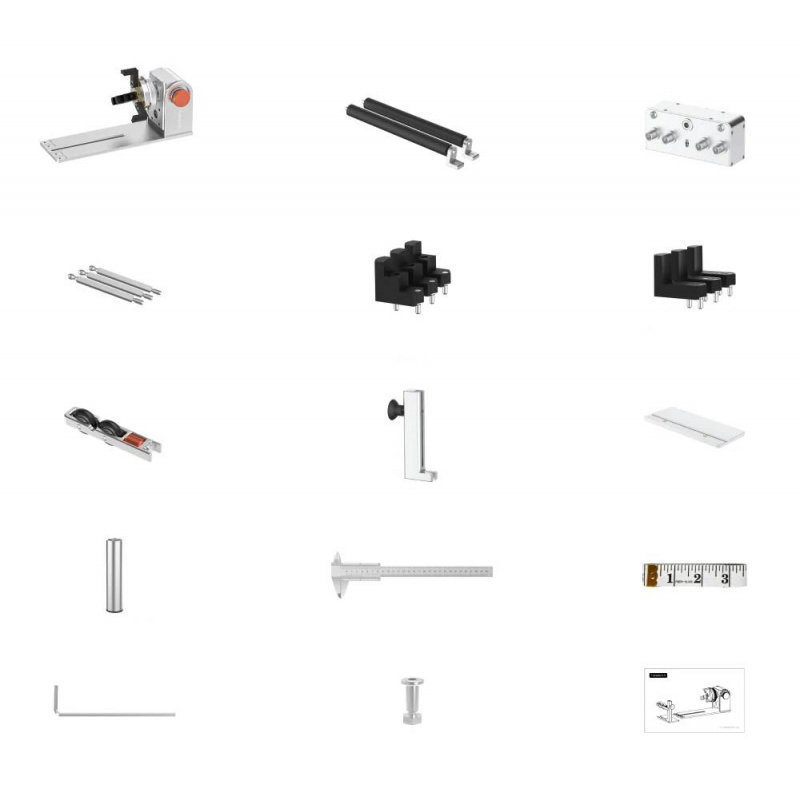

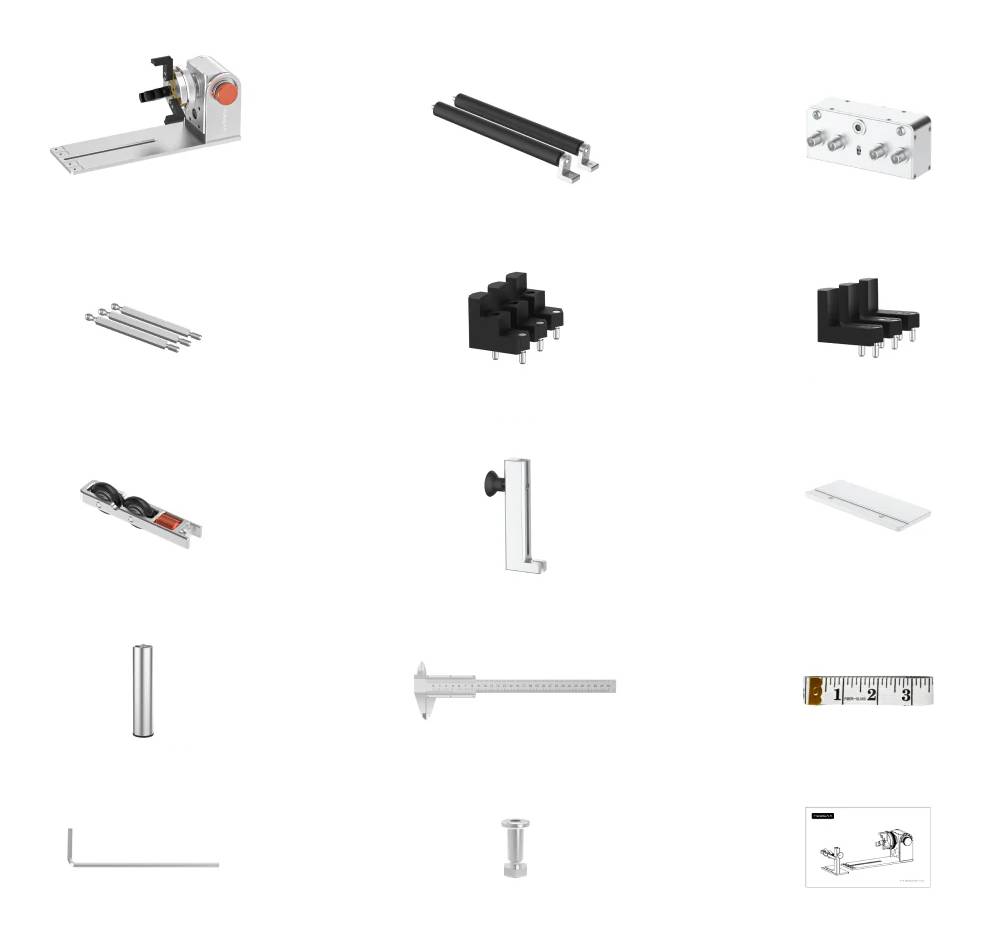

Contents of the set
- Jaw chuck body
- Roller module
- Clutch components
- Guide Roller Bracket Assembly
- Support column
- Handle needles
- Two-stage jaw components
- Single Stage Jaw Components
- Raised legs
- Lower base plate assembly
- Caliper
- Tape measure
- Allen key
- Mounting screws x12
- User manual
