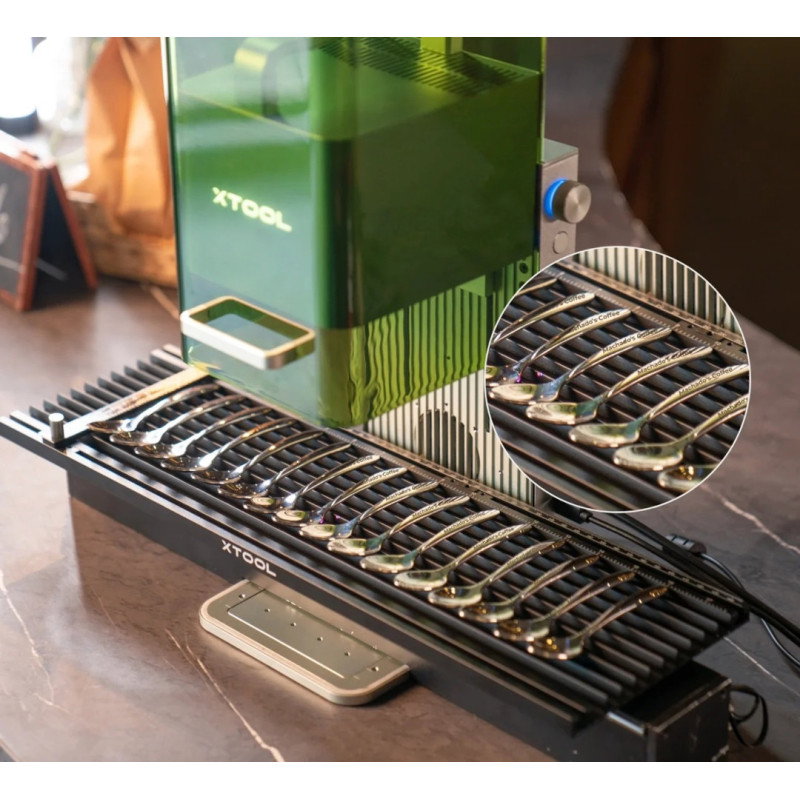

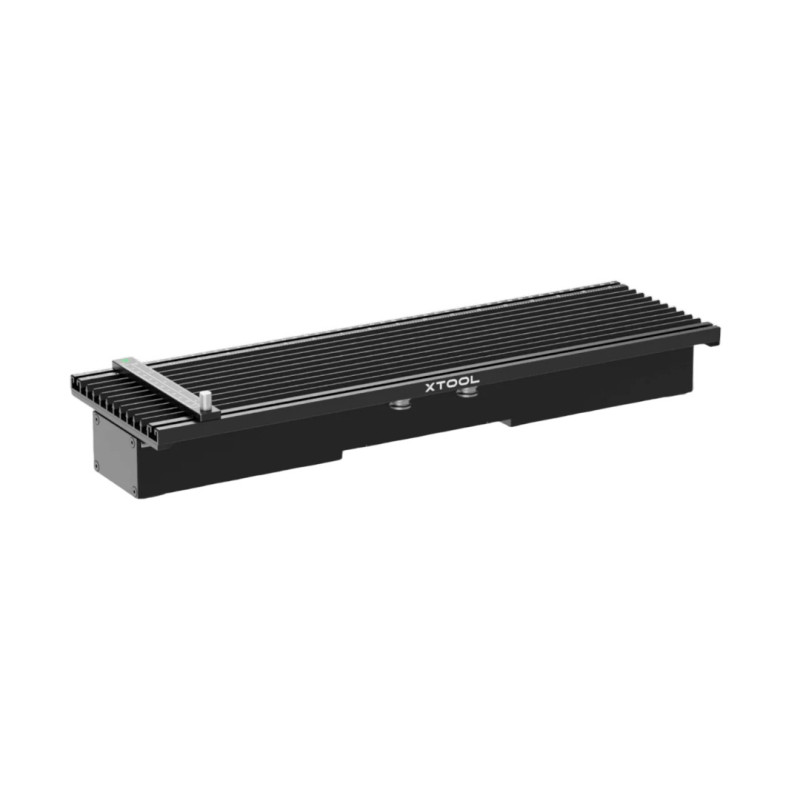

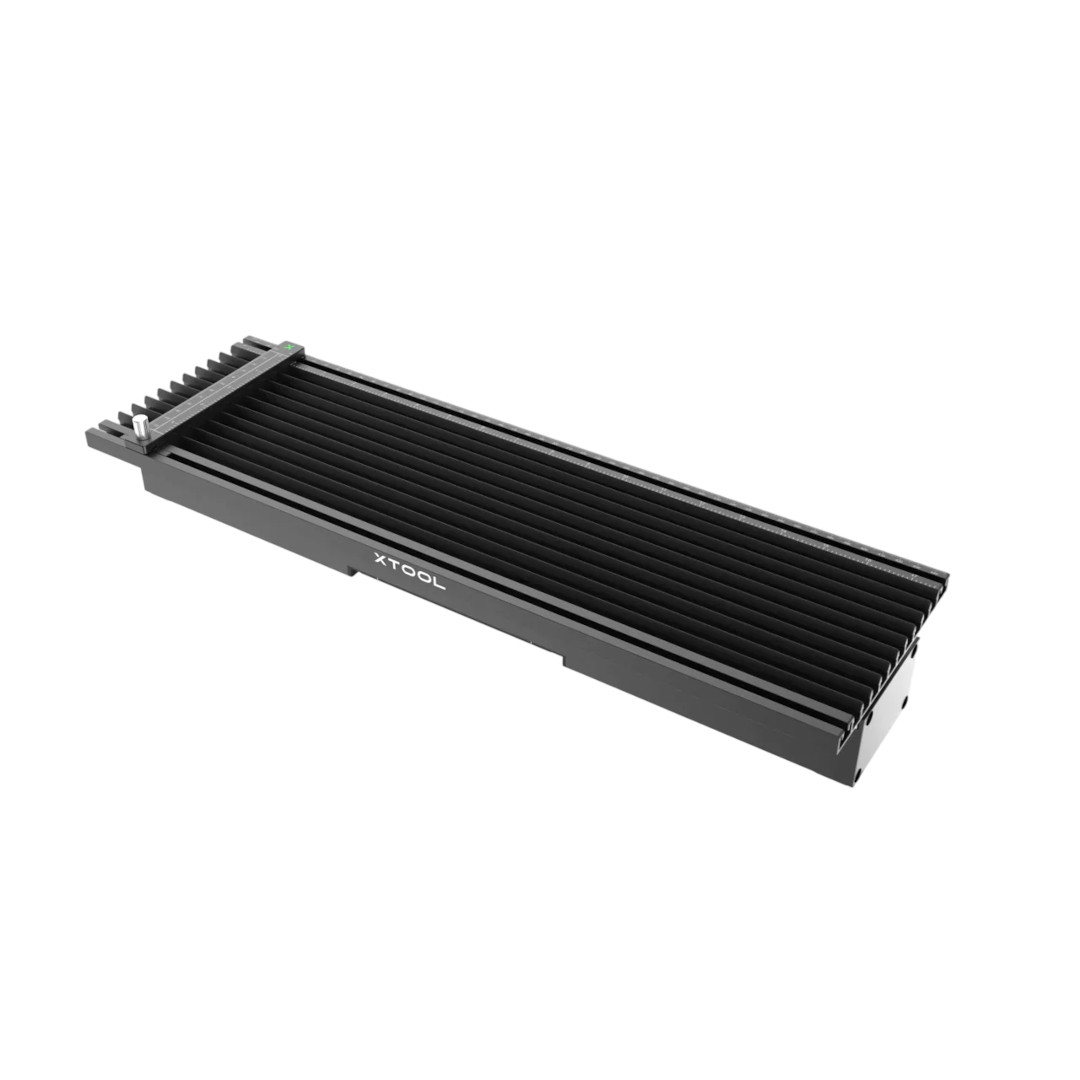

xTool Slide Extension - working area extension for xTool F1, F1 Lite and F2
Four times the working area of the xTool F1, F1 Lite and F2: a moving base slides the material under the laser.
- 115 x 400 mm area instead of 115 x 115 mm
- Objects up to 53 mm high
- 5 clamps and a ruler included
We could not load the price.
The promotional price does not combine with quantity discounts.
Longer projects in the compact xTool F laser
xTool Slide Extension is a moving base for xTool F1, F1 Lite and F2 lasers that enlarges the working area from 115 x 115 mm to 115 x 400 mm. It slides the material under the head, so you can engrave long plaques, rulers, boards and series of small items arranged in a row.

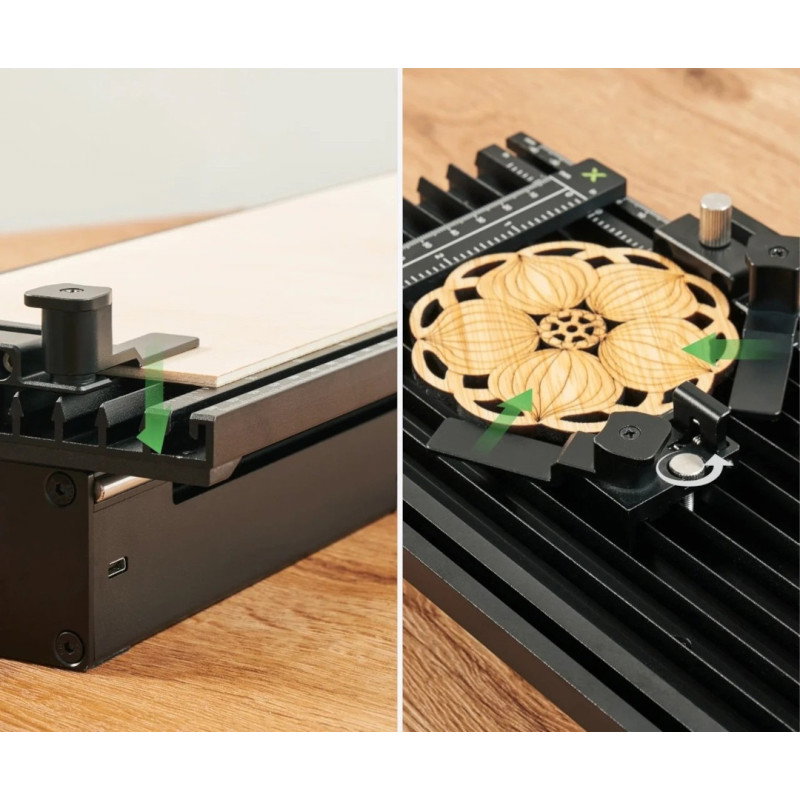

The base is delivered assembled and powered from the laser through the included cable. Five clamps hold the material, and the millimeter scale matches the coordinates in xTool Studio.
xTool Slide Extension - work area extension
115 x 400 mm
working area (F1 alone: 115 x 115 mm)
53 mm
max. object height
160 mm/s
max. speed on the base
2.6 kg
base weight
A good choice for you?
A good choice if:
- you engrave long items, e.g. plaques, rulers and cutting boards
- you make series of small items in one job
- you have an F1, F1 Lite or F2 and are running out of room on the table
Consider another option if:
- you have an F1 Ultra or F2 Ultra: choose the Auto Streamline conveyor
- you do not have a laser yet: see xTool F2 with the Slide Extension included
Did you know?

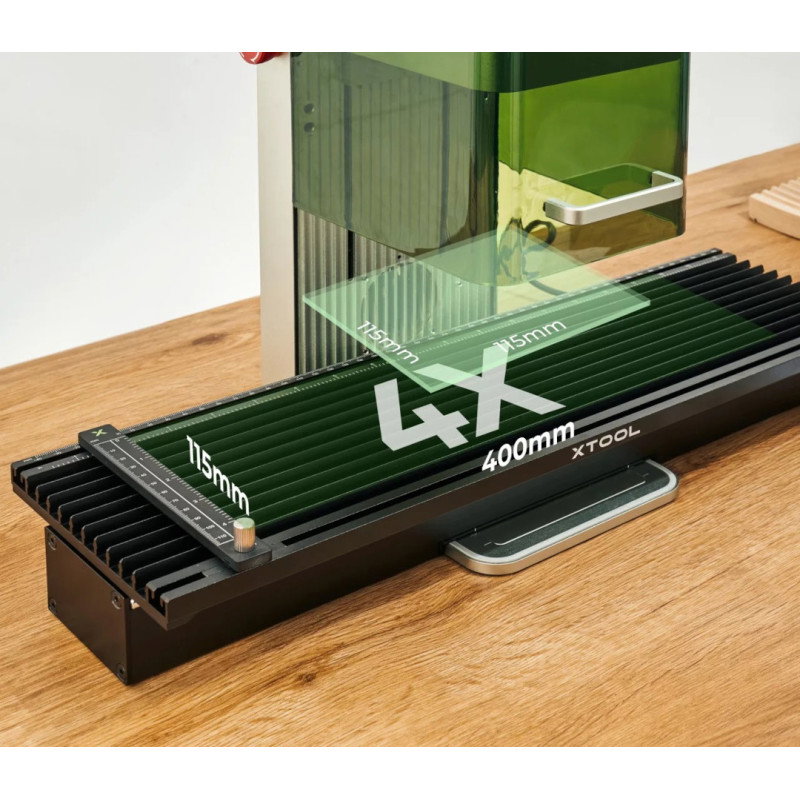

Four times more room
The manufacturer states that the base gives a working area four times larger than the xTool F1 alone. It slides long items under the head, so the laser engraves section by section without manually repositioning the material.
Source: xTool: Slide Extension
Frequently asked questions
Do I need a power supply?
No. The base is powered from the laser through the cable from the kit.
What material fits?
In the clamps you can fix material up to 6 mm, and without clamps you can fit objects up to 53 mm high on the base, e.g. cans and computer mice.
Kit contents
- 1 x Slide Extension base
- 1 x Movable ruler
- 1 x Screwdriver
- 2 x Edge clamps
- 3 x Material clamps
- 1 x USB cable
- 1 x Manual
Technical specifications
| Parameter | Value |
|---|---|
| Type | moving base for extending the working area |
| Compatibility | xTool F1, F1 Lite, F2 |
| Working area | 115 x 400 mm |
| Max. speed | 160 mm/s |
| Object height | up to 53 mm, up to 6 mm in clamps |
| Power supply | from the laser via the cable from the kit |
| Weight | 2.6 kg (3.55 kg with packaging) |
| Manufacturer code | P5010253 |
| Manufacturer | xTool |
