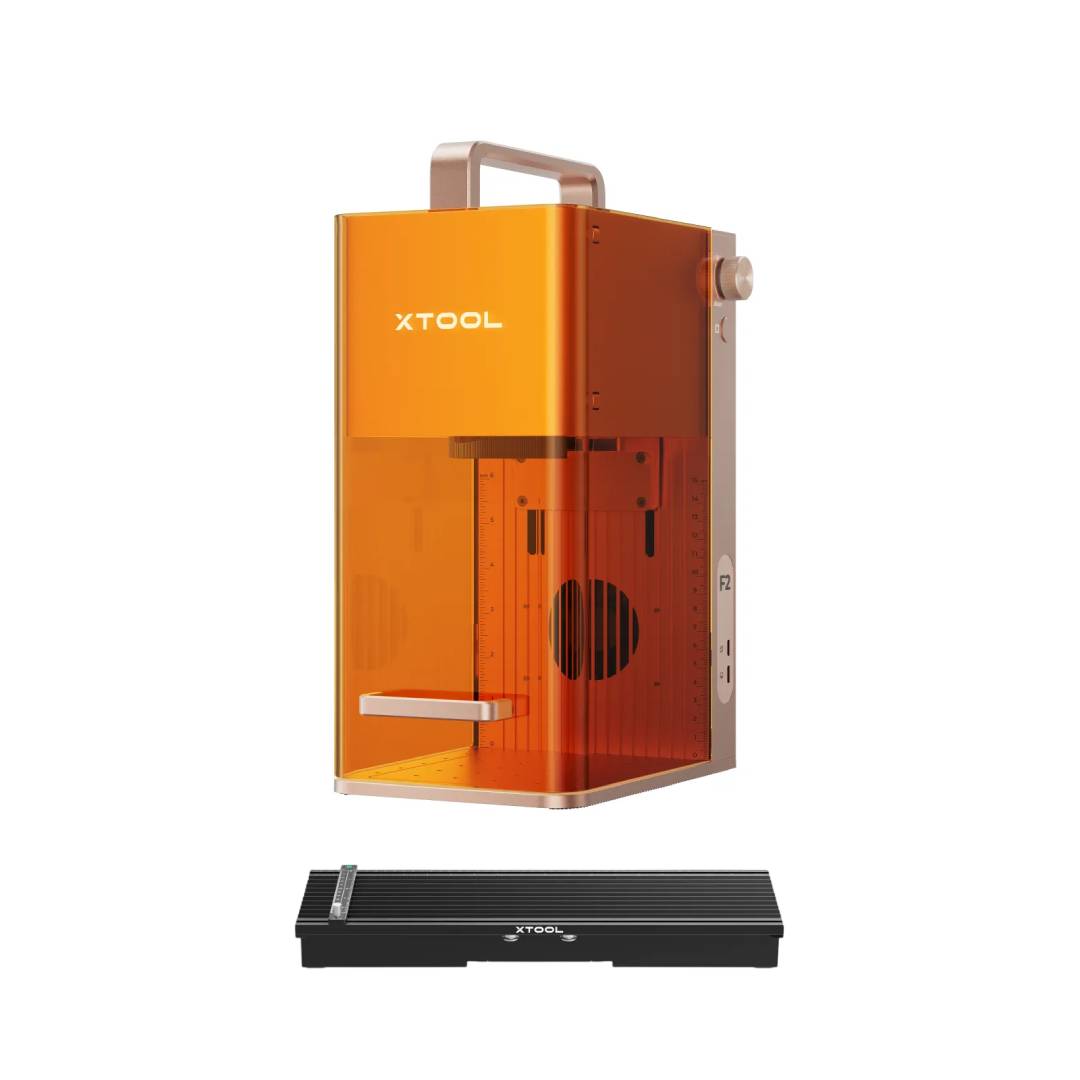

xTool F2 - 15W diode laser engraver and 5W infrared laser engraver + Slide Extension
The xTool F2 is a portable laser engraver with a 15W diode laser for organic materials and a 5W 1064nm infrared laser for precise metal marking. The device reaches speeds of up to 6000mm/s and is equipped with a 50MPx camera with 1:1 preview for precise project positioning. The standard working area is 115 x 115mm , which can be increased to 115 x 400mm with the included expansion module .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: xTool F2 - 15W diode laser engraving machine and 5W infrared laser engraving machine + Slide Extension
The xTool F2 is a modern, mobile laser engraver designed for the personalization industry, craft workshops, and service centers. It combines a 15W diode laser with a 5W infrared laser (1064nm), enabling cutting organic materials and precise marking of metals. The standard 115 x 115mm working area is perfect for working with small details, while with the Slide Extension included in this kit , the working area increases to 115 x 400mm . A built-in 50MPx camera with autofocus provides a full view of the work area and positioning accuracy down to 0.1mm for small parts. Autofocus makes it easy to get started, and a maximum speed of up to 6000mm/s reduces order processing time and increases batch production efficiency. The engraver is compatible with xTool Studio software (Windows / macOS) and supports Wi-Fi and USB communication. The F2 features a compact, enclosed design with a laser protection shield , allowing you to work safely both in the workshop and during mobile events.
xTool F2 - 15 W diode and 5 W infrared laser engraving machine + Slide Extension.
The combination of a 15 W diode laser with a 5 W infrared laser with a wavelength of 1064 nm allows the processing of over 300 types of materials.
xTool F2 Laser Engraver - Dual Source 15W + 5W IR 1064nm
The xTool F2 is a portable laser engraver equipped with two independent light sources: a 15W diode laser and a 5W infrared laser with a wavelength of 1064 nm . This combination allows for processing over 300 materials , including wood , MDF, leather, felt, dark acrylics, and metals such as stainless steel, aluminum, brass, copper, titanium, gold, and silver. The IR laser enables precise marking, blackening, and engraving of high-contrast details , while the diode module is responsible for cutting and 3D relief in organic materials . A maximum operating speed of up to 6000 mm/s significantly increases order fulfillment efficiency. This solution combines mobility with parameters similar to larger stationary systems.
Versatile operation and serial production
The standard working area of the device is 115 x 115 mm , which is suitable for personalizing small elements such as key rings, medallions, and nameplates. Using the included Slide Extension increases the work area to 115 x 400 mm , enabling the processing of long objects and the production of multiple details in a single run. The maximum workpiece height is 120 mm , and using the optional rotary module, cylindrical objects up to 120 mm in diameter can be engraved. The device can cut plywood up to 15 mm and acrylic up to 12 mm in multiple passes. These parameters allow for the combination of individual personalization and short production runs.
The work area extension module increases the work area up to 4 times compared to the standard configuration.
The integrated 50 MPx camera provides a full view of the working field in real time.
50 MPx camera and 0.1 mm precision - accurate positioning and 1:1 preview
The built-in 50 MPx camera provides a preview of the entire work area , allowing you to see the design directly on the material before starting work. The system offers positioning accuracy of up to 0.1 mm for small parts , reducing material waste and the risk of errors. Autofocus automatically adjusts the head height to the workpiece , reducing setup time. The 0.08 mm x 0.06 mm (15 W) and 0.03 mm x 0.03 mm (5 W IR) laser spot enables the creation of fine, sharp lines and high-resolution details. A movement accuracy of 0.00199 mm ensures repeatability even in mass production.
Software, connectivity and xTool accessory compatibility
The engraving machine works with xTool Studio software , available for Windows and macOS, integrating design, parameter settings, and device control in a single environment. Supported file formats include SVG, DXF, JPG, PNG, and BMP , and communication is via Wi-Fi or USB . The device is compatible with F1 series accessories , including the workspace extension, RA2 Pro and RA3 rotary attachments, a foot pedal, and an air purifier. The design, with a radiation shield and built-in ventilation system, increases safety and comfort. Its compact dimensions of 175 mm x 237 mm x 334 mm and a weight of 4.6 kg , facilitate transport and mobile operation during trade shows and events.
The compact and lightweight design allows for convenient transport, field work, and engraving of objects of various shapes and at any angle.

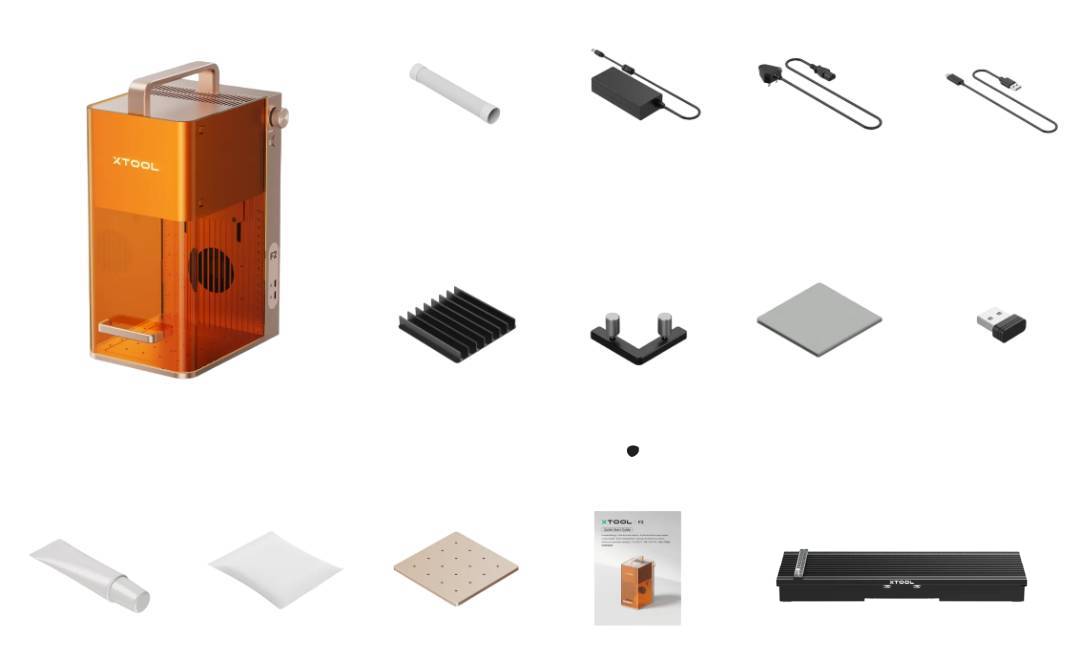

Elements included in the set.
Contents of the set
- xTool F2 laser engraving machine
- Slide Extension
- Smoke exhaust pipe
- Base plate
- Rung panel
- L-shaped positioning element
- Charger
- Power cord
- USB cable
- Grease
- Key (factory installed)
- Screwdriver
- Dust-free cloth
- Test materials
- User manual
xTool F2 Technical Specifications
| Model | MXF-K005-002 |
|---|---|
| Laser type | 15W blue light diode laser + 5W infrared laser |
| Wavelength | 445 ± 15 nm (diode), 1064 ± 5 nm (IR) |
| Operating modes | Laser engraving, laser cutting |
| Internal working area | 115mm x 115mm |
| Workspace with Slide Extension | 115mm x 400mm |
| Maximum operating speed | 6000 mm/s |
| Maximum height of the processed material | 120 mm |
| Maximum Rotary Engraving Diameter with Optional Extension | 120 mm |
| Maximum cutting thickness - plywood | up to 15 mm (in multiple passes) |
| Maximum cutting thickness - acrylic | up to 12 mm (in multiple passes) |
| Laser spot size | 0.08mm x 0.06mm (15W), 0.03mm x 0.03mm (5W IR) |
| Movement accuracy | 0.00199 mm |
| Materials - cutting (15 W diode laser) | Paper, wood, leather, MDF, felt, selected dark opaque acrylics |
| Materials - engraving (15 W diode laser) | Paper, wood, leather, coated metal, selected dark opaque acrylics |
| Materials - engraving (IR laser 5 W 1064 nm) | Plastics, gold, silver, platinum, stainless steel, aluminum, brass, copper, titanium alloys, coated and anodized metals |
| Camera | 50 MPx, preview of the entire working field |
| Focus mode | Autofocus |
| Positioning method | Frame positioning, camera positioning |
| Supported software | xTool Studio |
| Operating system | Windows, macOS |
| Supported file formats | SVG, DXF, JPG, JPEG, PNG, BMP |
| Communication | WiFi, USB, IP |
| Input power | 25V 6A, 150W |
| Power supply voltage | From 220 V to 240 V AC 50/60 Hz |
| Safety class | Class 4 Laser Safety |
| Dimensions | 175 x 237 x 334 mm |
| Mass | 4.6 kg |
Useful links
| Name | Value |
|---|---|
| CNC - working field | 115 x 115 mm |
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera |
|
| CNC - Obszar roboczy | 115x115 mm |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Basic |
| CNC - Typ lasera |
|
| CNC - długość pola roboczego | 115 mm |
| CNC - szerokość pola roboczego | 115 mm |
| CNC - wielkość pola roboczego | Small |
| Width | 40 cm |
| Height | 31.5 cm |
| Depth | 42 cm |
| Weight | 11.5 kg |
