xTool F2 - 15W diode laser engraver and 5W infrared laser engraver - Deluxe Bundle
The xTool F2 is a portable laser engraver with a dual source: a 15W diode laser for cutting and engraving, and a 5W 1064nm infrared laser for precise marking on metals. It reaches speeds of up to 6000mm/s and features a built-in 50MPx camera with 1:1 preview , enabling precise project positioning. The standard 115 x 115mm working area increases to 115 x 400mm with the Slide Extension module . The set also includes an RA3 rotary module and a Desktop Air Purifier that filters 99.97% of smoke and pollutants.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: xTool F2 - 15W diode and 5W infrared laser engraving machine - Deluxe version
The xTool F2 Deluxe is a comprehensive kit for professional customization, combining a mobile laser engraver with dedicated accessories that expand processing capabilities. The F2 utilizes a 15W diode laser for cutting and engraving organic materials and a 5W infrared laser (1064nm) for advanced metal marking, including blackening, deep engraving, and color engraving. A built-in 50MPx camera with autofocus enables precise project positioning with an accuracy of 0.1mm , while a working speed of up to 6000mm/s allows for efficient project execution even in mobile environments. The standard 115 x 115mm working area in the Deluxe kit is expanded to 115 x 400mm with the Slide Extension module, providing more than four times the work area and enabling mass production. The kit also includes an RA3 rotary attachment , enabling automatic and precise engraving of cylindrical and spherical objects such as cups, rings, spheres, and vases. The kit also includes a Desktop Air Purifier , which filters up to 99.97% of smoke and pollutants generated during operation. The engraving machine is compatible with xTool Studio software (Windows/macOS) and supports Wi-Fi and USB communication. The F2 features a compact, enclosed design with a laser shield , allowing for safe operation in workshops, service centers, or during mobile events.

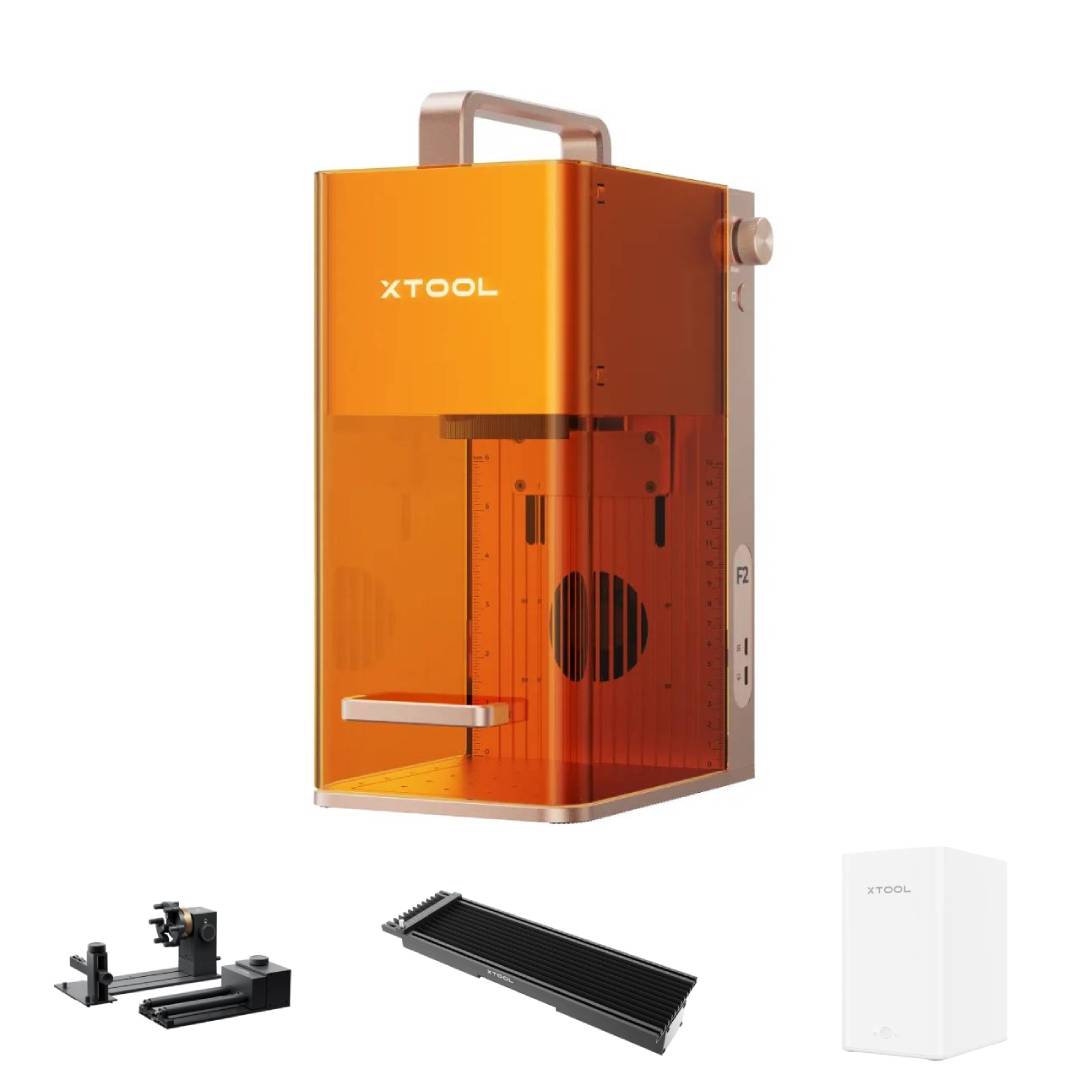

xTool F2 - 15 W diode and 5 W infrared laser engraving machine - Deluxe version.
The combination of a 15 W diode laser with a 5 W infrared laser with a wavelength of 1064 nm allows the processing of over 300 types of materials.
xTool F2 Laser Engraver - Dual Source 15W + 5W IR 1064nm
The xTool F2 is a portable laser engraver equipped with two independent light sources – a 15W diode laser and a 5W infrared laser with a wavelength of 1064nm . This combination allows for processing over 300 materials , including wood , MDF, leather, felt, dark acrylics, and metals such as stainless steel, aluminum, brass, copper, titanium, gold, and silver. The IR laser enables precise marking, blackening, and engraving of high-contrast details , while the diode module is responsible for cutting and 3D relief in organic materials . Maximum Operating speeds of up to 6,000 mm/s significantly increase order fulfillment efficiency. This solution combines mobility with parameters similar to larger stationary systems.
Versatile operation and serial production
The standard working area of the device is 115 x 115 mm , which is ideal for personalizing small items such as key rings, medallions, or nameplates. Using the included Slide Extension increases the working area to 115 x 400 mm , enabling the processing of long objects and the production of multiple details in a single batch. The maximum workpiece height is 120 mm , and using the optional rotary module, cylindrical objects up to 120 mm in diameter can be engraved. The device can cut plywood up to 15 mm and acrylic up to 12 mm in multiple passes. These parameters allow for the combination of individual personalization and short production runs.

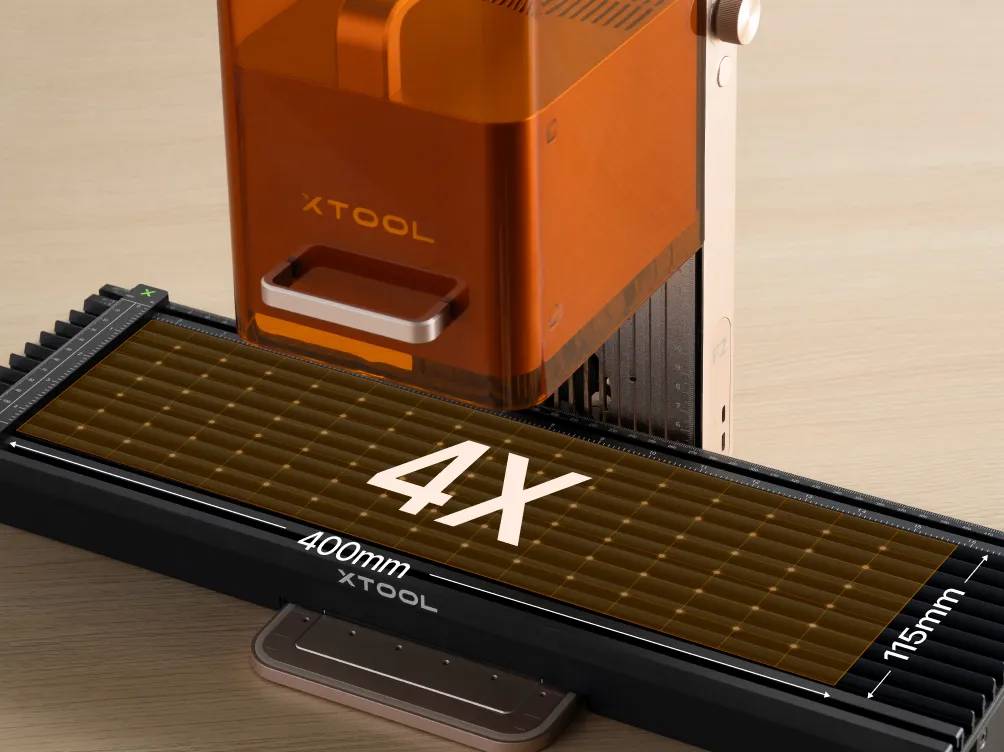

The work area extension module increases the work area up to 4 times compared to the standard configuration.

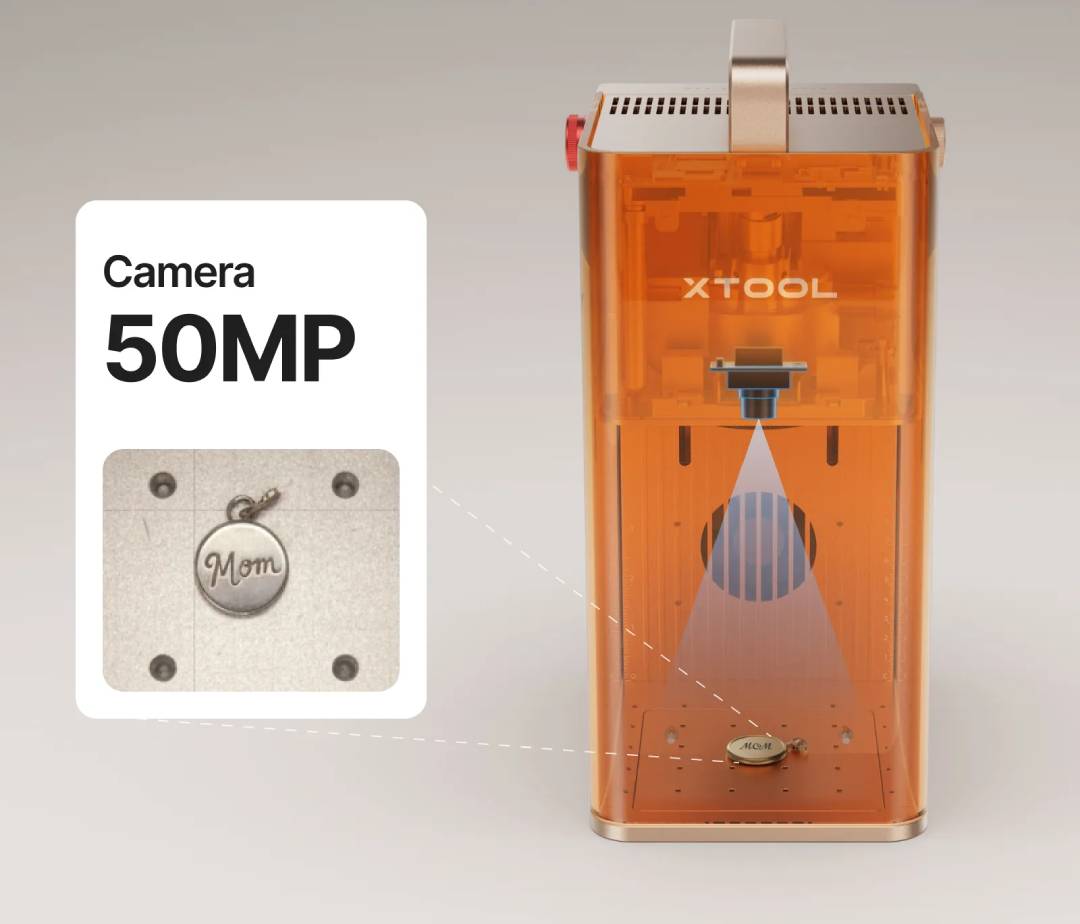

The integrated 50 MPx camera provides a full view of the working field in real time.
50 MPx camera and 0.1 mm precision - accurate positioning and 1:1 preview
The built-in 50 MPx camera provides a preview of the entire work area , allowing you to see the design directly on the material before starting work. The system offers positioning accuracy of up to 0.1 mm for small parts , reducing material waste and the risk of errors. Autofocus automatically adjusts the head height to the workpiece , reducing setup time. The 0.08 mm x 0.06 mm (15 W) and 0.03 mm x 0.03 mm (5 W IR) laser spot enables the creation of fine, sharp lines and high-resolution details. A movement accuracy of 0.00199 mm ensures repeatability even in mass production.
Software, connectivity and a wide range of accessories
The engraving machine works with xTool Studio software , available for Windows and macOS, integrating design, parameter settings, and device control in a single environment. Supported file formats include SVG, DXF, JPG, PNG, and BMP , and communication is via Wi-Fi or USB . In addition to the mobile engraving machine , the Deluxe kit includes a Slide Extension module that increases the working area to 115 x 400 mm, an RA3 rotary attachment for automatic engraving of cylindrical elements, and an air purifier that filters 99.97% of smoke and pollutants. Its compact dimensions of 175 mm x 237 mm x 334 mm and a weight of 4.6 kg facilitate transport and mobile work during trade shows and events.
The compact and lightweight design allows for convenient transport, field work and engraving of objects of various shapes and at any angle.

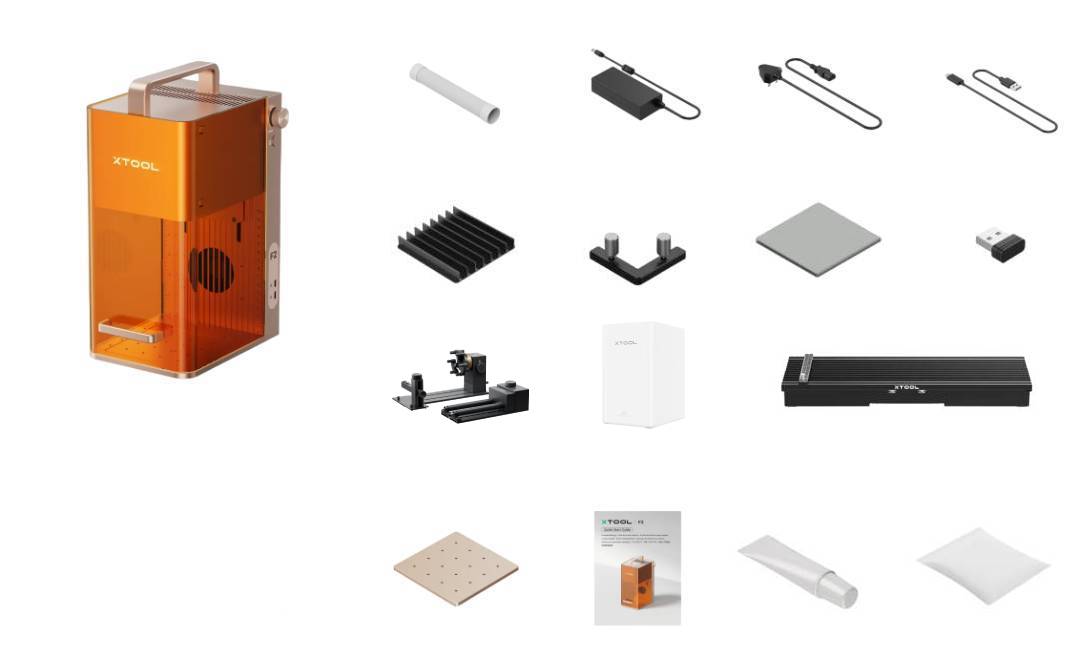

Elements included in the set.
Contents of the set
- xTool F2 laser engraver
- Slide Extension
- RA3 Rotation Module
- Desktop Air Purifier
- Smoke exhaust pipe
- Base plate
- Rung panel
- L-shaped positioning element
- Charger
- Power cord
- USB cable
- Grease
- Key (factory installed)
- Screwdriver
- Dust-free cloth
- Test materials
- User manual
xTool F2 Technical Specifications
| Model | MXF-K005-002 |
|---|---|
| Laser type | 15W blue light diode laser + 5W infrared laser |
| Wavelength | 445 ± 15 nm (diode), 1064 ± 5 nm (IR) |
| Operating modes | Laser engraving, laser cutting |
| Internal work area | 115mm x 115mm |
| Workspace with Slide Extension | 115mm x 400mm |
| Maximum operating speed | 6000 mm/s |
| Maximum height of the processed material | 120 mm |
| Maximum Rotary Engraving Diameter with Optional Extension | 120 mm |
| Maximum cutting thickness - plywood | up to 15 mm (in multiple passes) |
| Maximum cutting thickness - acrylic | up to 12 mm (in multiple passes) |
| Laser spot size | 0.08mm x 0.06mm (15W), 0.03mm x 0.03mm (5W IR) |
| Movement accuracy | 0.00199 mm |
| Materials - cutting (15 W diode laser) | Paper, wood, leather, MDF, felt, selected dark opaque acrylics |
| Materials - engraving (15 W diode laser) | Paper, wood, leather, coated metal, selected dark opaque acrylics |
| Materials - engraving (IR laser 5 W 1064 nm) | Plastics, gold, silver, platinum, stainless steel, aluminum, brass, copper, titanium alloys, coated and anodized metals |
| Camera | 50 MPx, preview of the entire working field |
| Focus mode | Autofocus |
| Positioning method | Frame positioning, camera positioning |
| Supported software | xTool Studio |
| Operating system | Windows, macOS |
| Supported file formats | SVG, DXF, JPG, JPEG, PNG, BMP |
| Communication | WiFi, USB, IP |
| Input power | 25V 6A, 150W |
| Power supply voltage | From 220 V to 240 V AC 50/60 Hz |
| Safety class | Class 4 Laser Safety |
| Dimensions | 175 x 237 x 334 mm |
| Mass | 4.6 kg |
Useful links
| Name | Value |
|---|---|
| CNC - working field | 115 x 115 mm |
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera |
|
| CNC - Obszar roboczy | 115x115 mm |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Basic |
| CNC - Typ lasera |
|
| CNC - długość pola roboczego | 115 mm |
| CNC - szerokość pola roboczego | 115 mm |
| CNC - wielkość pola roboczego | Small |
| Width | 40 cm |
| Height | 31.5 cm |
| Depth | 42 cm |
| Weight | 20.2 kg |
