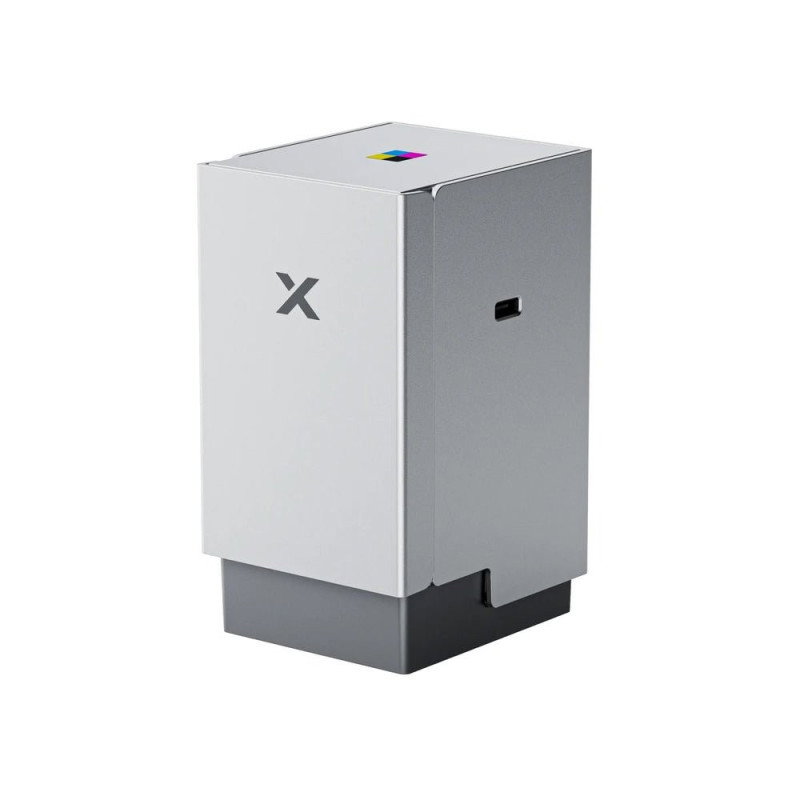

CMYK print module
Prints in four colours at 1200 x 1200 dpi, and M2 cuts out the print with the laser exactly along the outline of the design.
- New
Over 500,000 customers already trust us. With us you get:
same-day shipping for products marked “24h shipping”
our own service centre in Poland
30 days to return and free delivery in Poland from PLN 500
4.9/5 on TrustMate and 4.9/5 on Google (almost 4,000 reviews)
VAT invoice, leasing and instalments for businesses
For businesses
individual quote for larger quantities
VAT invoice
For schools and universities
orders based on requests for quotation
help with choosing kits for your lab
Send an inquiry - we reply quickly.

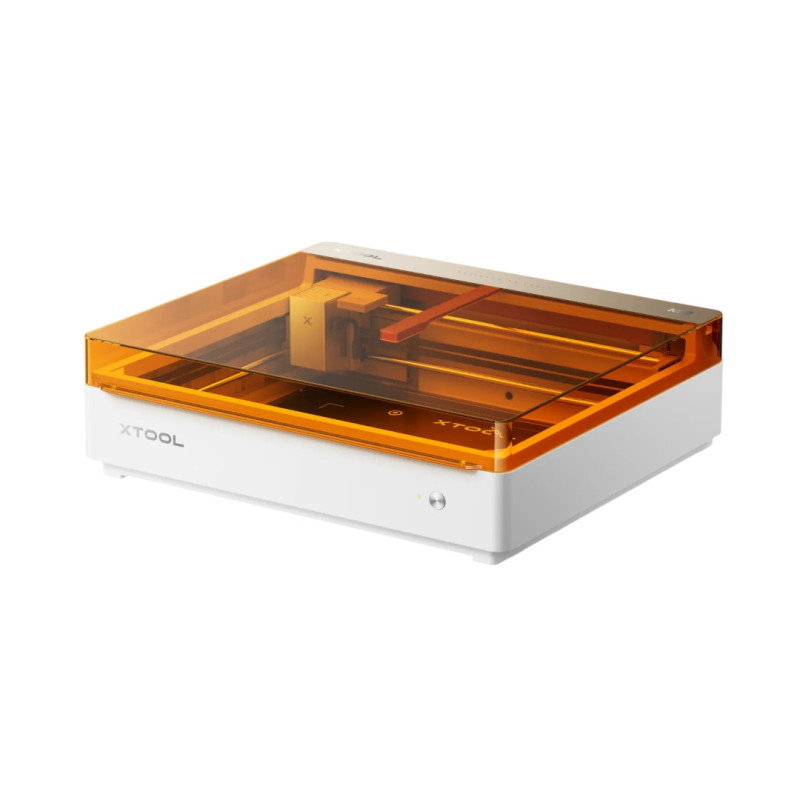

xTool M2 - laser cutter and engraver 10W - basic kit
10 W laser in a Class 1 enclosure: xTool M2 cuts, engraves, and with the CMYK module it also prints in colour.
- 426 x 320 mm working area and speeds up to 600 mm/s
- Two cameras: M2 sets the focus and measures the thickness of the material itself
- Cuts basswood plywood up to 8 mm in a single pass
We could not load the price.
List price
Your price
Net price:
The promotional price does not combine with quantity discounts.
Price:
Regular price:
Remaining time until the promotion ends:

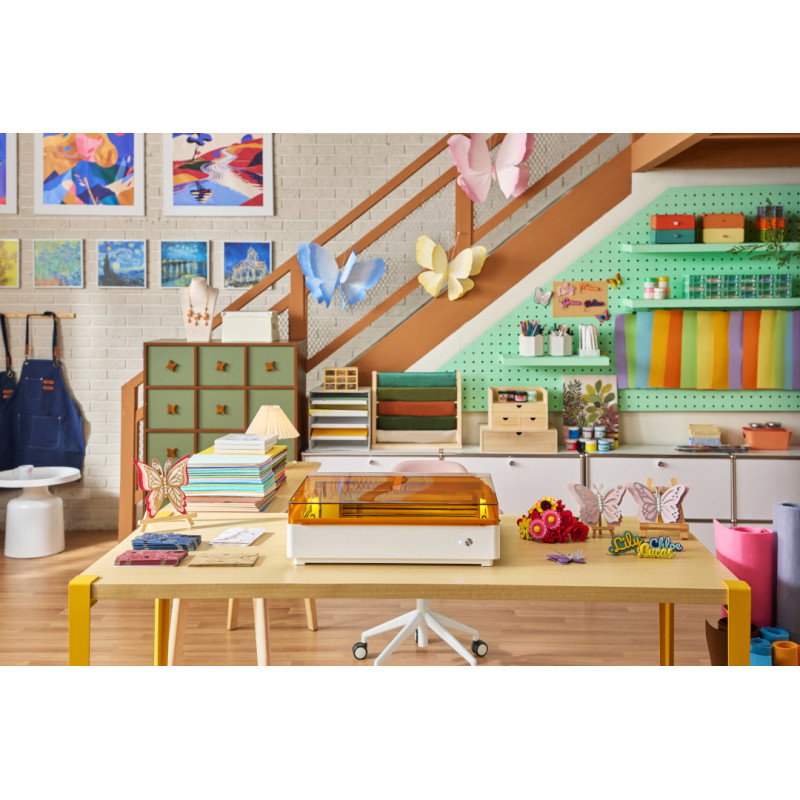

Colour printing and a laser in one enclosure that fits on your desk
xTool M2 10W is an enclosed 10 W diode laser cutter and engraver with two cameras that cuts plywood, cardboard, felt and leather in a 426 x 320 mm area. With the M2 print module added, it also prints in colour and cuts out the print right away, while the head moves at up to 600 mm/s.
After you close the lid, the ACS system takes a photo of the material, aligns the design, sets the focus and measures the thickness, so you start without manual levelling. M2 needs no complicated assembly: you attach the laser module, connect the smoke exhaust tube and you are ready to go. The xTool Studio software for Windows and macOS handles the graphics.

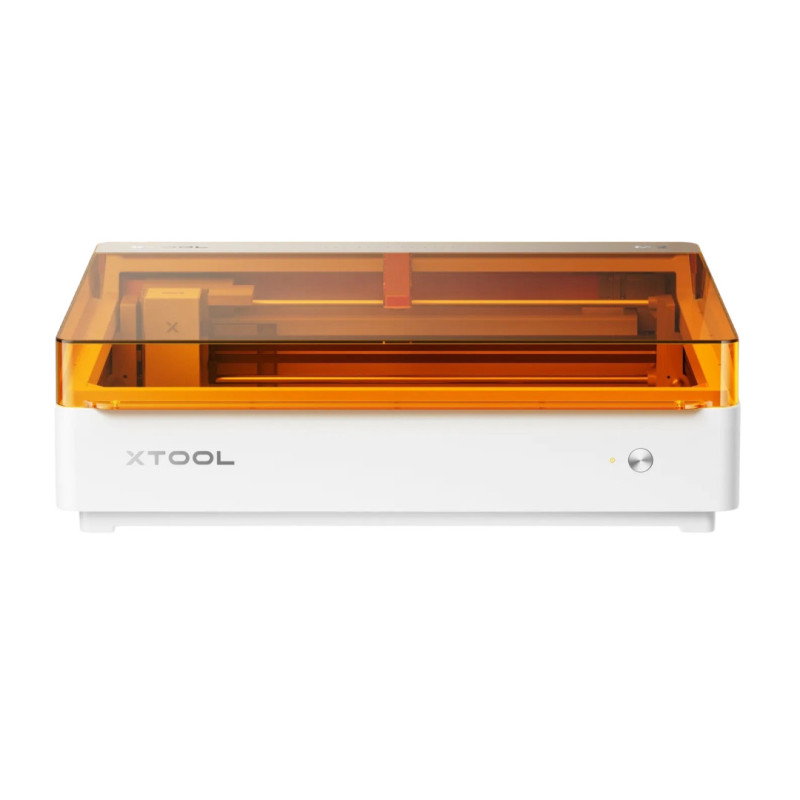

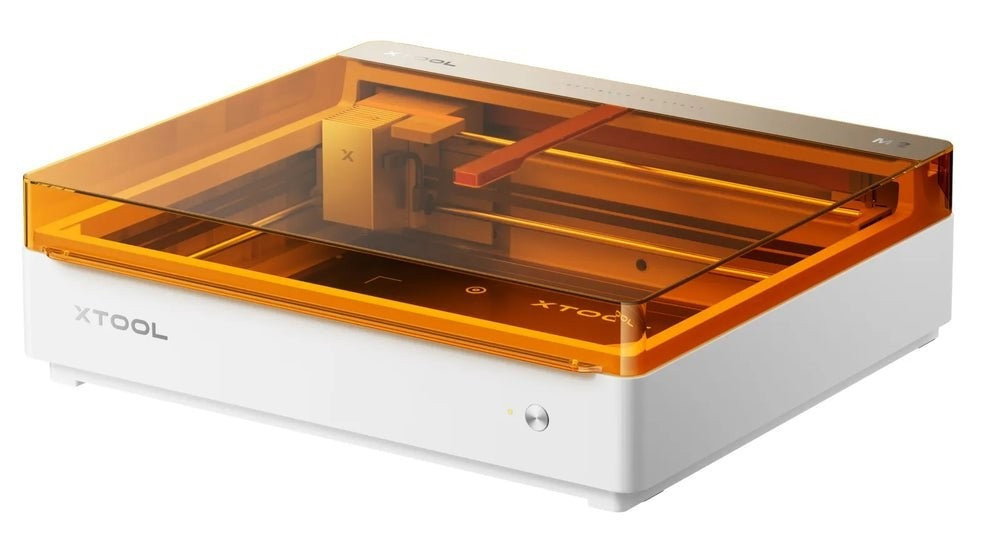

xTool M2 10W - front view, orange cover and white body
426 x 320 mm
working area with the diode laser
600 mm/s
max. travel speed on the X and Y axes
8 mm
basswood plywood cut in a single pass
class 1
laser device according to EN/IEC 60825-1
What sets this model apart
Laser and CMYK printing in one machine over 426 x 320 mm
M2 prints a colour design and cuts it out along the outline without repositioning the material, because the laser and print modules work in the same enclosure. Keep in mind that the basic kit includes only the laser module: for printing you buy the CMYK module with a four-colour ink cartridge, and for marking metals and plastics the 3 W infrared module with a 1064 nm wavelength.
1200 x 1200 dpi
CMYK print resolution (M1 Ultra: 1200 x 600 dpi)
4 colours
in one cartridge: black, cyan, magenta and yellow
0-100 mm
diameter of mugs and bottles engraved with the RA3 Lite module, no riser base needed

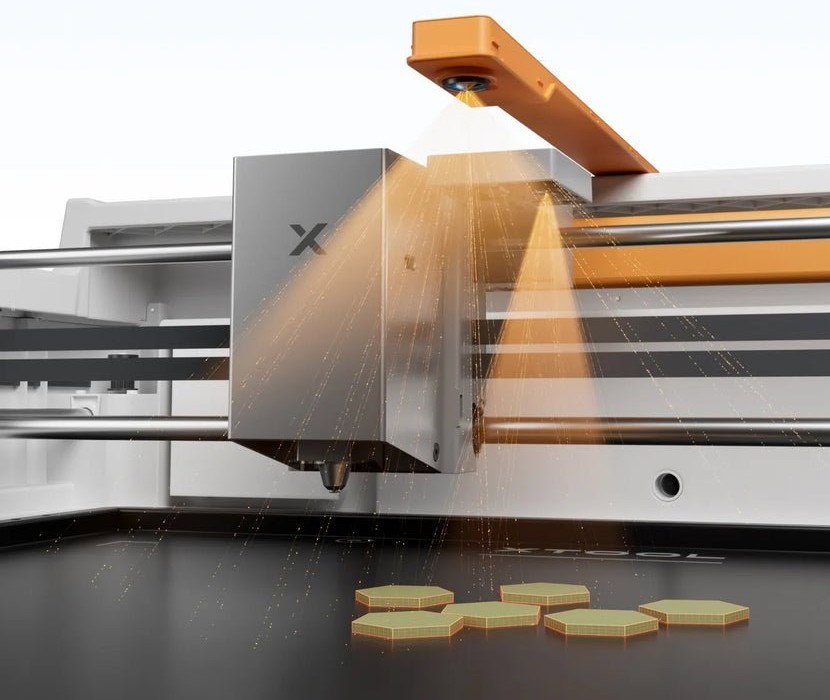

M2 head above the work bed with plywood parts cut out

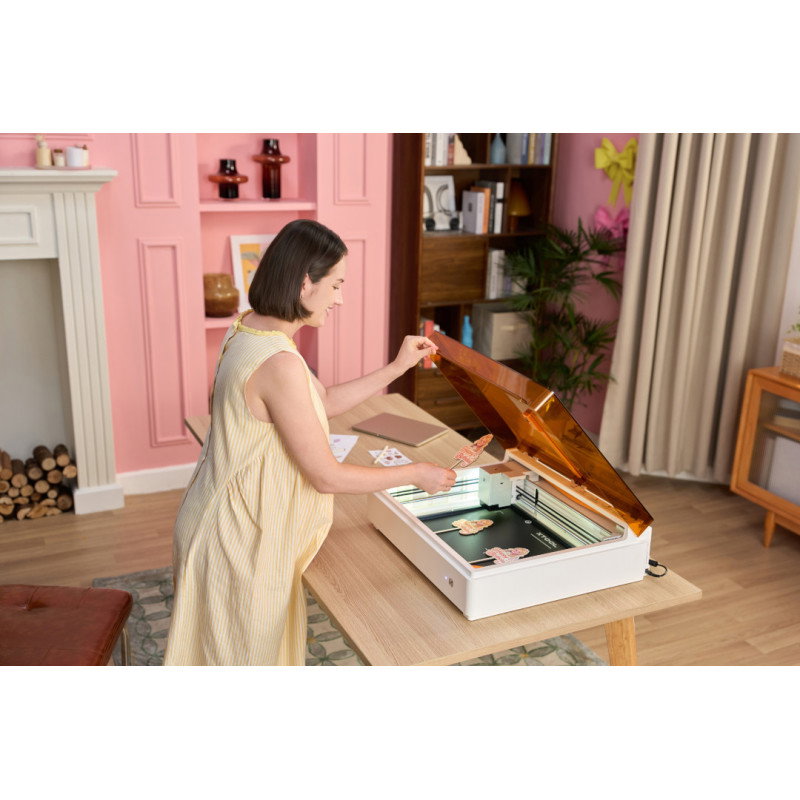

You close the lid and M2 does the rest
The 5 MP panoramic camera shows the whole bed in the software, and the 2 MP close-up camera lets you position the design with an accuracy of up to 0.2 mm. After you close the lid, the ACS system recognises xTool materials with a QR code, adjusts the position of the artwork, sets the focus and measures the thickness. The built-in air pump blows smoke away from the cutting zone, so edges are cleaner, and the exhaust tube carries the smoke outside or to an air purifier.
ACS automatic mode
The video shows how M2 recognises the material and prepares the project after the lid is closed.
Video: the manufacturer's official YouTube channel.
One machine, four modules to choose from
The kit includes a 10 W diode laser for cutting and engraving, and you can buy the other modules separately when you need them, without replacing the whole machine with a newer model.
- 10 W diode laser: cutting and engraving, included
- 20 W diode laser: thicker cutting in a single pass, included in the xTool M2 20W kit
- 3 W infrared module: marking metals and plastics
- CMYK print module: colour print cut out along the outline

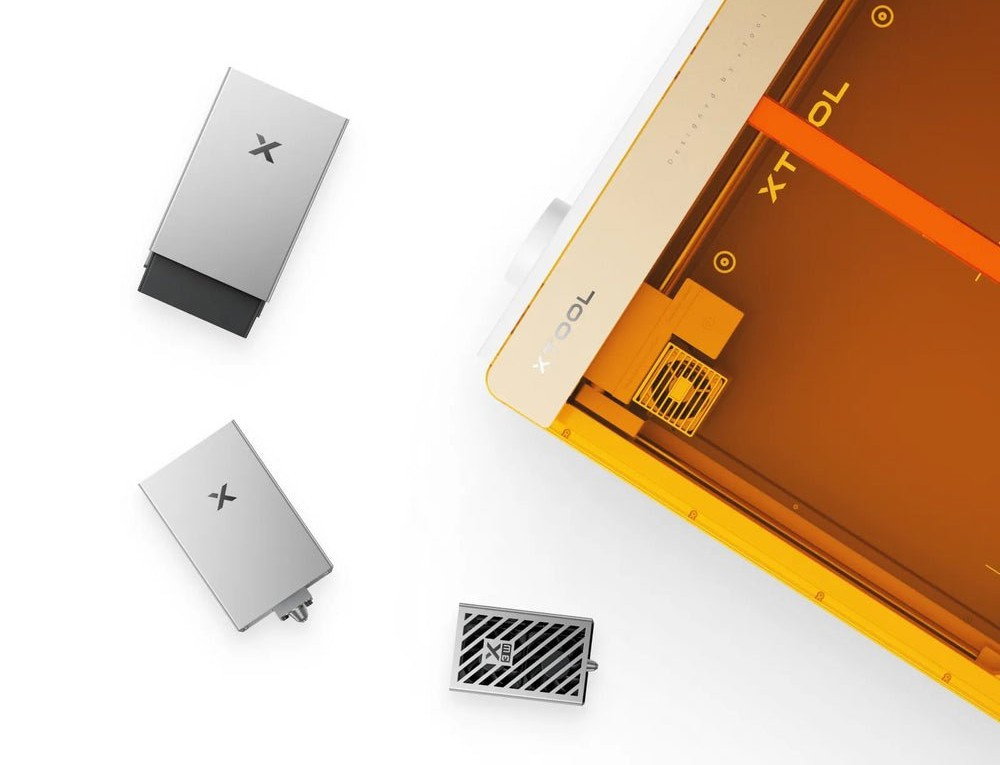

Laser and print modules next to the xTool M2 enclosure
You print a colour design and cut it out along the outline right away

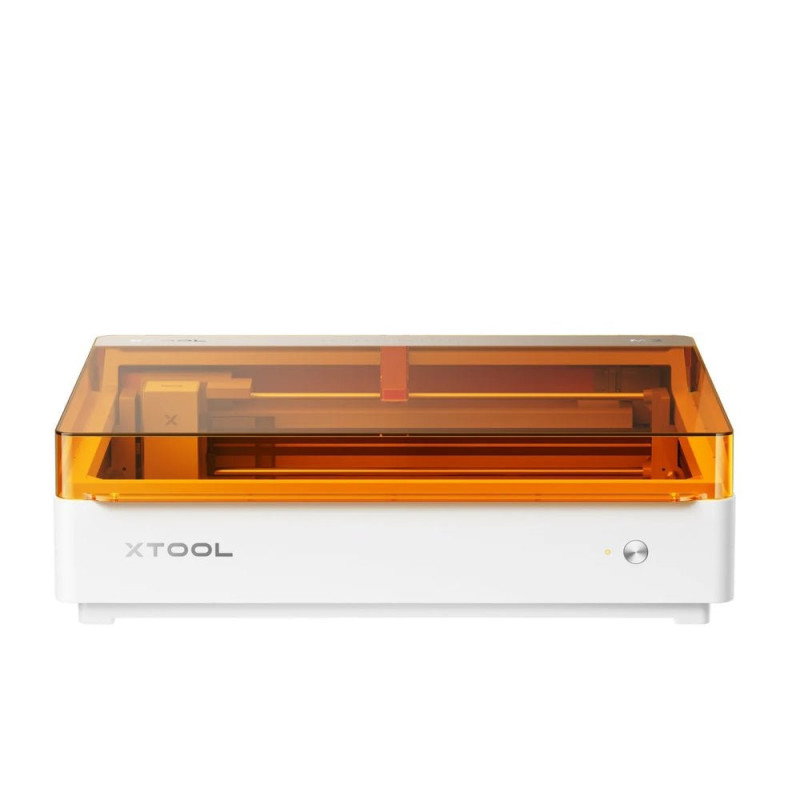

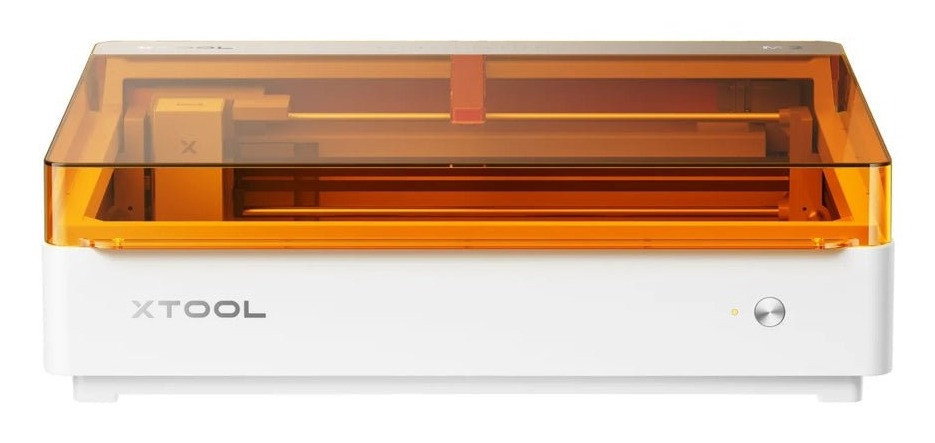

xTool M2 10W with the orange lid closed
Practical uses
- Small business and online shop: key rings, coasters and packaging with colour prints
- Maker and hobbyist: plywood models, decorations, stickers and temporary tattoos
- Craft studio: engraving on mugs and bottles with the RA3 Lite module
- School: the Class 1 enclosure and automatic focusing make group work easier
Mugs, bottles and flasks with the RA3 Lite module
With the RA3 Lite module you engrave items from 0 to 100 mm in diameter without a riser base. You buy the module separately, and you choose the jaws from the set for each shape.

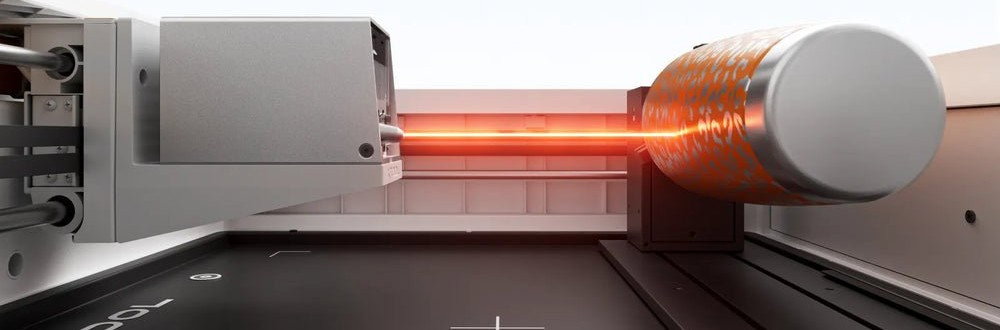

RA3 Lite rotary module with an engraved cylinder in M2
Unboxing and first start of xTool M2
The video shows what is in the box and how to prepare M2 for your first project.
Video: the manufacturer's official YouTube channel.

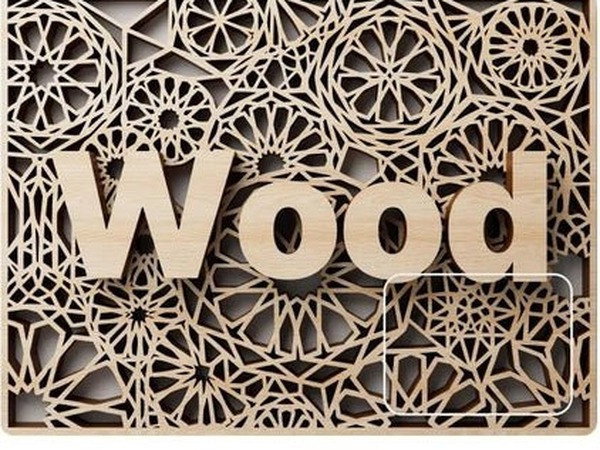

The same openwork design in different materials
Expand M2 with modules and accessories

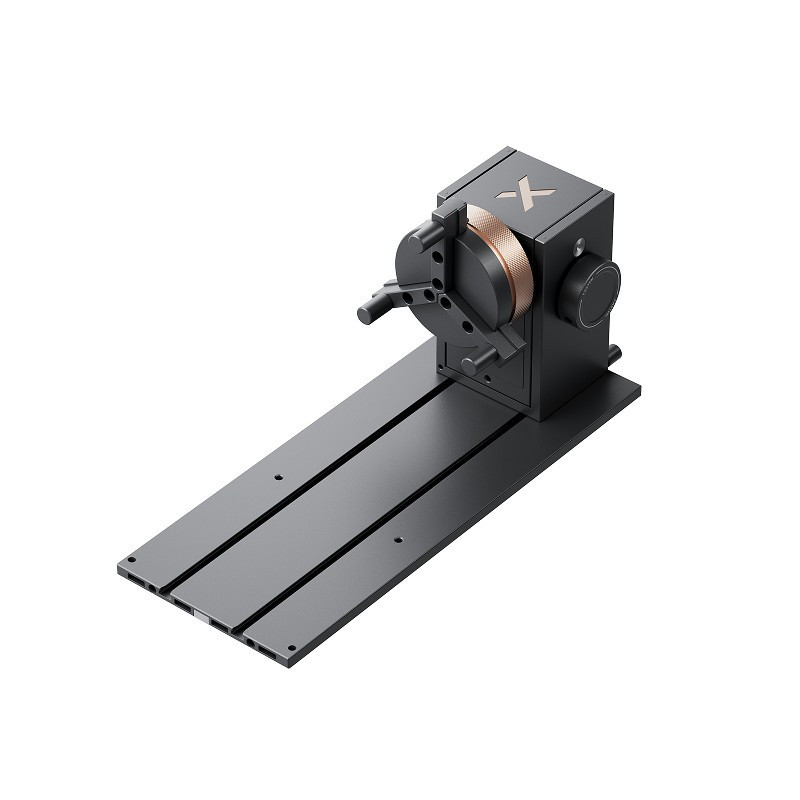

RA3 Lite rotary module
Engraving on mugs, bottles and flasks up to 100 mm in diameter, without an additional M2 riser base.

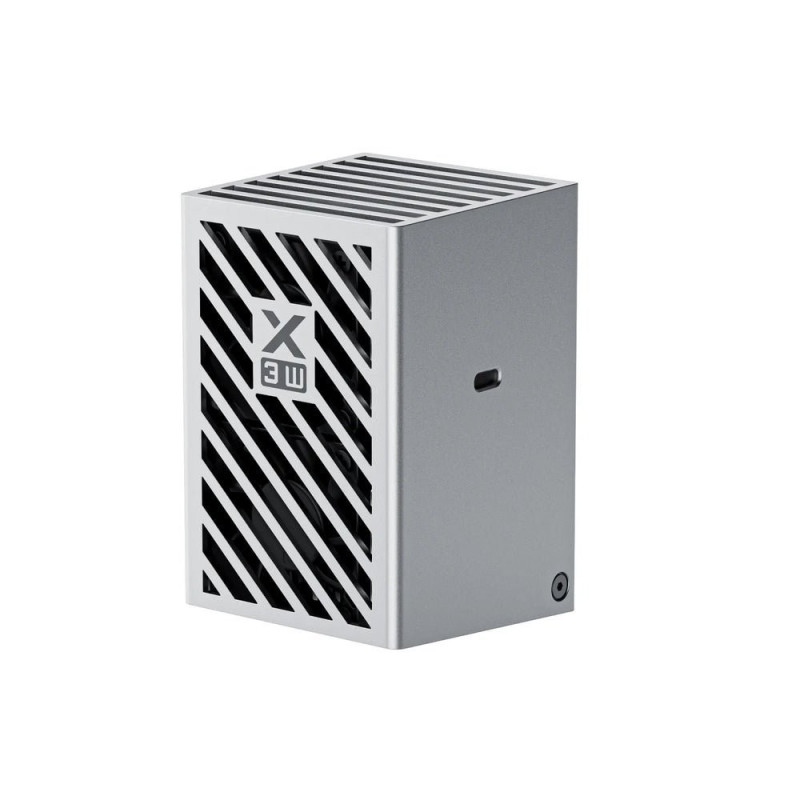

3 W infrared module
A 1064 nm laser for marking metals and plastics, inserted into M2 in place of the 10 W diode laser from the kit.
Is it a good choice for you?
A good choice if:
- you want to print and cut personalised gadgets, stickers and decorations in one device
- you work at home or in a workshop and care about a Class 1 enclosure
- you mainly cut plywood, cardboard, felt and leather up to 8 mm
Consider another option if:
- you want to cut thicker and faster: choose xTool M2 with 20 W laser
- you need a CO2 laser for clear acrylic: see xTool P3
Model comparison
| xTool M2 10W | xTool M2 20W | xTool M1 Ultra | |
|---|---|---|---|
| Diode laser included | 10 W | 20 W | 20 W |
| Basswood plywood cut in a single pass | 8 mm | 10 mm | - |
| Black acrylic cut in a single pass | 3 mm | 8 mm | - |
| Working area | 426 x 320 mm | 426 x 320 mm | - |
| Colour printing | CMYK, 1200 x 1200 dpi (module sold separately) | CMYK, 1200 x 1200 dpi (module sold separately) | CMY, 1200 x 600 dpi |
| Blade cutting | no | no | yes |
| See | this page | xTool M2 20W | xTool M1 Ultra |
“-” means the manufacturer does not provide this information.
Did you know
8000 hours of laser life
The manufacturer states that the diode in M2 has a lifespan of 8000 hours and loses less than 10% of its power during the first 720 hours. At 4 hours of work a day, that is over 5 years of engraving and cutting.
Source: xTool Support: M2 FAQ
Frequently asked questions
Does M2 cut with a blade like the M1 Ultra?
No. The xTool M2 works only with a laser and inkjet printing; it has no blade module or cutting mat.
How tall an item will fit?
On the base plate the material can be up to 26 mm high. The magnetic holders clamp material up to 6 mm, and thicker material, up to 16 mm, rests on the holders. For mugs and bottles, use the RA3 Lite rotary module, which lets you engrave items up to 100 mm in diameter.
Can I swap in a stronger laser?
Yes. You mount the 20 W diode module in place of the 10 W module, and the kit with it includes a suitable 25 V / 6 A power supply.
Which software does M2 use?
M2 works with xTool Studio on Windows and macOS. It does not work with LightBurn or xTool Creative Space.
Does M2 engrave metal?
The 10 W diode laser engraves stainless steel, aluminium and coated metals, but not mirror-finish metals. For marking metals and plastics, use the 3 W infrared module.
Can I work without a computer?
Yes, partly. After sending the project over USB or WiFi, you can repeat the last job by pressing the Start/Stop button on the device twice.
What's in the box
- 1 x xTool M2 laser cutter and engraver
- 1 x Diode laser module
- 1 x Module connection cable
- 1 x Power supply with power cord
- 1 x USB cable with adapter
- 1 x Smoke exhaust tube
- 1 x Hose clamp
- 1 x Grease
- 1 x Sample material set
- Magnetic holders
- 1 x Hex screwdriver
- 1 x Masking tape
- M3 x 6 screws
- Safety instructions and quick start guide
The CMYK print module, ink cartridge and RA3 Lite rotary module are not included in the basic kit.
Technical specification
| Parameter | Value |
|---|---|
| Type | diode laser cutter and engraver with cameras, in an enclosed housing |
| Laser module included | diode 10 W |
| Wavelength | 455 ± 5 nm |
| Max. optical power of the working laser | 13 W |
| Laser spot size | 0.04 x 0.06 mm |
| Working area | 426 x 320 mm (with 3 W infrared module: 412 x 310 mm, with print module: 300 x 294 mm) |
| Max. speed | 600 mm/s (X and Y axes), Z axis 100 mm/s |
| Motion accuracy | 0.01 mm |
| Camera positioning accuracy | up to 0.2 mm |
| Cameras | 5 MP panoramic and 2 MP close-up, autofocus |
| Basswood plywood cut in a single pass | up to 8 mm |
| Black acrylic cut in a single pass | up to 3 mm |
| Max. material height | 26 mm on the base plate; magnetic holders clamp material up to 6 mm, thicker material up to 16 mm rests on the holders |
| Rotary engraving | items 0-100 mm in diameter with the RA3 Lite module, no riser base |
| Air assist | built-in adjustable air pump |
| Safety | Class 1 laser device according to EN/IEC 60825-1 (Class 4 working laser enclosed in the housing), lid and base plate safety switches, flame and tilt detection |
| Connectivity | USB, WiFi |
| Software | xTool Studio (Windows, macOS) |
| Supported files | SVG, DXF, JPG, JPEG, PNG, BMP |
| Power supply | power adapter 100-240 V AC, 50/60 Hz, 25 V / 4.8 A, max. power draw 200 W |
| Operating temperature | 0 °C-35 °C, humidity 20%-85% |
| Dimensions | 610 x 569 x 180 mm |
| Weight | 12.3 kg |
| Package dimensions and weight | 700 x 630 x 285 mm, 15.9 kg |
| Manufacturer code | P0101000477 |
| Manufacturer | xTool |
