3W 1064nm infrared laser module for xTool M2
1064 nm infrared laser that turns the xTool M2 into a metal engraver: marking steel, aluminum, brass and jewelry.
- Optical power up to 3.3 W
- Red cross for positioning the design
- Fits only the xTool M2
We could not load the price.
The promotional price does not combine with quantity discounts.
Engraving metal and jewelry in the xTool M2

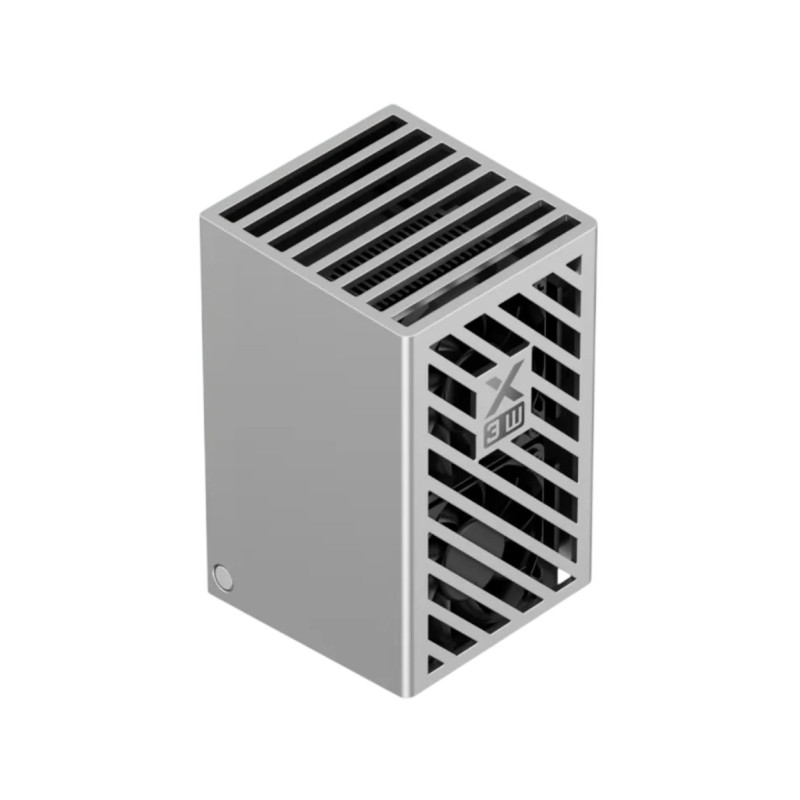

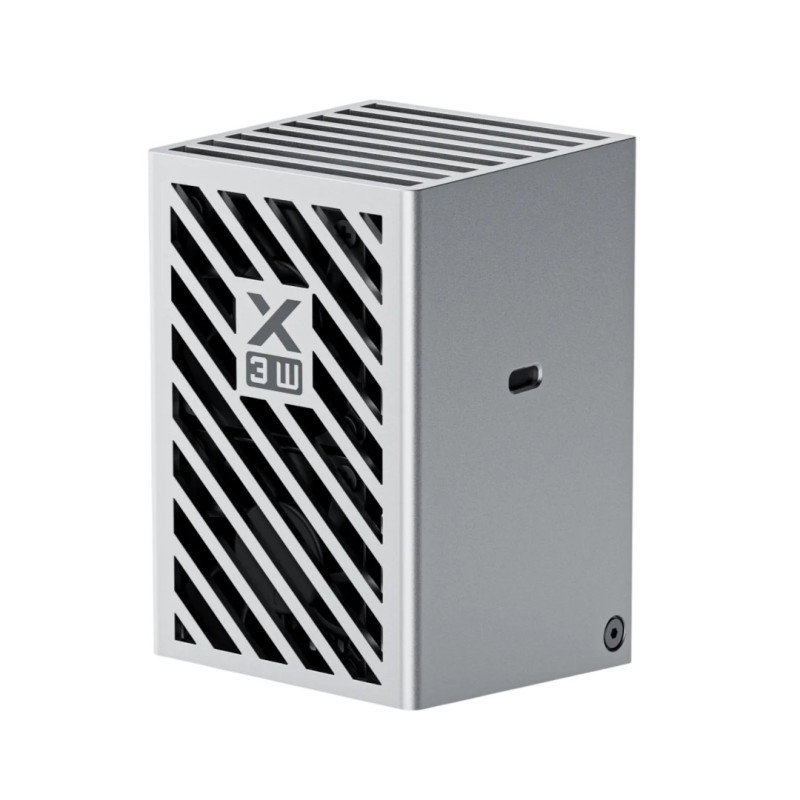

The 3 W infrared laser module is a replaceable 1064 nm head for the xTool M2 that marks stainless steel, aluminum, brass, silver, gold and selected plastics. Metals absorb this beam better than blue laser light, so you can use it for lettering on jewelry, engraving on metal key rings and serial number markings.
The module works on a 412 x 310 mm area and uses the standard M2 power supply. You position the design with the red cross, and before first use you calibrate the camera in xTool Studio.
Moduł laserowy podczerwieni 3 W 1064 nm do xTool M2
1064 nm
infrared laser wavelength
3.3 W
max. optical power
412 x 310 mm
working area in the xTool M2
red cross
project position indicator
A good choice for you?
A good choice if:
- you want to engrave jewelry, metal key rings and tags
- you mark parts with serial numbers
- you have an M2 and want to expand its capabilities to metalwork without buying a second machine
Consider another option if:
- you want to cut wood and acrylic: choose 20 W diode module
- you do not have an M2 yet: see xTool M2 with a 10 W laser
xTool M2 laser modules
| 20 W diode module | 3 W infrared module | |
|---|---|---|
| Laser type | diode, blue light | infrared |
| Wavelength | 445 ± 15 nm | 1064 ± 10 nm |
| Max. optical power | 24 W | 3.3 W |
| Used for | cutting and engraving wood, acrylic, leather, paper | marking metals and plastics |
| Working area in the M2 | 426 x 320 mm | 412 x 310 mm |
| Position indicator | low-power blue light | red cross |
| View | 20 W diode module | this page |
Did you know?
Why infrared for metal
A blue laser struggles with highly reflective metals such as mirror-finish steel and copper. The 1064 nm infrared beam is absorbed better by metals, which is why xTool recommends it for marking steel, aluminum and precious metals.
Source: xTool: 3 W 1064 nm module
Frequently asked questions
What is this module for?
The 3 W infrared module is designed for marking and engraving metals and plastics. For cutting wood and acrylic in the M2, use the 10 W and 20 W diode modules.
Does the RA3 Lite need a shield?
No. With the 3 W infrared module, the laser shield from the RA3 Lite kit is not needed.
The fan sometimes stops. Why?
The module fan changes speed depending on temperature and may stop briefly. This is normal.
Kit contents
- 1 x 3 W infrared laser module for xTool M2
- 1 x Paper for test engraving
- 1 x Manual
Technical specifications
| Parameter | Value |
|---|---|
| Type | infrared laser module |
| Compatibility | xTool M2 |
| Wavelength | 1064 ± 10 nm |
| Max. optical power | 3.3 W |
| Indicator | red cross, 650 nm |
| Materials | stainless steel, aluminum, anodized aluminum, brass, silver, gold, selected plastics |
| Working area | 412 x 310 mm |
| Power supply | 25 V, up to 2 A, from the standard M2 power supply |
| Operating temperature | 0 °C-35 °C |
| Dimensions | 65 x 65 x 110 mm |
| Manufacturer code | P0102000234 |
| Manufacturer | xTool |
Useful links
| Name | Value |
|---|---|
| Rodzaj pracy urządzenia | Engraving |
| Moc lasera | 3 W |
| CNC - Obsługiwane materiały | Advanced |
| CNC - Typ lasera | Infrared |
| Width | 16 cm |
| Height | 12 cm |
| Depth | 20 cm |
| Weight | 0.8 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Be the first to ask a question about this product!
Instructions and documents
GPSR data
Product information
This product is a component intended for further assembly or prototyping. It is not a finished product within the meaning of the product safety regulations.
