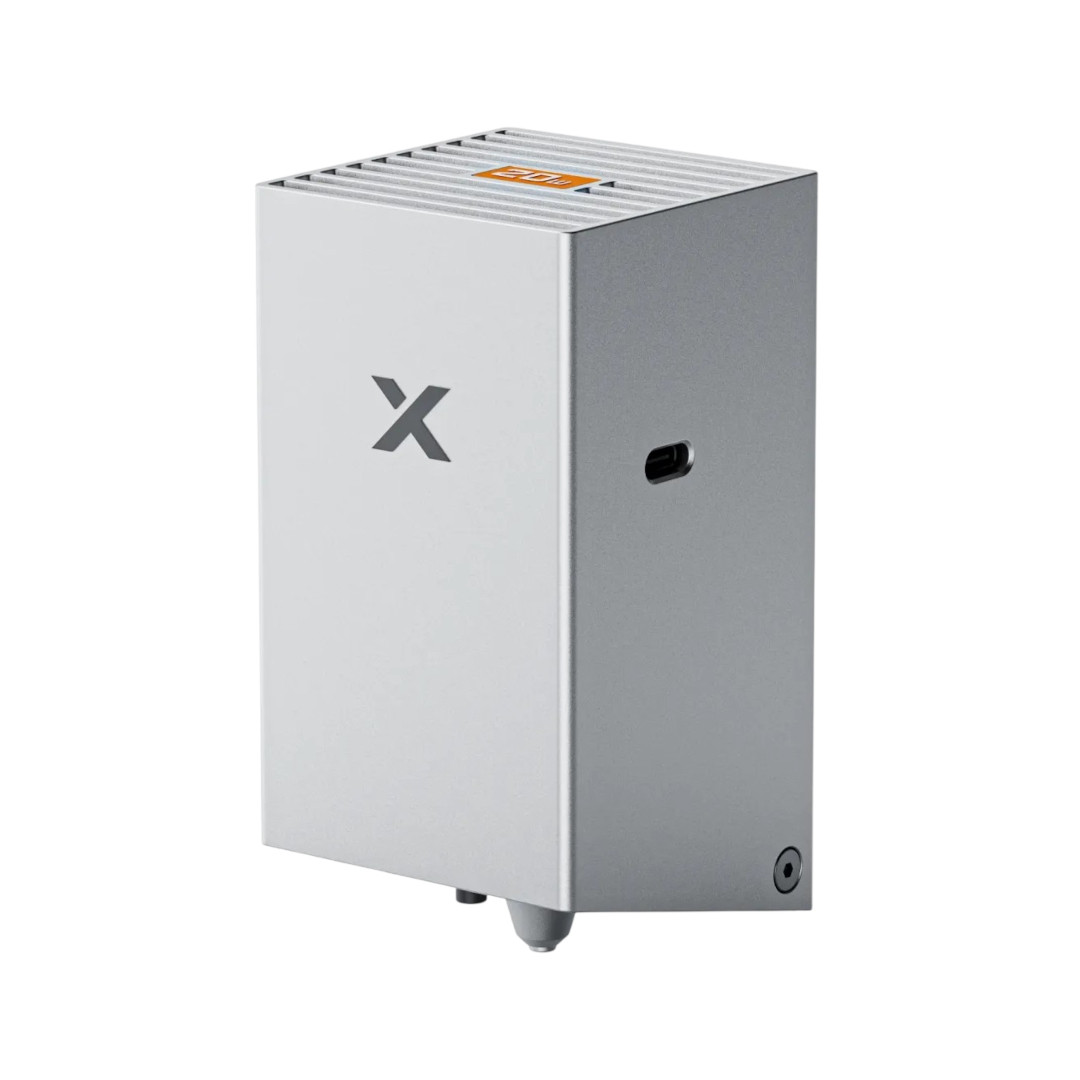

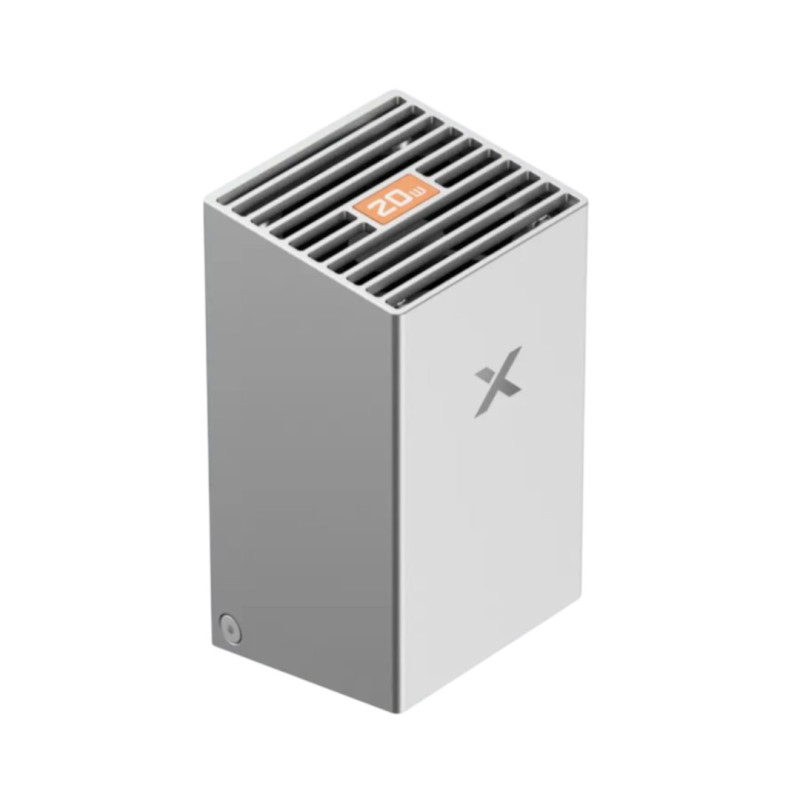

20W diode laser module for xTool M2
20 W diode laser for the xTool M2: a module that replaces the 10 W laser and cuts thicker materials faster.
- Basswood plywood up to 10 mm in a single pass
- 25 V / 6 A power supply included
- Fits only the xTool M2
We could not load the price.
List price
Your price
Net price:
The promotional price does not combine with quantity discounts.
Price:
Regular price:
Remaining time until the promotion ends:
Thicker cuts in the M2 without changing machines
The 20 W diode laser module is a replaceable head for the xTool M2 that cuts basswood plywood and cherry wood up to 10 mm and black acrylic up to 8 mm in a single pass. You fit it in place of the 10 W module on two locating pins and connect it with the same cable.
The module cuts 3 mm plywood at 15 mm/s, while the 10 W laser manages 8 mm/s. A 25 V / 6 A power supply is included, because the M2 with the 20 W laser needs more power than with the 10 W module.
Moduł laserowy diodowy 20 W do xTool M2
10 mm
basswood plywood cut in a single pass (10 W module: 8 mm)
24 W
max. optical power of the laser
426 x 320 mm
working area in the xTool M2
445 nm
blue laser wavelength
A good choice for you?
A good choice if:
- you have an M2 with a 10 W laser and want to cut thicker plywood or black acrylic
- you want to shorten the cutting time of a series of parts
- you need a spare module for a workshop
Consider another option if:
- you do not have an M2 yet: choose xTool M2 with a 20 W laser
- you want to mark metal: see 3 W infrared module
xTool M2 laser modules
| 20 W diode module | 3 W infrared module | |
|---|---|---|
| Laser type | diode, blue light | infrared |
| Wavelength | 445 ± 15 nm | 1064 ± 10 nm |
| Max. optical power | 24 W | 3.3 W |
| Used for | cutting and engraving wood, acrylic, leather, paper | marking metals and plastics |
| Working area in the M2 | 426 x 320 mm | 412 x 310 mm |
| Position indicator | low-power blue light | red cross |
| View | this page | 3 W infrared module |
Did you know?
A dedicated power supply in the kit
The 20 W module draws up to 3.4 A at 25 V, which is why the M2 with this laser uses a 25 V / 6 A power supply. The 10 W, infrared and printing modules work with a 25 V / 4.8 A power supply.
Source: xTool Support: M2 FAQ
Frequently asked questions
Does it fit the xTool M1?
No. The 20 W module only fits the xTool M2.
Does the RA3 Lite need a shield?
Yes. When using the RA3 Lite rotary module with the 20 W module, you install the laser shield from the RA3 Lite kit.
Kit contents
- 1 x 20 W diode laser module for xTool M2
- 1 x Power supply
- 1 x Manual
Technical specifications
| Parameter | Value |
|---|---|
| Type | diode laser module |
| Compatibility | xTool M2 |
| Wavelength | 445 ± 15 nm |
| Max. optical power | 24 W |
| Spot size | 0.06 x 0.08 mm |
| Cutting basswood plywood | up to 10 mm in a single pass |
| Cutting black acrylic | up to 8 mm in a single pass |
| Cutting stainless steel foil | 0.04 mm |
| Power supply | 25 V, up to 3.4 A; 25 V / 6 A power supply included |
| Operating temperature | 0 °C-35 °C |
| Dimensions | 55 x 56 x 105 mm |
| Manufacturer code | P0102000232 |
| Manufacturer | xTool |
Useful links
| Name | Value |
|---|---|
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera | 10 W |
| CNC - Typ lasera | LED |
| Width | 16 cm |
| Height | 12 cm |
| Depth | 20 cm |
| Weight | 0.8 kg |
