Product description: Laser head module for TOOCAA NOVA plotter - 2 W IR
The laser head module expands the capabilities of your laser engraver to precisely mark materials where standard 455nm diode modules may not deliver adequate results . It emits invisible infrared radiation with a wavelength of 1064 ± 1 nm and a power of 2 W. The short pulse length allows for clear marking of text, serial numbers, codes, symbols, and fine patterns. The module is designed to work with the TOOCAA NOVA plotter , which supports interchangeable 2W IR, 10W , and 20W laser sources. The plug-and-play design makes it easy to adapt the device to the type of material being processed without having to purchase a separate engraver. A red guide laser with a wavelength of 655 ± 5 nm helps determine the position of the working beam. The laser module is Class 4. It should only be used in a properly closed device enclosure, in accordance with the manufacturer's instructions, and with eye and skin protection in mind.

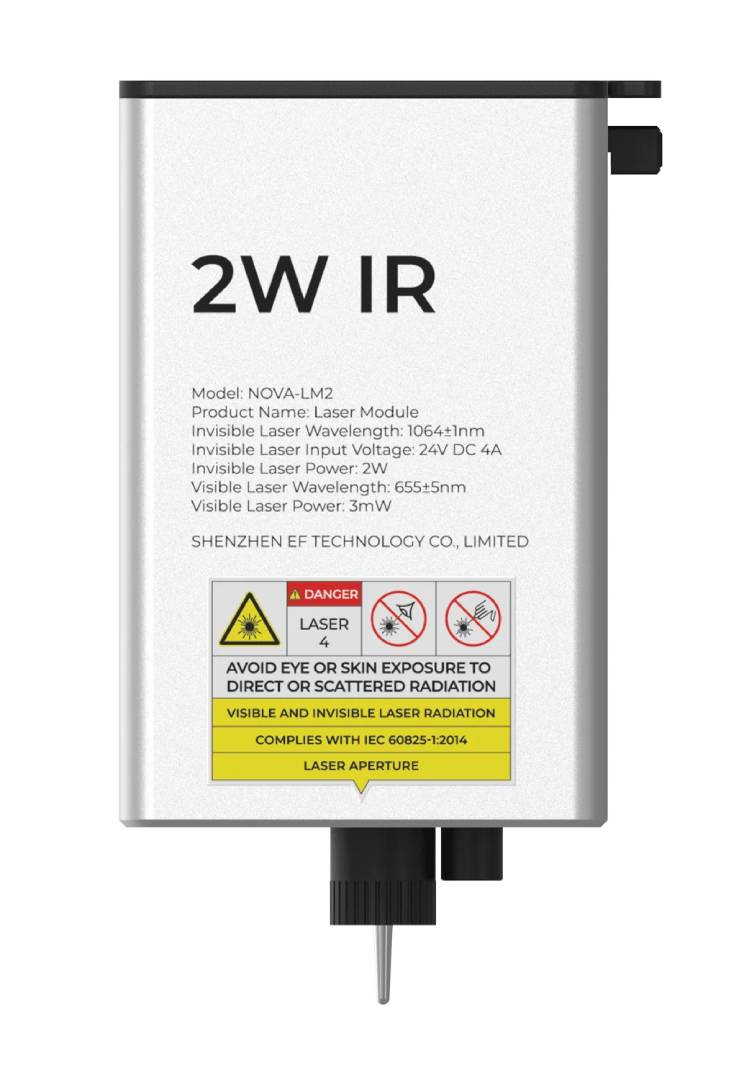

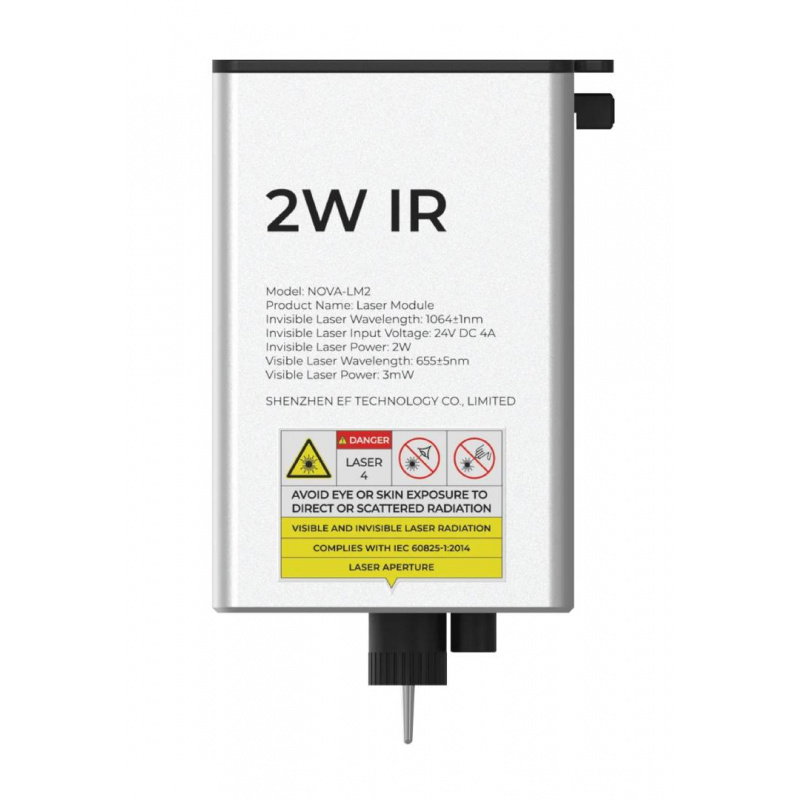

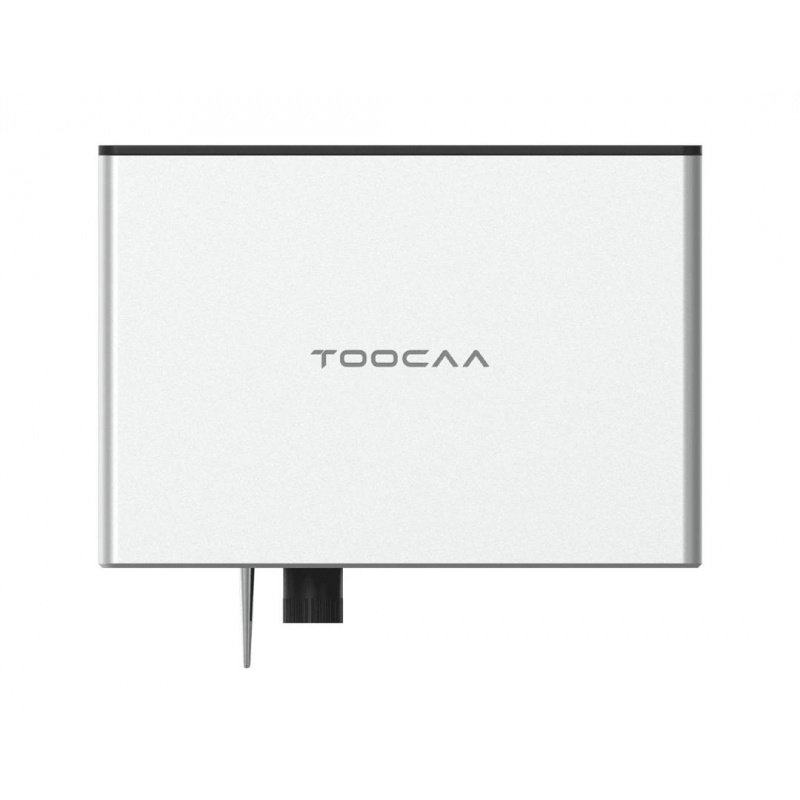

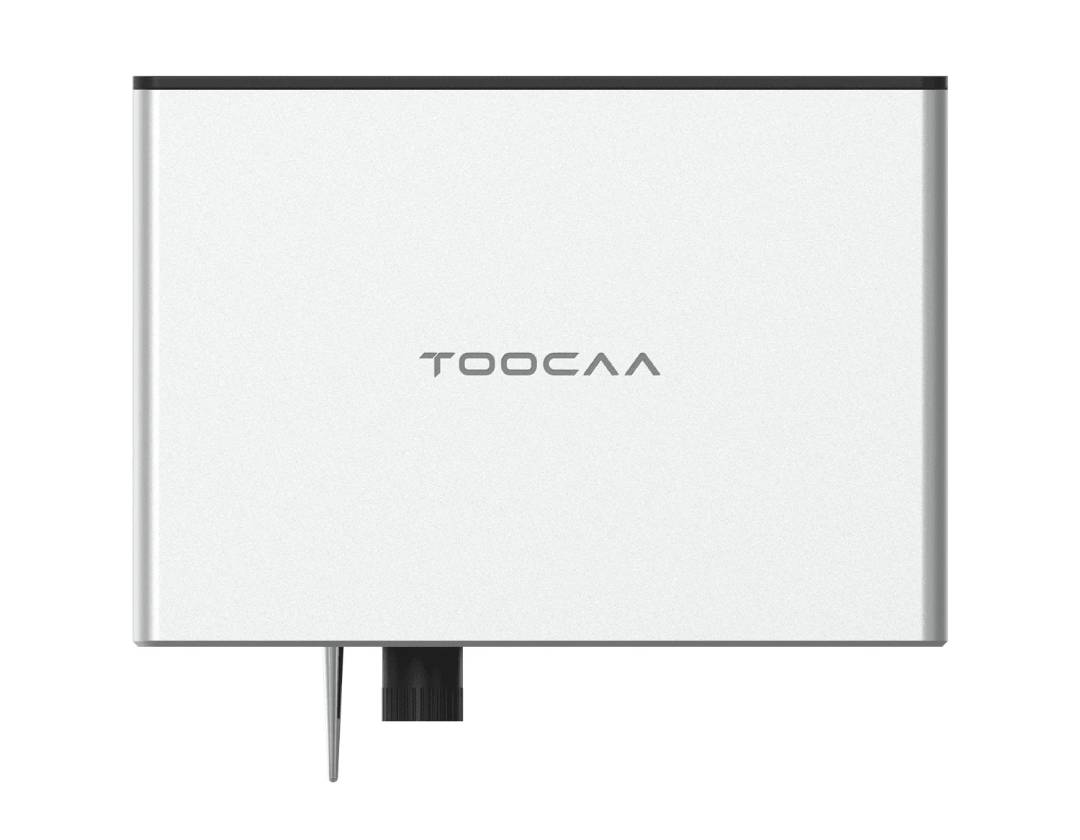

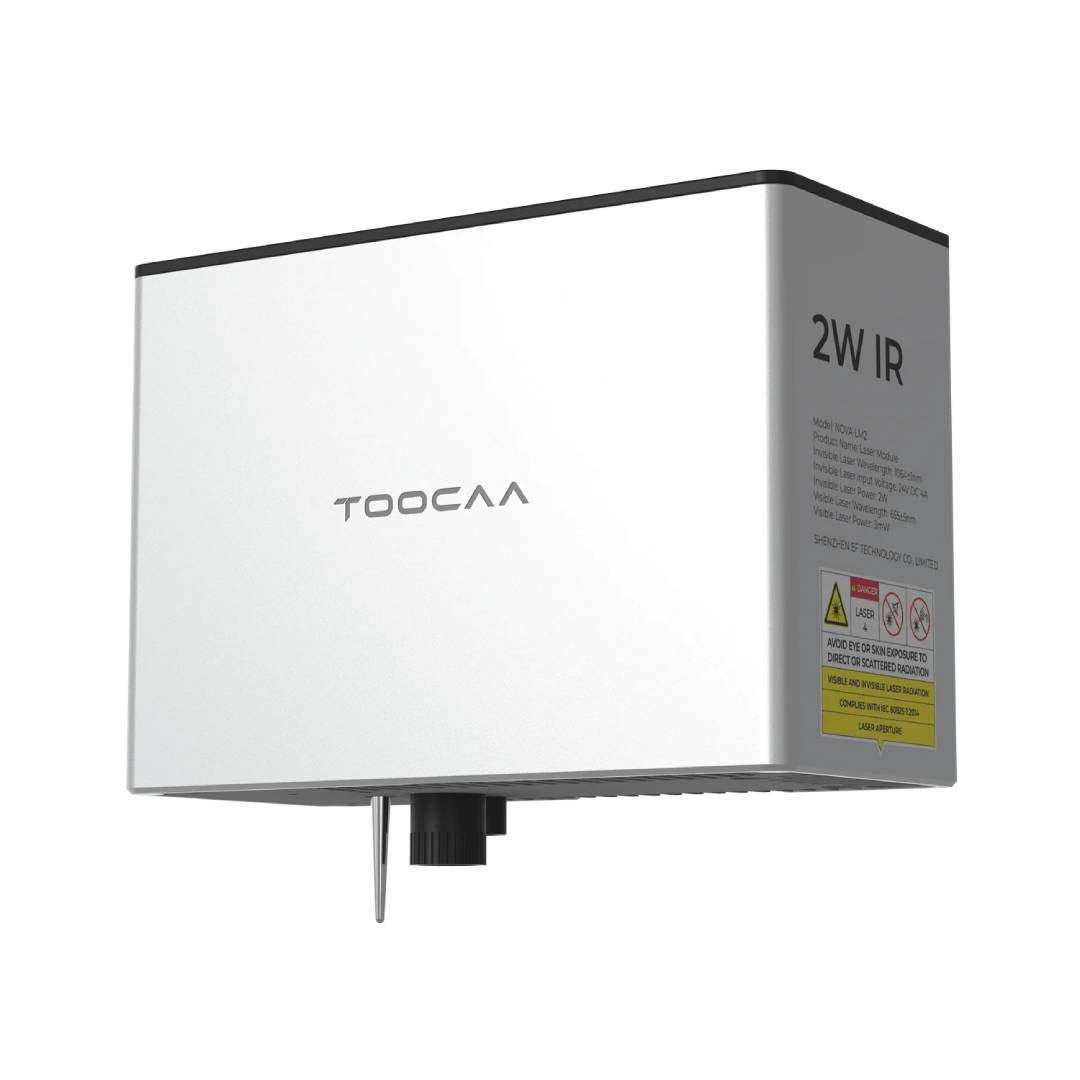

Laser head module for TOOCAA NOVA plotter - 2 W IR.
Infrared laser module designed for the TOOCAA NOVA plotter.
Main features of the 2W IR laser head
- Infrared laser for precise engraving and marking
- Optical power 2 W
- Working wavelength 1064 ± 1 nm
- Red positioning laser 655 ± 5 nm
- Possibility of applying small inscriptions, symbols, codes and graphics
- Designed for the TOOCAA NOVA laser engraver
- Interchangeable design allows for an expanded range of materials supported
Application of the 1064 nm infrared laser
The module can be used, among others, for:
- metal marking
- engraving jewelry and small metal elements
- applying serial numbers and technical markings
- marking of selected plastics
- making QR codes, logos and small inscriptions
- personalization of accessories and utility items
The machining result depends on the exact material composition, surface finish, and power and speed settings . Before starting the actual work, it is recommended to test on a small piece of material.
Technical specifications of the laser module
- Compatibility: TOOCAA NOVA laser engraver
- Type: Pulsed Infrared Laser
- Power: 2 W
- Laser spot size: 0.06 x 0.06 mm
- Infrared laser wavelength: 1064 ± 1 nm
- Visible laser wavelength: 655 ± 5 nm
- Visible laser power: 3 mW
- Input voltage: 24V DC
- Maximum input current: 4 A
- Laser class of the module itself: 4
Contents of the set
- TOOCAA NOVA 2W infrared laser module
The laser module enables precise marking of metals, plastics, leather, stone and other materials.
