Product description: Arduino Plug and Make Kit - Arduino Uno R4 WiFi set and 7 Qwiic modules - AKX00069
Arduino Plug and Make Kit is the perfect solution for anyone who wants to start their adventure with creating IoT devices without the need to delve into complicated theory. The set introduces a hardware approach without the use of a breadboard, which makes working with it simple and pleasant. Thanks to the intuitive Arduino ecosystem and a detailed online guide, even beginners can quickly immerse themselves in the world of creating electronic projects.
The kit allows you to complete projects in less than 45 minutes, which means you can spend more time adapting and developing your ideas. Innovative Modulino modules and the Qwiic connector on Arduino Uno R4 WiFi enable easy and quick connection of subsequent elements. Thanks to the templates available in Arduino Cloud , your concepts will quickly turn into fully working projects.
Arduino Plug and Make Kit - Arduino Uno R4 WiFi set and 7 Qwiic modules - AKX00069.
Arduino Plug and Make Kit is the perfect kit to start your adventure with IoT.
Main features of the Arduino Plug and Make kit
- No need for additional tools : the kit includes everything you need to get started.
- No breadboard or soldering : you can make all connections without the need to use a breadboard or soldering iron.
- Quickly implement IoT projects : The kit allows you to create a functional IoT project in less than 45 minutes.
- Individual project selection : you can start with the project that interests you most and customize your learning path.
- Learning and working online : Thanks to the Arduino ecosystem, you can continue learning and working on projects from any computer with Internet access.
Arduino Uno R4 WiFi
Arduino UNO R4 WiFi is the latest choice among creators, offering powerful microprocessors with WiFi and Bluetooth Low Energy communication functions, Qwiic connector, DAC converter, large LED matrix and much more.
Modulino
Modulino modules are a collection of Qwiic (I2C) compatible sensors and actuators that simplify hardware connections. This allows beginners to get started quickly and experienced creators to quickly prototype their ideas.
- No soldering : focus on the application, forget about complicated breadboards, wires and soldering.
- Polarized Connectors : You can't go wrong, there's only one way to connect everything together.
- Daisy-chaining capability : Connect several Qwiic-compatible modules one by one and expand the possibilities of your next project.
The set includes 7 projects with a step-by-step guide.

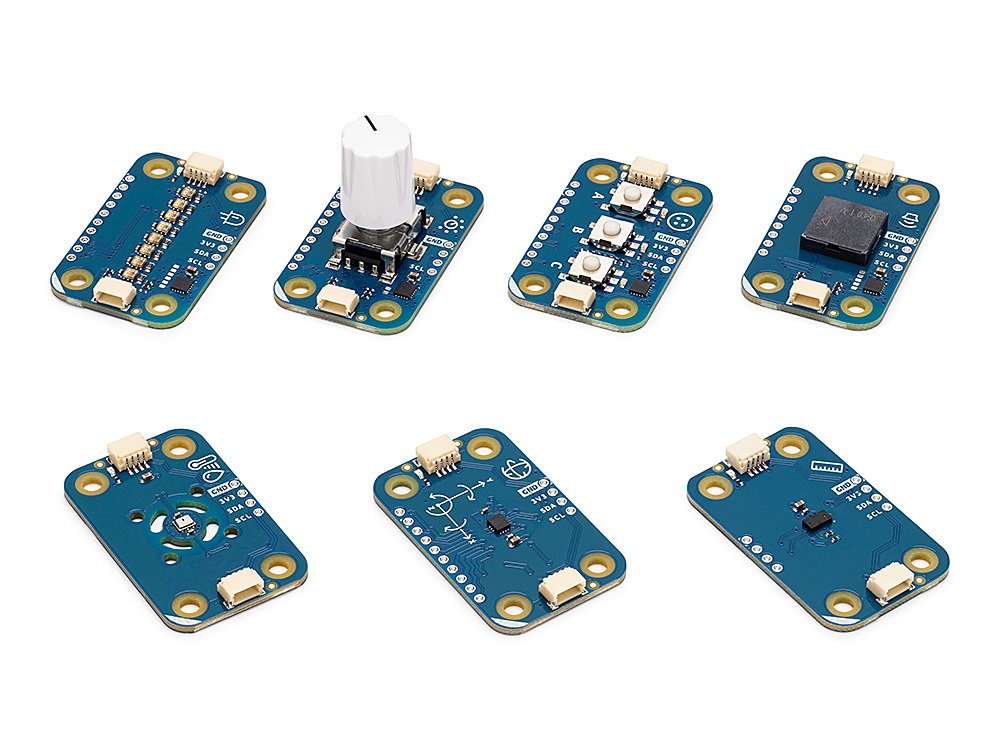

Modules included in the set.The modules include:
- Knob (encoder with button)
- Buzzer
- Pixels (8 RGB LEDs)
- Buttons (3 buttons)
- Distance (Time-of-Flight distance sensor)
- Thermo (temperature and humidity sensor)
- Movement (6-axis IMU)
Online platform
The online platform for the Arduino Plug and Make kit offers a friendly introduction to the Arduino ecosystem and seven detailed step-by-step guides for creating IoT projects. The platform consists of three main sections:
- Getting Started : A friendly introduction to the world of Arduino, with an interactive guide to the Arduino ecosystem.
- Projects : Seven fully documented, step-by-step IoT projects that can be completed in less than 45 minutes each.
- Components : each chapter shows how to use Modulino modules individually.
Online platform with detailed guides.

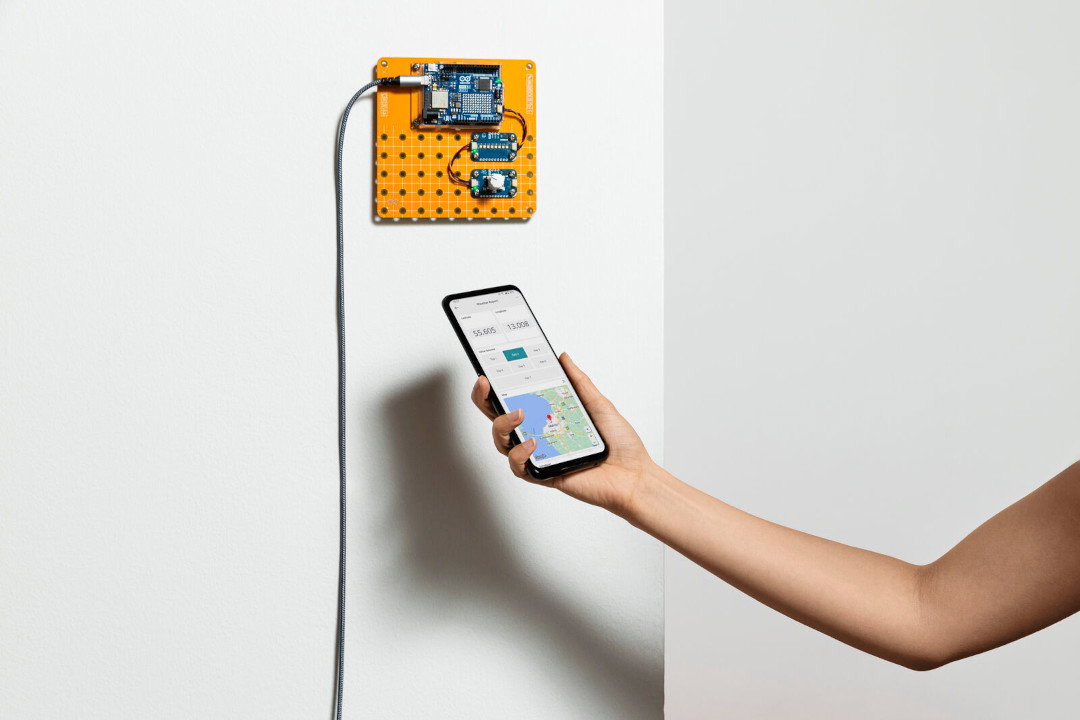

Remotely controlled light project.
Designs included in the kit
- Eco watch : monitor temperature and humidity to create ideal conditions for plants.
- Game Controller : Transform your Arduino Uno R4 WiFi into a game controller by emulating a keyboard and mouse.
- Sonic synth : Create your own electronic instrument that allows you to produce 8-bit sounds.
- Smart Lights : Create a smart lamp by customizing its colors and behaviors and managing it remotely.
- Touchless Lamp : Control the lamp with hand gestures, adjusting the brightness without touching a button.
- Weather report : Create a weather station by viewing forecasts and monitoring temperatures.
- Hourglass : Construct a dynamic digital hourglass, set timers and visualize the passage of time.
Arduino UNO R4 WiFi specification
- Microcontroller: Renesas R7FA4M1AB3CFM#AA0
- Architecture: ARM Cortex-M4
- Operating voltage: 5V
- Supply voltage: 6V to 24V
- Digital inputs/outputs: 14, of which 6 can be used as PWM
- Analog inputs: 6
- PWM: 6
- UART: 1
- Clock speed: 48 MHz
- Flash memory: 256 KB
- SRAM: 32KB
- Connectivity: WiFi 2.4 GHz IEEE 802.11 b/g/n, Bluetooth Low Energy (BLE) 4.2
- USB port: USB-C
- Communication interfaces: SPI, I2C, UART
- DAC converter: 1x 12-bit
- LED matrix: 12x8
- Qwiic Connector: Yes
- Dimensions: 68.85 mm x 53.34 mm
Set contents
- Arduino Uno R4 WiFi
- 7x Modulino (sensors and actuators)
- Cables (USB-C, Qwiic)
- Stand with screws and nuts
- Online platform (EN, ES, DE, IT, FR)
- Cloud + smartphone application

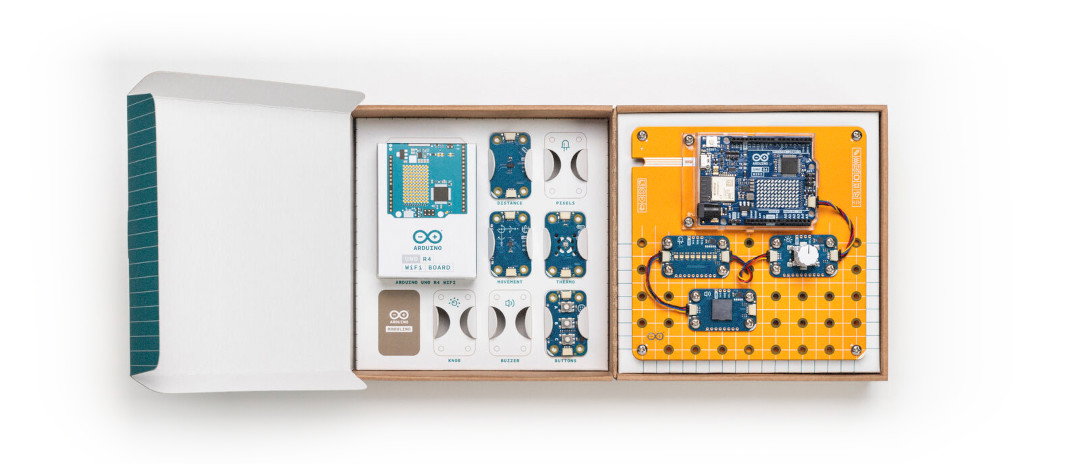

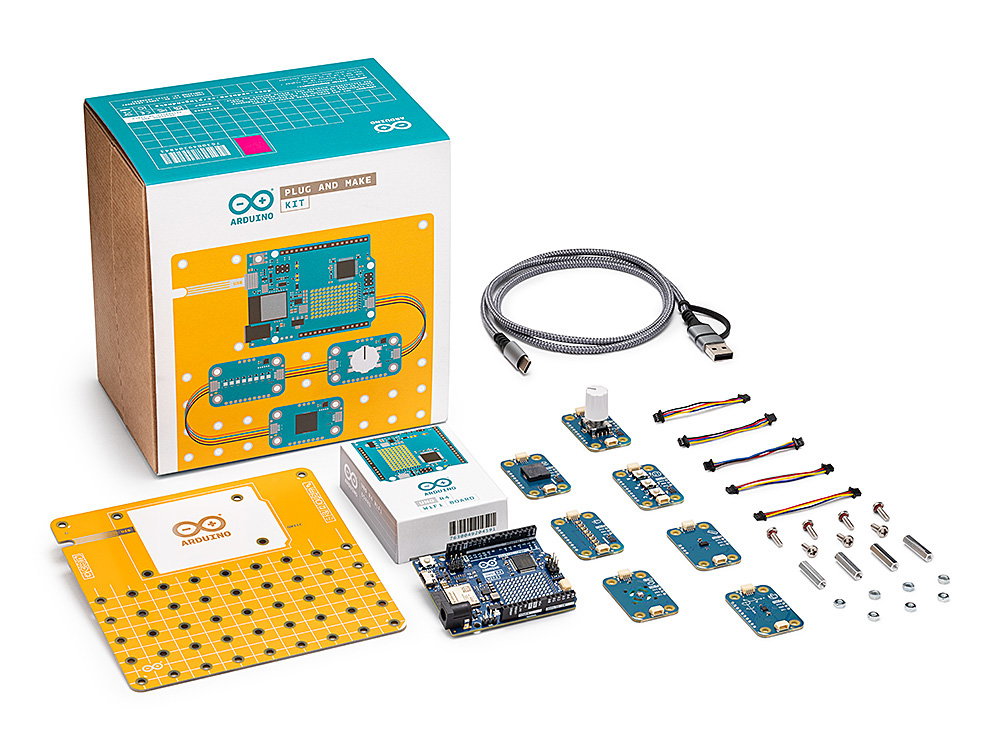

Contents of the Arduino Plug and Make Kit.
