Description
The kit includes the base plate Arduino Uno together with a set of many elements introducing to the world of programmable electronic systems. Simple language and a friendly environment allow Arduino to create programs even for beginners. Executive elements, including LCD display with soldered connectors and DC motor together with the controller, will help you to get familiar with problems of operation of the most frequently used devices in electronicts and robotics.

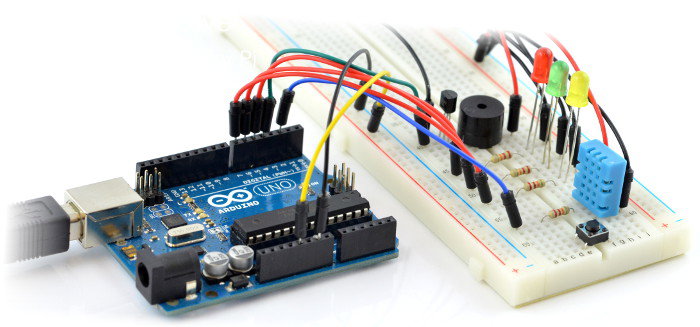

Large breadboard and the connection cables can be used to connect circuits. Buttons with LEDs and an easily readable LCD display 16x2 allow you to create a user interface. The kit also includes sensors with which the user can collect data from the environment, as well as an integrated circuits, including a dual-channel motor driver to control actuators.
| Buying StarterKit from Botland company, at the same time, you order a set of elements designed to create simple electronic circuits based on the Arduino modules that will allow you to gain valuable knowledge and experience in more complex projects in the future. |

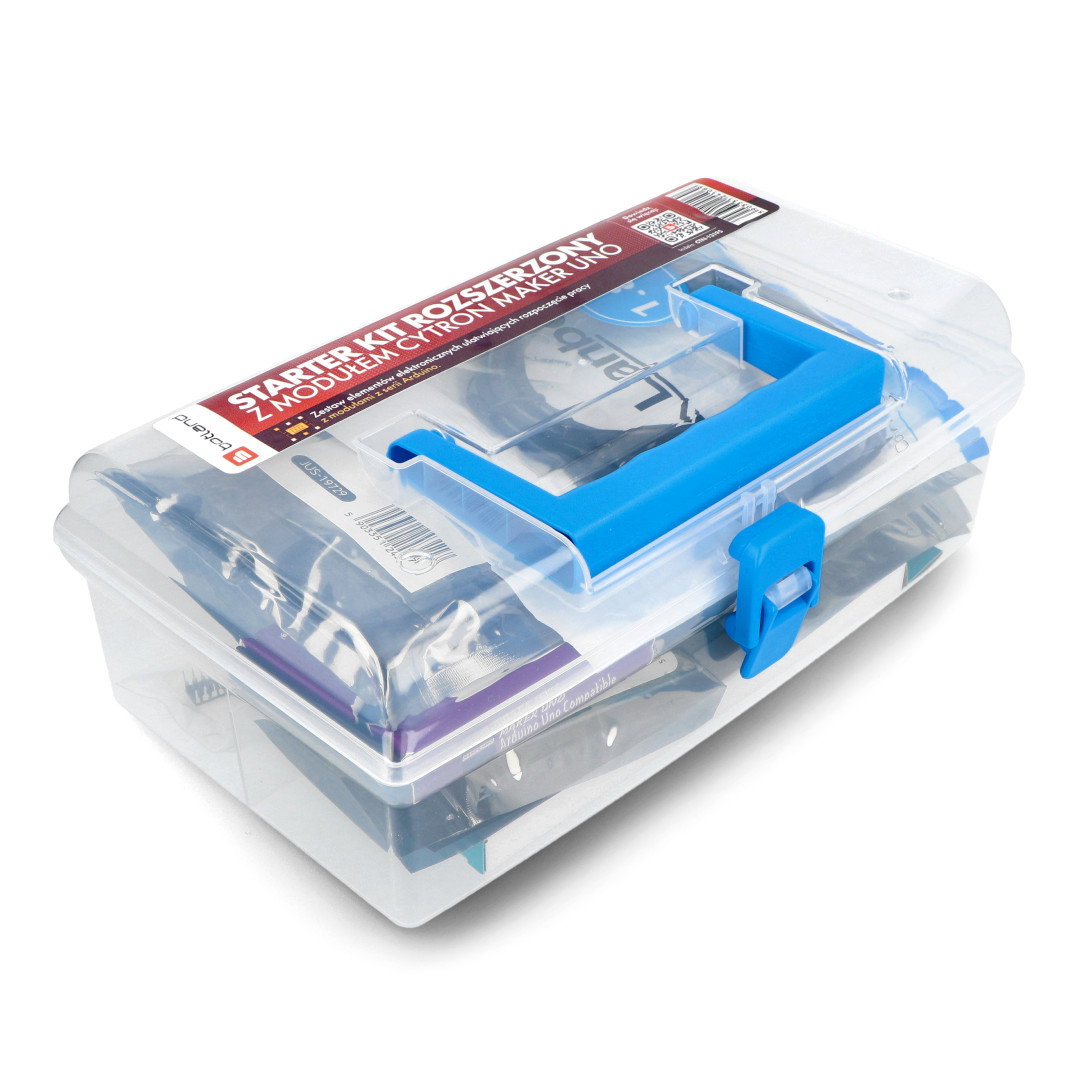

This version is sent along with an organizer for easy storage and transport of the kit.
The set consists of:
| L. p. | Photo | Description |
|---|---|---|
| 1 |  |
Cytron Uno Maker - module with Atmega328 microcontroller. |
| 2 |  |
Breadboard 830 fields- a large board with separate power lines to create electronic circuits. |
| 3 |  |
A set of LEDs of 5 mm (30 PCs)- 10 PCs. of red, green and yellow elements. |
| 4 |  |
RGBLED common anode - LED with four pins that is able to glow in all colors. |
| 5 |  |
A set of resistors (200 PCs)- 20 PCs. of the most popular values enabling, for example, the connection of the LEDs. |
| 6 |  |
BC547 NPN transistors (5 pieces)- semiconductor systems, allowing, i.a. to control the elements that consume more current than a single pin of the microcontrollercan provide. |
| 7 |  |
TheLM35 analog temperature sensor - is a popular, easy to use thermometer connected to the analog inputs of the Arduino. |
| 8 |  |
Photoresistor - sensor for measuring the illumination of the incident light, allows, for example, to detect if the room is dark or light. |
| 9 |  |
Tact-switch buttons - will serve as an element of introducing data to the module of Arduino. |
| 10 |  |
Potentiometer 10k or 20k (5 PCs)- similar to buttons, they are connected to the analog pins and can serve as an element of the user's interface - a simple knob. |
| 11 |  |
The shift register - it enables, for example, manage a large number of LEDs, while saving the digital pins of the Arduino. |
| 12 | |
The PCF8574 expander - allows you to increase the number of pins of Arduino. |
| 13 |  |
Buzzer with generator- powered by 5 V, a simple sound signal generator. |
| 14 |  |
Connection wires, 65 PCs of male-to-male - can create connections on the breadboard and between board and Arduino. |
|
15 |
 |
MicroUSB cable with length of 1,5 m - serves to connect the Arduino with the computer. |
| 16 |  |
DHT11 - sensor to measure temperature and air humidity |
| 17 |  |
LCD display 16x2 with soldered goldpin connectors- with blue backlight - popular alphanumericdisplay with available library for Arduinowith soldered goldpin connectors. |
| 18 |  |
The L293D motor driver - H bridge which enables control of the direction and speed of two DC motors |
| 19 |  |
DC motor- a small, simple DC motor powered with the voltage from 3 V to 5 V |
| 20 |  |
PIR HC-SR501 motion sensor - detects motion |
| 21 |  |
Distance sensor HC-SR04 - ultrasonic distance sensor, operating in the range from 2 cm to 200 cm |
|
22 |
 |
Organizer to facilitatemoving the set. |
