Product description: Set of electronic components for Arduino KTS042
A set of prototype components that can be used to create electronic circuits with Arduino or other microcontrollers. The set includes: contact board, wire sets, Tact Switch buttons, LEDs, and a table to help identify resistors and much more. The whole thing is enclosed in a small container.
The set includes:
| L.p. | Picture | Description |
|---|---|---|
| 1 |  |
Contact plate 400 holes - 1 pc. Used for rapid prototyping circuits. |
| 2 |  |
Passive buzzer - 1 pc. Buzzer without a continuous tone generator. Allows you to add sound signalling to the project. |
| 3 |  |
Active buzzer - 1 szt. Buzzer with continuous tone generator. Enables adding sound signaling to the project. In active buzzer it is enough to give low state on its foot to make it emit sound. |
| 4 |  |
Precision potentiometer - 1 pc. Can be used as a knob in the user interface. |
| 5 |  |
Electrolytic capacitor 10 uF / 50V - 10 pcs. A passive electrical component characterized by the ability to store electric charge, used for power filtration and voltage regulators. It has a capacity of 100 uF / 50 V. |
| 6 |  |

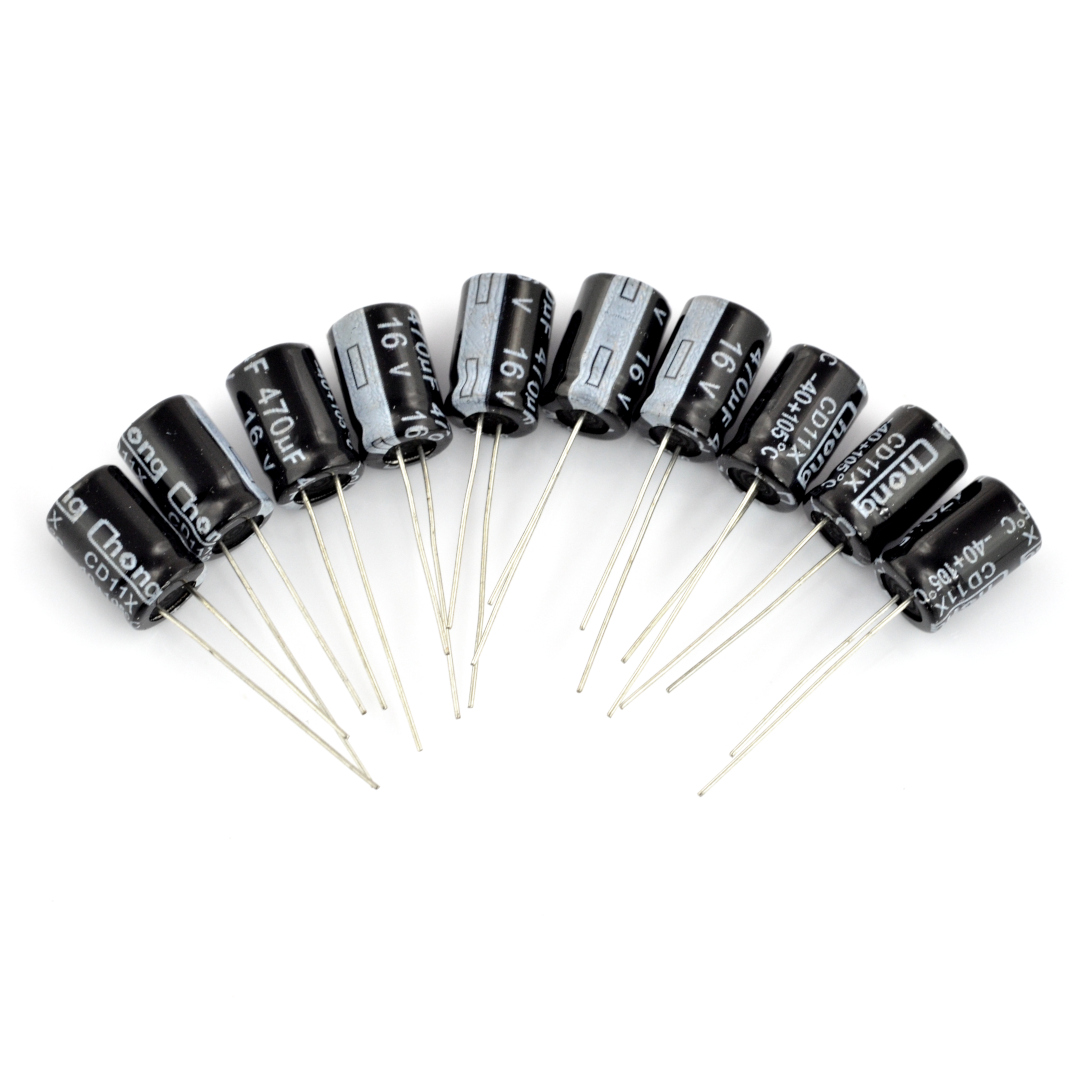

Electrolytic capacitor 470 uF / 16 V - 10 pcs. A passive electrical component with the ability to store electrical charge, used for power filtration and to create voltage regulators. Its capacity is 10 uF / 50 V. |
| 7 |  |
Tact switch 12x12mm with cap - yellow, red, blue and green mushroom - 4 pcs. - Monostable pushbutton mounted in a THT way with a size of 12 x 12 mm in yellow, red, blue and green. |
| 8 |  |
RGB LED - 2 pcs. LED diode emitting colours from the RGB colour palette. |
| 9 |  |
|
| 10 |  |
Goldpin 1x40 strip - 2 pcs. |
| 11 |  |

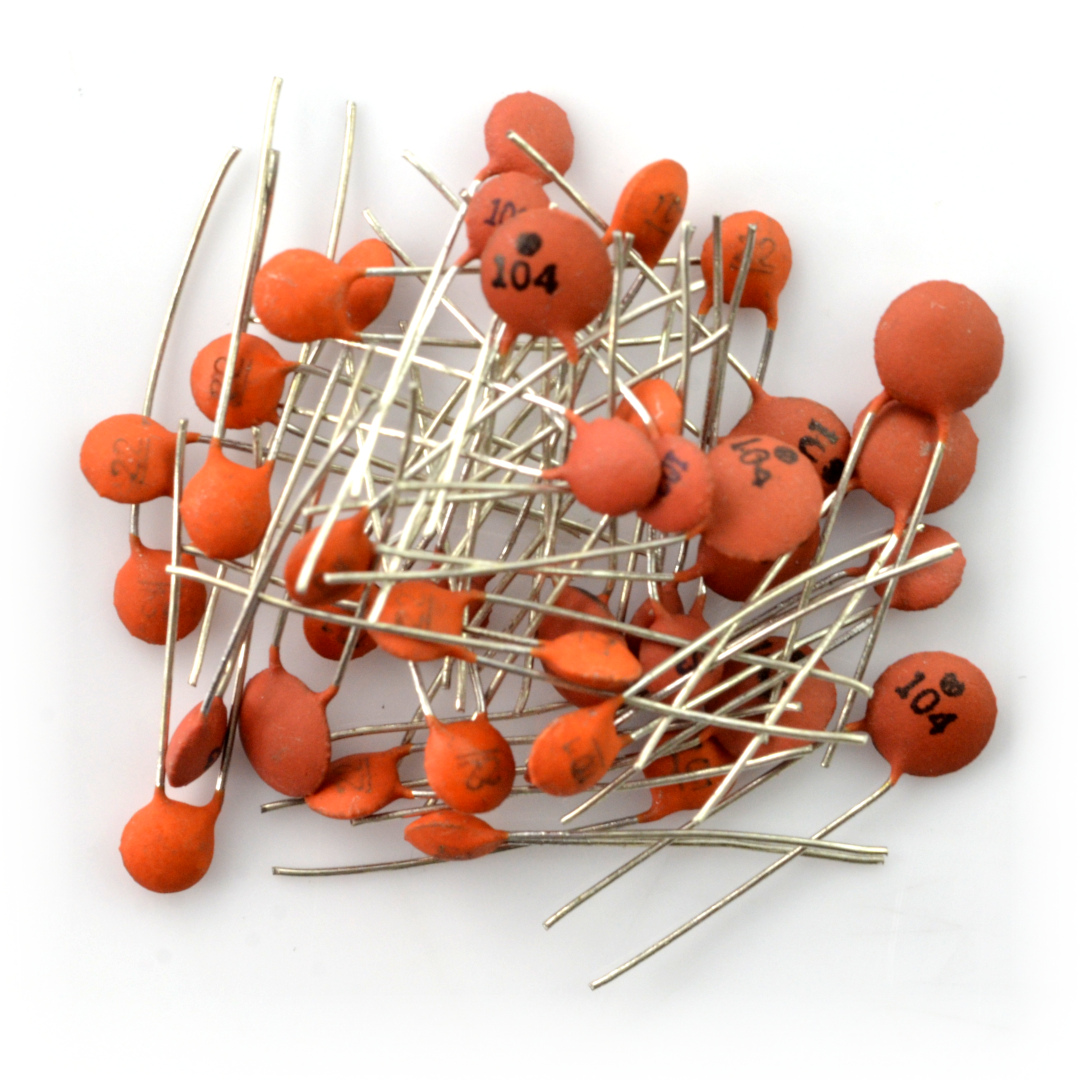

A passive electrical component with the ability to store electrical charge, used in power supply filtration and to create voltage regulators. Included capacitances 100 nF, 10 nF, 100 pF, 22 pF |
| 12 |  |
LED - red - 10 pcs. LED diode emitting red light. |
| 13 |  |
LED - green - 10 pcs. Light emitting diode in green colour. |
| 14 |  |
LED - yellow - 10 pcs. Yellow LED light emitting diode. |
| 15 |  |
LED blue - 10 pcs. Blue emitting diode LED. |
| 16 |  |
4.7 kΩresistor - 10 pcs. A passive electrical component used to limit the current of an electrical circuit. |
| 17 | |
Resistor 330 Ω - 10 pcs. A passive electrical component, used to limit the current of an electrical circuit. |
| 18 | |
Resistor 100 Ω - 10 pcs. Passive electrical component, used to limit the current of an electrical circuit. |
| 19 | |
Resistor 100 kΩ - 10 pcs. Passive electrical component, used to limit the current of an electrical circuit. |
| 20 | |
Resistor 10 kΩ - 10 pcs. A passive electrical component, used to limit the current of an electrical circuit. |
| 21 | |
47 kΩ - 10 pcs. Passive electrical component, used to limit the current of an electrical circuit. |
| 22 | |
Resistor 220 Ω - 10 pcs. |
| 23 | |
1 k Ωresistor Ω - 10 pcs. Passive electrical component, used to limit the current of an electrical circuit. |
| 24 |  |
Resistor colour coding card - 1 pc. A card to help distinguish resistors on the basis of colour stripes on their housing. |
| 25 |  |
Plastic container. |

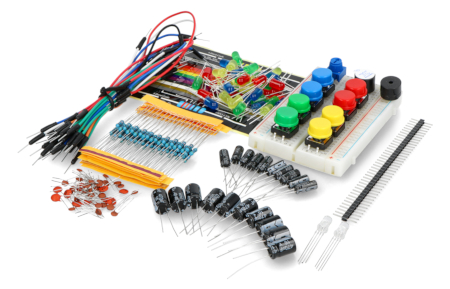

Set of electronic components for Arduino - Iduino KTS042
Iduino KTS042 is a set of electronic components for Arduino. It's an extended set of prototyping parts, with which you can create numerous projects and circuits in Arduino. It's designed for beginners as well as advanced users.
In Iduino KTS042 set (standalone set) are included all elements needed to create circuits. The product is packed in practical plastic container, thanks to which you can store all elements in orderly way.
Elements included in Iduino KTS042
Set of electronic components Iduino KTS042 is based on contact board equipped with 400 holes. It allows you to work quickly and easily to create projects. Next to the board, there are such hardware components as active and passive buzzer, electrolytic capacitors, tact-switch buttons and precision potentiometer.
The Iduino KTS042 also features numerous LEDs, ceramic capacitors, goldpin strips, resistors, and interconnect wires that integrate the rest of the circuit components. A special card is also included to help identify the resistors.
