Description of product: Arduino Make Your Uno Kit - kit for building the Arduino Uno board - Arduino AKX00037
Arduino Make Your Uno Kit is a set that allows you to create your own Arduino Uno module and a sound synthesizer overlay using the elements attached to it. The manufacturer has prepared a detailed guide on how to assemble modules step by step. With it, you will be able to create your own musical instrument ready to create sounds. The set includes, among others PCBs for Arduino and Synth shields, serial adapter with USB C connector, 16 MHz resonator, ATMega 328p microcontroller, LEDs, resistors, capacitors, I / O connectors and PCBs for soldering and debugging testing. Arduino Make Your Uno Kit is a great kit for Arduino fans who want to find out how the Arduino Uno board is made and build it from scratch.
The Arduino Uno module and an overlay for self-assembly.

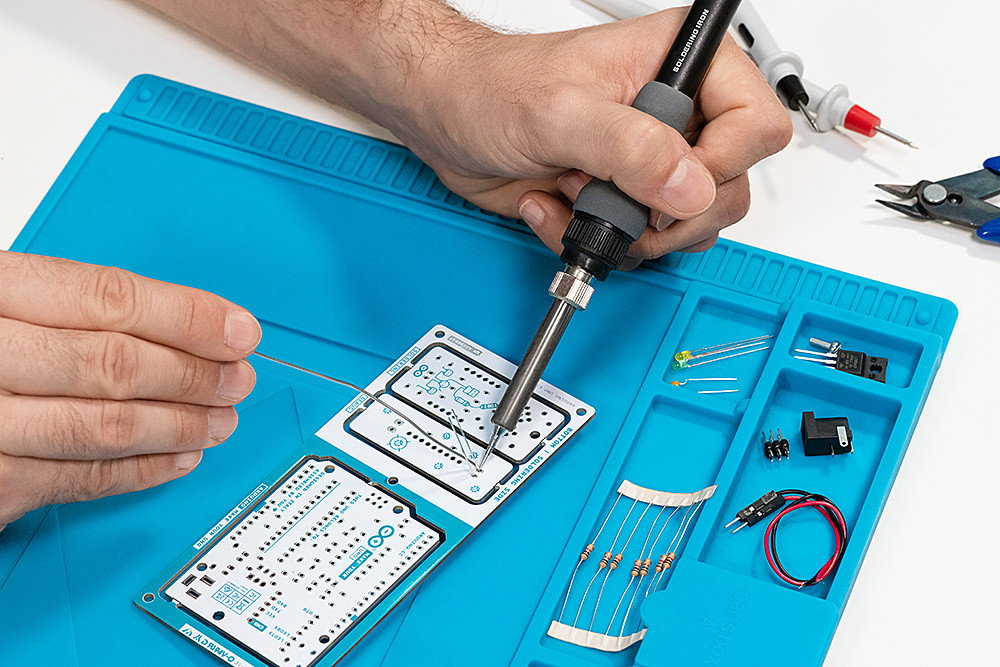

Kit for self soldering.
Who was the Arduino Make Your Uno Kit for?
- For beginners who want to learn how to solder. The tutorial begins with simple classes focusing on learning the basic techniques of soldering, and ends with the finished project.
- For Arduino fans. The kit is a great gift for an Arduino fan who will be able to build his own Arduino Uno board.
- For those who want to learn the secrets of Arduino Uno by creating their own module from the attached elements.
- For people who want to create their own ready-made synthesizer overlay design. With Arduino Make Your Uno there is no need to look for the elements that will be used to build the overlay, all the elements are included in the kit.
The plates included in the kit
- Soldering test plate. Start soldering simple pieces on the test board or use it as a key ring.
- Debug board. It allows you to quickly test your future projects.

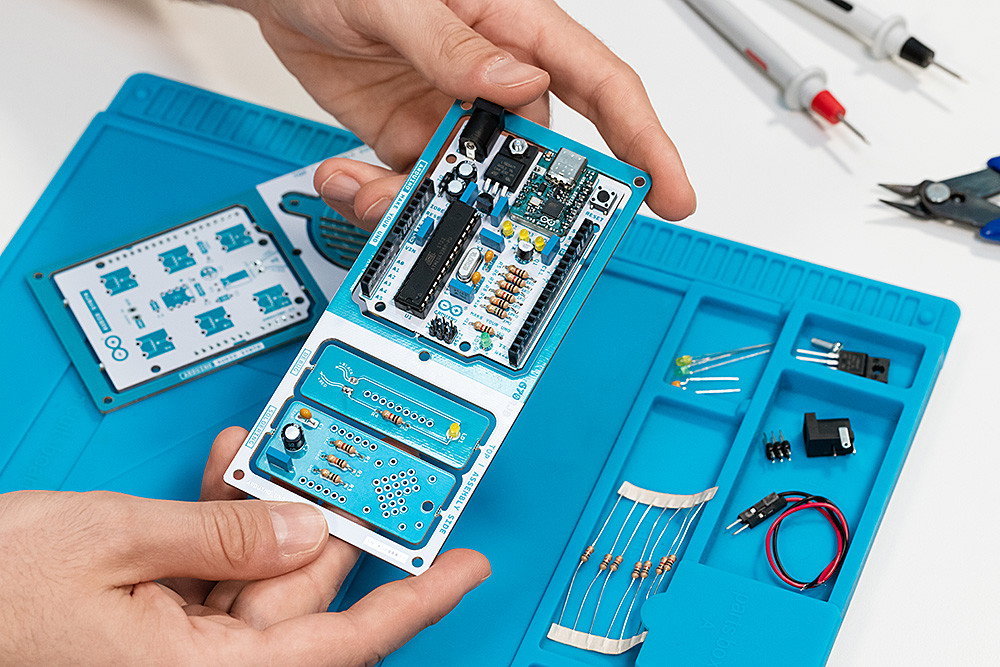

- Uno tile. You will solder all the necessary elements to it to create a fully functional Arduino Uno module with a USB type C connector.

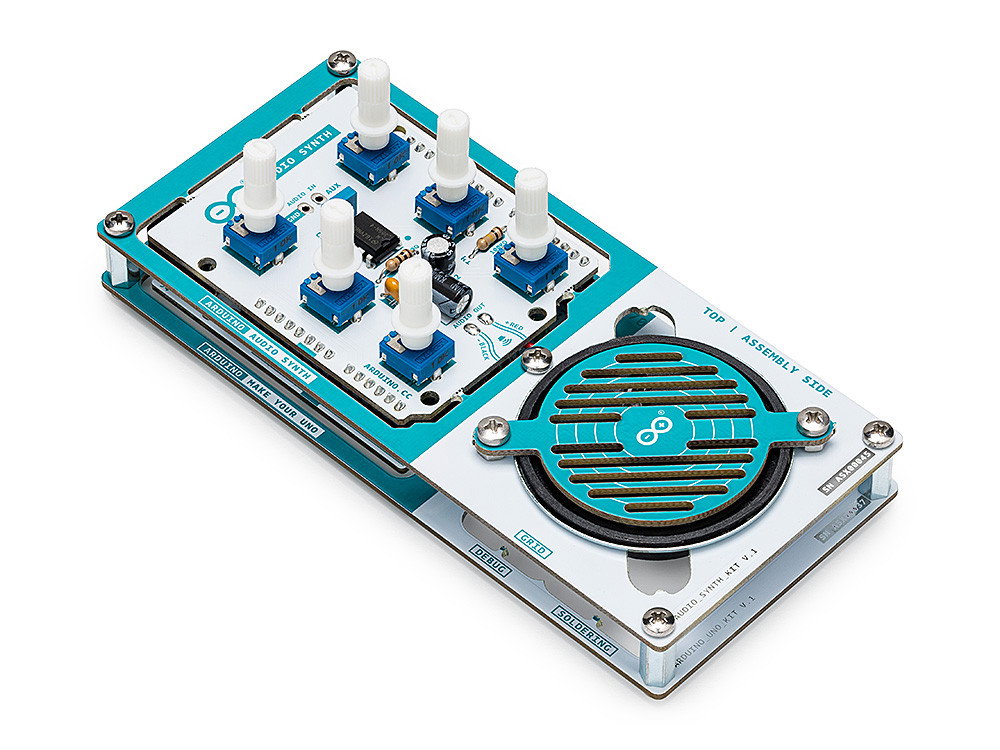

- Synth overlay. It allows you to build a synthesizer overlay for the Arduino Uno module.
The kit includes the Arduino Uno PCB, Synth overlay, debugging and testing.
Arduino Make Your Uno Kit - kit for building the Arduino Uno board - Arduino AKX00037.
Arduino Make Your Uno Kit specification
- Name: Make-Your-UNO kit
- Brand: Arduino Maker
- SKU: AKX00037
- Type: for self-assembly
- Tools required:

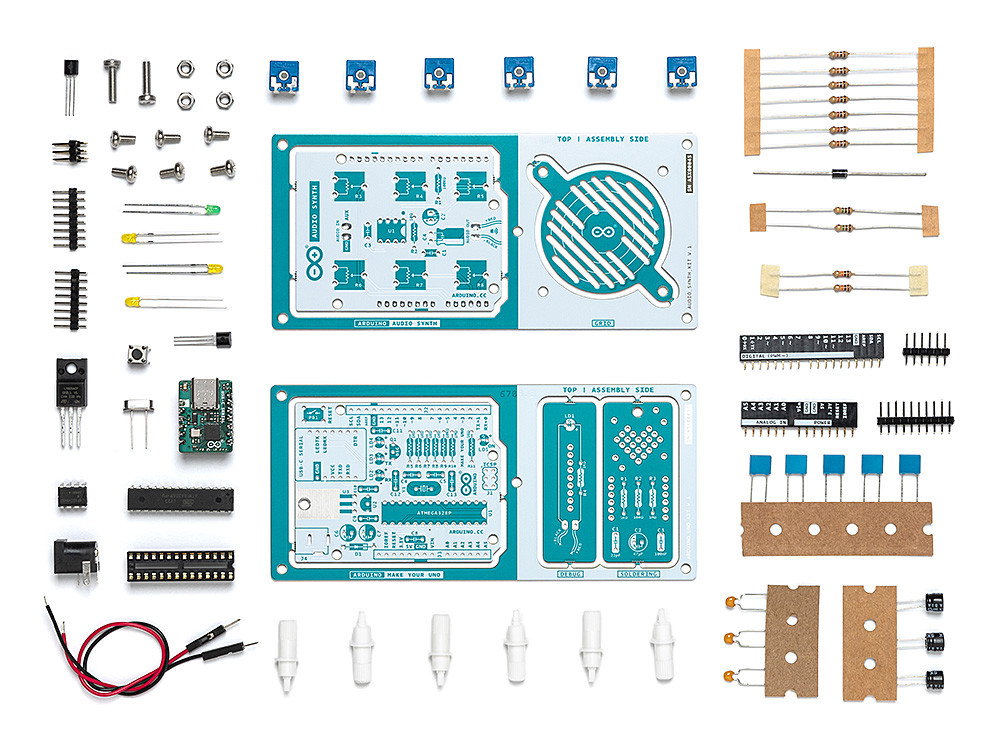

Kit contents
- 1x Arduino Uno PCB
- 1x Audio Synth PCB
- 1x serial adapter board with USB Type-C connector
- 14x 1 kΩ resistor
- 4x 10 kΩ resistor
- 4x 1 MΩ resistor
- 1x 100 kΩ resistor
- 1x 10 Ohm resistor
- 1x 1N4007 rectifier diode
- 1x 16 MHz quartz resonator
- 5x yellow LED
- 2x green LED
- 2x button
- 1x MOSFET
- 1x LDO 3.3 V
- 1x LDO 5V
- 5x 22 pF ceramic capacitor
- 1x 47 nF ceramic capacitor
- 6x 47 uF electrolytic capacitor
- 10x 100 nF polyester capacitor
- 1x ATmega 328p microcontroller socket
- 1x ATmega 328p microcontroller
- 2x I / O connectors
- 1x 6-pin connector
- 1x jack connector
- 1x LM386 audio amplifier
- 4x pin connector
- 6x 10 kΩ potentiometer with plastic knobs
- 5x distance 12 mm
- 11x the distance of 6 mm
- 5x 12 mm screw
- 5x nut
