Product description: Grove - Arduino Sensor Kit - set of 10 modules with BaseShield overlay for Arduino - Seeedstudio 103030375.
The set consisting of10 different sensors and moduleswas created in cooperation withArduinoandSeeedstudio. The modules have been placed on a single board, allowing to keep order, there is no need for additional contact board. The modules on the board have been connected by paths with BaseShield overlay, so there is no need forconnection cables.The modules can be broken out of the board and connected using the included Grove cables with the BaseShield cover.TheGroveconnector allows for quick and easy prototyping without the need for soldering, just connect the module with the appropriate cable with the BaseShield overlay. The set includesonline lessons in English, allowing you to start learning withArduino, electronics and programming. The set consists of 5 sensors, OLED display and actuators.
Arduino Sensor Kit together with Arduino Uno.Arduinomodule can be purchased separately.

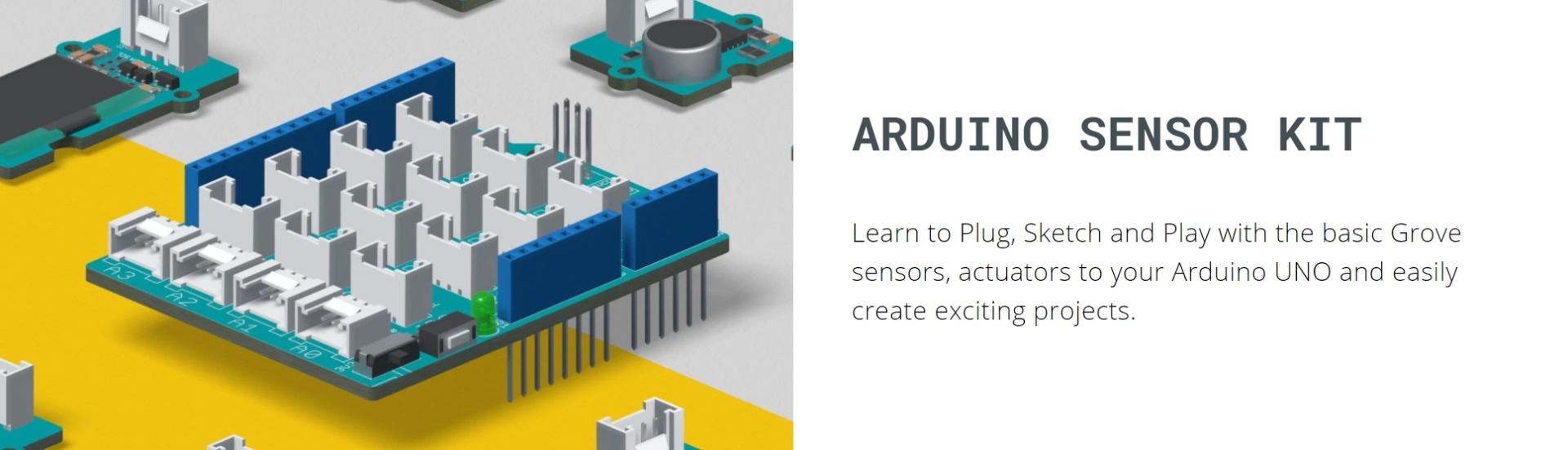

Arduino Sensor Kit
The set includes a BaseShield cap forArduino Uno, which allows you to easily connect modules with Arduino. Arduino Sensor Kit facilitates learning basics of programming and electronics. OnArduinowebsite you can find 10 lessons for each module included in the kit.
The kit is used inthe Biomaker programrun by the University of Cambridge andOpenPlantfor which they create tutorials in the visual programming language XOD.
Arduino Sensor Kit includes
- Grove - LED
- Grove - Buzzer
- Grove - OLED display
- Grove - button
- Grove - rotary potentiometer
- Grove - light sensor
- Grove - sound sensor
- Grove - temperature and humidity sensor
- Grove - pressure sensor
- Grove - 3-axis accelerometer
- Grove cable - 6 pieces.
Contents of the Arduino Sensor Kit.
Specification of Arduino Sensor Kit
| Parameter | Value |
|---|---|
| Supply voltage | 3.3 V or 5 V |
| Digital connectors | 7 (D2, D3, D4, D5, D6, D7, D8) |
| Analogue connectors | 4 (A0, A1, A2, A3) |
| I2C connectors | 4 |
| UART connector | 1 |
| Arduino modules supported | Uno, Leonardo, Zero |
| Dimensions | 175 x 115 x 28 mm |
| Mass | 77 g |
