Product description: Arduino Portenta Proto Kit ME - Motion Environment - prototyping kit - AKX00073
Portenta Proto Kit VE is a kit aimed at engineers and developers who need a solid platform for testing machine vision and environmental monitoring . It consists of Portenta H7 with a dual-core ARM Cortex M7 and M4 processor, Nicla Vision with a built-in camera and a set of sensors for collecting data on movement and environment. The 4G GNSS module provides cloud connectivity, enabling analysis and remote data management. This kit will work in applications such as object recognition, people counting, air quality analysis or industrial automation . Thanks to the modular design and support for the Arduino Cloud platform, you can quickly go from prototype to final product.
Arduino Portenta Proto Kit ME - Motion Environment - prototyping kit - AKX00073.
The Arduino Portenta Proto Kit VE is a comprehensive kit for testing machine vision and environmental monitoring.Main features of the set
- Machine vision and environmental analysis - Nicla Vision with camera enables object recognition and people counting
- Powerful computing power - dual-core ARM Cortex M7 (480 MHz) + M4 (240 MHz) processor in Portenta H7
- Connectivity and Expansion - Supports Ethernet, USB Type-A, microSD, mPCIe, CAN and 4G LTE GNSS
- Smart sensors - modules for measuring movement, temperature, humidity and air quality
- Cloud Integration - Arduino Cloud enables remote data collection and analysis in real time
- Modularity and compatibility - easy expansion with Proto Shield and Qwiic
- Multiple interface support - UART, I2C, SPI, PWM, digital and analog outputs
- Easy programming - support for Arduino IDE, Arduino CLI and Cloud Editor
Compatibility and programming
The Portenta Proto Kit VE is compatible with the Arduino Pro ecosystem, supporting Arduino IDE , Arduino CLI and Cloud Editor . It works with libraries such as Arduino BLE, WiFi, Modulino and BHY2 , facilitating sensor integration and wireless communication. Built-in WiFi, Bluetooth and 4G LTE interfaces enable real-time communication, making this kit an ideal tool for IoT and AI solutions.
At the heart of the kit is the versatile and powerful Portenta H7 microcontroller board.

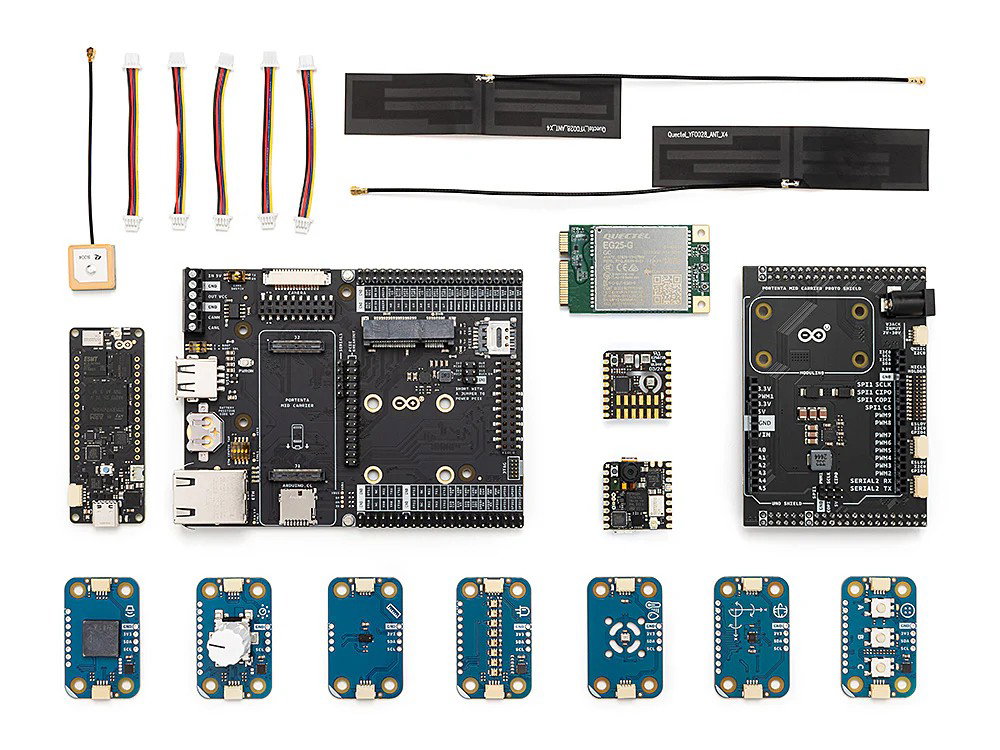

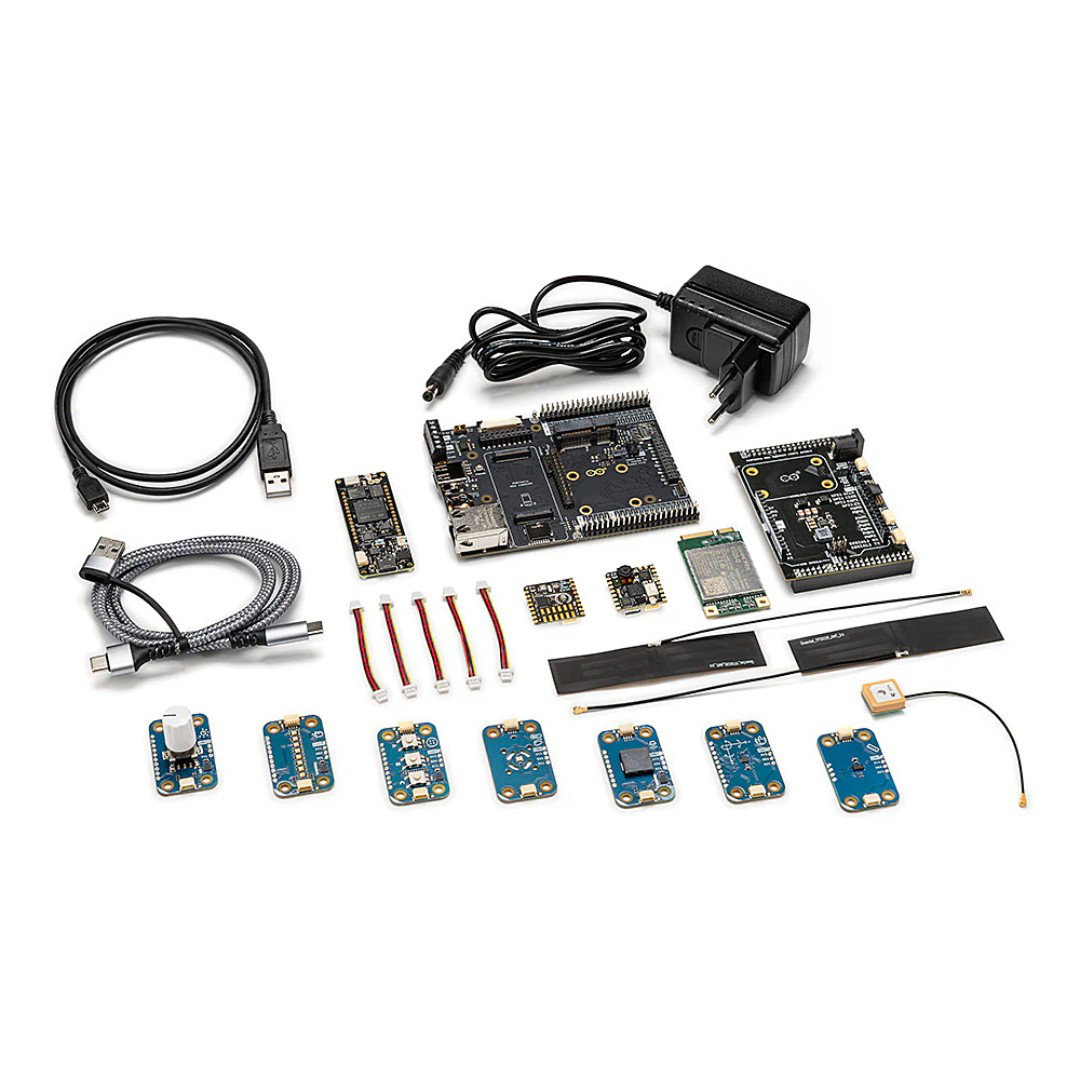

Set components and their functions
- Portenta H7 - a high-performance microcontroller board with dual-core ARM Cortex M7 (480 MHz) and Cortex M4 (240 MHz) processors, enabling simultaneous processing of real-time tasks and high-level applications
- Nicla Vision - a compact board with a built-in camera and additional sensors, designed for object recognition, people counting and environment analysis
- Portenta Mid Carrier - expansion module providing Ethernet, mini PCIe, camera connectors, CAN interface, microSD and 4G connectivity via GNSS module
- Portenta Mid Carrier Proto Shield - an additional board enabling the connection of extensions, including Arduino UNO modules, Qwiic sensors and the ESLOV system
- Modulinos - a set of sensors and actuators that can be easily connected to the Mid Carrier Proto Shield, including encoders, LEDs, distance, motion, temperature and humidity sensors
- Arduino Pro 4G GNSS Module - a module providing global 4G LTE connectivity and GNSS (GPS) functions, enabling data transfer, remote monitoring and real-time notifications
| Arduino Portenta H7 Technical Specification | |
|---|---|
| Microcontroller | STM32H747XI dual Cortex M7 + M4 32bit ARM MCU |
| Wireless communication module | Murata 1DX WiFi 802.11b/g/n 65 Mb/s and Bluetooth 5.1 BR/EDR/LE |
| Cryptographic system | NXP SE0502 |
| Supply voltage (USB/Vin) | 5V |
| Battery powered | Li-Pol 3.7 V, minimum capacity 700 mAh (built-in charger) |
| Pin operating voltage | 3.3V |
| Power consumption | 2.95uA in idle mode |
| Video connector | MIPI DSI host and MIPI D-PHY |
| GPU | Chrom-ART hardware graphics accelerator |
| Counters | 22 counters and watchdogs |
| UART | 4 ports (2 with controllable) |
| Ethernet PHY | 10 / 100 Mbps (available with Portenta Carrier Board) |
| SD card slot | Yes (available with Portenta Carrier Board) |
| Operating temperature |
|
| MKR Connectors | Possibility to use Arduino MKR extensions |
| New connectors | Two 80-pin connectors |
| Camera interface | 8-bit, up to 80 MHz |
| ADC | 3 x ADC with 16-bit maximum resolution (up to 36 channels, up to 3.6 MSPS) |
| TO GIVE | 2 x 12bit DAC (1MHz) |
| USB Type-C port | Host/Device, integrated Display Port, USB High/Full Speed/Power Delivery |
