Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 1

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 2

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 3

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 4

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 5

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 6

Pirate Audio 3W Stereo Amp - 3W Stereo Amp with display - AMP for Raspberry Pi - zdjęcie 7

Pirate Audio 3W Stereo Amp - 3W amplifier with display - AMP for Raspberry Pi - Pimoroni PIM484

Index: PIM-15898 EAN: 606034880702

Ask a question

Remove from wishlist Add to wishlist

Overlay with two DAC chips for the Raspberry Pi minicomputer. The board is equipped with a 3 W stereo audio output, two speaker terminals and a 1.3" colour IPS display. The module also includes buttons to control the player and a mono / stereo switch.

€25.90

€21.06 tax excl.

Check quantity

Manufacturer: PiMoroni

Compatibility: Raspberry Pi

Product Description: Pirate Audio 3W Stereo Amp - 3W stereo amplifier with display - AMP for Raspberry Pi.

Simple to connect and set upPirate Audio Stereo Ampwith3 Wamplifier, supports twospeakers.It can play local MP3, FLAC, etc. files or stream from popular music services such as Spotify. The DAC to AMP connection provides clear24-bit/192 kHzdigital audio through the connected stereo speakers (or mixed mono audio through one channel). Pirate Audio is a series of overlays with high quality digital audio, a clear1.3" IPS 1.3"screen that displays album covers, player control buttons and customPirate Audiosoftware for easy setup.

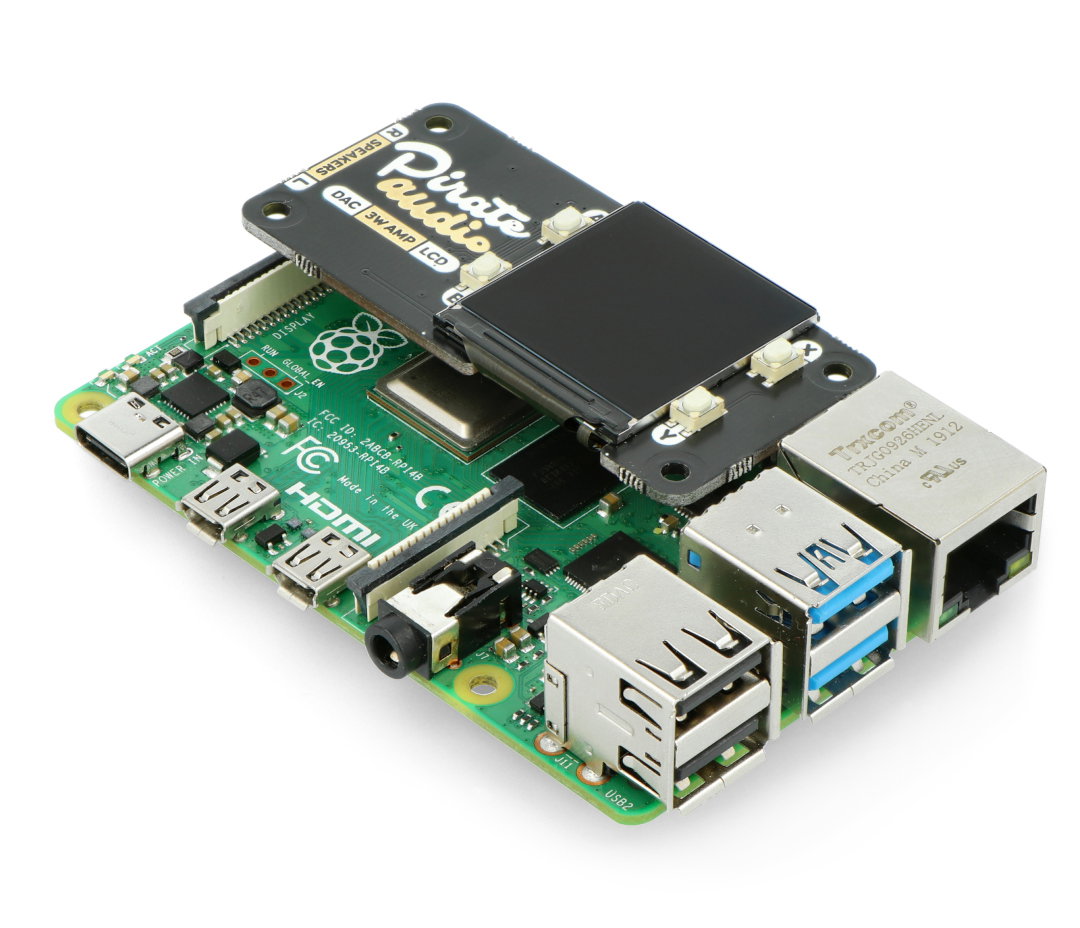

Pirate Audio Stero Amp overlay forRaspberry Pi.

The Pirate Audio Speaker cover plate is available for sale, theRaspberry Piminicomputer can be purchased separately.

Installing the Pirate Audio software

Before connecting the device, you need to upload the Python library for LCD,I2Saudio andSPIconfiguration files, as well as install the Modips and Pirate Audio plug-ins for displaying album covers and track information and configuring buttons to control the player.

How do I get started?

Place the microSD card with the latest version of Raspbian in your Raspberry Pi.
Connect to the network via WiFi or cable.

Open the terminal and enter the following commands:

git clone https://github.com/pimoroni/pirate-audio
cd pirate-audio/mopids
sudo ./install.sh

Reset the raspberry.

Pirate Audio Speaker overlay specification

DAC chip: 2xMAX98357A
Stereo output: 3 W (per channel)
Connectors: 2x speaker terminal
Switch: stereo / mixed-down mono
Display: IPS 1.3" 240 x 240 px
Display controller: ST7789
4 buttons
Tile format: mini HAT
Fully assembled
Compatible with Raspberry Pi
Dimensions: 65 x 30.5 x 9.5 mm

Useful links

‌

Screen - type	LCD IPS
Screen - diagonal	1.3''
Screen - interface	SPI
Screen - touch	no
Screen - resolution	240x240px
Sound card - type	AMP
Sound card - Connectors	screw ARK
Sound card - output	digital
Package width	6.1 cm
Package height	9.6 cm
Package depth	0.6 cm
Package weight	0.016 kg
