Raspberry Pi DAC Pro - sound card for Raspberry Pi 4B/3B+/3B

Index: RPI-18616

Raspberry Pi DAC Pro is based on a Burr Brown PCM5242 32-bit / 384 kHz converter , allowing for Full HD 24-bit / 192 kHz audio playback. The module is equipped with two RCA connectors, a mini jack connector and supports a balanced / differential output for XLR. The communication overlay uses an I2S interface to reduce the load on the Raspberry Pi processor. IQaudIO has been taken over by the Raspberry Pi Foundation, providing ongoing support to Raspberry Pi users.

Raspberry Pi DAC Pro - sound card for Raspberry Pi 4B/3B+/3B
€30.50
€24.80 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Raspberry Pi
Compatibility: Raspberry Pi

Product description: Raspberry Pi DAC Pro - sound card for Raspberry Pi 4B/3B+/3B

Raspberry Pi DAC Pro is based on aBurr Brown PCM5242 32-bit / 384 kHzconverter,allowing forFull HD 24-bit / 192 kHzaudio playback. The PCM5242 is the bigger brother of the PCM5122, which was used in theIQaudIO DAC+, providing a balanced output, better signal-to-noise ratio and THD. The module is equipped with two RCA connectors, a mini jack connector and supportsa balanced / differential output for XLR. The communication overlay uses anI2Sinterface to reduce the load on the Raspberry Pi processor. IQaudIO has been taken over by the Raspberry Pi Foundation, providing ongoing support toRaspberry Piusers.

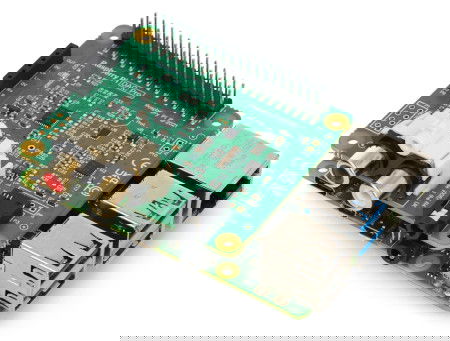

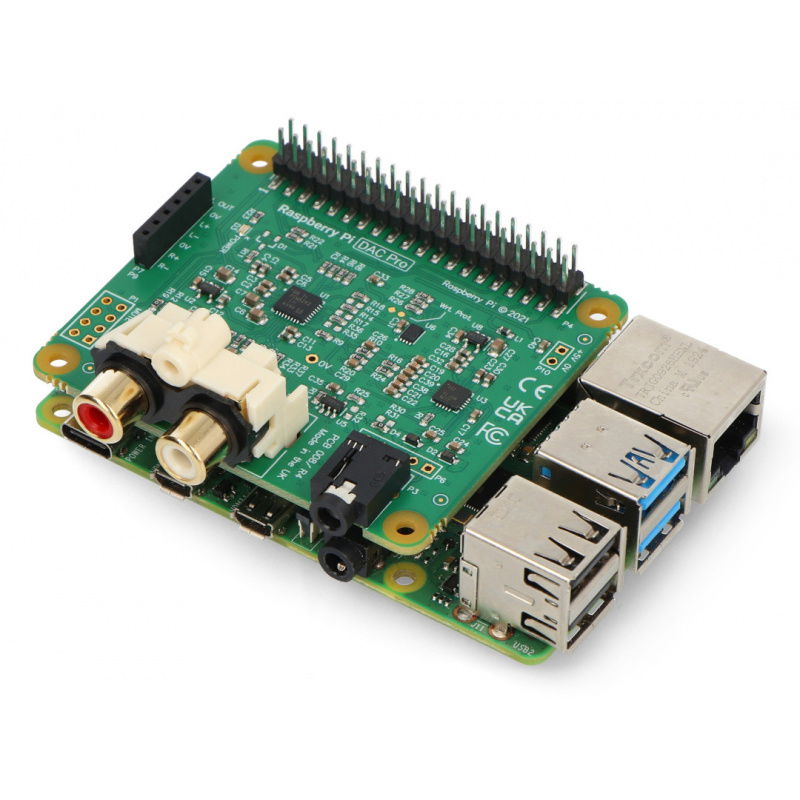

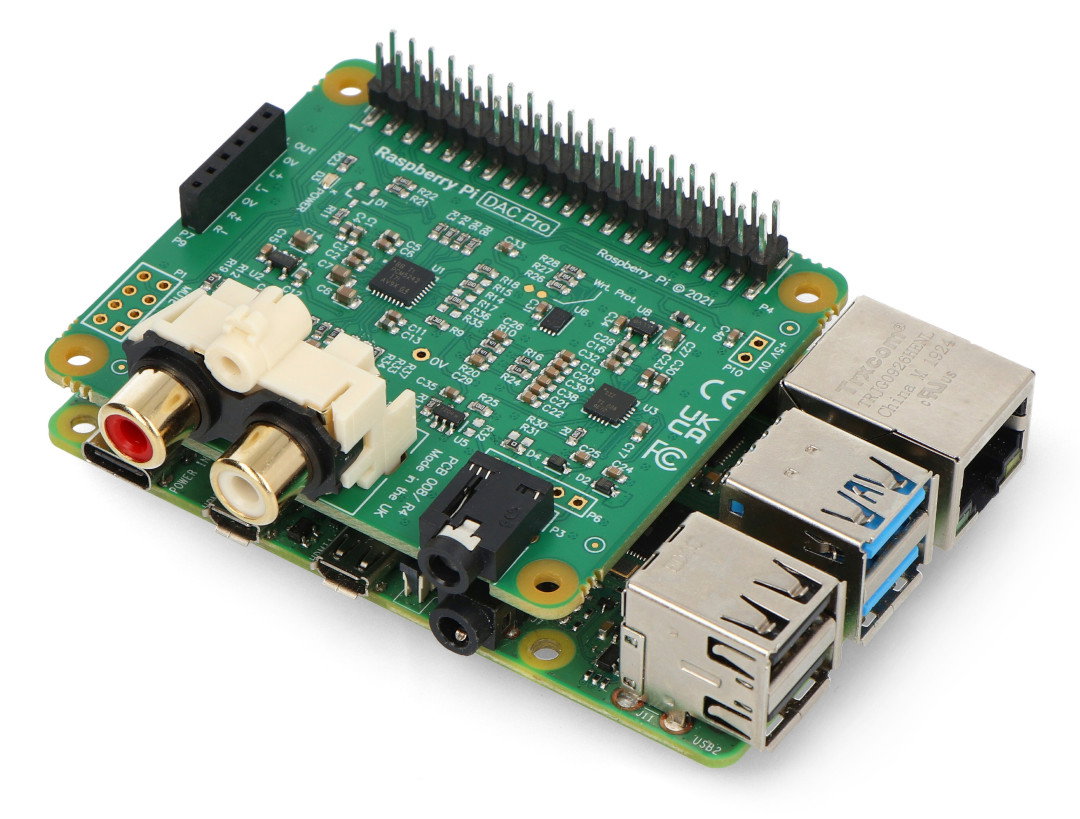

Nakładka IQaudIO DAC Pro dla Raspberry PiRaspberry Pi DAC Pro overlay for Raspberry Pi.
The IQaudIO DAC Pro is sold as an overlay,Raspberry Piminicomputer can be purchased separately.

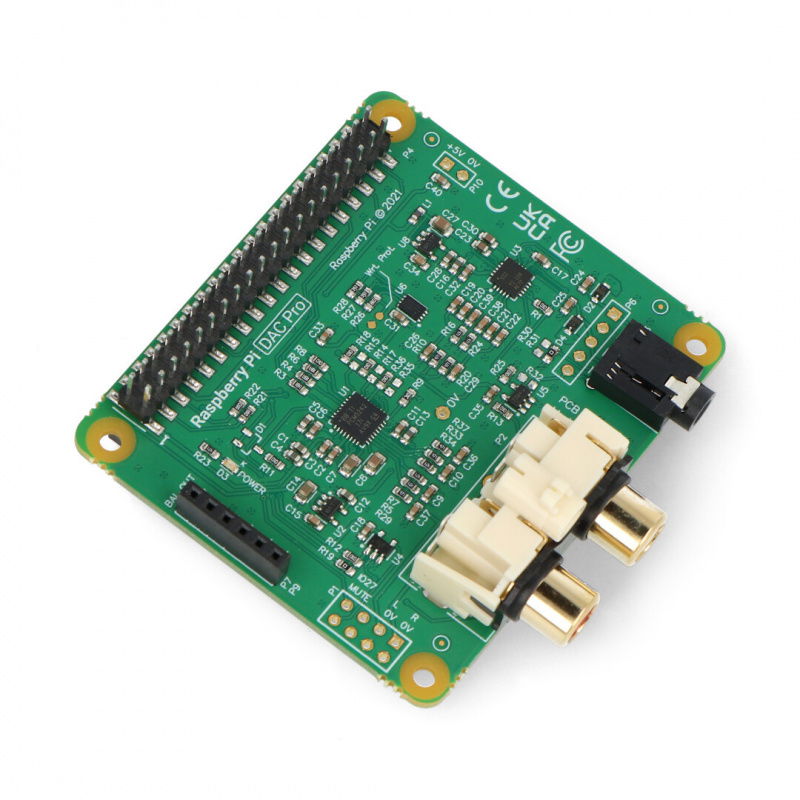

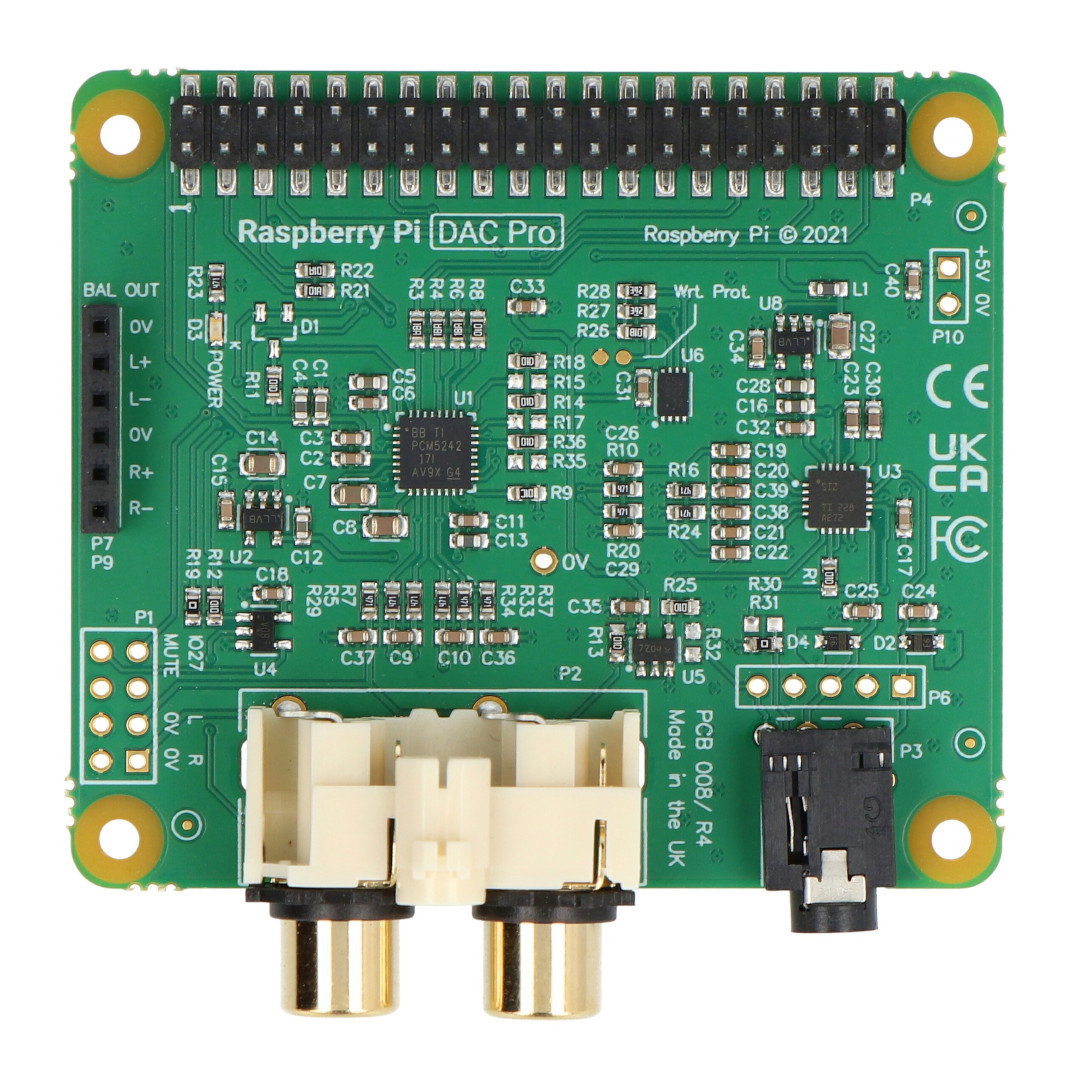

Karta dźwiękowa IQaudIO DAC Pro IQaudIO DAC Pro sound card.

DAC Pro is equipped with a headphone amplifier, the volume is programmed and shared with the line output. The XLR goldpin connector allows for connection to studio equipment or speakers powered by a longer cable.

The board has goldpin soldered in, allowing you to connect additional accessories to GPIO Raspberry Pi.
The drivers required for the sound card to work properly are built into the Linux system, including the Raspberry Pi OS.

The main features of the Raspberry Pi DAC Pro cover plate

  • HAT compliant
  • Full HD 24-bit/192 kHz audio support
  • Integrated volume control (ALSA)
  • Built-in high quality headphone amplifier (TI TPA6133A)
  • High quality sound: SNR 114 db and THD -94 db
  • Burr Brown 32-bit / 384 kHz DAC (TI PCM5242)
  • ESD security
  • Communication via I2S interface to reduce load on Raspberry Pi processor
  • Powered by Raspberry Pi, no additional power supply required
  • Two Phono / RCA connectors
  • JST pins for balanced XLR output (not supplied)
  • Mini DSP
  • For connection to the AMP+, 2x5 pins are required

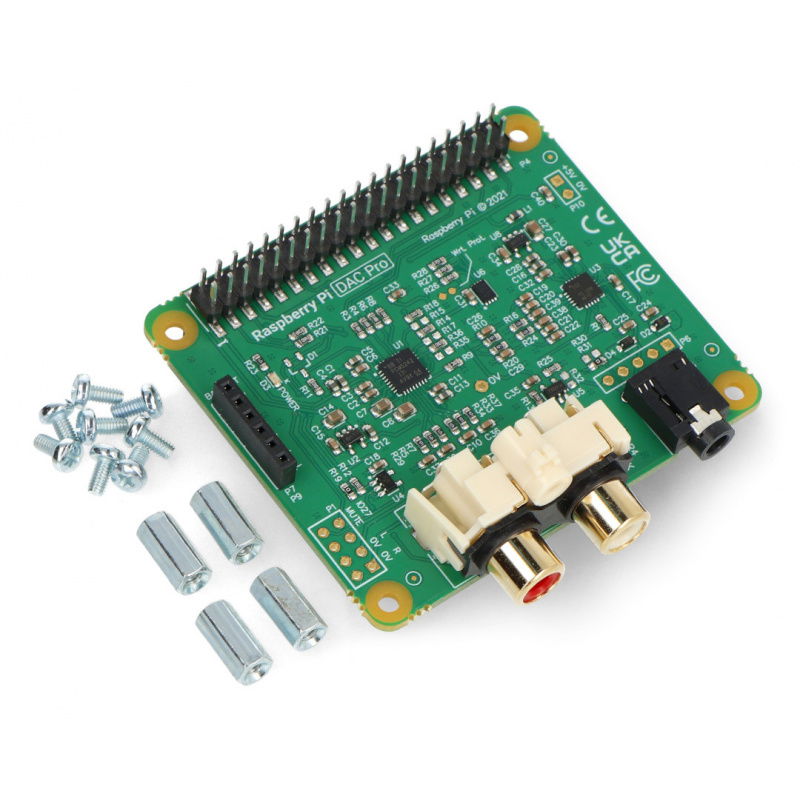

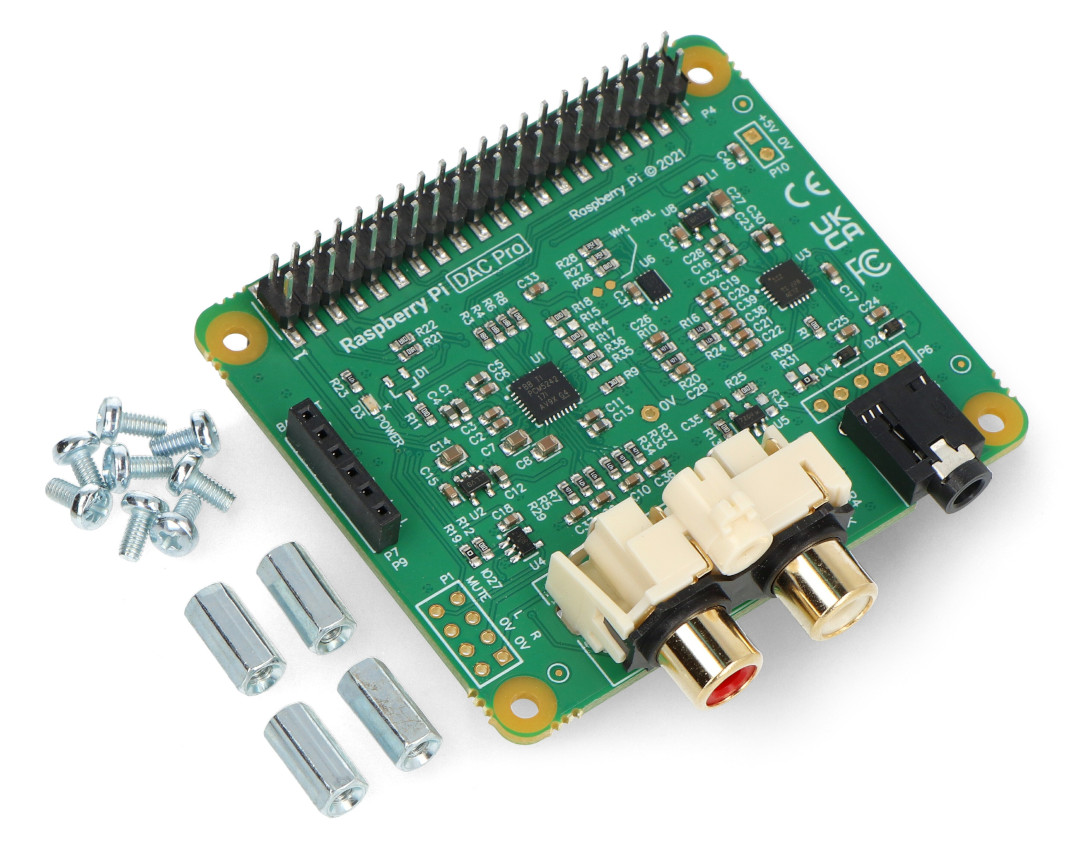

Zawartość zestawu IQaudIO DAC Pro Contents of the Raspberry Pi DAC Pro.
Sound card - access to GPIO yes
Sound card - type DAC
Sound card - oscillators Raspberry Pi clock
Sound card - Chipset Burr-Brown
Sound card - Connectors 2x RCA
Sound card - output analog Line out
Package width 9 cm
Package height 2 cm
Package depth 8 cm
Package weight 0.039 kg

Grzegorz

02/01/23

Question: Will the Raspberry Pi DAC Pro card fit into the Raspberry Pi 2 Model B? According to the documentation I found online for the IQaudio DAC PRO, which is the same product before the rebranding, it should fit.... but there is no information about it in the description.
Answer: The card is also compatible with the Raspberry Pi 2B.
wojtek

02/08/21

Question: Hello, what do you think. Will this card work with raspberry pi ZERO ?
Answer: The card works with any 40-pin version of the Raspberry Pi.
