Product description: HiFiBerry DAC2 ADC Pro - sound card for Raspberry Pi
HiFiBerry DAC2 ADC Pro is a versatile sound card designed for Raspberry Pi users who expect the highest quality sound during both playback and recording. Equipped with Burr-Brown 192 kHz/24 bit converters, it offers pristine sound with minimal noise. It supports both balanced (XLR/TRS) and unbalanced (RCA) inputs, making it ideal for professional audio applications, studio recordings and streaming. Additionally, built-in voltage regulators and low jitter ensure stable and precise audio processing. The module mounts directly to the Raspberry Pi without the need for soldering, and its HAT compatibility allows for automatic configuration. It is an ideal choice for audiophiles, music producers and sound engineers.
HiFiBerry DAC2 ADC Pro - sound card for Raspberry Pi.
The sale includes the HiFiBerry shield, the Raspberry Pi minicomputer can be purchased separately.Key Features of the HiFiBerry DAC2 ADC Pro Sound Card
- High-end DAC and ADC : Burr-Brown 192 kHz/24 bit converters ensure the highest sound quality
- Support for balanced and unbalanced inputs : ability to connect microphones and audio devices with different signal standards
- HiFiBerry DSP Support : Compatible with optional DSP module for signal processing
- Input and output level adjustment : volume and input sensitivity can be adjusted via ALSA Mixer
- HAT assembly : direct connection to Raspberry Pi without the need for soldering
- Low power consumption : power consumption less than 0.3 W without additional power supply
- Three linear voltage regulators : minimize distortion for better sound quality
- Wide compatibility : works with all Raspberry Pi models with 40-pin GPIO

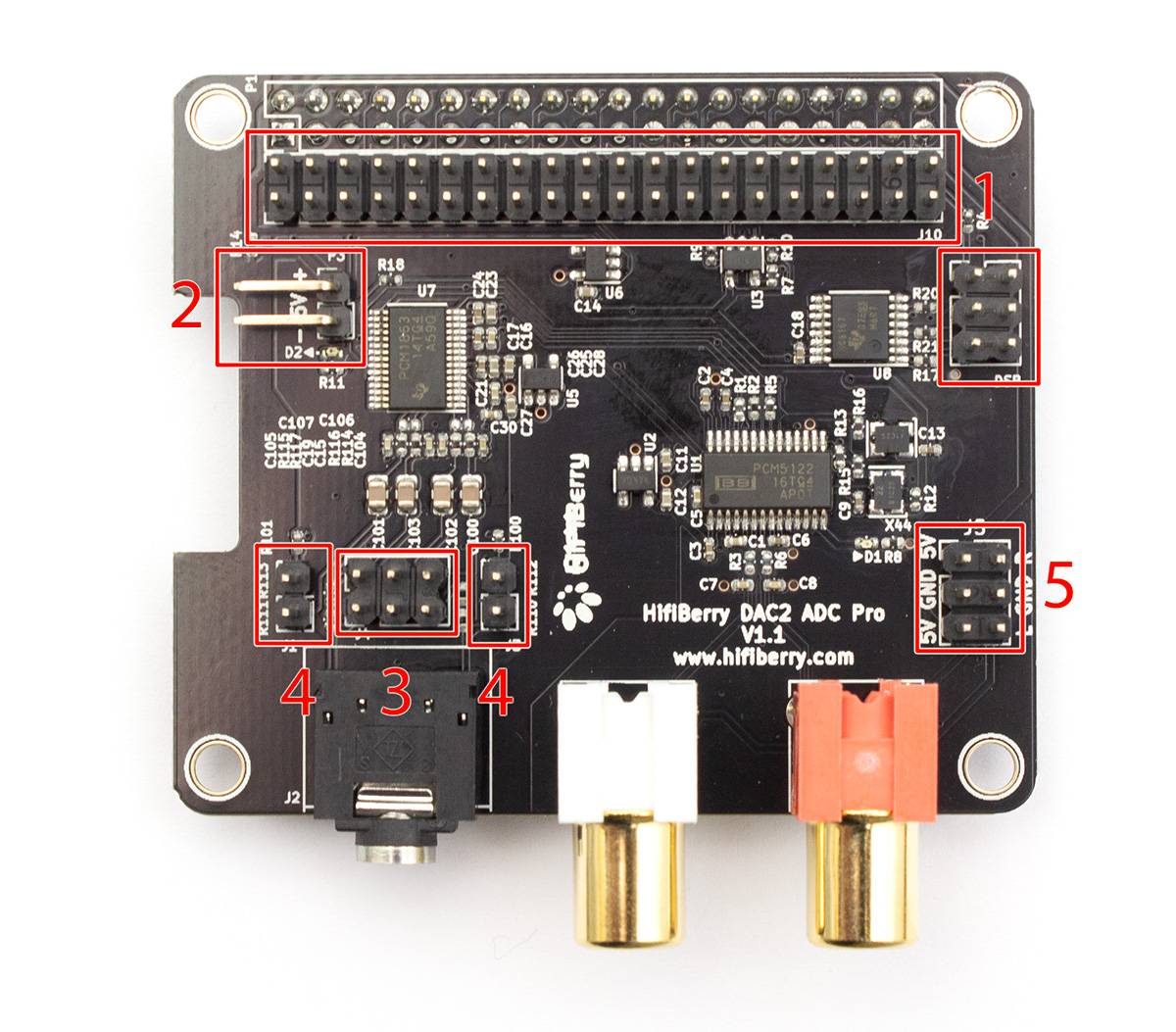

Arrangement of components on the board
- DSP connector - connector for connecting an optional DSP module
- 5V power supply - power draw directly from Raspberry Pi
- Input connector - supports balanced (XLR/TRS) and unbalanced (RCA) inputs
- Microphone Bias Jumper - Activates bias voltage for electret microphones
- Analog output - gold-plated RCA connectors for connecting amplifiers or active speakers
Connectors and jumpers on the board.

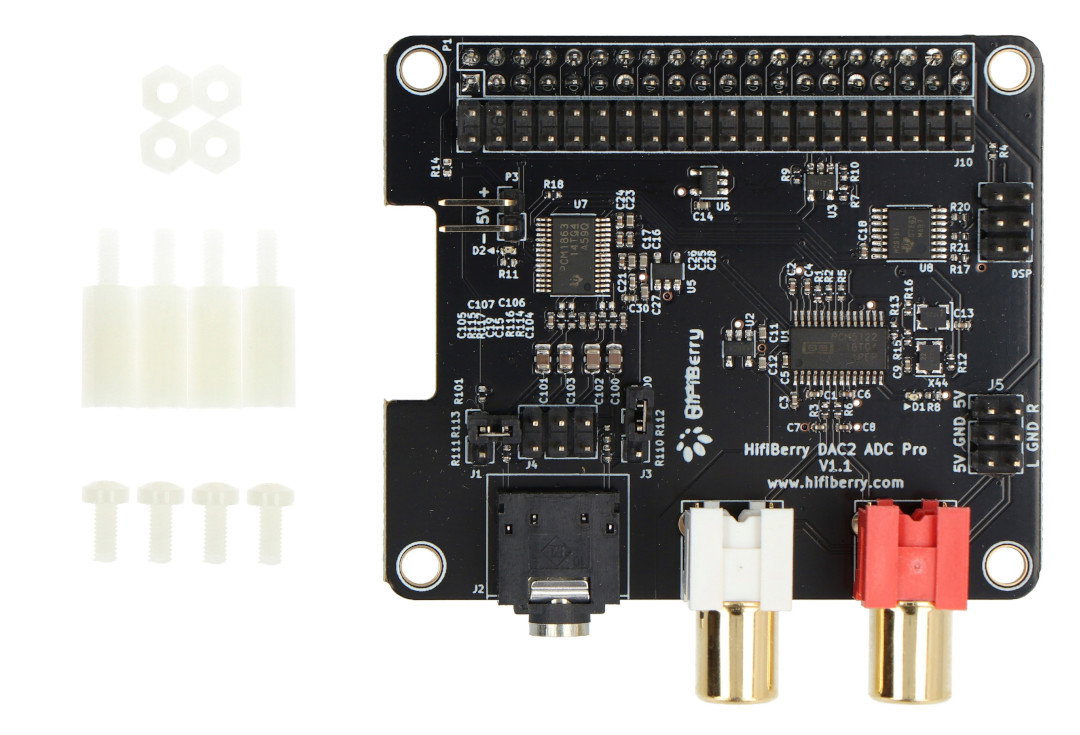

Items included in the set.
HiFiBerry DAC2 ADC Pro Technical Specification
- Inputs: stereo, balanced and unbalanced
- Outputs: stereo RCA
- DAC: Burr-Brown 192 kHz/24 bit, SNR 112 dB, THD+N -93 dB
- ADC: Burr-Brown 192 kHz/24 bit, SNR 110 dB, THD+N -90 dB
- Frequency range: 10 Hz to 70 kHz (-3 dB)
- Input level: 2.1 Vrms (4.2 Vrms for balanced input)
- Output level: 2.1Vrms
- Gain control: -12 dB to 32 dB
- Power consumption: <0.3 W
- Sample rates: 44.1 kHz to 192 kHz
- Connectors: 2x gold-plated RCA, 1x Jack 3.5 mm
- Compatibility: All Raspberry Pi with 40-pin GPIO
- Power: directly from Raspberry Pi
- Mount: HAT, EEPROM compatible for auto configuration
Contents of the set
- 1x HiFiBerry DAC2 ADC Pro
- 4x M2.5 x 12mm spacers for mounting on Raspberry Pi
