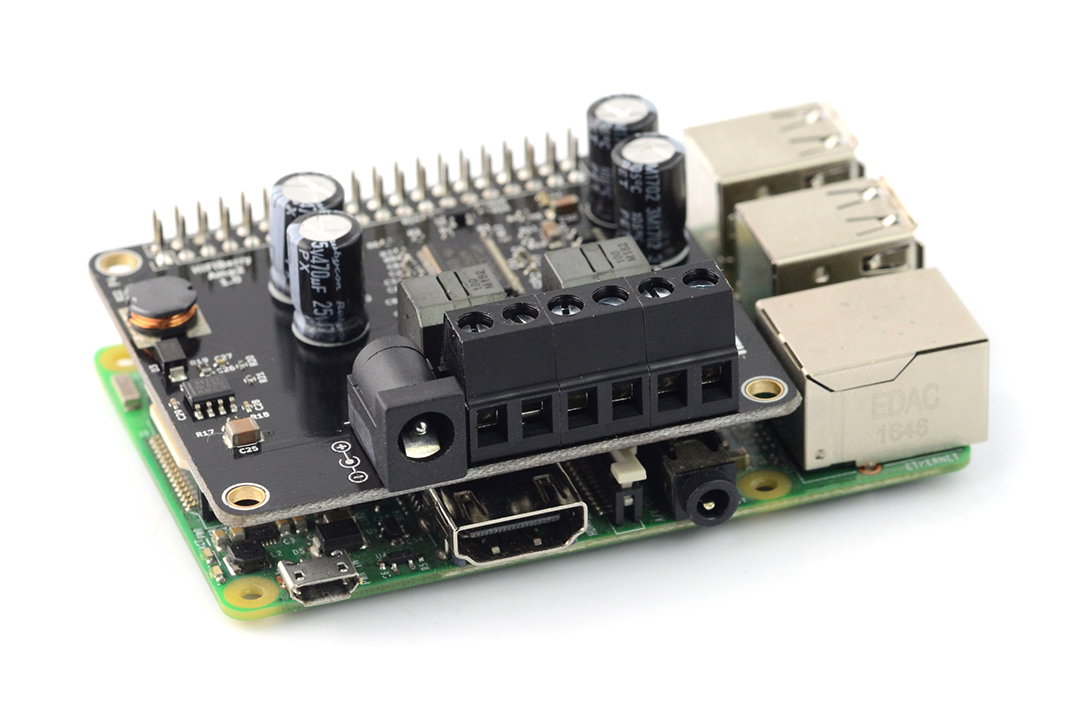

HiFiBerry Amp2 amplifier of class D 60 W for Raspberry Pi 4B/3B+/3B/2/B+/A+
Cap type Hat for Raspberry version 4B, 3B+, 3B, 2B, A+, B with a built-in class D amplifier with power of 60 W. The device supports speakers with an impedance of 4 Ω to 8 Ω, runs at a rate from 44.1 kHz to 192 kHz requires an external power source with voltage range from 12 V to 24 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Cap type Hat for Raspberry version 4B, 3B+, 3B, 2B, A+, B+, Zero with a built-in class D amplifier with power of 60 W. The device supports speakers with an impedance of 4 Ω to 8 Ω, runs at a rate from 44.1 kHz to 192 kHz requires an external power source with voltage range from 12 V to 24 V.
The device has a connector suitable for GPIO pinsRaspberry Pi version 4B, 3B+, 3B, 2B, A+, B+, Zero. Minicomputer must be purchased separately.
Key features
- Power output is 60 W.
- Works with speakers with an impedance of 4 Ω to 8 Ω that should be connected to the bolted connections of the type ARK.
- Supports sample rates up to 192 kHz.
- Board has special connectors for the GPIO of the Raspberry Pi, to connect it, any extra wires or adapters are not needed. Works with minicomputere in version 4B, 3B+, 3B, 2B, A+, B+, Zero.
- Because of the large output power, itrequires an external power source with voltage from 12 V to 24 V, which should be connected to the DC connector.
- Built-in stabilizer enables powering the Raspberry Pi.
- The device works withthe Raspberry version 4B, 3B+, 3B, 2B, A+, B+, Zero.
- Included mounting distances.
- The weight of the tile is 40 g and the size are 65 x 55 x 15 mm.
Detailed description you can find onthe website of the manufacturer. |
The configuration program HiFiBerry is very simple and intuitive.
Connection
HiFiBerry installation is very simple, you just need to insert a memory card into the reader of the computer, then runthe configuration programand select the appropriate plate and the operating system. The app will automatically install the operating system with appropriate driver. After passing the card to the Raspberry Pi, HiFiberry board will already be properly configured.
Description of the installation for a finished operating system can be found atthis address, the list of supported systems is available onthe website of the manufacturer.
Video
Film for easy selection of a suitable version of the HiFiBerry.
Online you can find the systemMax2Playfor HiFiBerry which allows you to create configuration of multiroom using several models of the Raspberry. More information on blogMalinowePi. |
Useful links
- The website of the manufacturer HiFiBerry AMP2
- Setup system for HiFiBerry
- Technical documentation
- Installation instructions on finished operating system
- System Max2Play
- Music player HiFi
- System Max2Play review on the blog MalinowePi
- The list of supported systems
- A sample project - dobreprogramy.pl
- The HiFiBerry Forum
- Operating systems for Raspberry Pi from HiFiberry
- RoHS Certificate
| Name | Value |
|---|---|
| Sound card - type | AMP |
| Sound card - oscillators | Raspberry Pi clock |
| Sound card - Chipset | Texas Instruments |
| Sound card - Connectors | screw ARK |
| Sound card - output | analog 30W |
| Width | 7 cm |
| Height | 2.5 cm |
| Depth | 9 cm |
| Weight | 0.053 kg |
