Description

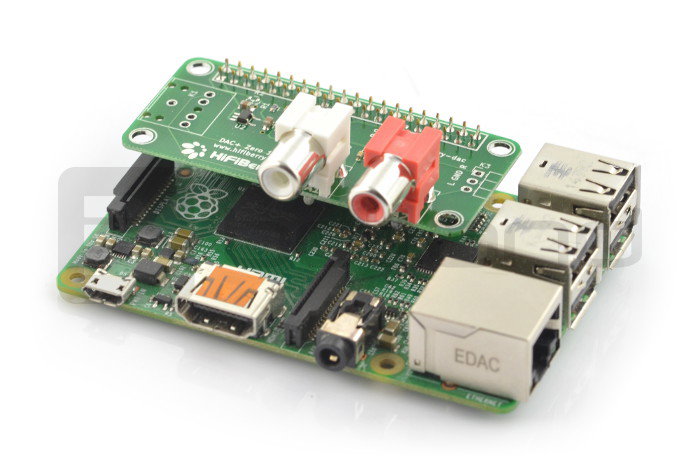

Shield, type Hat for Raspberry, version 4B, 3B+, 3B, 2B, A+, B, Zero with RCA connectors. It is used in the device, the converter of quality ESS DAC has a resolution of 24-bits, it runs at a frequency of 192 kHz. Unlike theHiFiBerry board, theDAC+ standard does not have the hardware sound volume controller and built-in EEPROM memory.
The device is intended forRaspberry Pi Zero, but it also works with larger versions.
Key features
- Built-in two RCA slots.
- High quality ESS DAC Converter is compatible with a resolution of 24 bit and speed up to 192 kHz.
- Board has special connectors for the GPIO of the Raspberry Pi, to connect it, you don't need any extra wires or adapters. It works with minicomputer in version 4B, 3B+, 3B, 2B, A+, B, Zero.
- The device is powered with a Raspberry Pi, it does not require additional power supply.
- The device works withthe Raspberry, version 4B, 3B+, 3B, 2B, A+, B, Zero
- The weight of the baord is 20 g, size - 30 x 65 x 10 mm.
|
Detailed description can be found onthe website of the manufacturer. |
The introduction of modules from the series HiFiberry.
Connection
HiFiBerry installation is very simple, you just need to insert a memory card into the card reader of the computer, then run the configuration program and select the appropriate board and the operating system. The app will automatically install the operating system with appropriate driver. After transfering the card to Raspberry Pi, HiFiberry board will already be properly configured.
Description of the installation for a finished operating system can be found at this address, the list of supported systems is available on the website of the manufacturer.

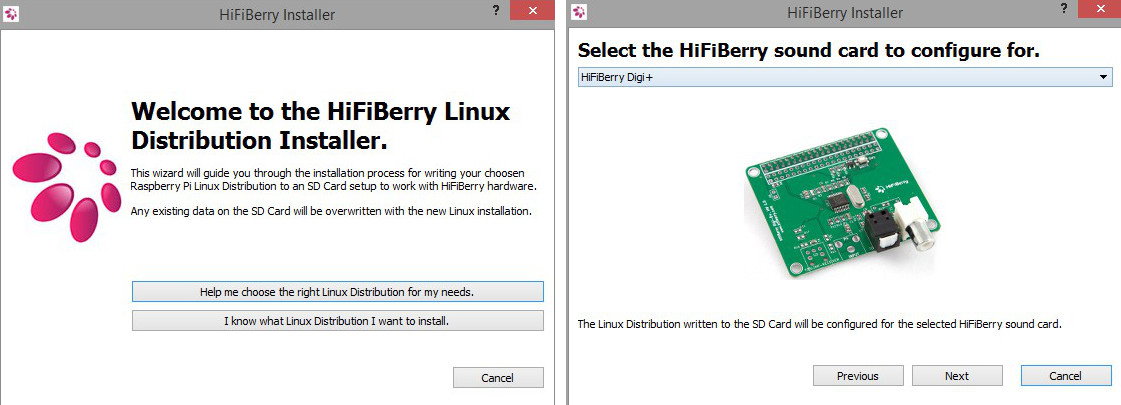

The configuration program HiFiBerryis very simple and intuitive.
Video
Video facilitating the selection of a right version of the HiFiBerry.
|
Online, you can find the system Max2Play for HiFiBerry which allows you to create configuration multiroom, using several models of the Raspberry. More information on blog MalinowePi. |
