- New

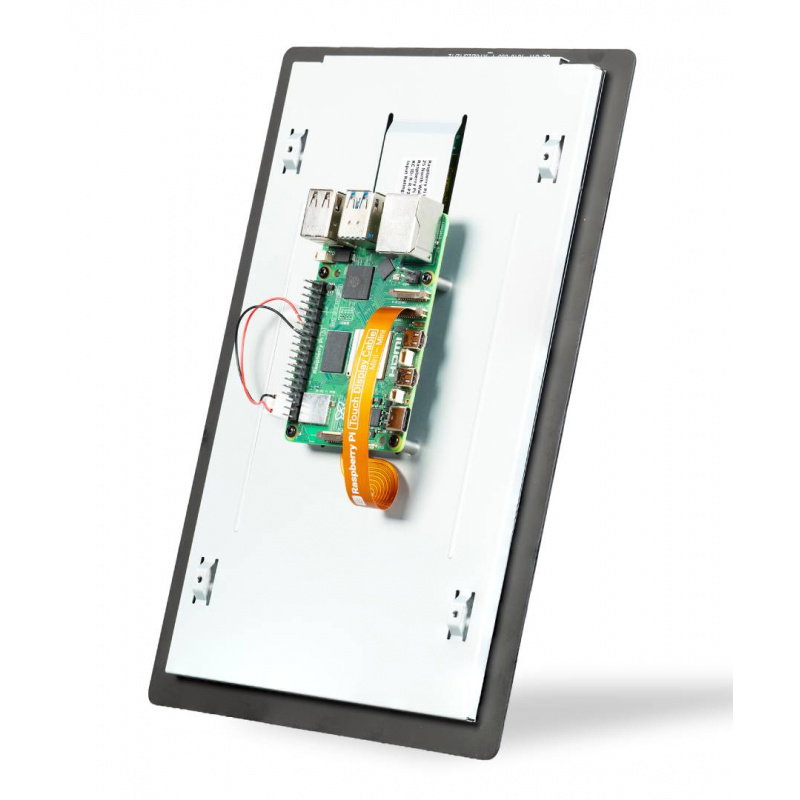

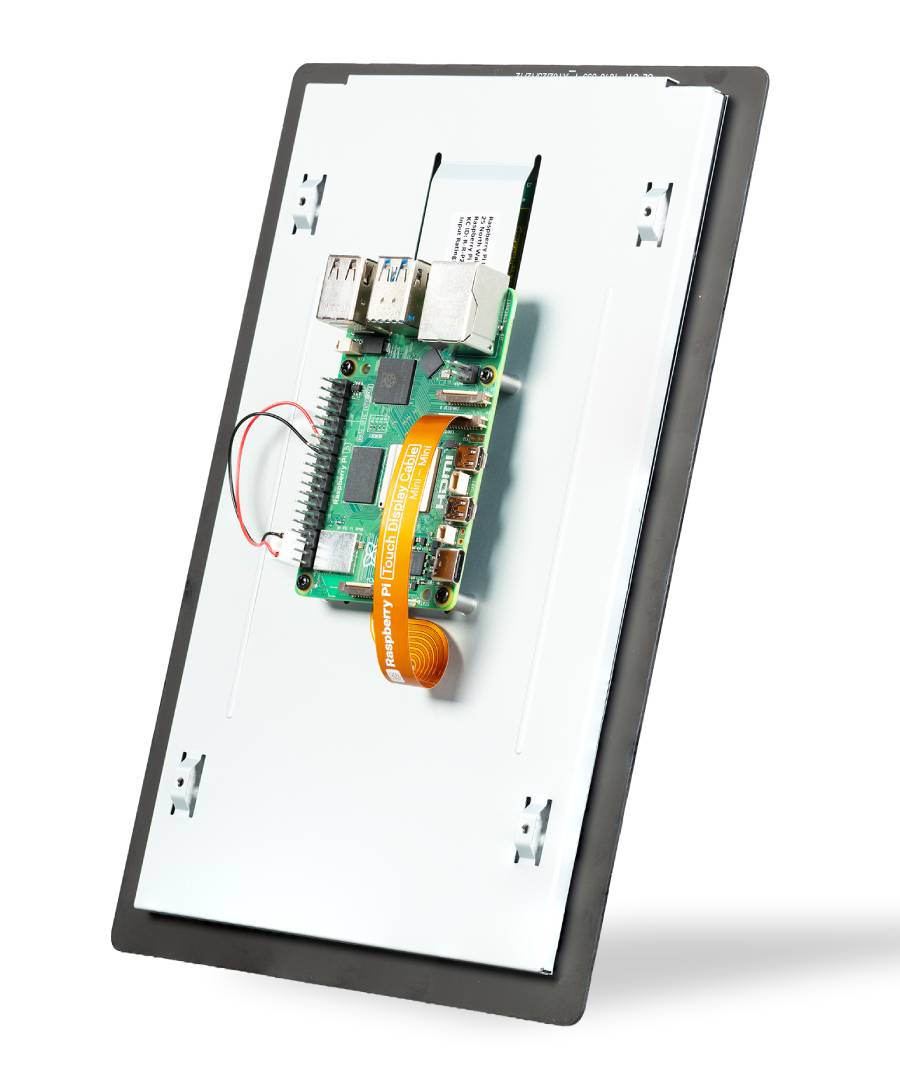

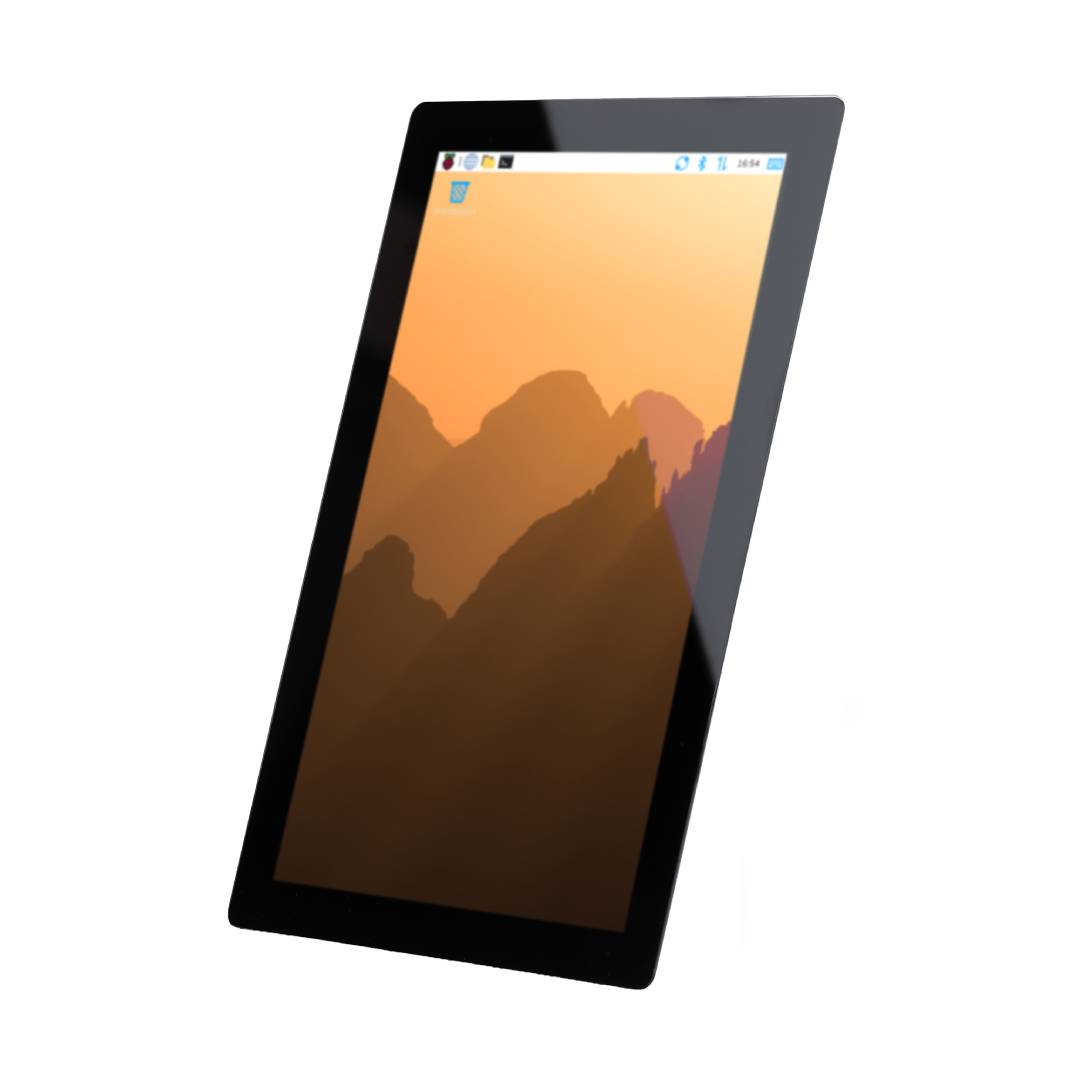

Product description: Raspberry Pi Touch Display 2 Portrait - 10.1'' 1200 x 1920 px capacitive DSI touchscreen for Raspberry Pi
The Raspberry Pi Touch Display Portrait is a modern touchscreen display designed for control systems, industrial automation, and interactive devices using the Raspberry Pi platform. The 10.1" screen with a resolution of 1200 x 1920 px works natively in portrait orientation , making it well-suited for building operator panels, information terminals, and user interfaces. The capacitive multi-touch panel recognizes the touch of up to ten fingers simultaneously , enabling convenient gesture support and extensive applications. The active display area measures 135.36 x 216.576 mm , and 24-bit RGB allows for a wide color gamut . The model is compatible with the Raspberry Pi 5 and all Raspberry Pi Compute Modules .
Raspberry Pi Touch Display 2 Portrait - 10.1'' 1200 x 1920 px capacitive DSI touchscreen for Raspberry Pi.
Touch Display 2 is compatible with Raspberry Pi 5 and Raspberry Pi Compute Module.
Main features of the Raspberry Pi Touch Display 2
- 10.1" screen : large workspace for easy presentation of complex interfaces, charts and controls
- 1200 x 1920 px resolution : vertical, high-detail image allows for clear display of text, icons and process data
- Native portrait orientation : Designed for portrait-mount terminals, control panels, and systems
- Capacitive multi-touch panel : support for up to ten fingers simultaneously, enabling gestures and multi-touch interfaces
- 24-bit RGB palette : provides the ability to display a wide range of colors
- 85° viewing angle : makes it easier to read information even when looking at the screen at an angle
- Active area 135.36 x 216.576 mm : large display space allows you to create functional and clear user interfaces
- Compatibility with Raspberry Pi 5 : the screen can be used in projects based on the latest generation of the Raspberry Pi minicomputer
- Raspberry Pi Compute Module Support : Works with all Compute Modules, making it easy to use the display in industrial equipment and OEM solutions
- Slim design : 8 mm thick without spacers makes it easy to install the screen in the device housing
Raspberry Pi Touchscreen Applications
Raspberry Pi Touch Display 2 can act as an operator interface in industrial automation systems, machine controllers and monitoring installations . The large screen and multi-touch support allow you to create clear HMI panels equipped with on-screen buttons, sliders, graphs, and diagnostic messages. The display is also suitable for information terminals, reservation systems, self-service points, and digital data boards . The vertical orientation facilitates the display of lists, schedules, instructions, and applications resembling a smartphone or tablet interface. The model can also be used in smart home solutions, multimedia controllers, educational systems, and electronic device prototypes . Compatibility with Raspberry Pi 5 and Compute Modules allows you to tailor the computing platform to hobbyist, professional, and industrial applications.
The official Raspberry Pi touchscreen.
| Raspberry Pi Touch Display 2 Portrait Specifications | |
|---|---|
| LCD type | TFT |
| Display size | 10'' |
| Resolution | 1200 x 1920 px |
| Active field | 135.36 x 216.576 mm |
| Viewing angle | 85° |
| Screen type | Capacitive panel with multi-touch function |
| Matrix | Anti-reflective |
| Number of supported touch points | 10 points |
| Color palette | 24-bit RGB |
| Communication | DSI |
| Dimensions | 248 x 167 x 8 mm |
| Mass | 482 g |
