Product description: Adapter for CM-DSI displays - for Raspberry Pi - Waveshare 19134

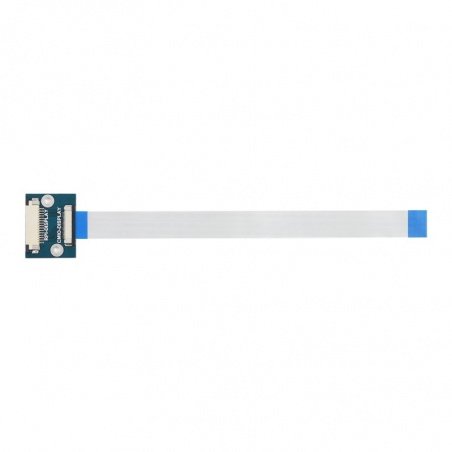

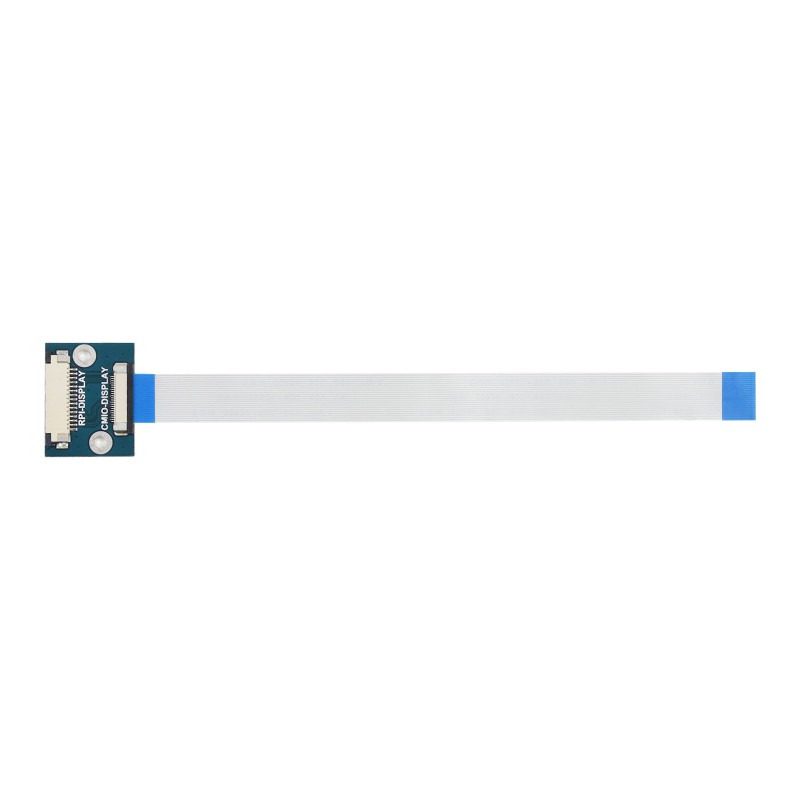

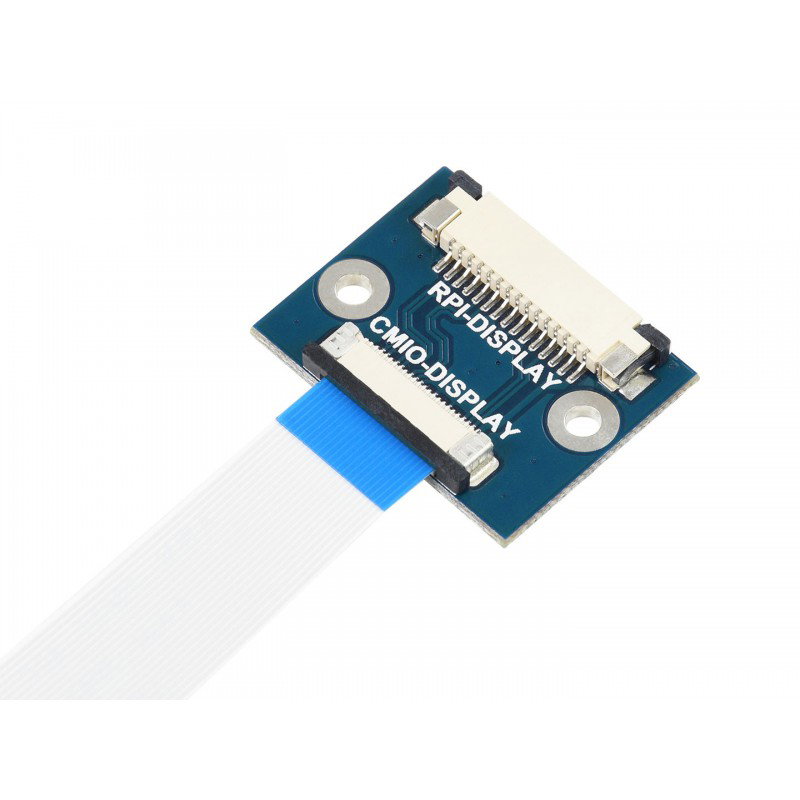

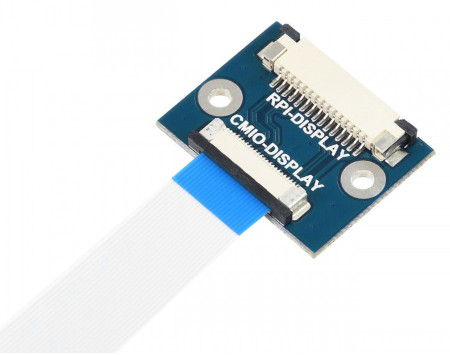

Adapterproduced by Waveshare company. It allows you to connectan LCD displayto a Raspberry Pi minicomputer in any available version. The kit includesan adapter, with leads for22 pinsand15 pins, and an FPC cable.
Product is compatible with Raspberry Pi
Graphical instructions for connecting the adapter with the Raspberry Pi 4B minicomputer are available on the manufacturer's website.
Technical specifications of the adapter from Waveshare
- Module: adapter for DSI displays
- Compatible with Raspberry Pi

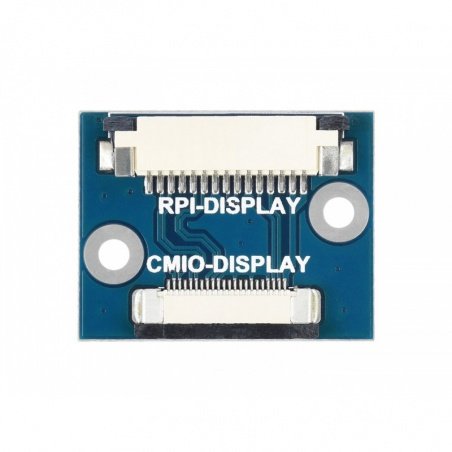

- The adapter has pinouts:
- CMIO-DISPLAY - 22 pins
- RPI-DISPLAY - 15 pins

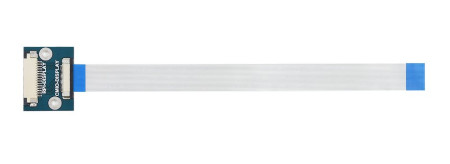

- External dimensions of the adapter: 27 x 21 mm
